SN74LVC74AMDREP - Texas Instruments
Lvc/lcx/z Series Dual Positive Edge Triggered D Flip-flop Complementary Output PDSO14
Technical Details
| Case/Package | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 150MHz |
| Height | 0m |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type |
| Low Level Output Current | 24mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 14 |
| Packaging | Digi-Reel® |
| Polarity | Non-Inverting |
| Propagation Delay | 6ns |
| RoHS | Compliant |
| Thickness | 1.58mm |
| Turn-On Delay Time | 1ns |
| Weight | 122.413241mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed

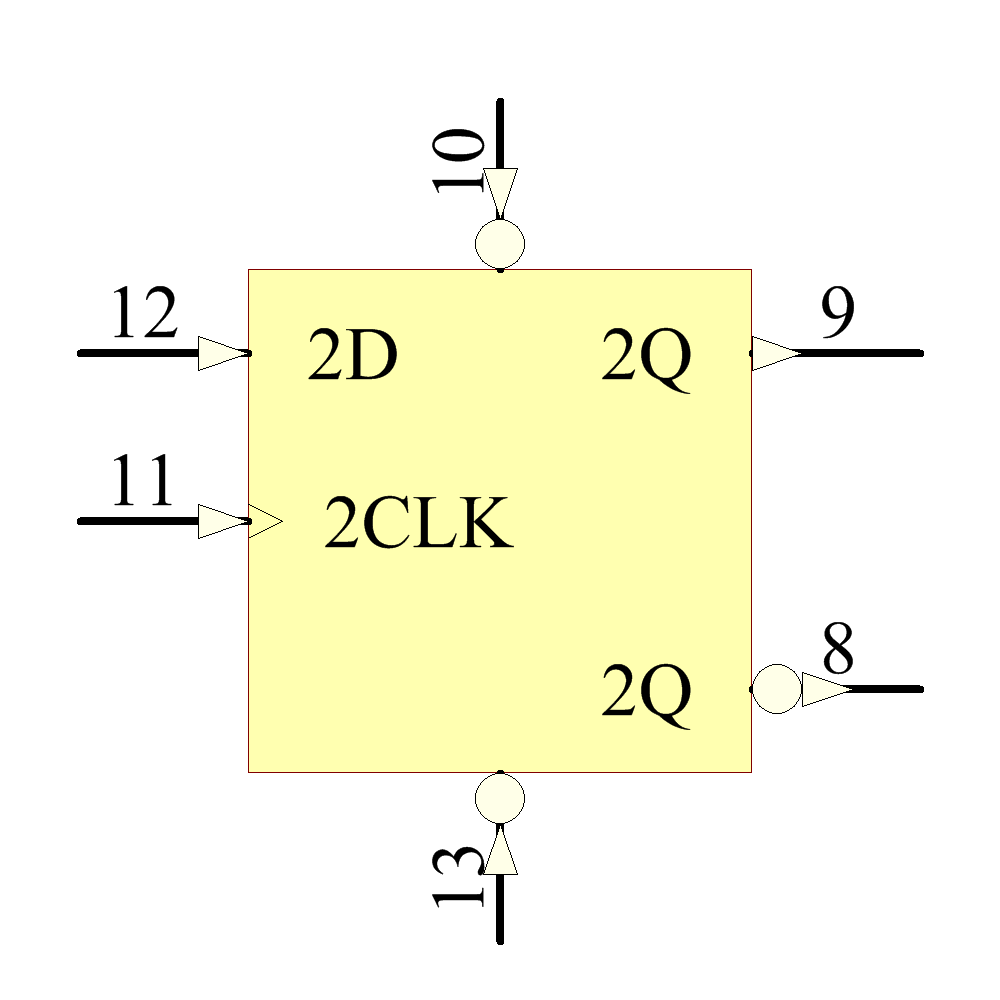

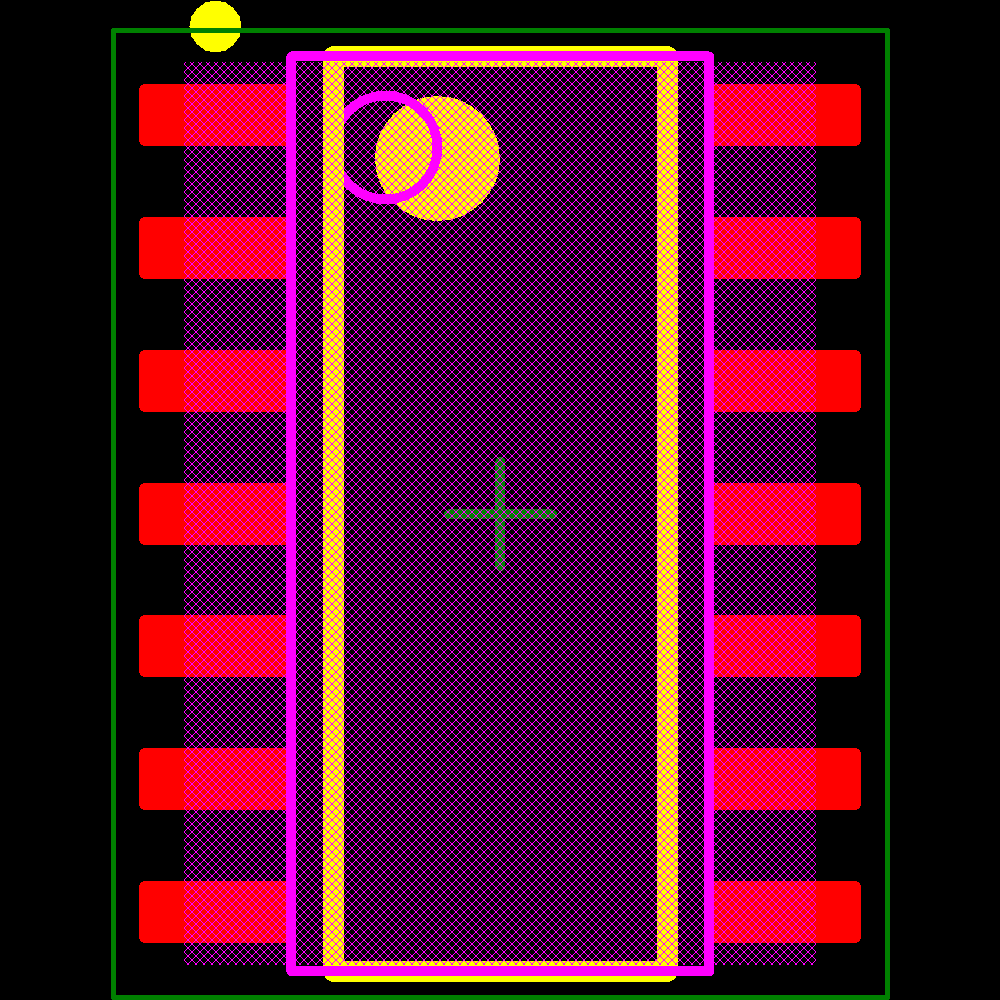

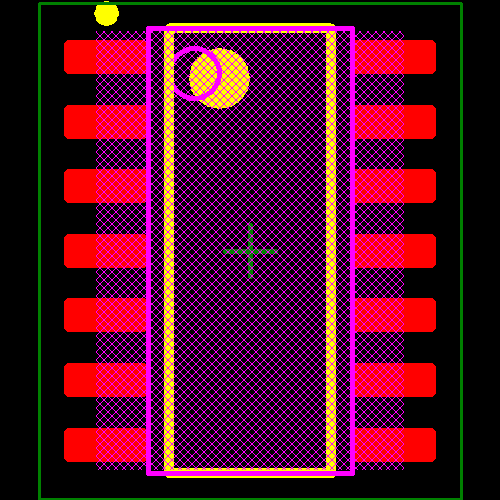

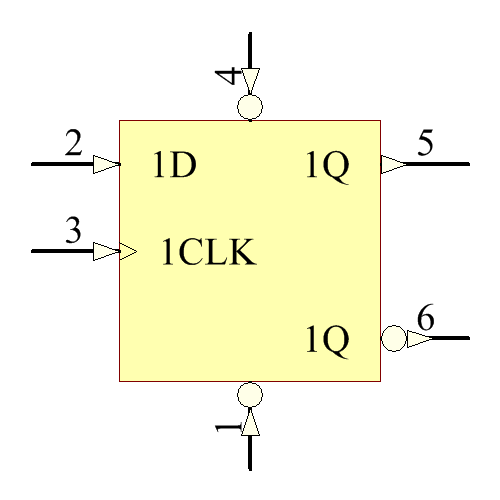

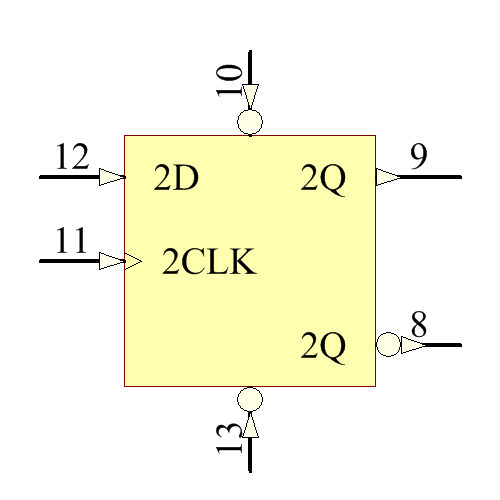

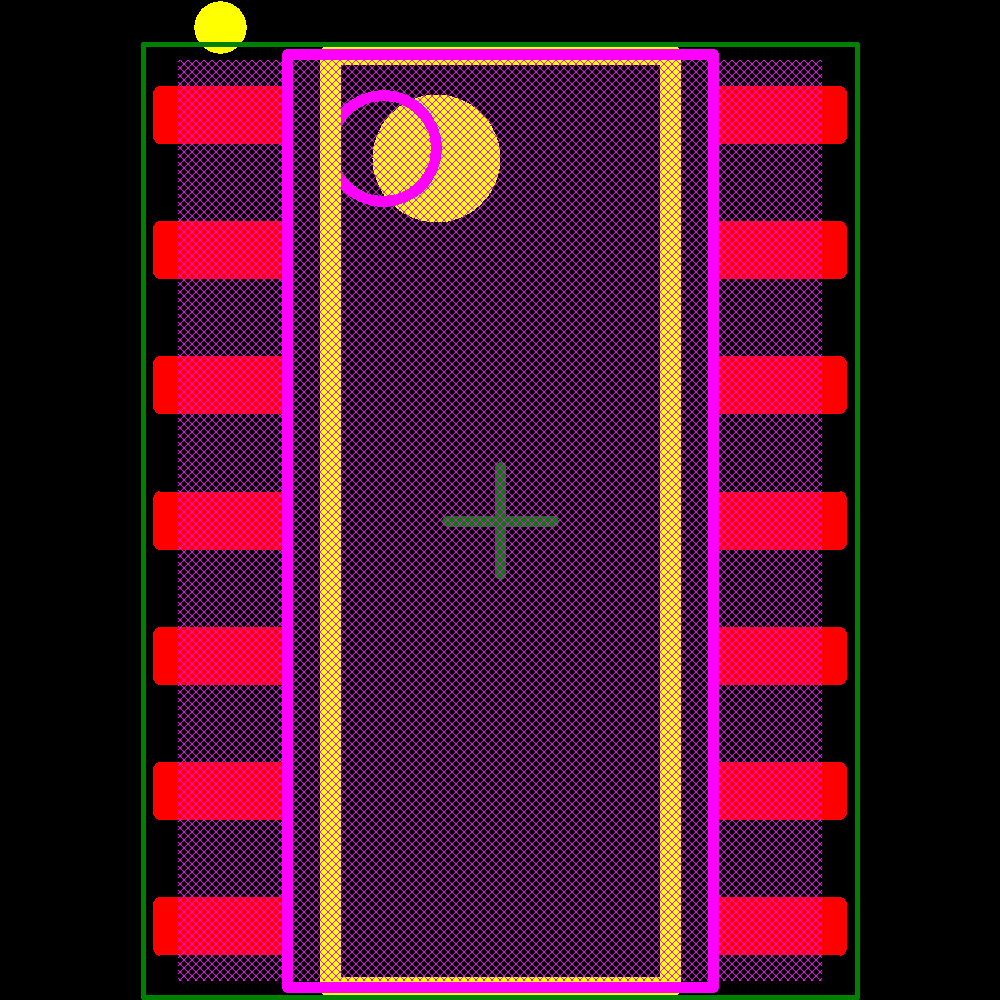

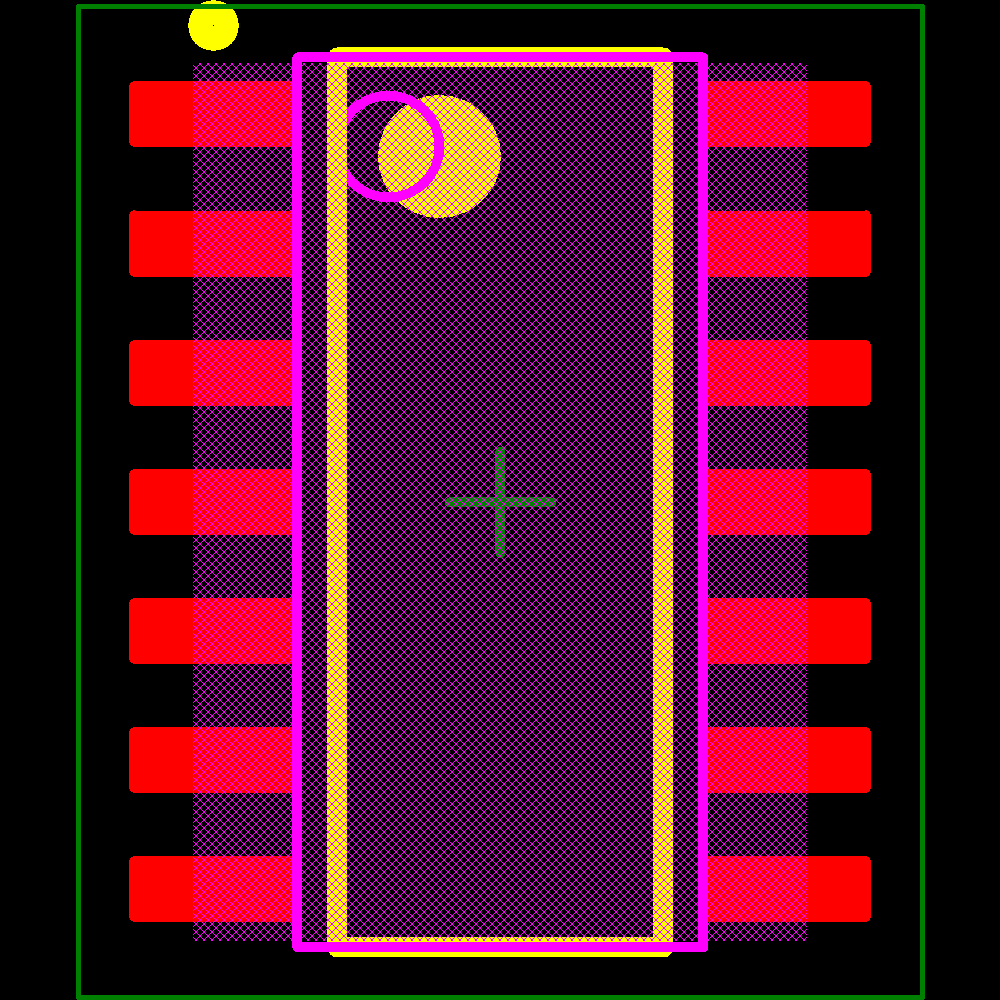

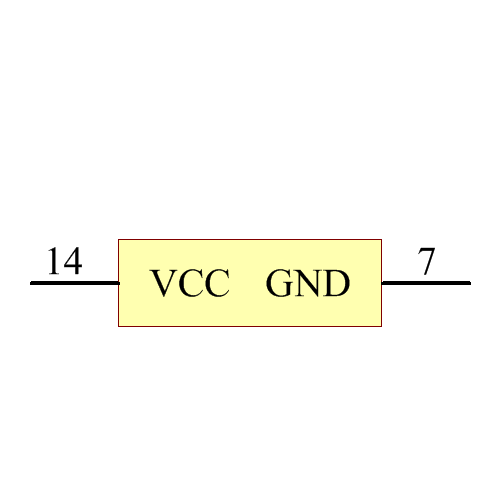

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown |
