SN74S86N - Texas Instruments
IC Gate Xor 4CH 2-INP 14-DIP Xor (exclusive Or) IC 4 Channel 14-PDIP
Technical Details
| Case/Package | PDIP |
| High Level Output Current | -1mA |
| Lead Free | Contains Lead |
| Logic Function | OR, XOR |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 70°C |
| Max Output Current | 20mA |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Current | 20mA |
| Propagation Delay | 10.5ns |
| Quiescent Current | 75mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Through Hole |
| Turn-On Delay Time | 10.5ns |
| Weight | 927.99329mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

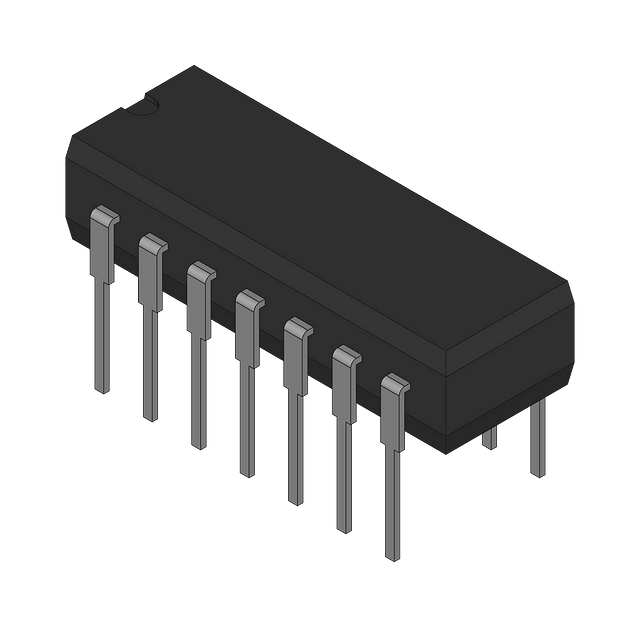

Images
