SN75176BP - Texas Instruments

EAR99 SN75176 Tube RS422RS485 interface driver 5V 70mA 440.409842mg 35ns

Technical Details

Case/Package	PDIP
Contact Plating	Gold
Data Rate	10Mbps
Differential Output	Yes
ESD Protection	No
Height	5.08mm
Lead Free	Lead Free
Length	9.81mm
Lifecycle Status	Production
Logic Function	Transceiver
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	70°C
Max Supply Current	70mA
Max Supply Voltage	5.25V
Min Operating Temperature	0°C
Min Supply Voltage	4.75V
Mount	Through Hole
Nominal Input Voltage	2V
Nominal Supply Current	70mA
Number of Channels	1
Number of Drivers	1
Number of Pins	8
Number of Receivers	1
Number of Terminals	8
Number of Transceivers	1
Number of Transmitters	1
Operating Supply Current	70mA
Operating Supply Voltage	5V
Output Current	60mA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Simplex/Duplex	Half Duplex
Thickness	3.9mm
Weight	440.409842mg
Width	6.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments SN75176BP | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

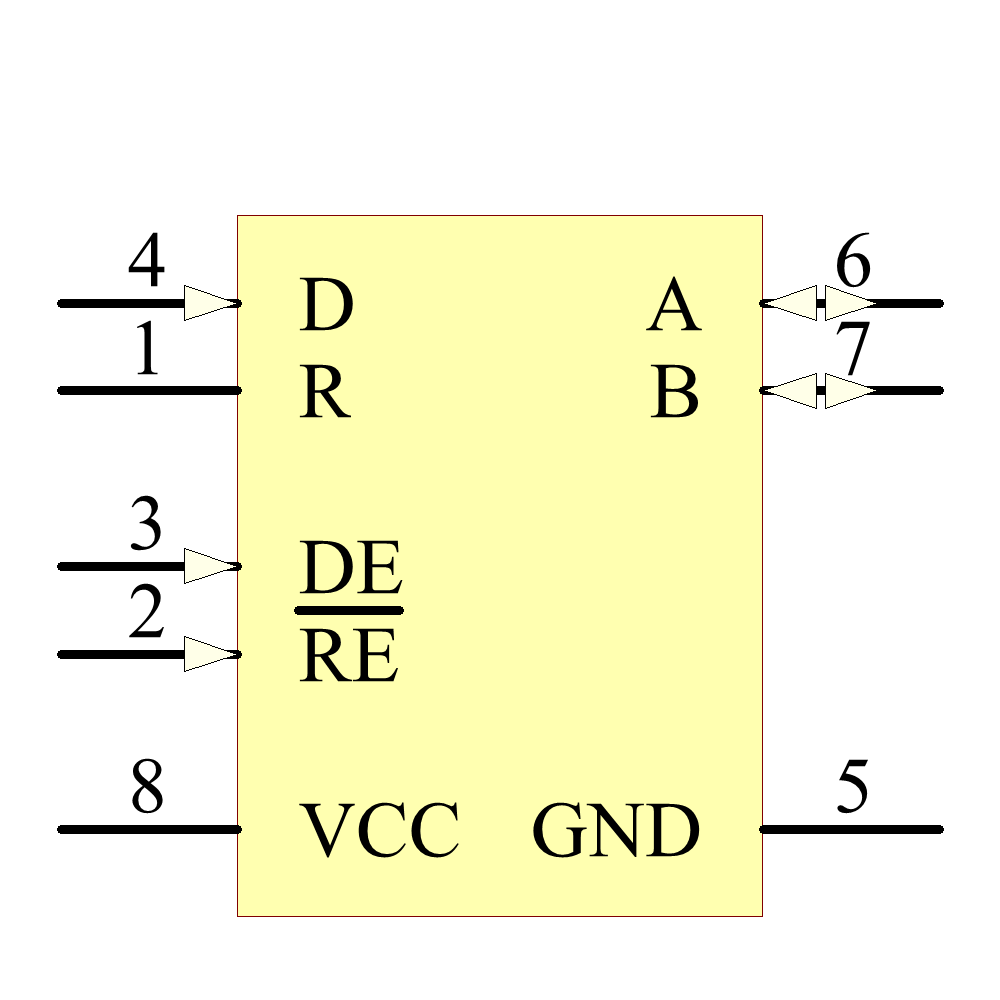

SN75176BP Symbol - Texas Instruments

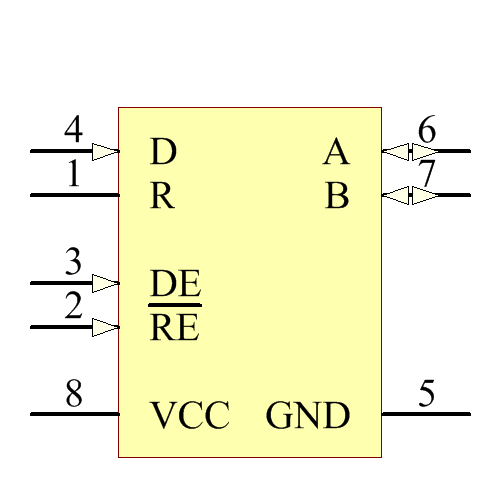

SN75176BP Symbol - Texas Instruments

SN75176BP Symbol - Texas Instruments

SN75176BP Symbol - Texas Instruments

‹ ›

Footprint

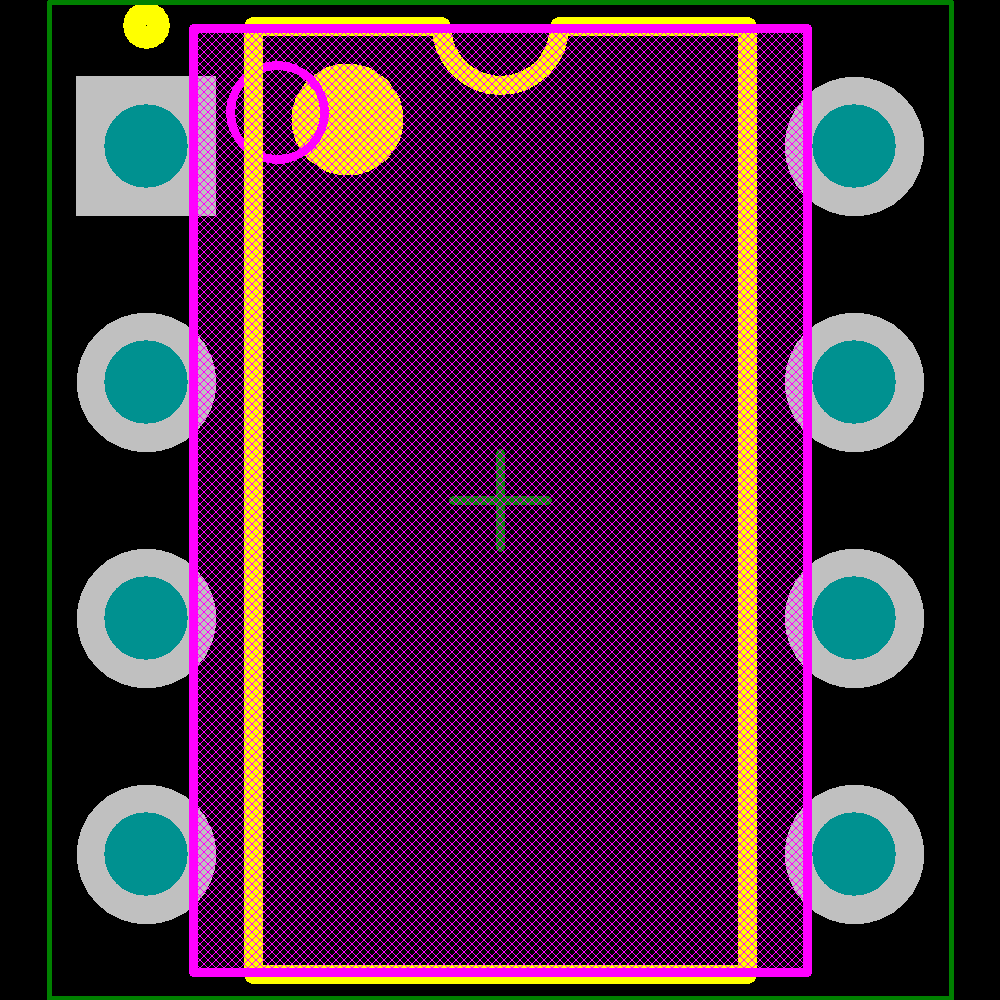

SN75176BP Footprint - Texas Instruments
