SN75176BPE4 - Texas Instruments
IC TRANSCEIVER HALF 1/1 8DIP "1/1 Transceiver Half RS422, RS485 8-PDIP"
Technical Details
| Case/Package | PDIP |
| Data Rate | 10Mbps |
| Height | 5.08mm |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Lifecycle Status | Production |
| Logic Function | Transceiver |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 70mA |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 5V |
| Receiver Hysteresis | 50mV |
| RoHS | Compliant |
| Simplex/Duplex | Half Duplex |
| Thickness | 3.9mm |
| Weight | 440.409842mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed

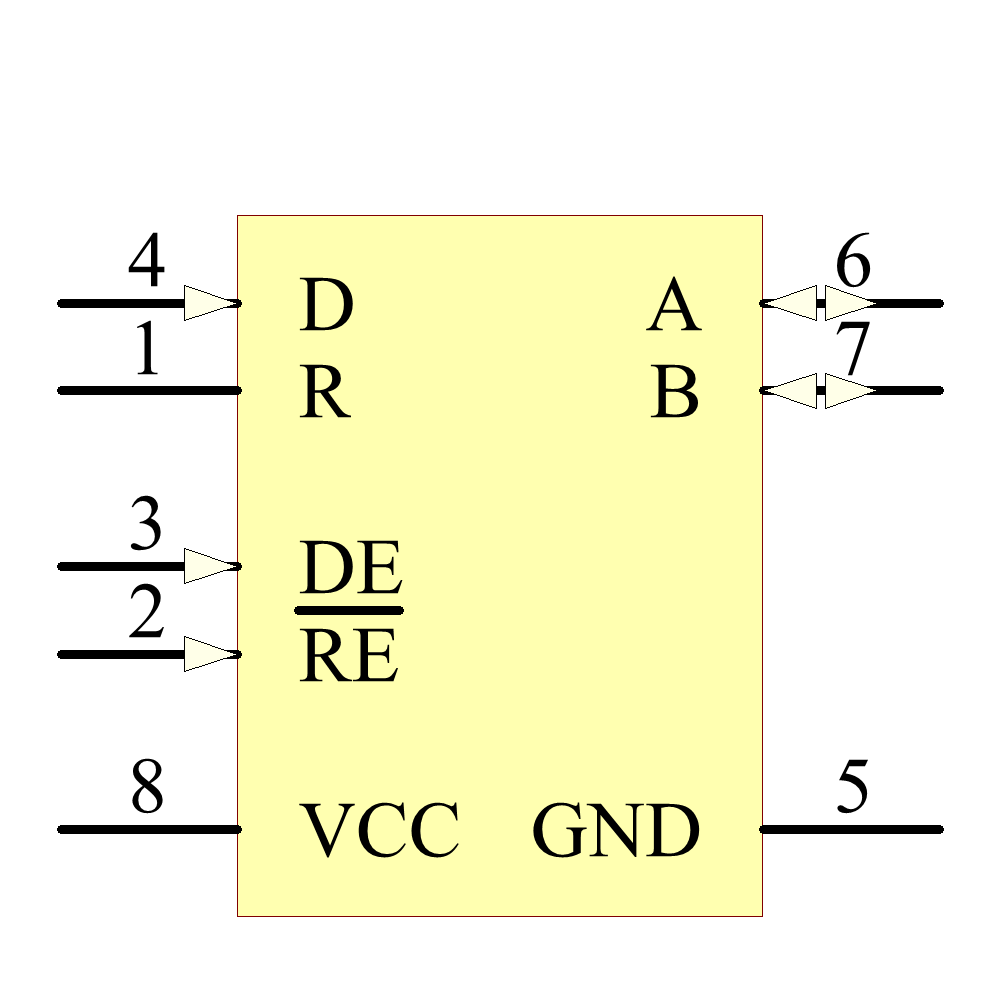

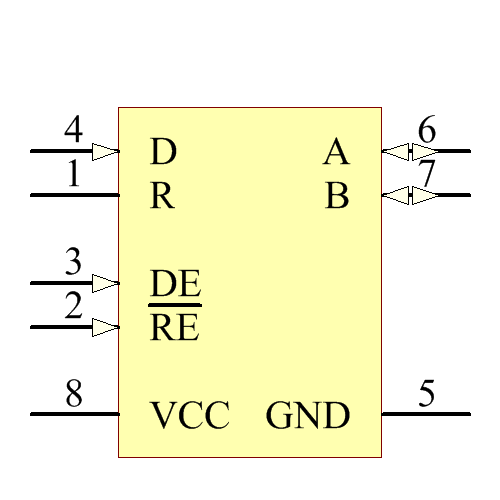

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Sipex | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
