Texas Instruments - SN75240PE4

SN75240PE4 - Texas Instruments

Dual USB Port Transient Suppressor 8-PDIP 0 to 70

 Datasheets

Technical Details

Capacitance 35pF
Case/Package PDIP
Clamping Voltage 7V
Depth 6.35mm
Element Configuration Dual
Lead Free Contains Lead
Leakage Current 1µA
Length 9.81mm
Max Operating Temperature 70°C
Max Power Dissipation 60W
Min Breakdown Voltage 7V
Min Operating Temperature 0°C
Number of Channels 4
Number of Circuits 1
Number of Pins 8
Operating Supply Voltage 6V
Radiation Hardening No
RoHS Compliant
Weight 440.409842mg
Working Voltage 6V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Datasheets

Lifecycle Status Indicator

   Unknown

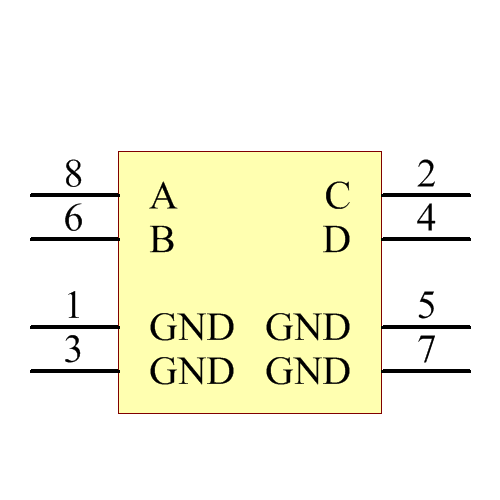

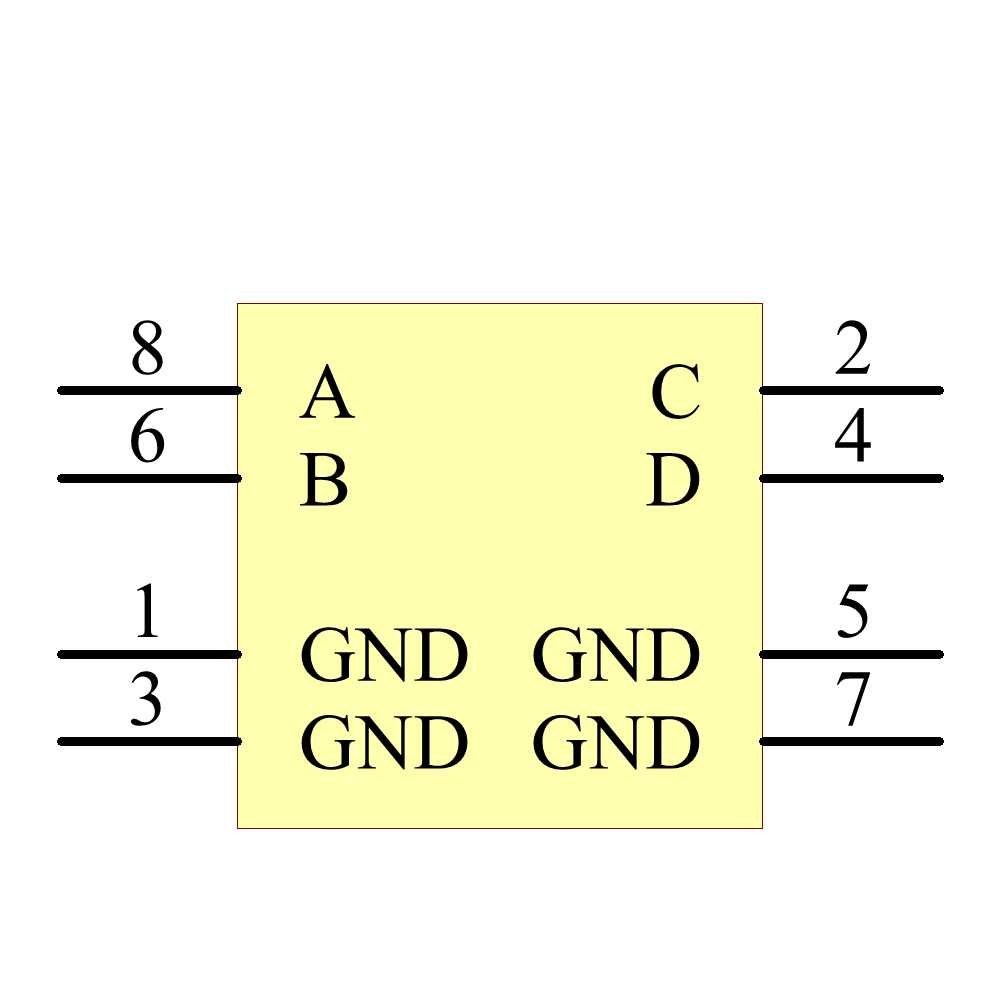

Symbol
Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Texas Instruments
SN65240PE4
Production
Texas Instruments
SN65240P
Production
Texas Instruments
SN75240P
Production
Protek Devices
LCA12C
Production
Protek Devices
LCD15C
Production
Protek Devices
DA12CM
Production
Protek Devices
DA05CM
Production
Protek Devices
DA05CL
Production
Protek Devices
LCA05C
Production
Protek Devices
DA15CN
Production
