SN75LBC180N - Texas Instruments
Low-Power Differential Line Driver And eceiver Pair 14-PDIP 0 to 70
Technical Details
| Case/Package | PDIP |
| Data Rate | 10Mbps |
| Height | 5.08mm |
| Interface | RS-485 |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | Receiver, Transceiver |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 5mA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Pins | 14 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 5V |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Simplex/Duplex | Full Duplex |
| Thickness | 3.9mm |
| Weight | 927.99329mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

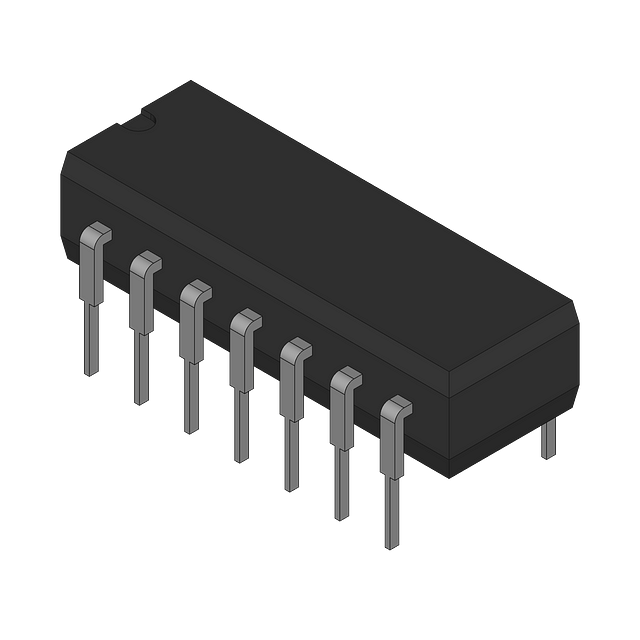

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Sipex | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete |
