SNJ54ABT374J - Texas Instruments

Octal Edge-Triggered D-Type Flip-Flops with 3-State Outputs 20-CDIP -55 to 125

Case/Package	CDIP
Clock Edge Trigger Type	Positive Edge
Frequency	200MHz
Height	5.08mm
High Level Output Current	-24mA
Lead Free	Contains Lead
Length	24.2mm
Lifecycle Status	Production
Logic Function	D-Type
Low Level Output Current	48mA
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Min Operating Temperature	-55°C
Min Supply Voltage	4.5V
Mount	Through Hole
Number of Bits	8
Number of Elements	1
Number of Pins	20
Operating Supply Voltage	5V
Polarity	Non-Inverting
Propagation Delay	7.6ns
Radiation Hardening	No
RoHS	Non-Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	4.57mm
Width	6.92mm

RoHS : Unconfirmed

Radiation Hardening : No

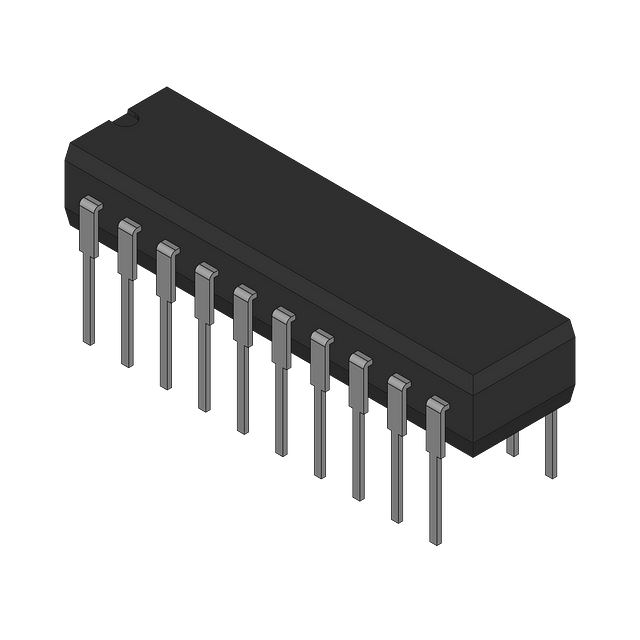

Texas Instruments SNJ54ABT374J | Rochester Electronics

Rochester Electronics

Production

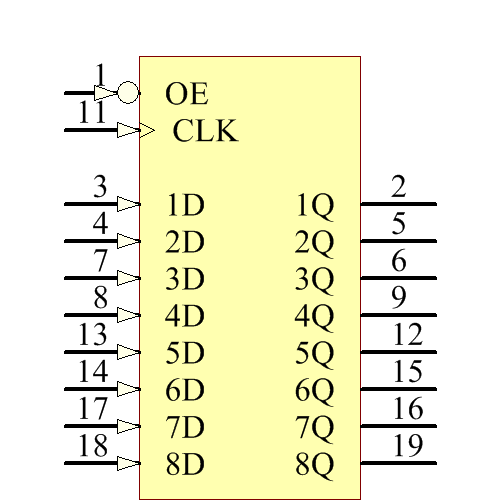

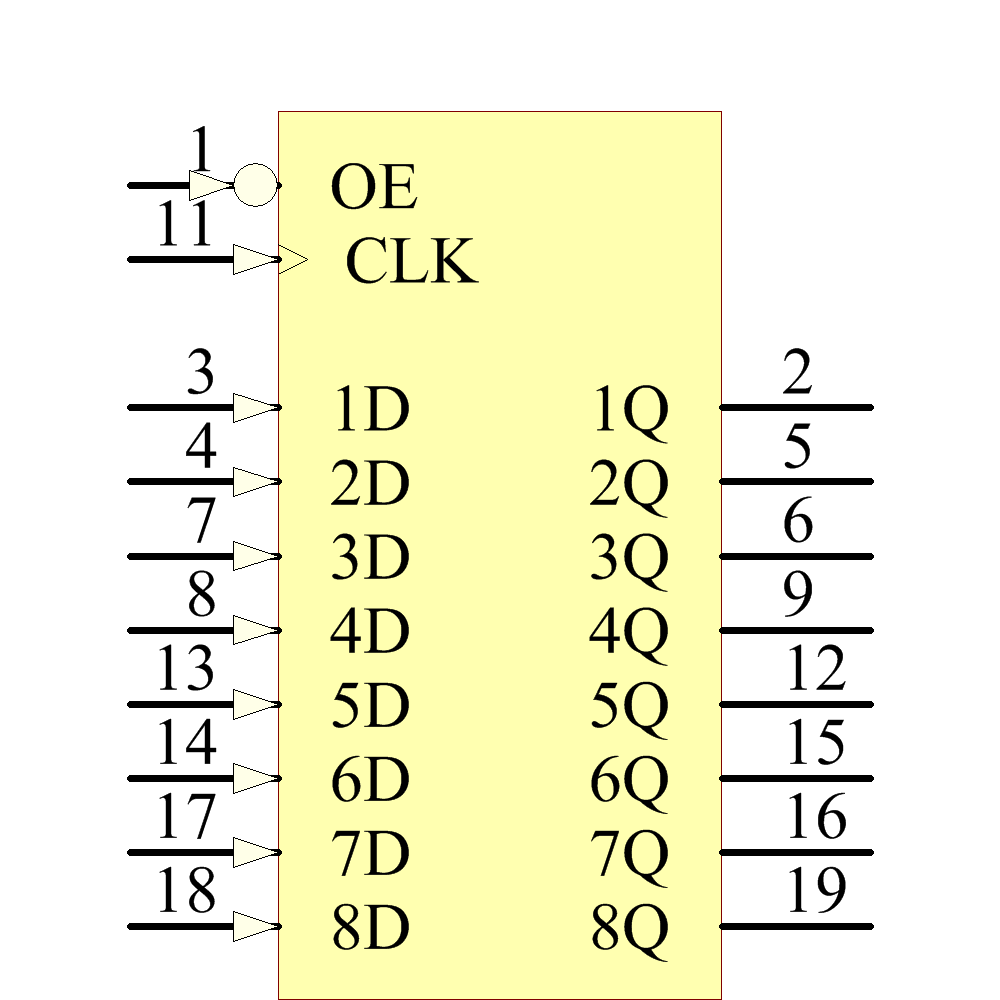

Symbol

‹ ›

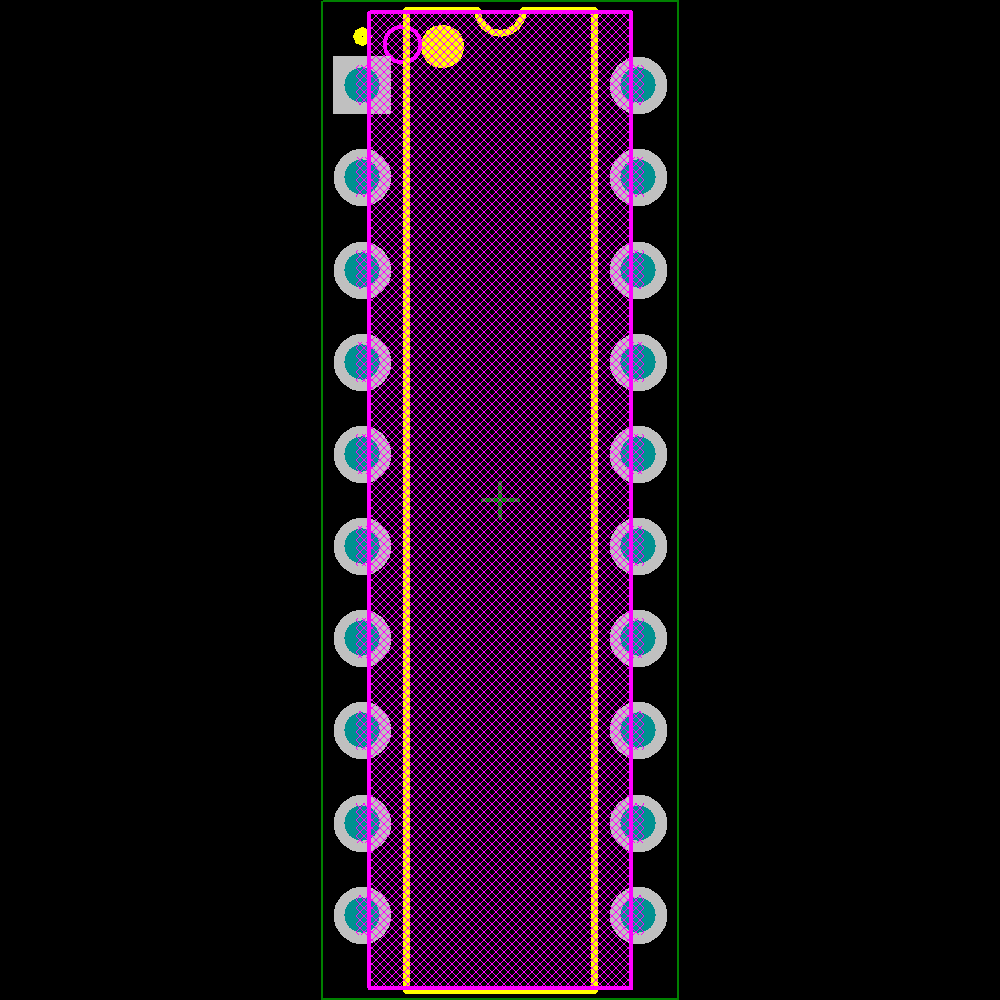

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Texas Instruments	SN54ABT374J	Unknown
Texas Instruments	SN74ABT374ANE4	Unknown
NXP Semiconductors	74ABT374AN	Obsolete
Texas Instruments	SN74ABT374N	Unknown
Texas Instruments	54ABT374J-QML	Unknown
Texas Instruments	SN74ABT374AN	Production
Texas Instruments	5962-9314901QRA	Production
Texas Instruments	SNJ54BCT374J	Production
Texas Instruments	5962-9051601MRA	Production
onsemi	MC74HCT574AN	Obsolete
