Technical Details
| Height | 0m |
| High Level Output Current | -8mA |
| Lead Free | Contains Lead |
| Length | 8.89mm |
| Lifecycle Status | Production |
| Logic Function | NOR |
| Low Level Output Current | 8mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Number of Pins | 20 |
| Packaging | Rail/Tube |
| Propagation Delay | 8.5ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 1.83mm |
| Width | 8.89mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

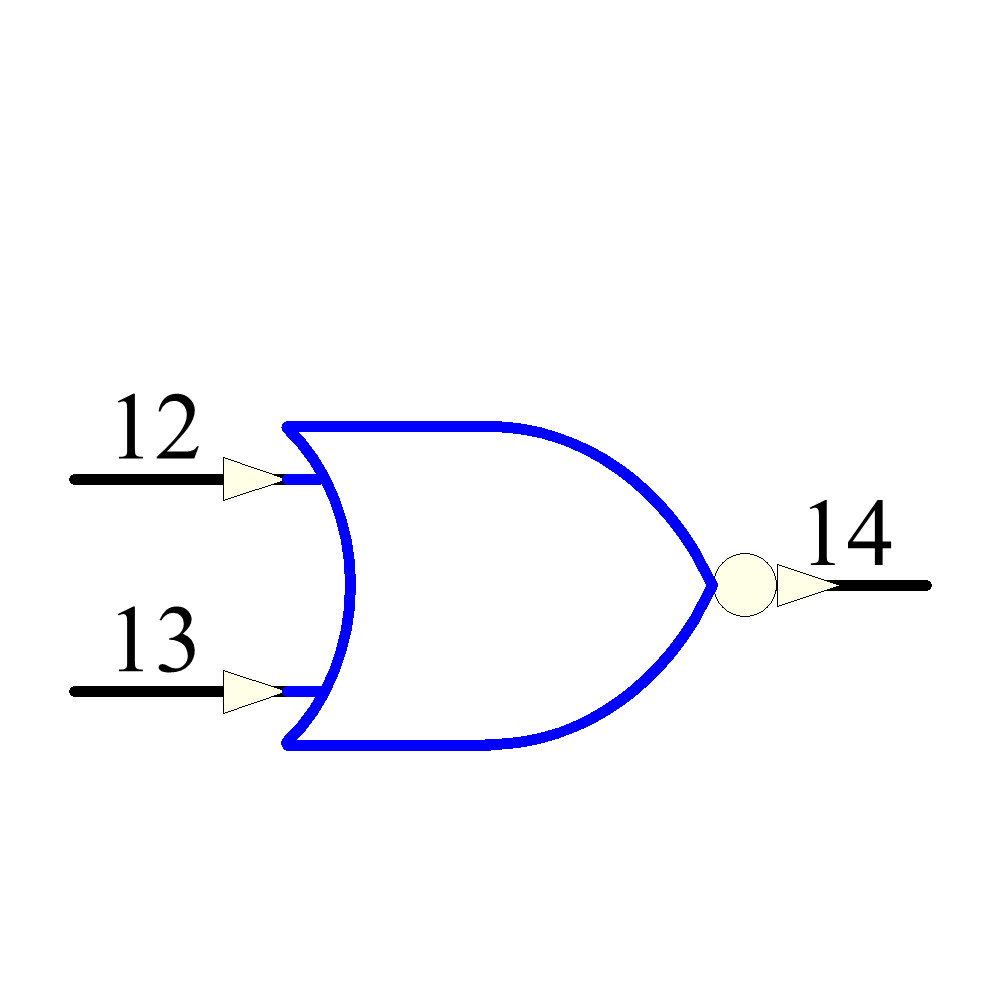

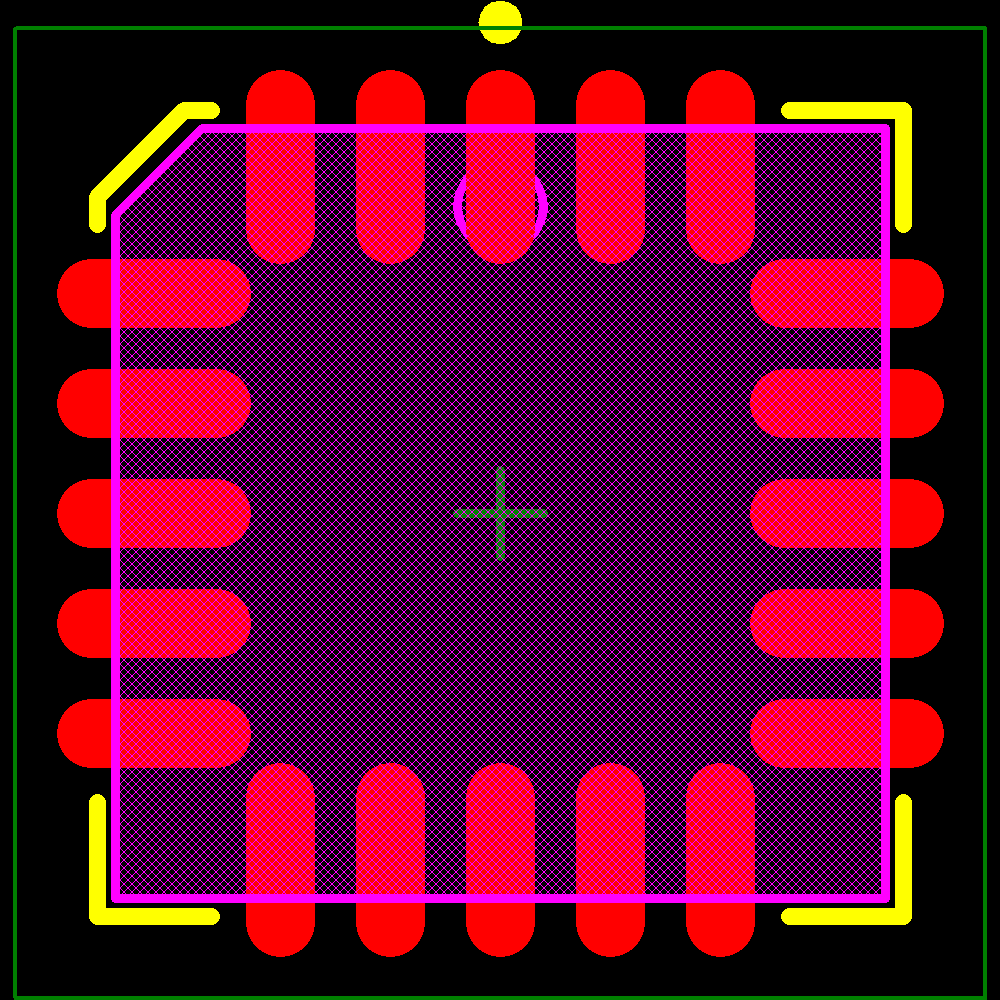

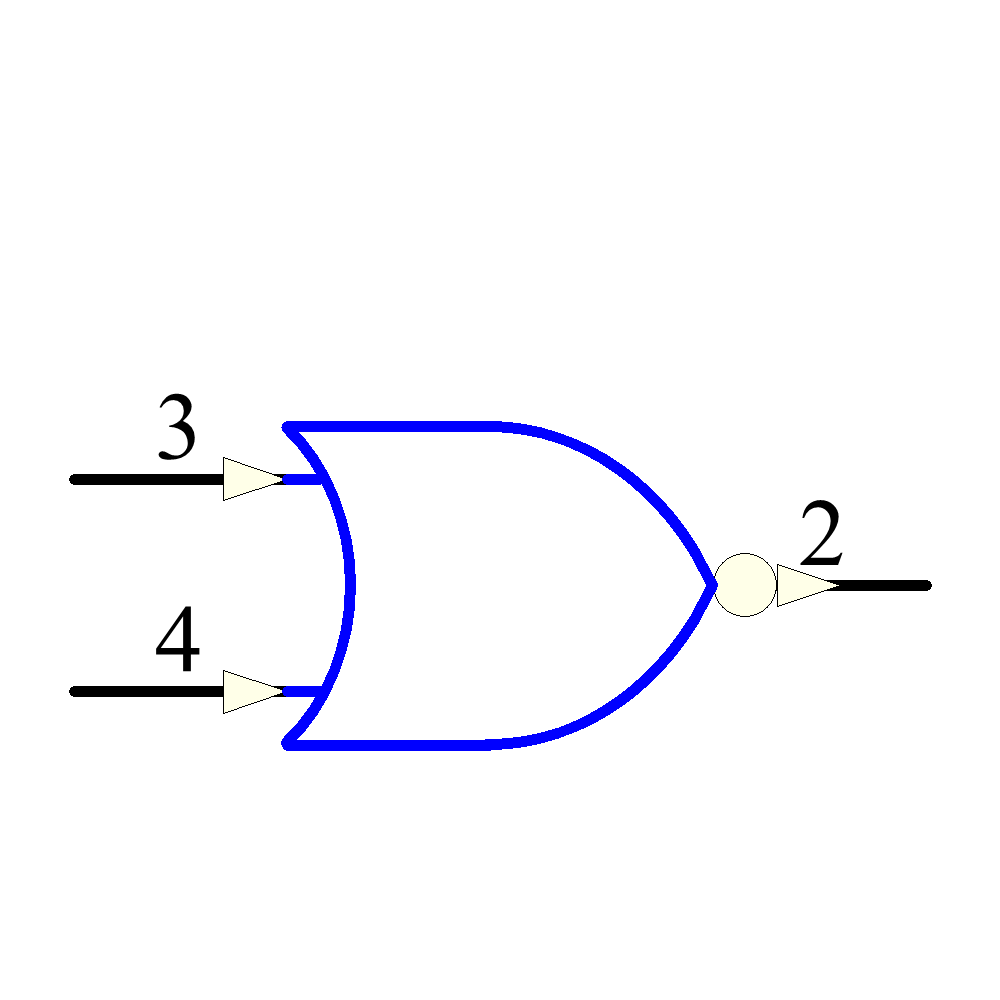

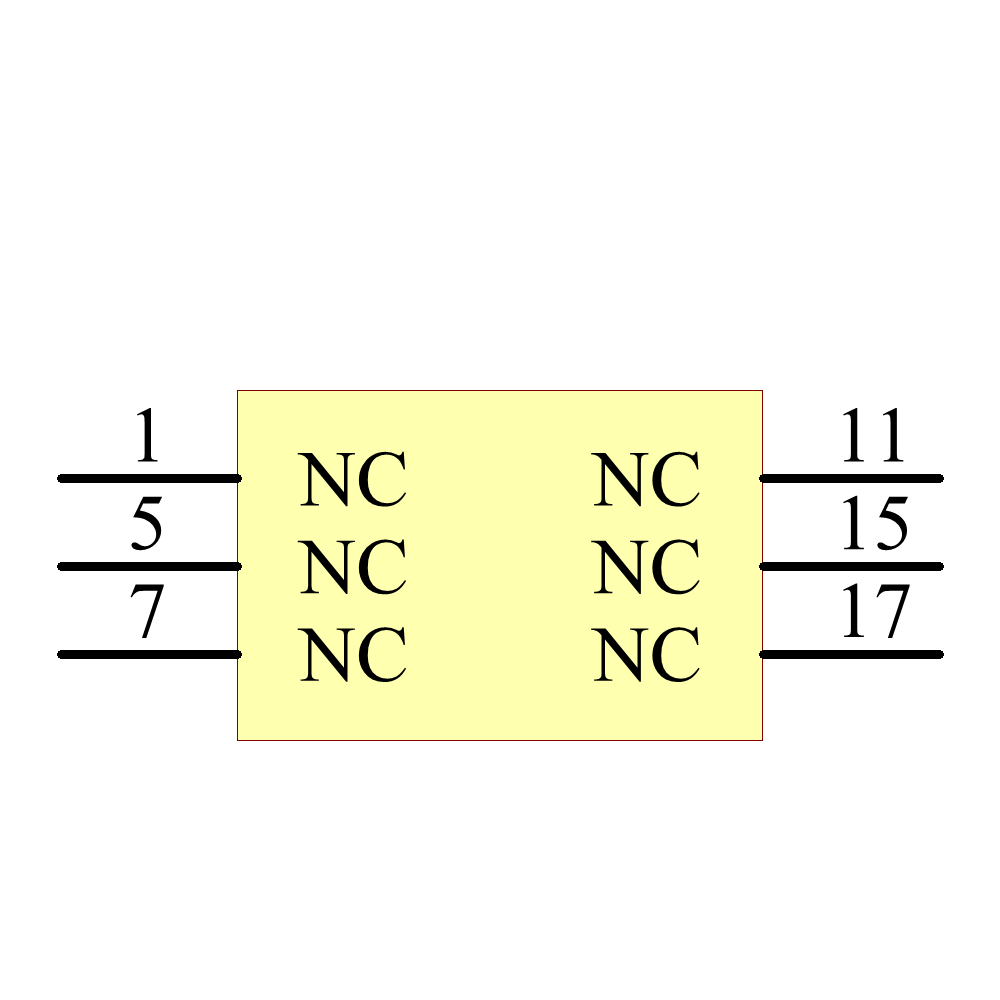

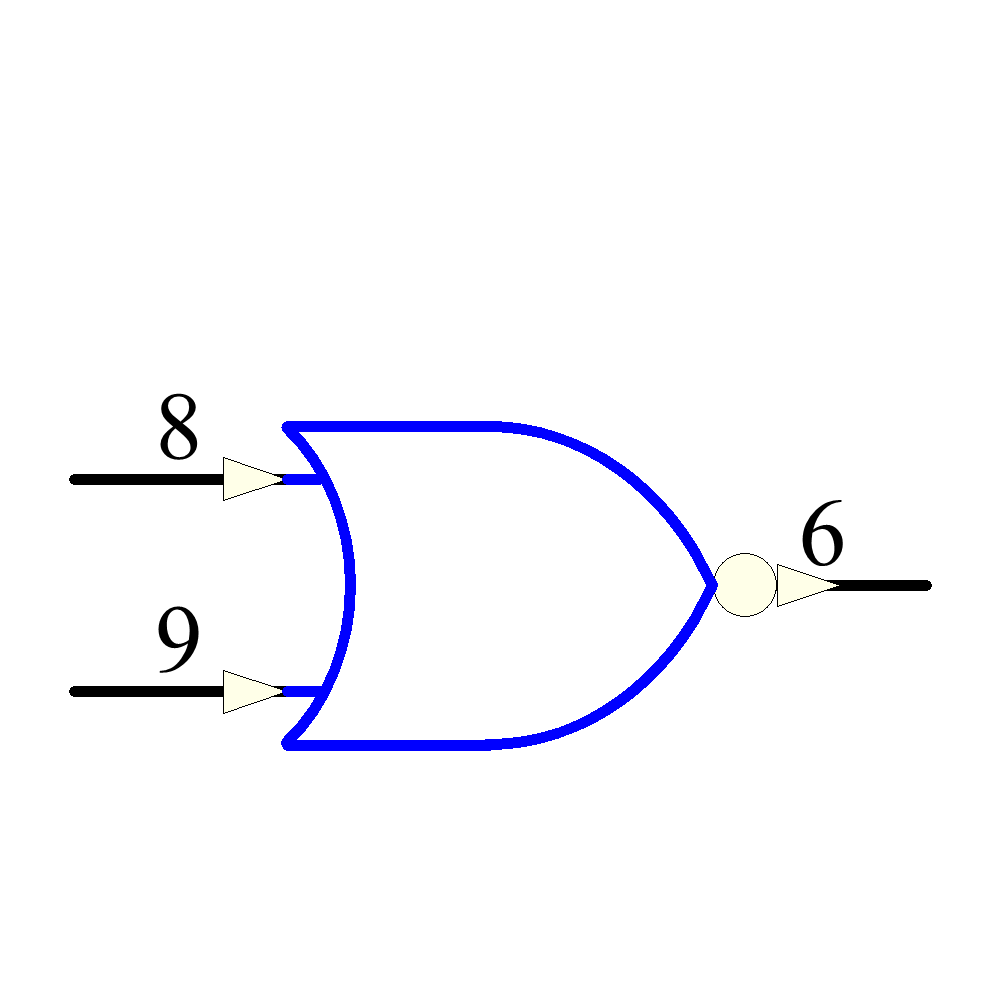

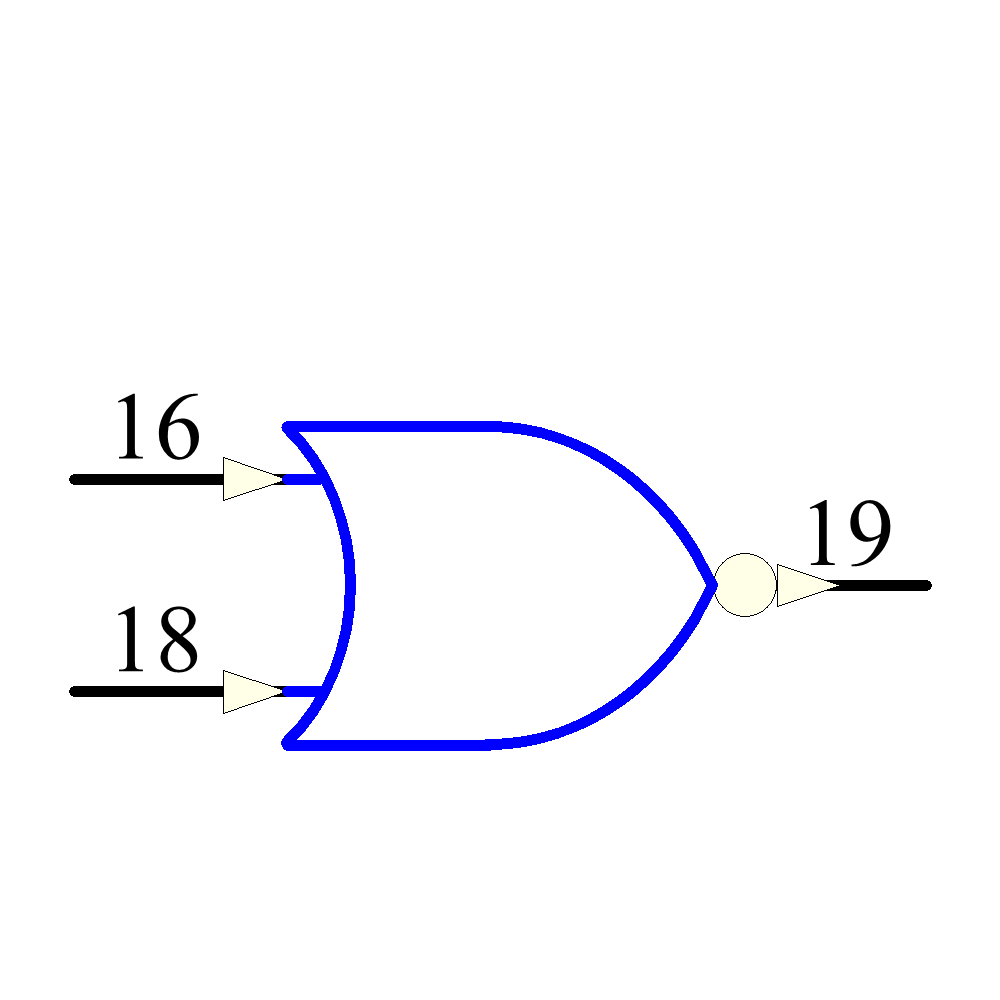

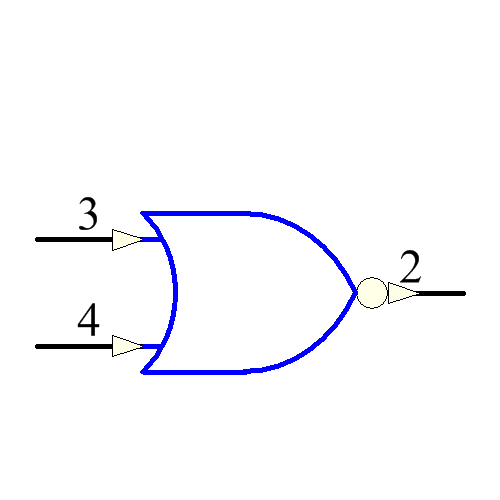

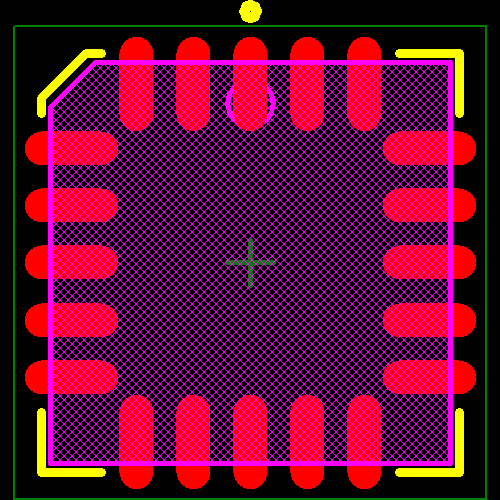

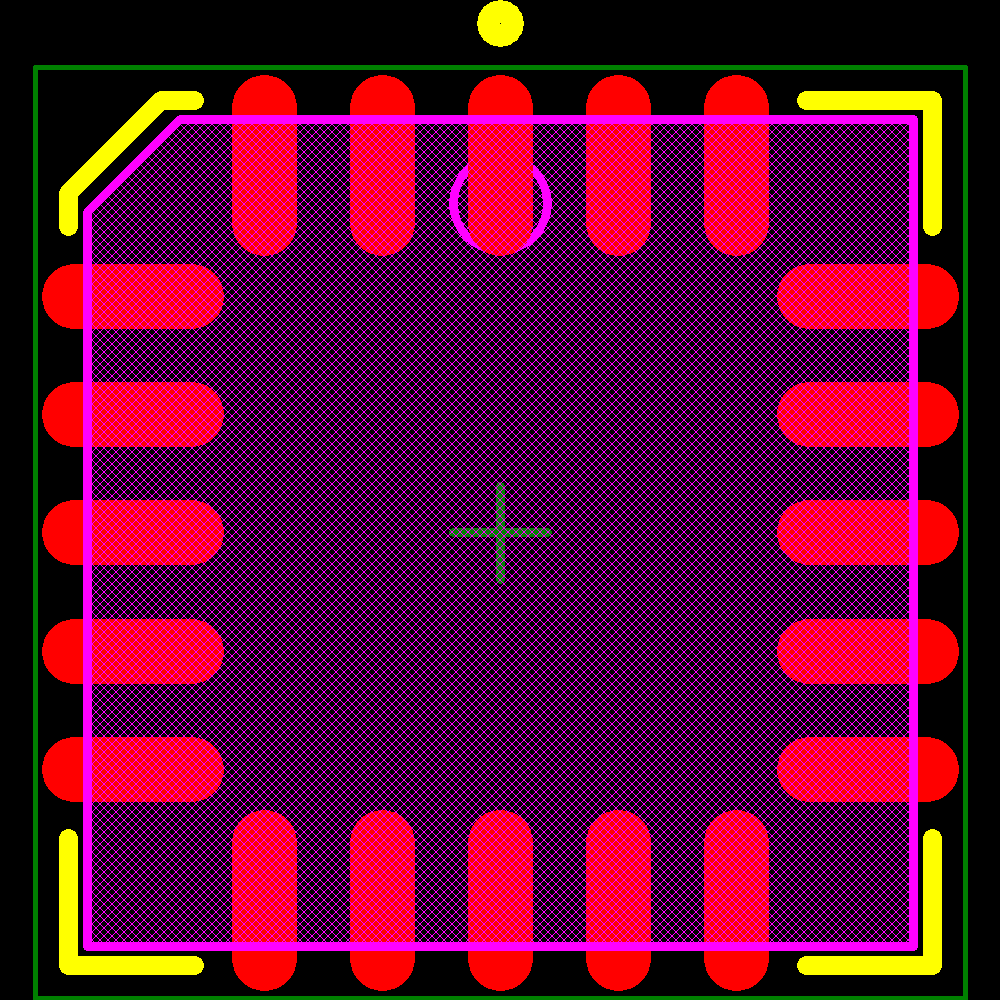

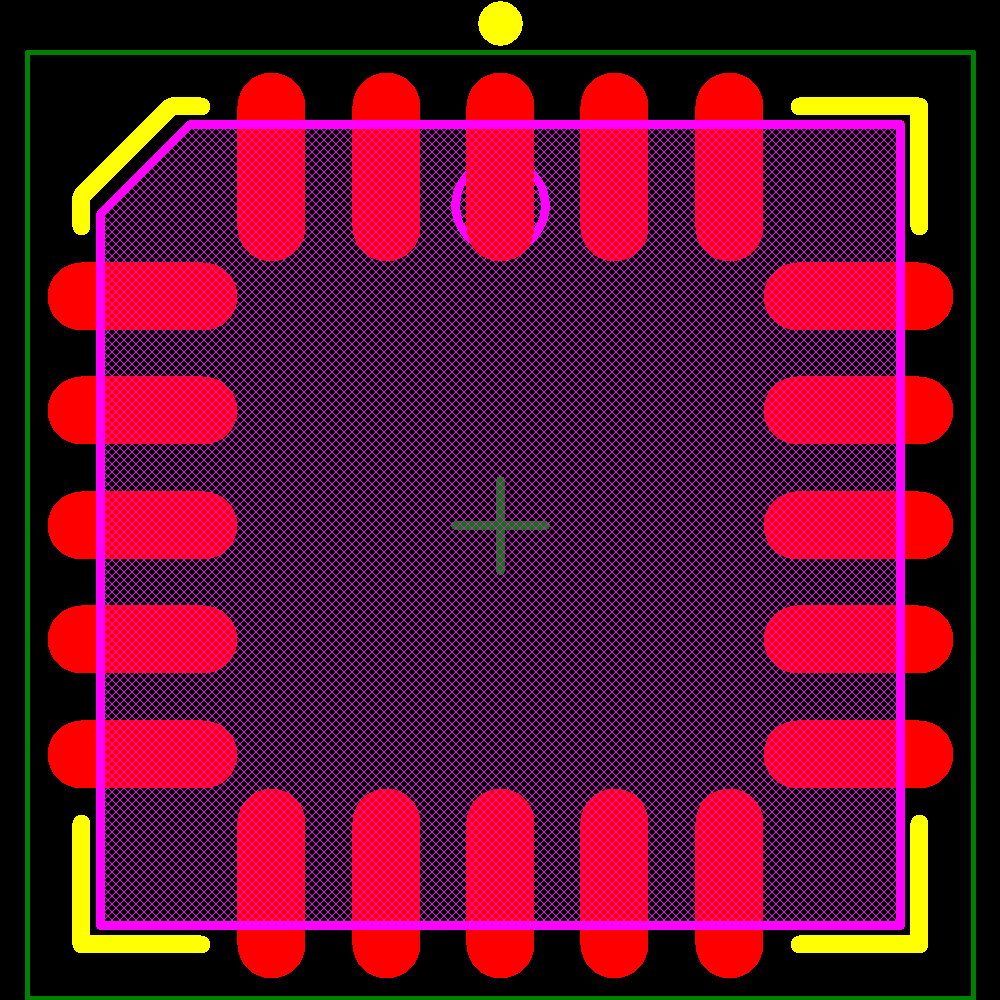

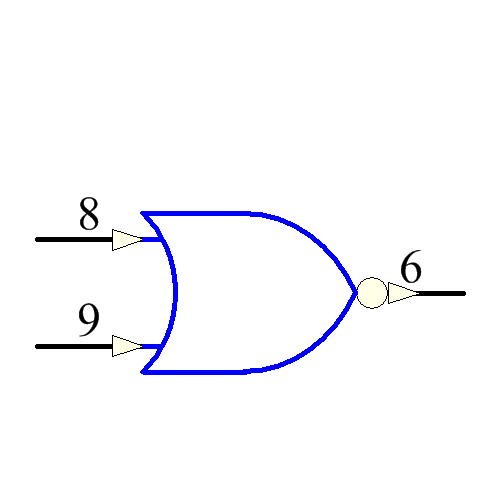

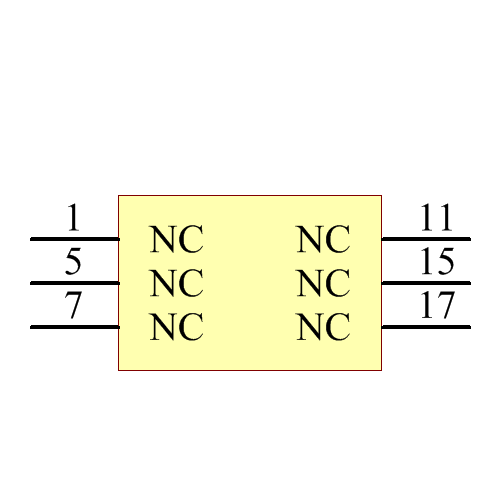

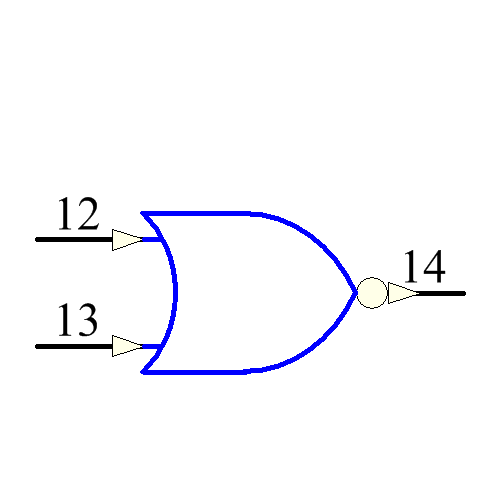

Images
