SNJ54AHCT08W - Texas Instruments
Military, 4-ch, 2-input 4.5-V to 5.5-V high-speed (7.1 ns) AND gate with TTL-compatible inputs
Technical Details
| Height | 2.03mm |
| High Level Output Current | -8mA |
| Lead Free | Contains Lead |
| Length | 9.21mm |
| Lifecycle Status | Production |
| Logic Function | AND |
| Low Level Output Current | 8mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 9ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 1.59mm |
| Turn-On Delay Time | 9ns |
| Width | 5.97mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

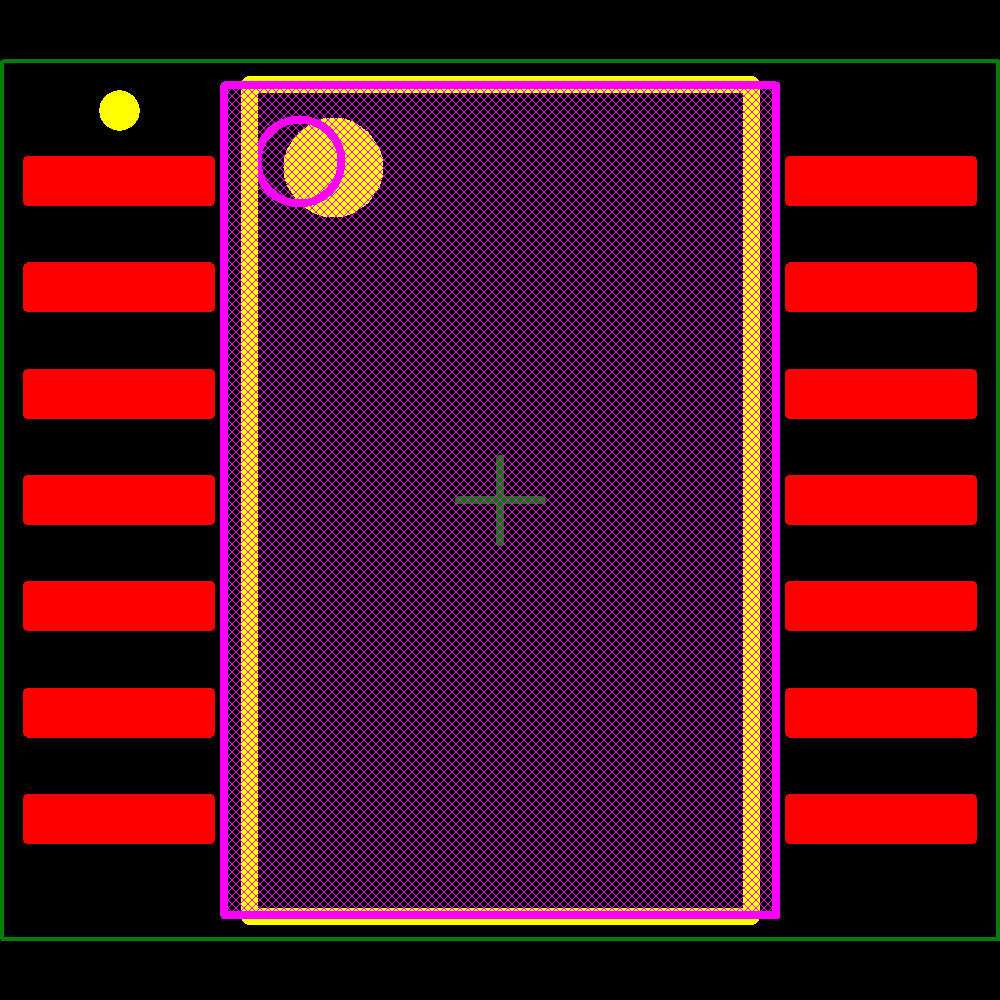

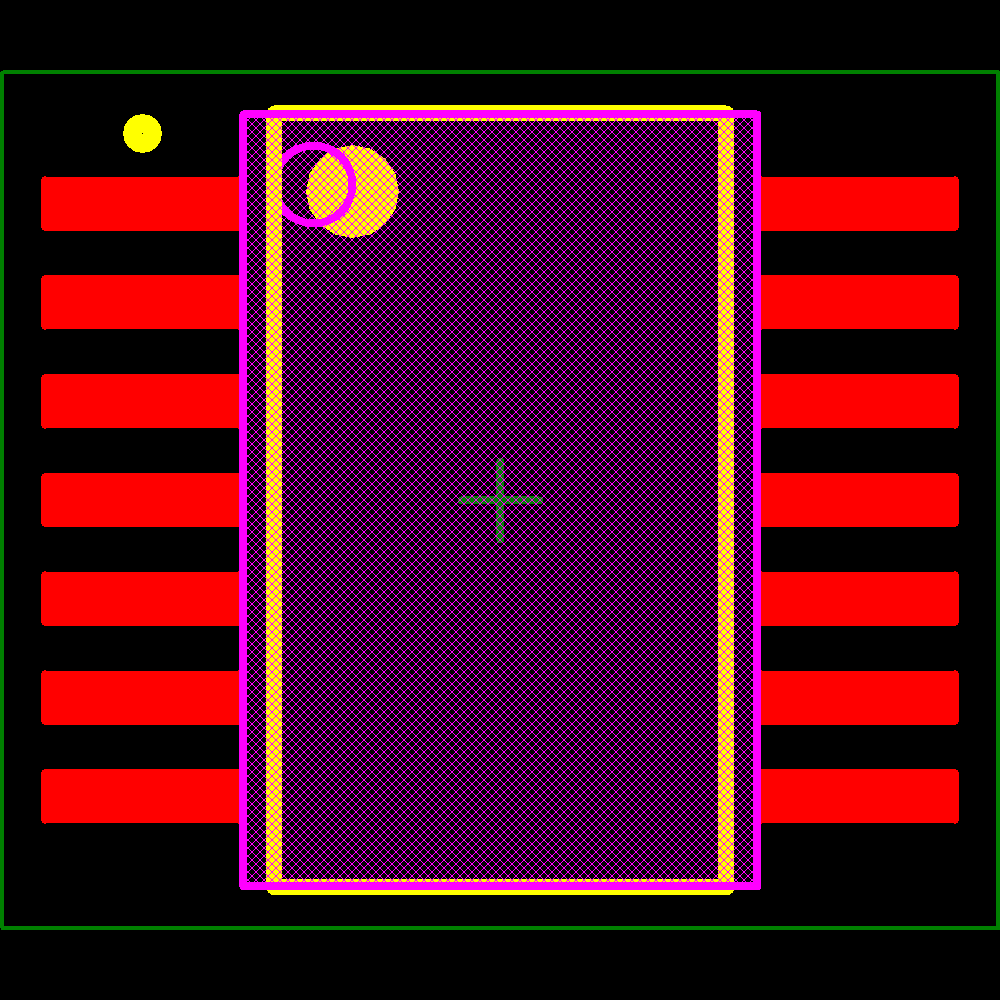

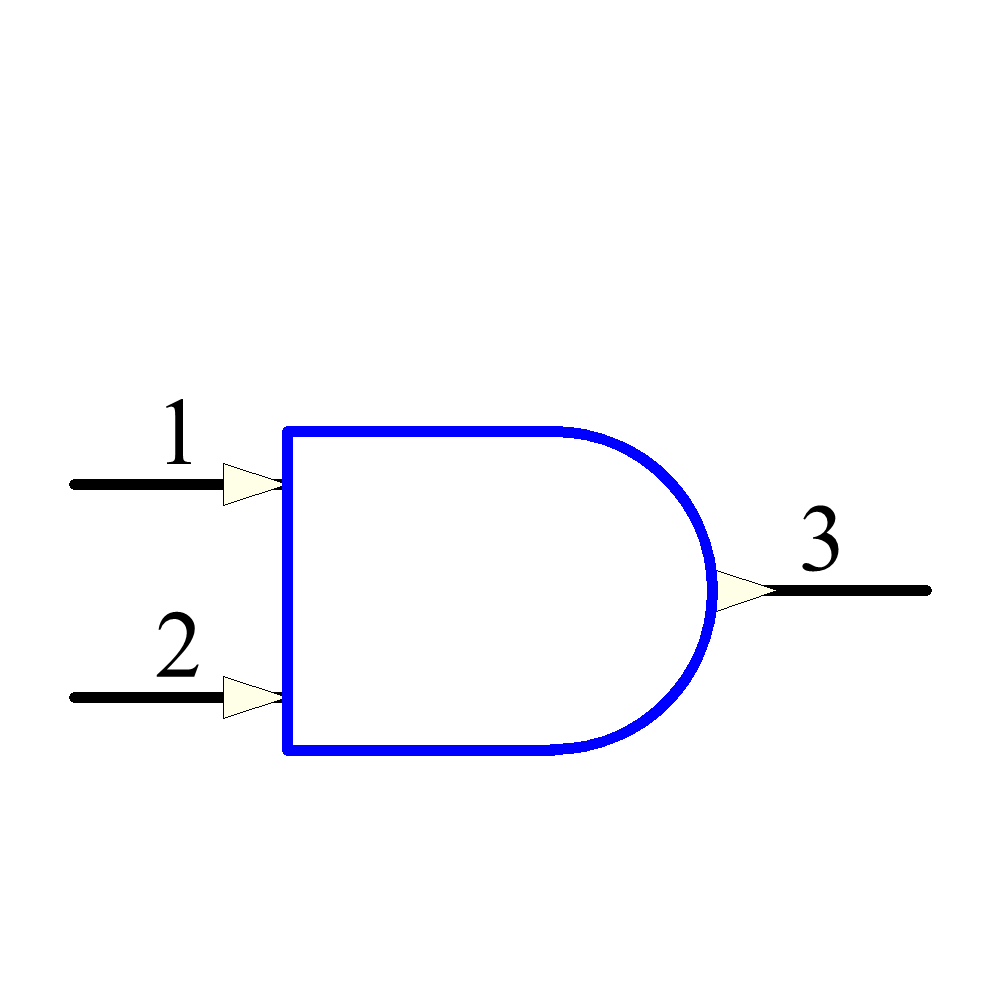

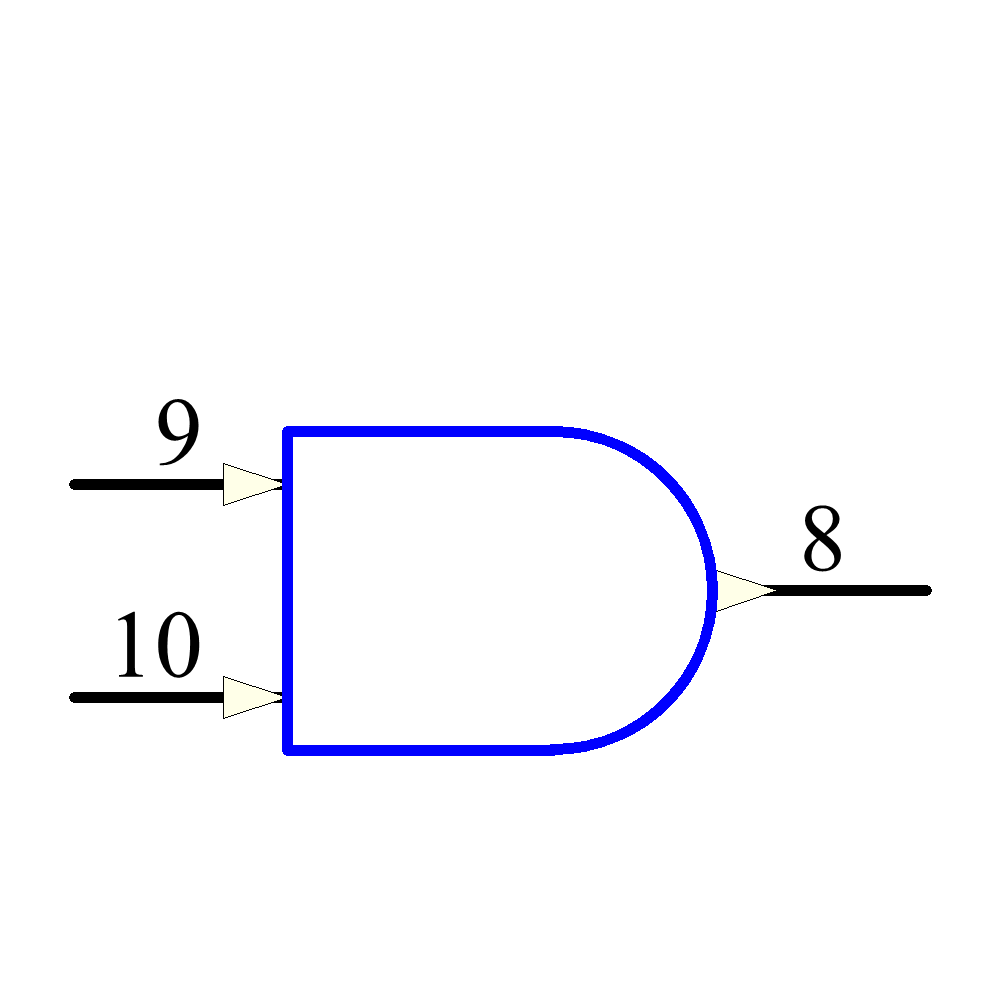

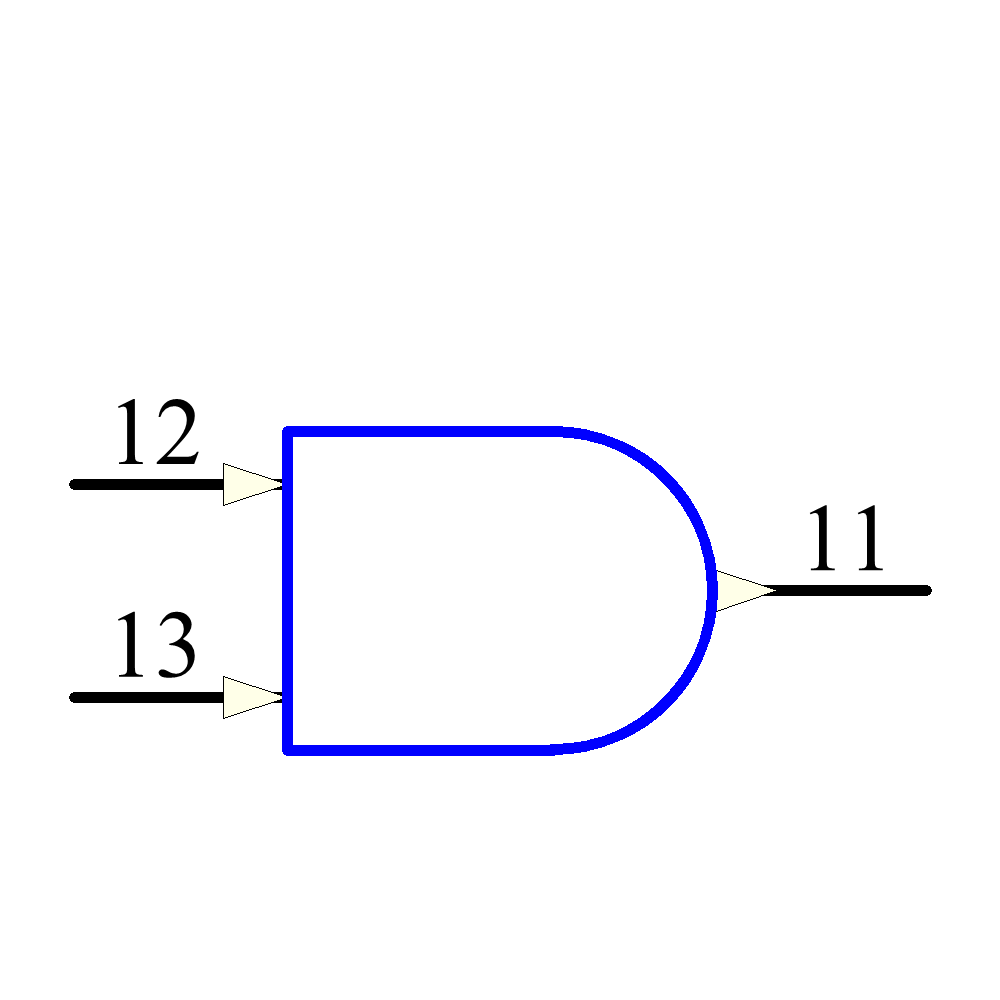

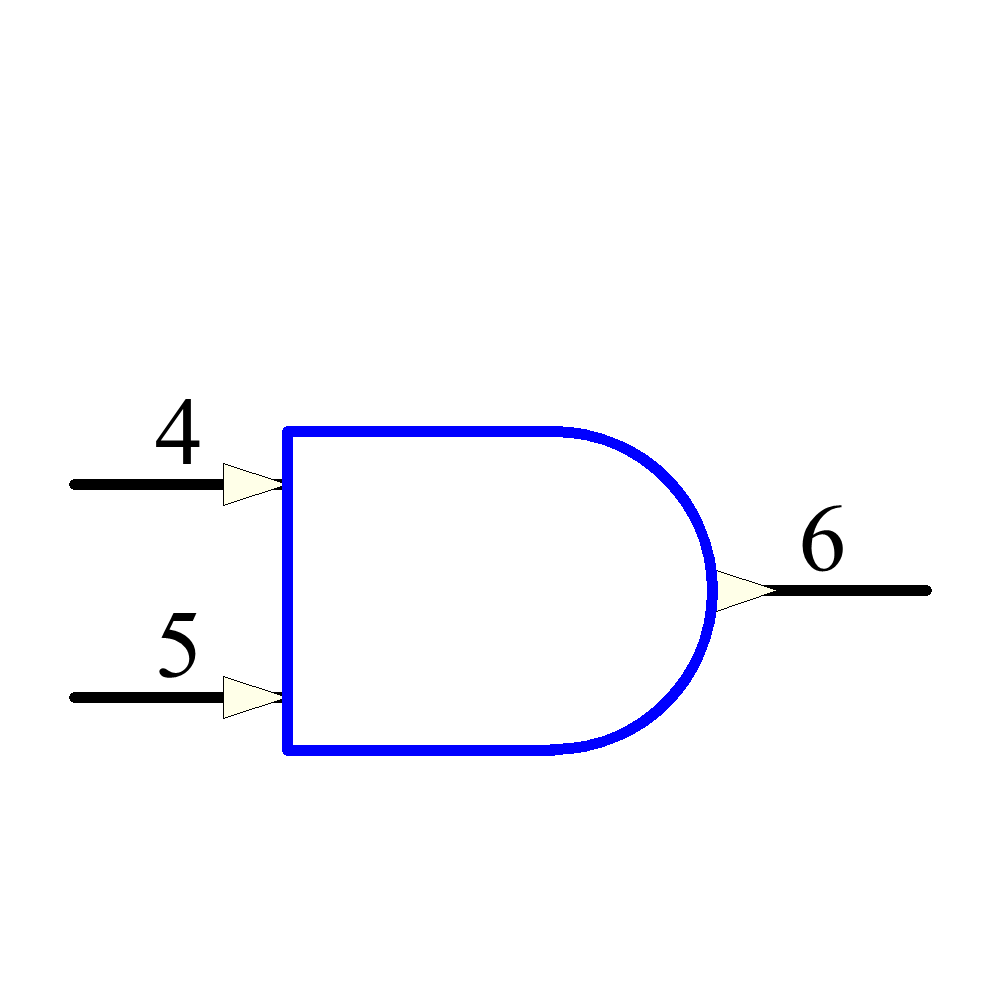

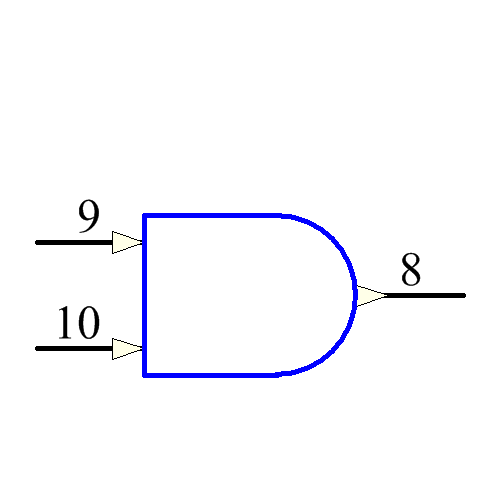

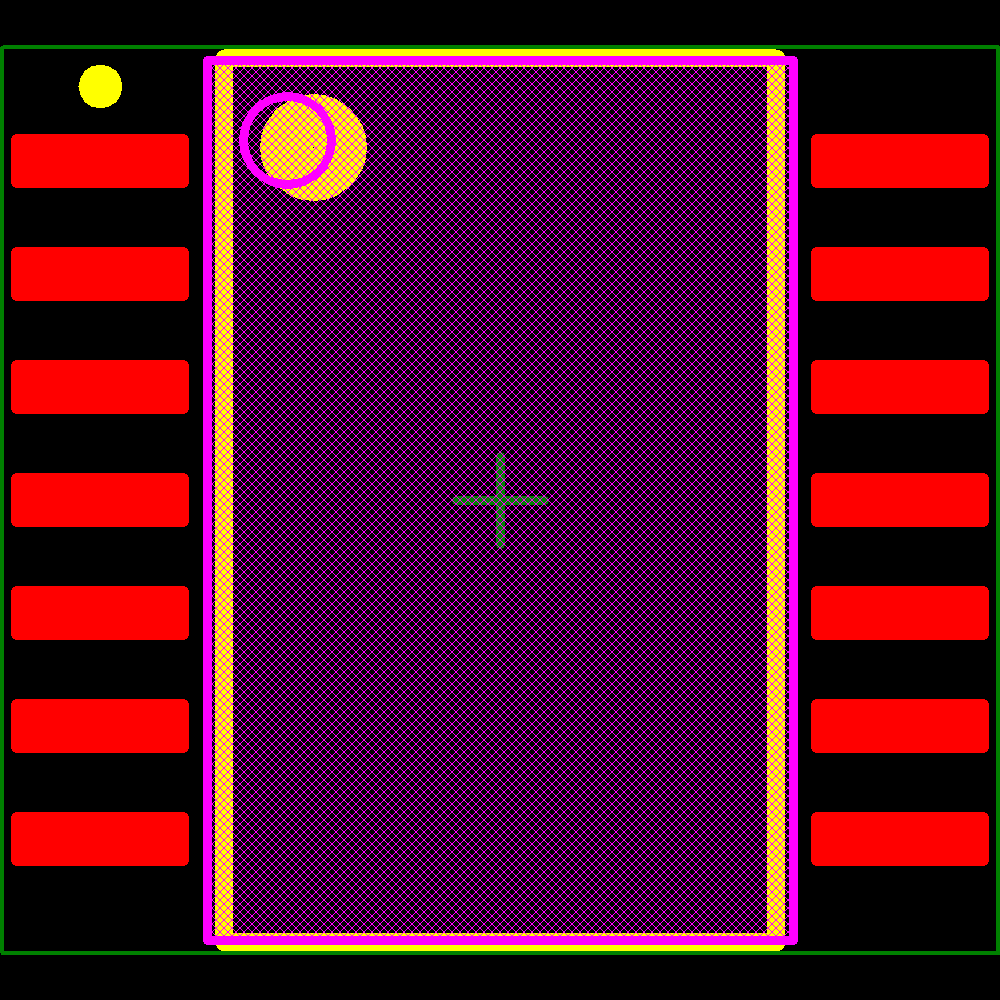

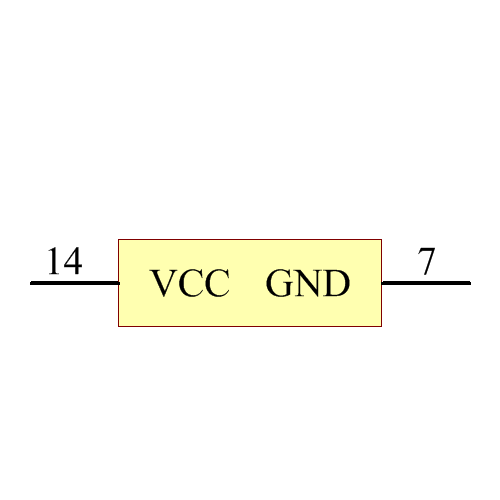

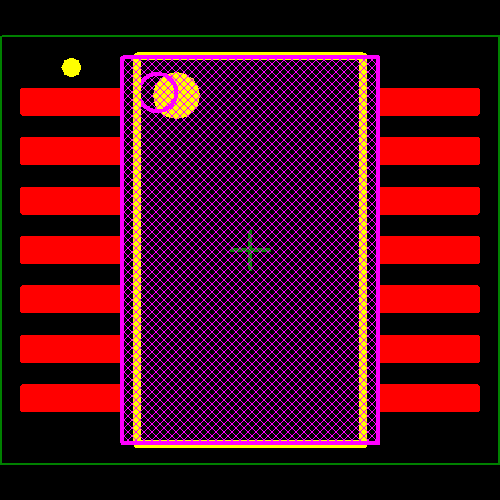

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow Electronics |
US: 0
|
$ | 26.25 | 25.99 | 25.21 | 24.22 | ||||
| Texas Instruments |
US: 0
|
$ | 31.465 | 31.465 | 31.465 | 27.485 | 18.955 | 18.955 | ||
