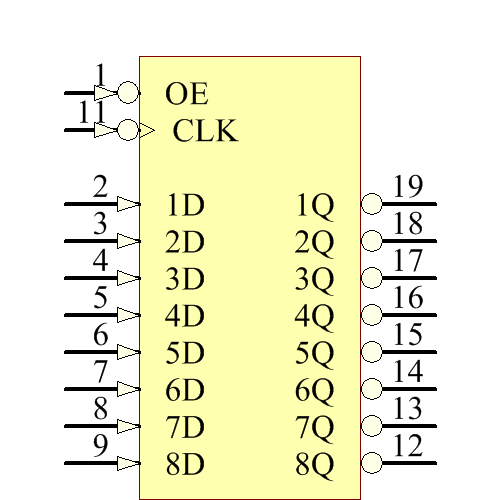

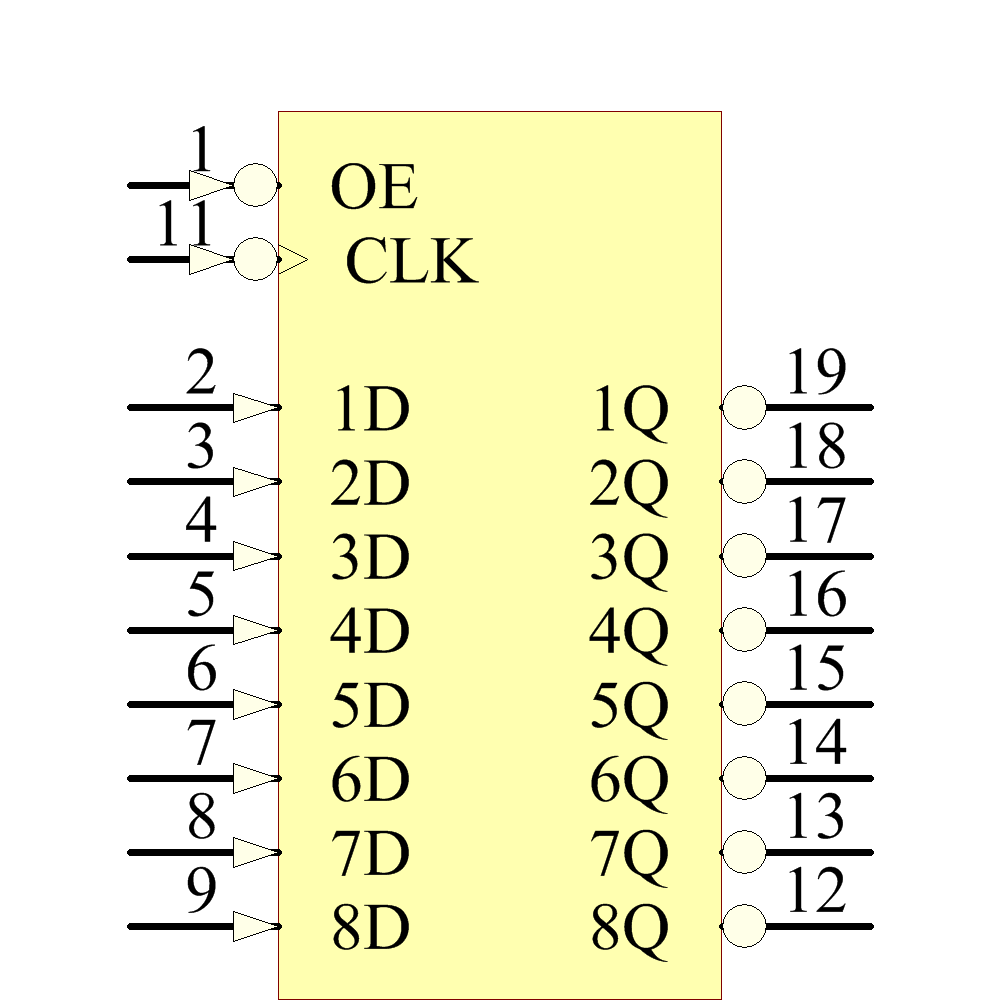

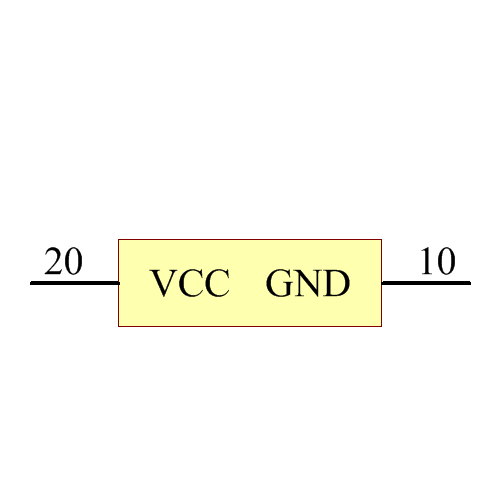

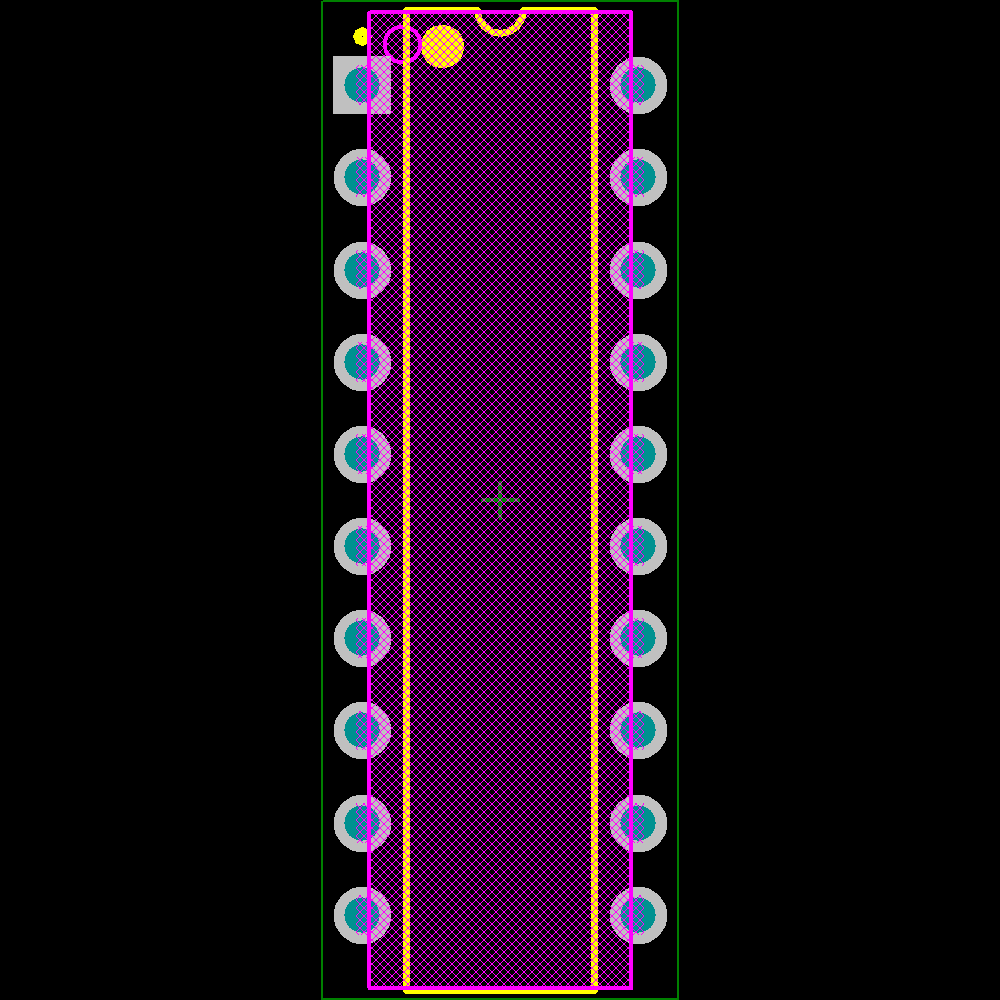

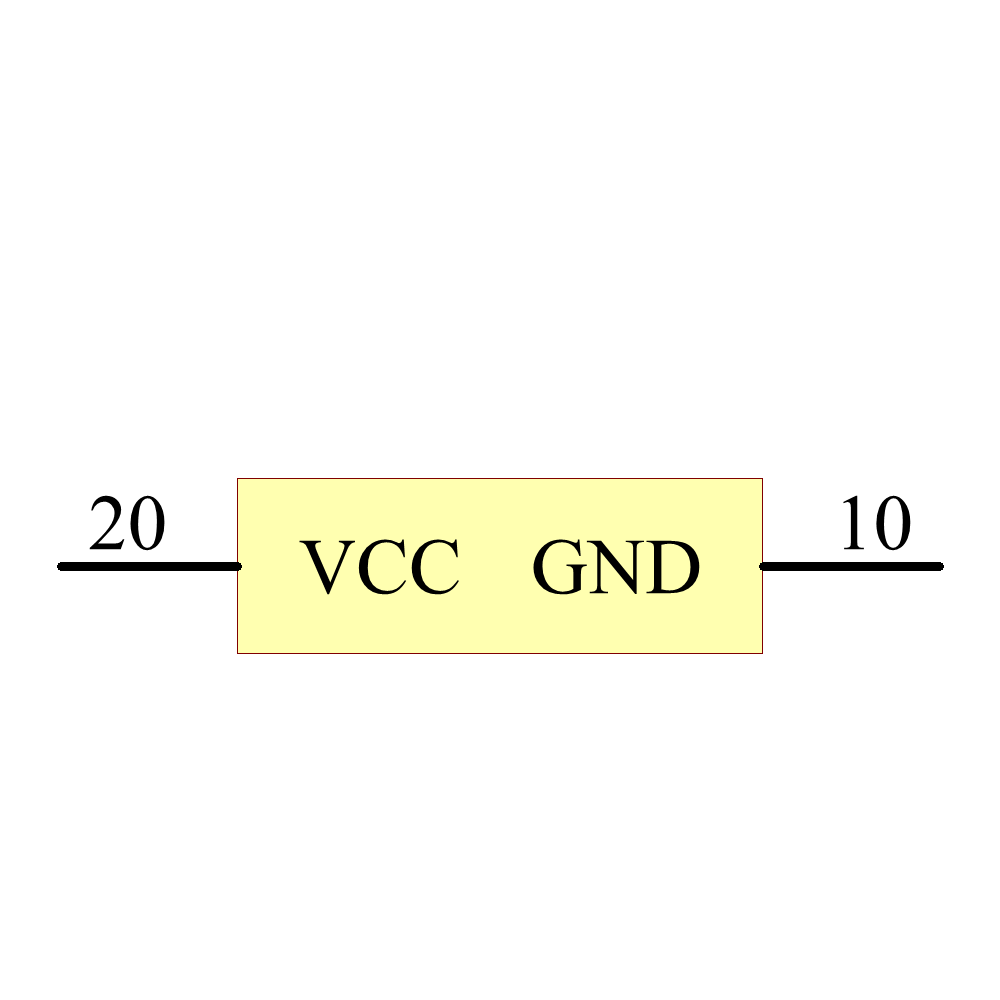

SNJ54ALS576BJ - Texas Instruments
Octal D-type Edge-Triggered Flip-Flops With 3-State Outputs 20-CDIP -55 to 125
Technical Details
| Case/Package | CDIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 22MHz |
| Height | 5.08mm |
| High Level Output Current | -1mA |
| Lead Free | Contains Lead |
| Length | 24.2mm |
| Lifecycle Status | Production |
| Logic Function | D-Type |
| Low Level Output Current | 12mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Number of Pins | 20 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Packaging | Rail/Tube |
| Polarity | Inverting |
| Propagation Delay | 29ns |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 4.57mm |
| Turn-On Delay Time | 29ns |
| Width | 6.92mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

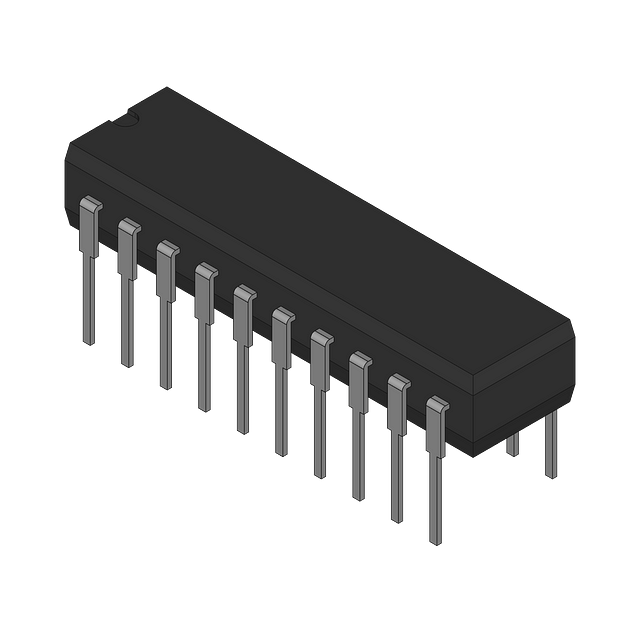

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Infineon | Obsolete | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Performance Semiconductor | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 18
|
$ | 33.74 | 32.05 | 28.68 | 26.99 | ||||
| Texas Instruments |
US: 0
|
$ | 39.229 | 39.229 | 39.229 | 34.87 | 25.64 | 25.64 | ||
