SNJ54ALS74AW - Texas Instruments
Dual Positive-Edge-Triggered D-type Flip-Flops With Clear And Preset 14-CFP -55 to 125
Technical Details
| Clock Edge Trigger Type | Positive Edge |
| Height | 2.03mm |
| High Level Output Current | -400µA |
| Lead Free | Contains Lead |
| Length | 9.21mm |
| Lifecycle Status | Production |
| Logic Function | D-Type |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Polarity | Non-Inverting |
| Propagation Delay | 23ns |
| RoHS | Non-Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.59mm |
| Width | 5.97mm |
Compliance
RoHS : Unconfirmed

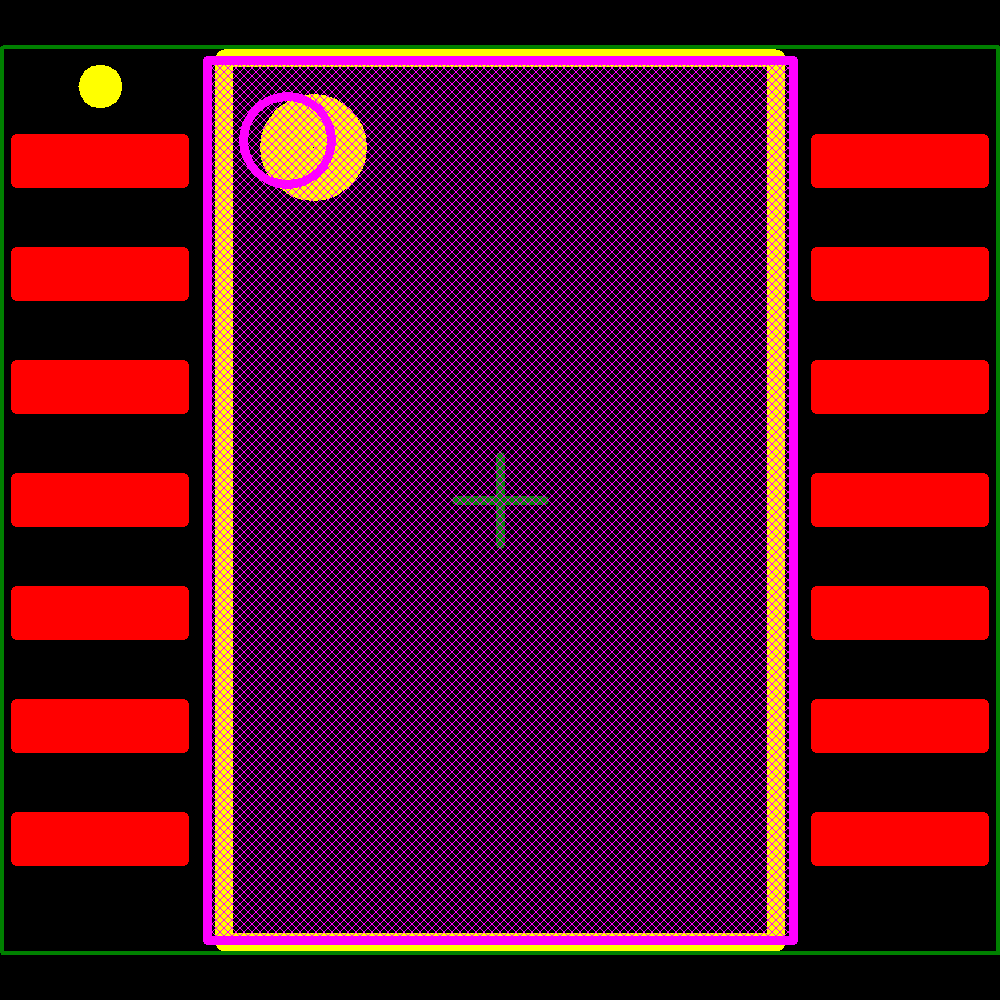

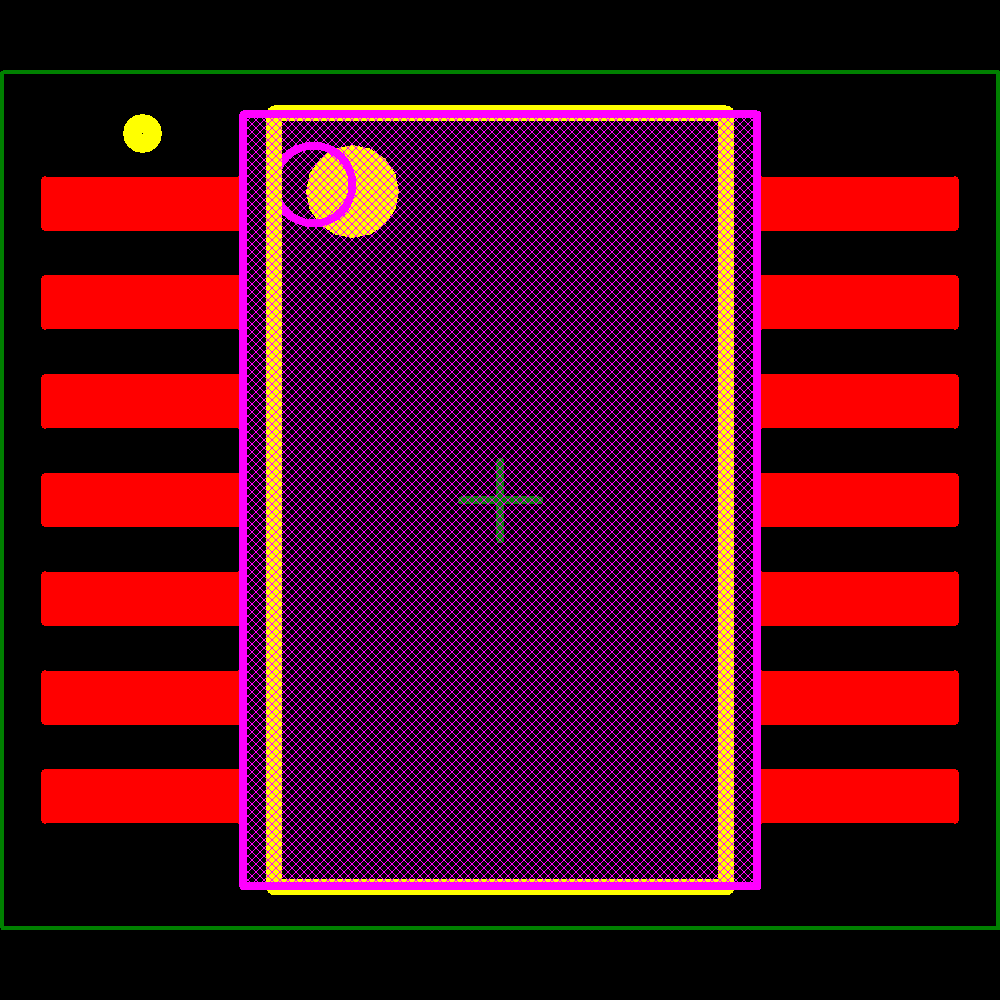

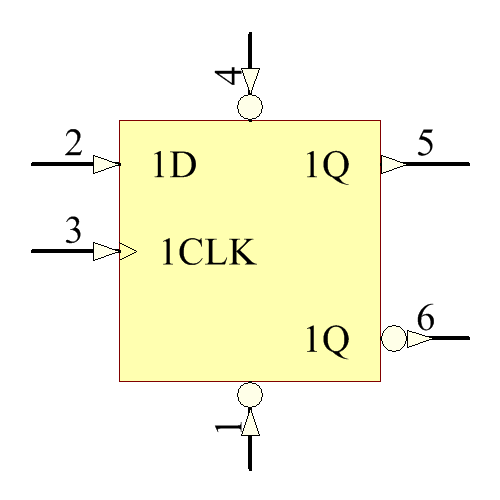

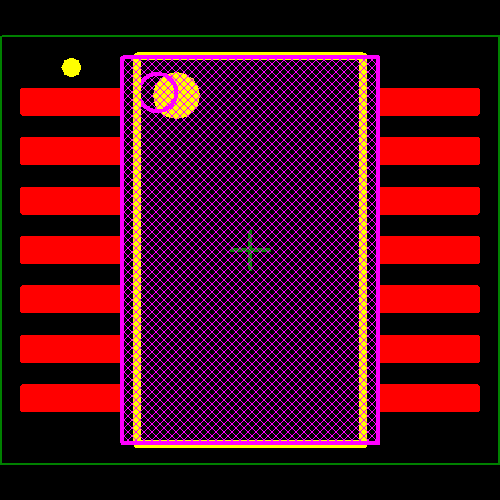

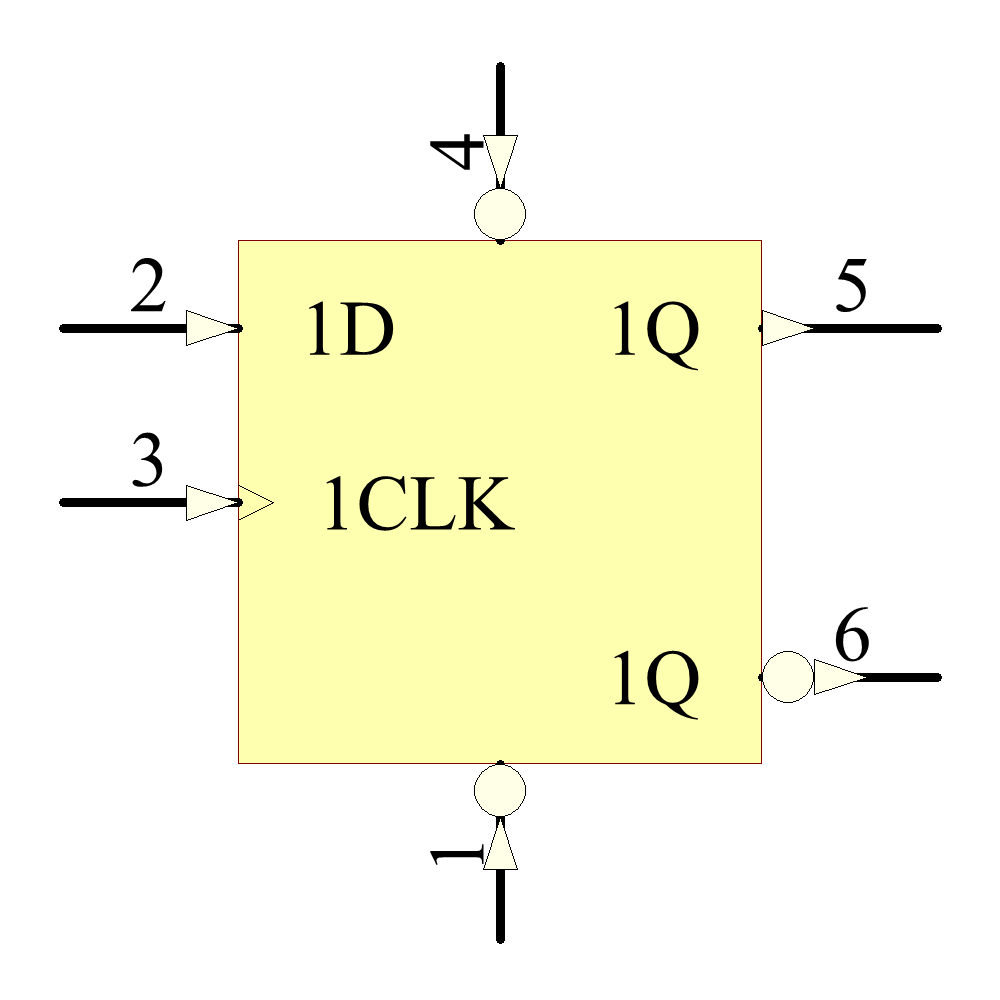

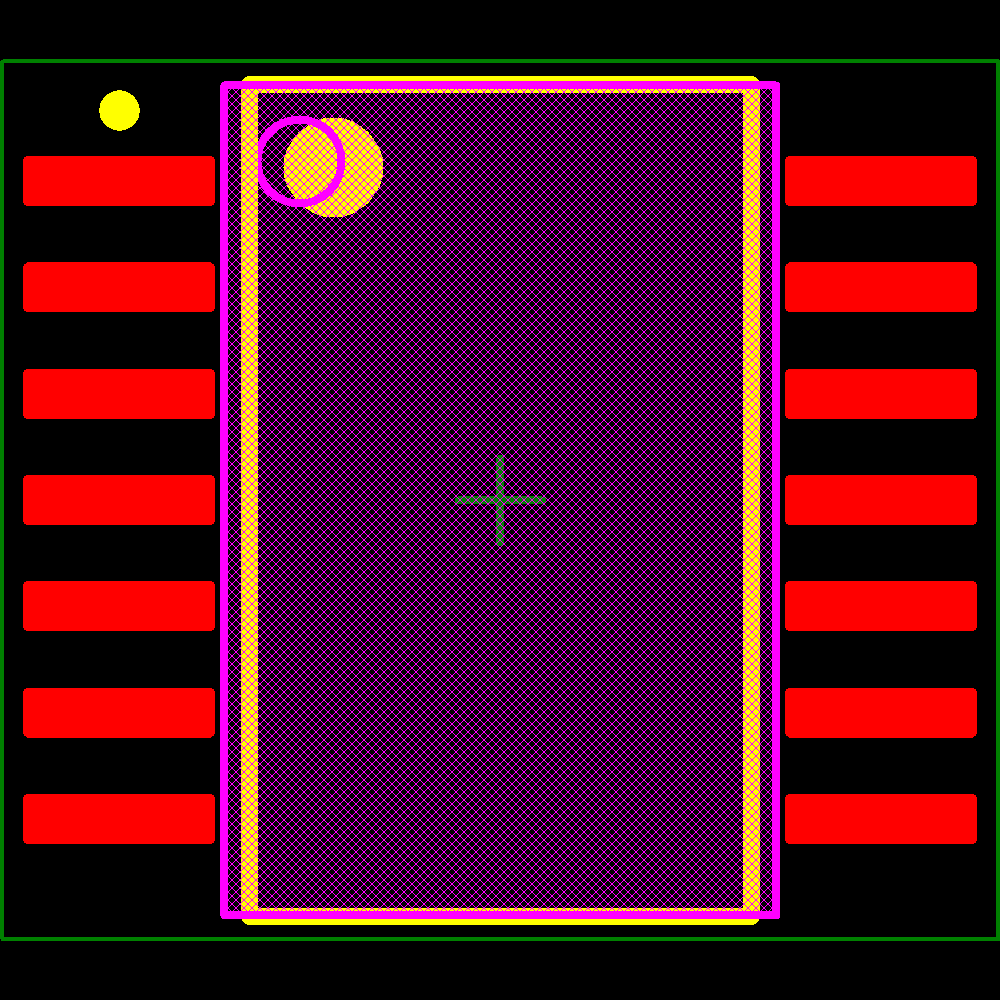

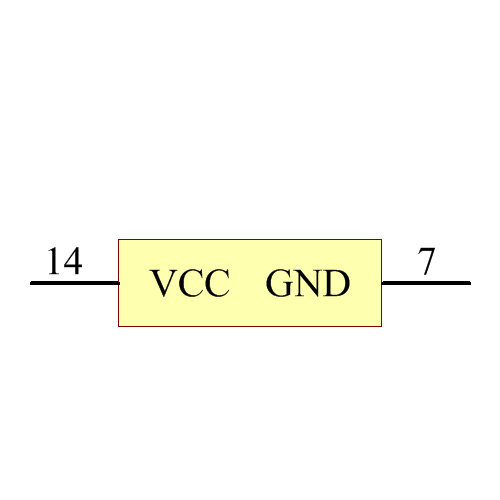

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Motorola | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 368
|
$ | 33.58 | 31.90 | 28.54 | 26.86 | ||||
| Texas Instruments |
US: 0
|
$ | 42.367 | 42.367 | 42.367 | 37.007 | 25.522 | 25.522 | ||
