SNJ54LS73AW - Texas Instruments
DUAL J-K FLIP-FLOPS WITH CLEAR A Flip Flop 2 Element JK Type 1 Bit Negative Edge 14-CFlatPack
Technical Details
| Clock Edge Trigger Type | Negative Edge |
| Frequency | 45MHz |
| Height | 2.03mm |
| High Level Output Current | -400µA |
| Lead Free | Contains Lead |
| Length | 9.21mm |
| Lifecycle Status | Production |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 1.59mm |
| Width | 5.97mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

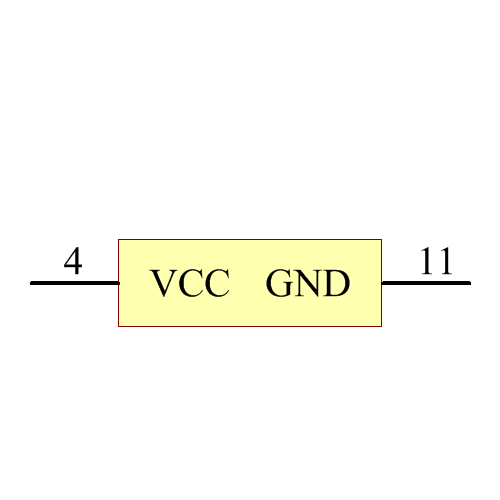

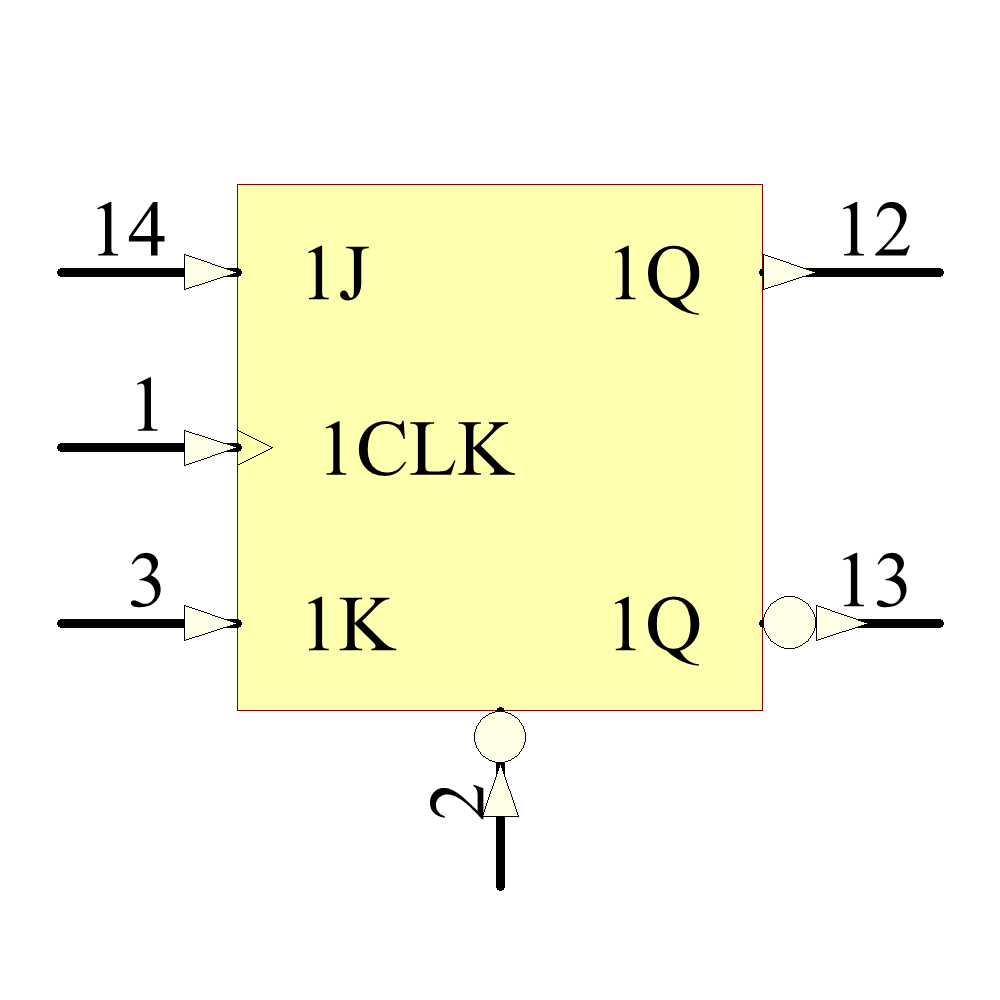

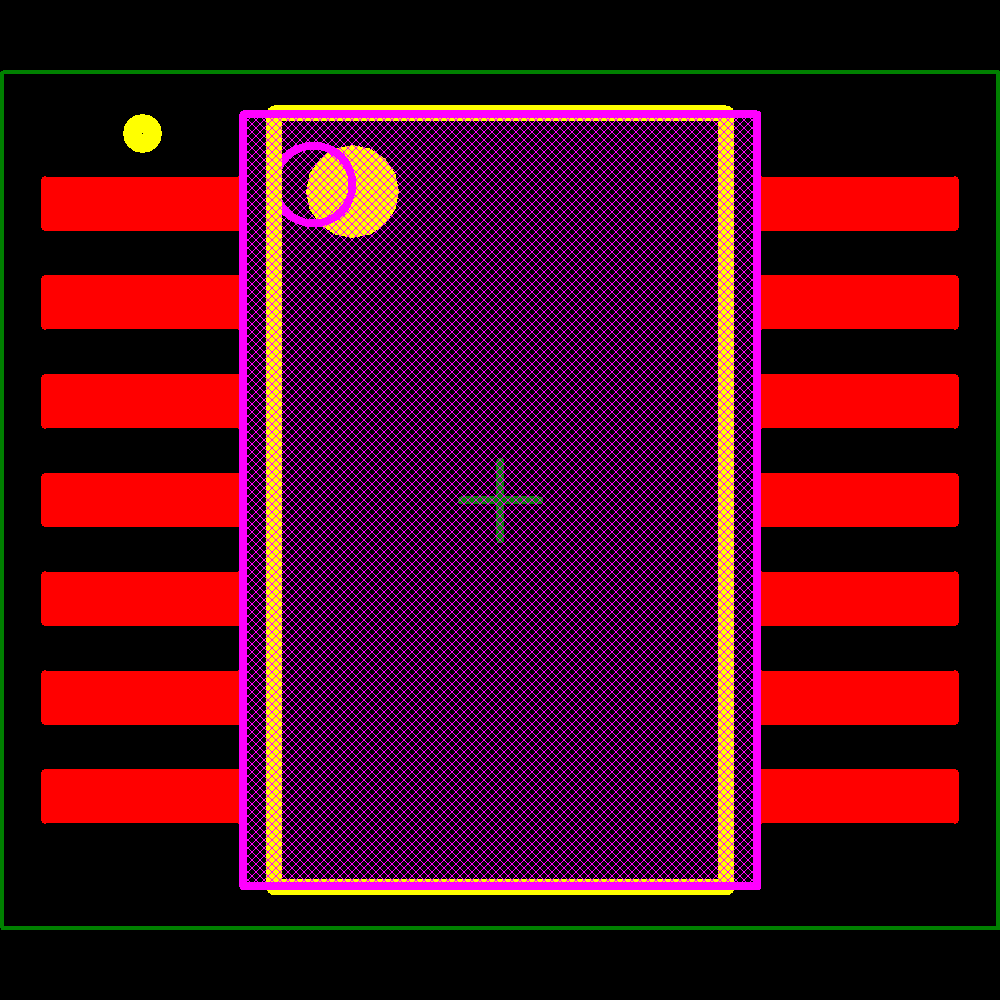

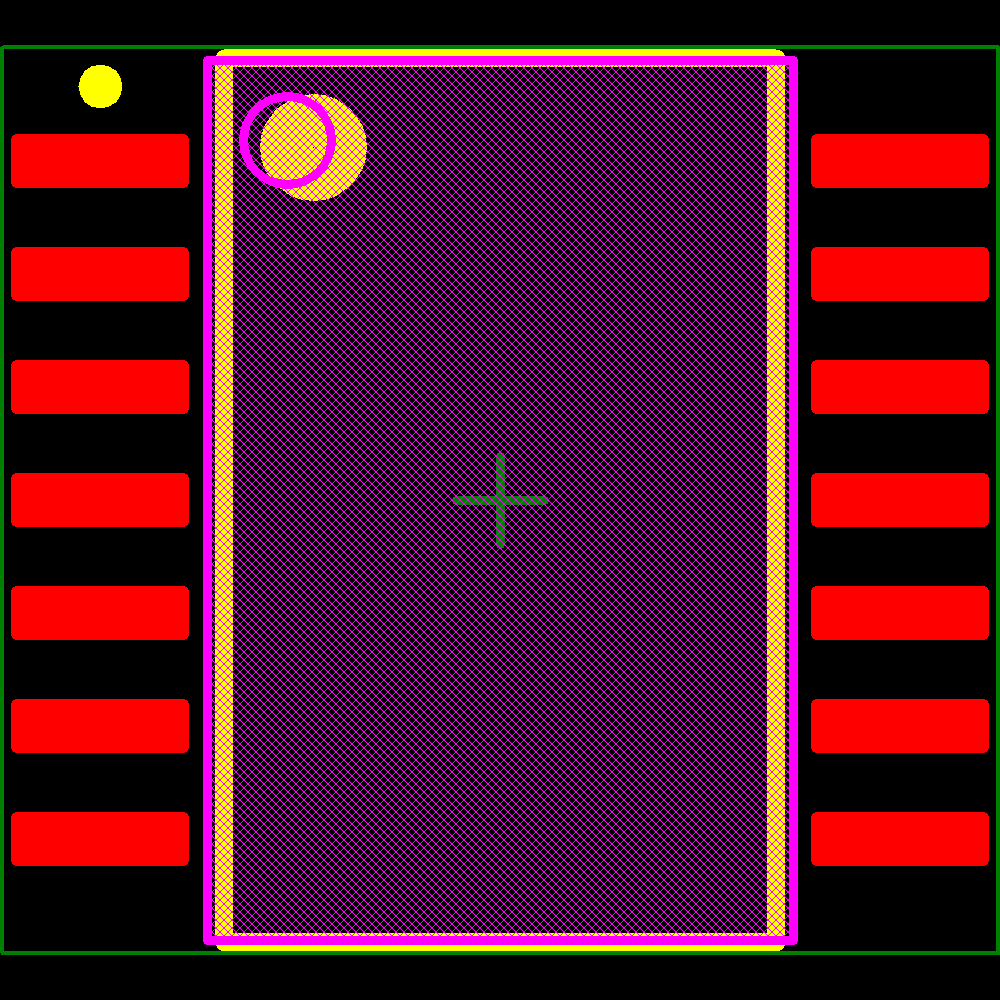

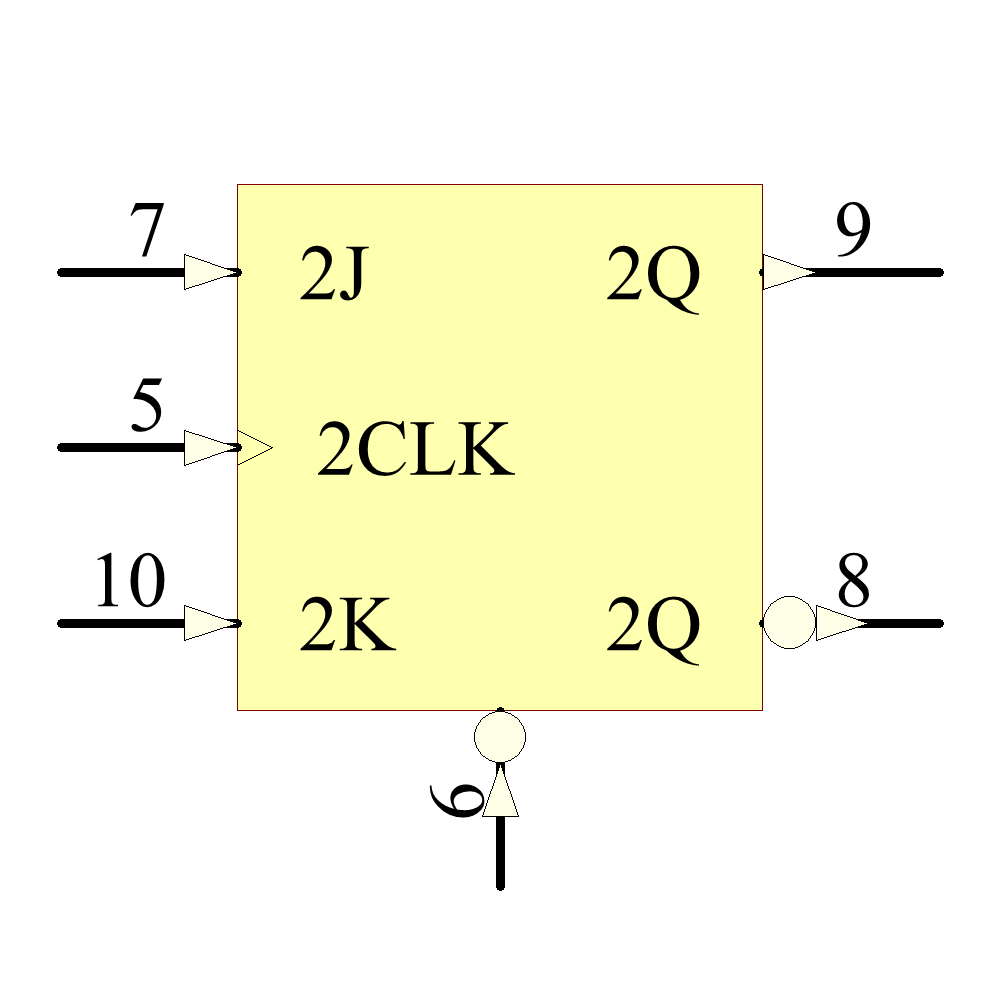

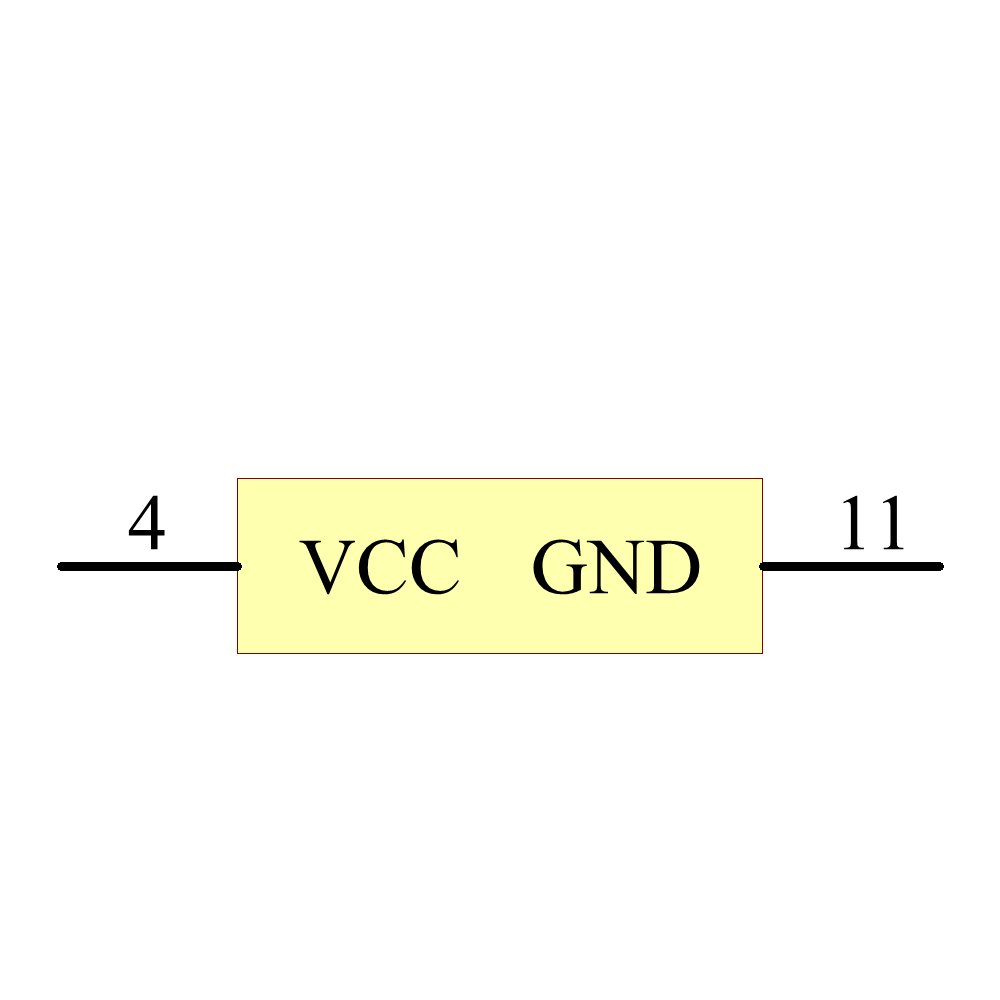

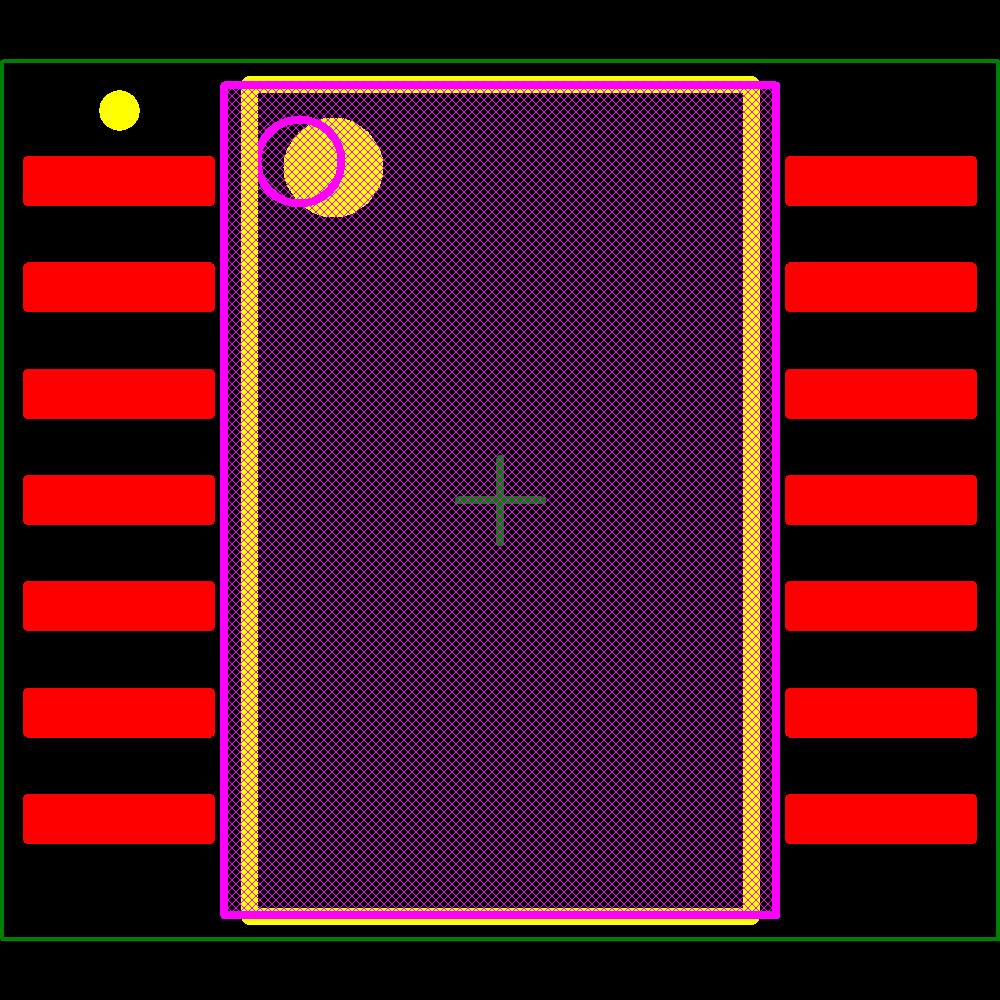

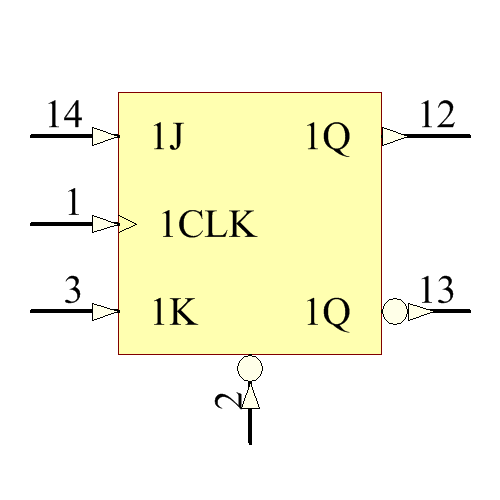

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete | ||
| Texas Instruments | Unknown | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
