TCA6507PWR - Texas Instruments
Led Driver 7 Segment 14-PIN TSSOP T/r / IC Led Drvr Lin Dim 40MA 14TSSOP
Technical Details
| Case/Package | TSSOP |
| Contact Plating | Gold |
| Frequency | 400kHz |
| Height | 0m |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 40mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 25µA |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Number of Outputs | 7 |
| Number of Pins | 14 |
| Number of Segments | 7 |
| Output Current | 40mA |
| Output Voltage | 5.5V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1mm |
| Topology | Boost |
| Weight | 57.209338mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

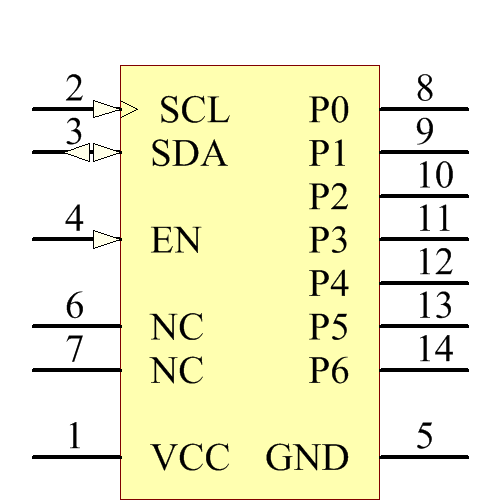

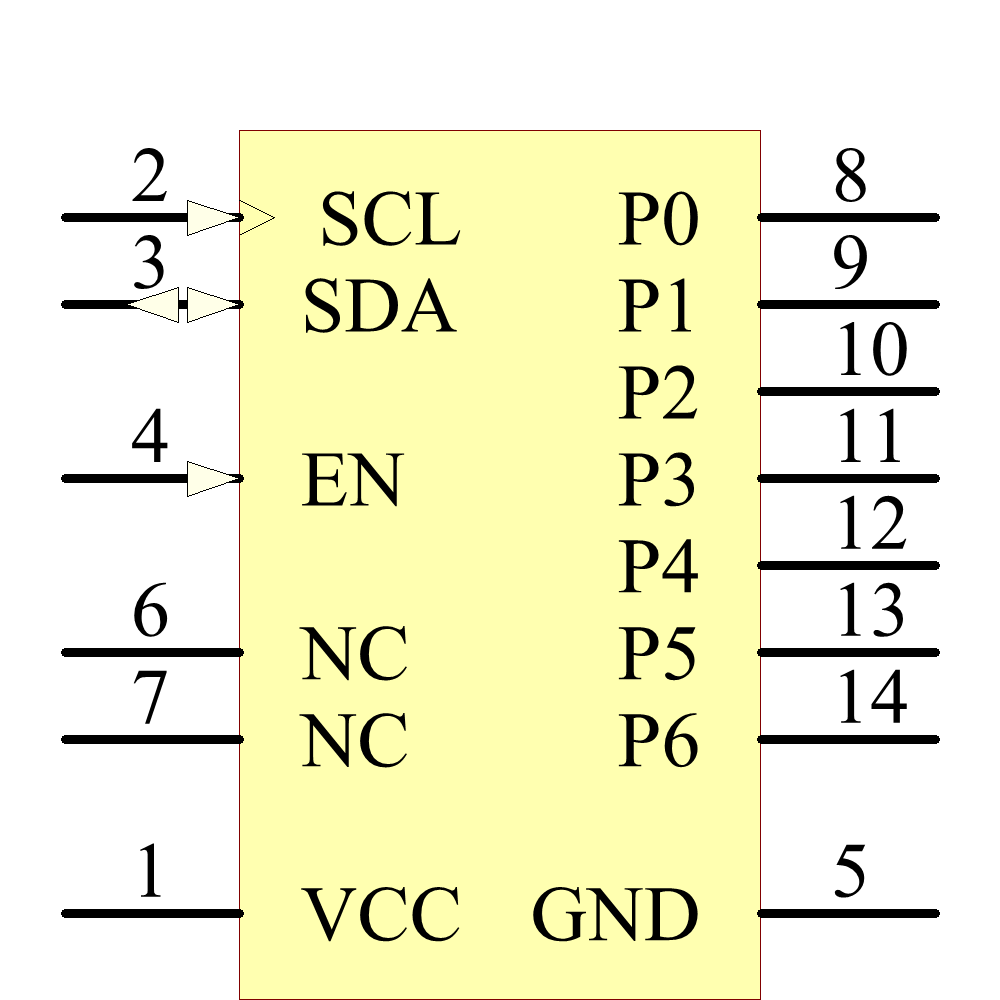

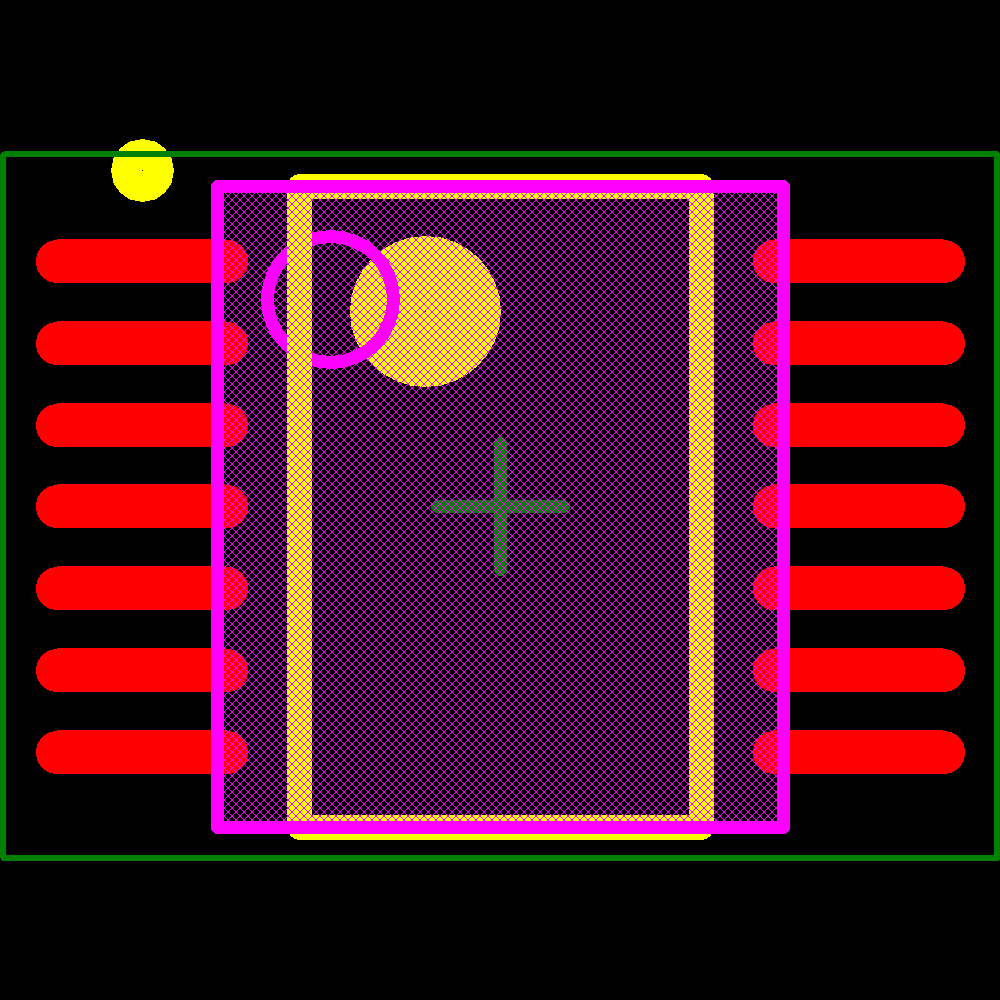

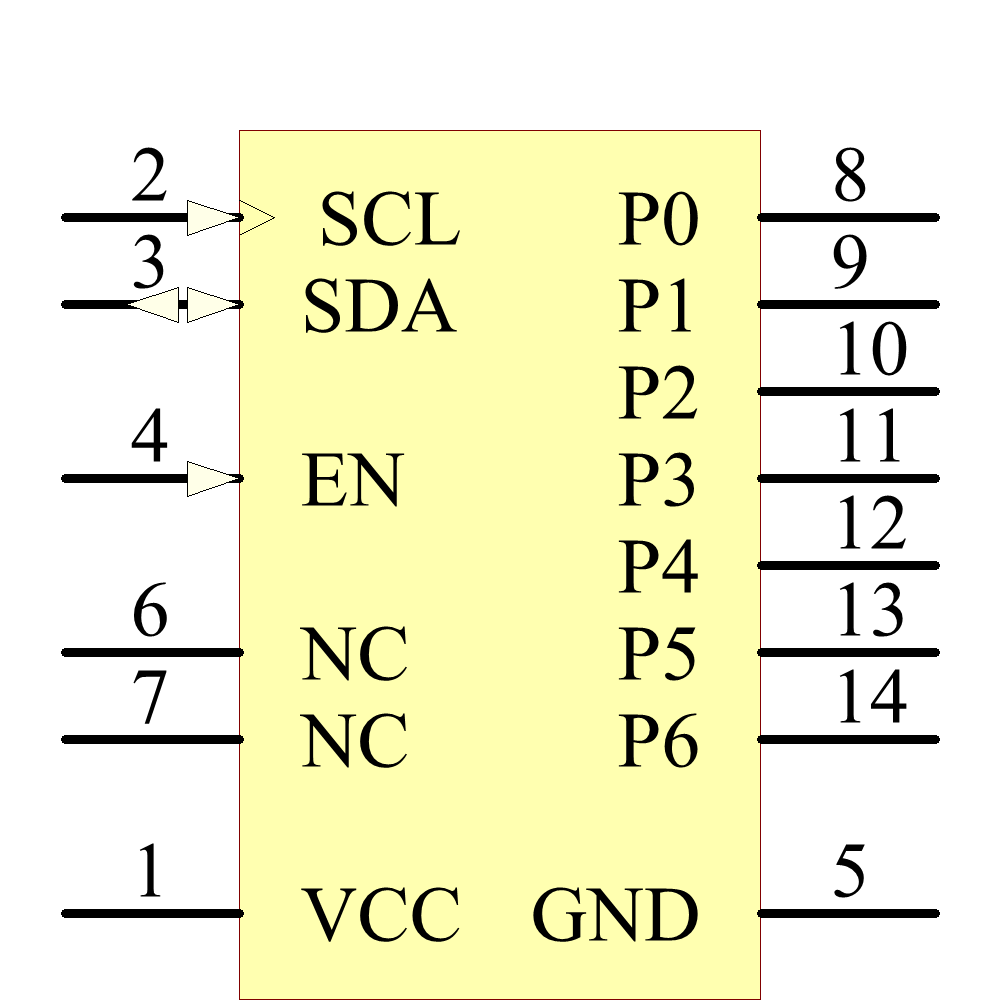

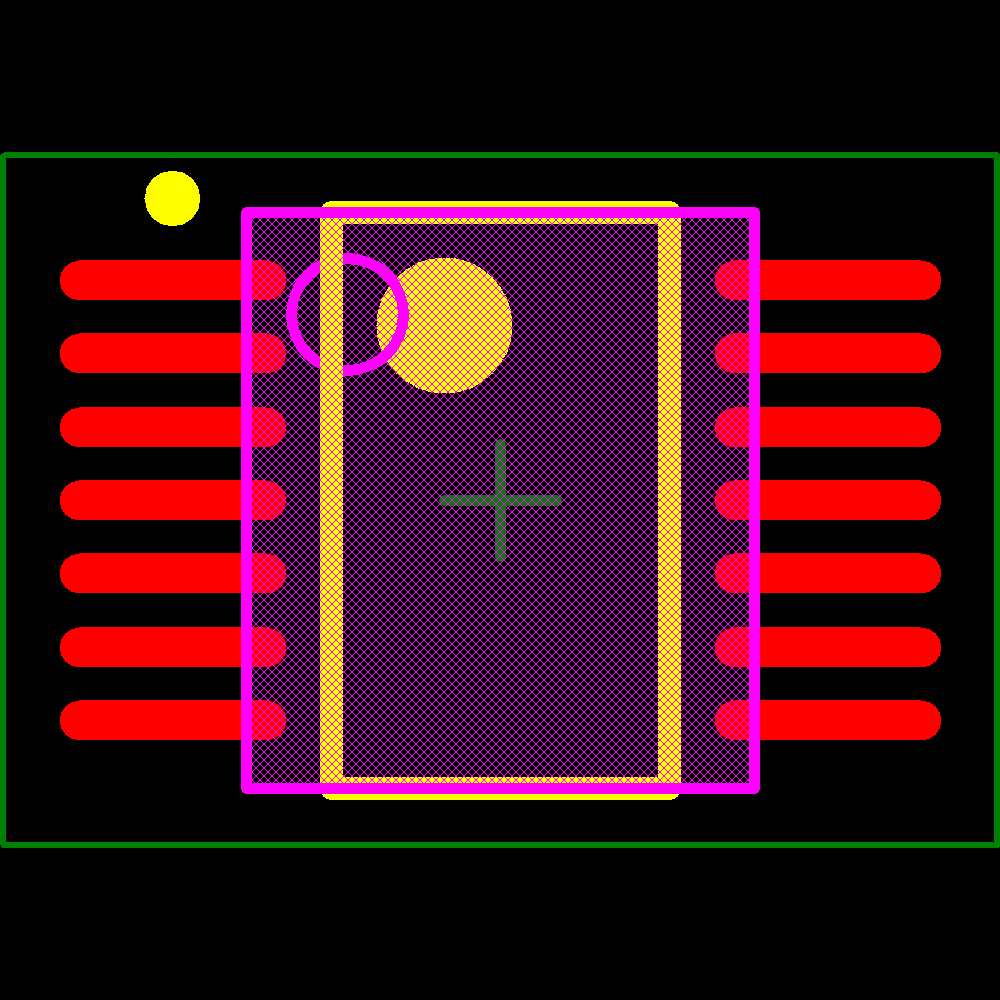

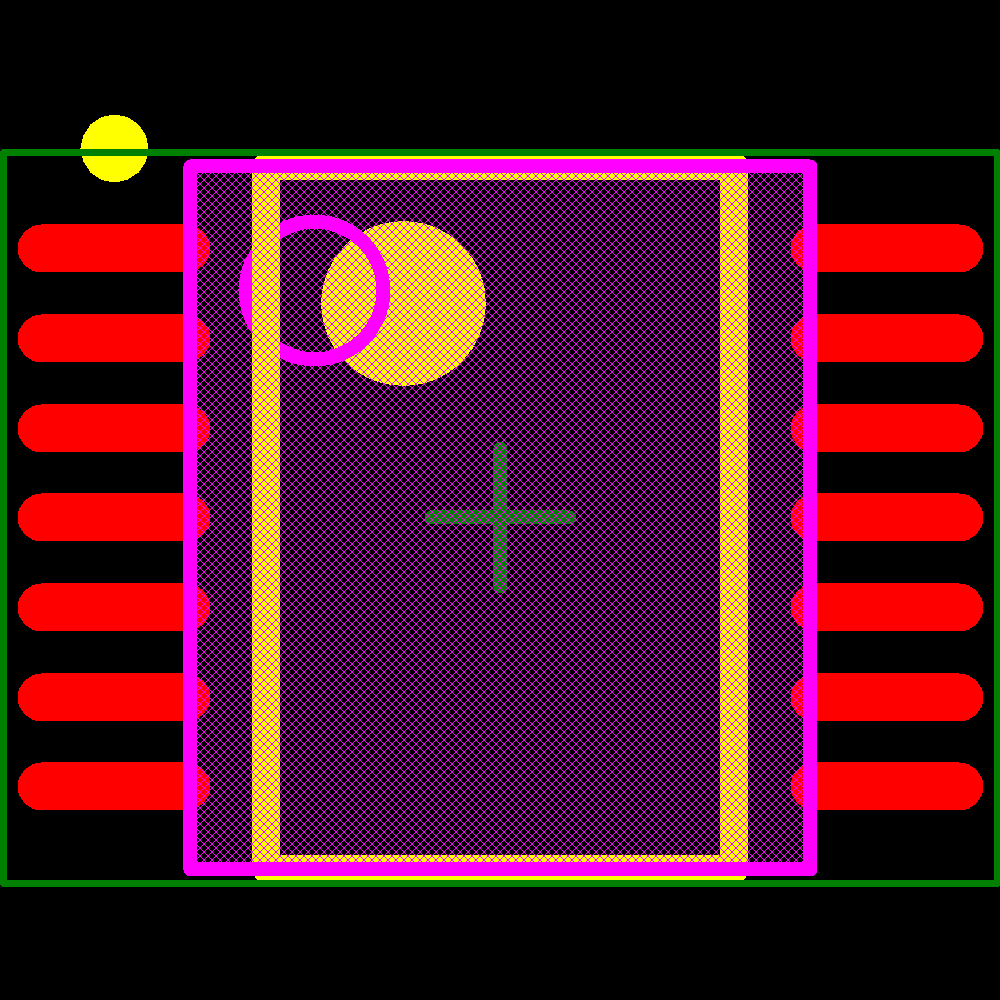

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Obsolete | ||
| onsemi | Production | ||
| Analog Devices | Obsolete | ||
| onsemi | EOL | ||
| Texas Instruments | Production |
