TL4050A41IDBZT - Texas Instruments
IC VREF SHUNT 0.1% SOT23-3 Shunt Voltage Reference IC Fixed 4.096V V ±0.1% 15 mA SOT-23-3
Technical Details
| Case/Package | SOT-23 |
| Cathode Current | 73µA |
| Height | 1.22mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Output Current | 15mA |
| Max Output Voltage | 4.096V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 4.096V |
| Number of Channels | 1 |
| Number of Pins | 3 |
| Output Current | 15mA |
| Output Type | Fixed |
| Output Voltage | 4.096V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Type | Shunt |
| Reference Voltage | 4.096V |
| RoHS | Compliant |
| Temperature Coefficient | 30ppm/°C |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Tolerance | 0.1% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

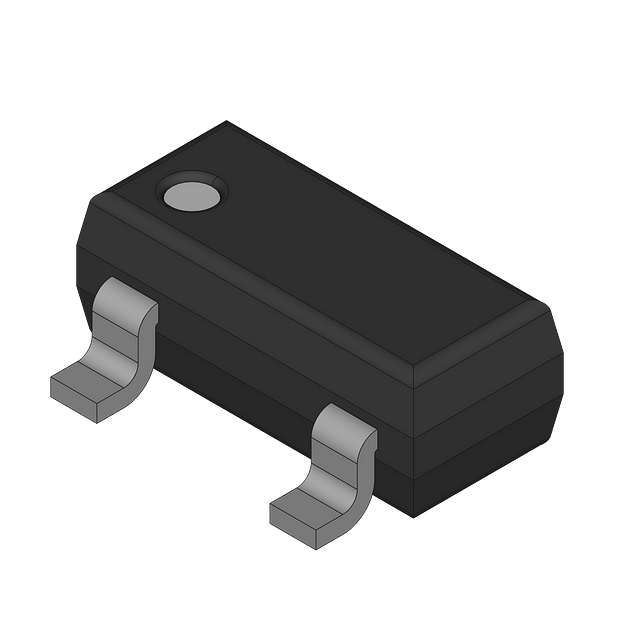

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Zetex | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
