TL4242TDRJRQ1 - Texas Instruments

Adj Led Driver, Aec-Q100, Wson-8, Smd Rohs Compliant: Yes |TEXAS INSTRUMENTS TL4242TDRJRQ1

Technical Details

Ambient Temperature Range High	105°C
Contact Plating	Gold
Frequency	10kHz
Height	800µm
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	105°C
Max Supply Current	22mA
Max Supply Voltage	42V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Surface Mount
Nominal Supply Current	12mA
Number of Channels	1
Number of Outputs	1
Number of Pins	8
Output Current	500mA
Output Voltage	41.3V
Packaging	Cut Tape (CT)
Power Dissipation	1.22W
Quiescent Current	12mA
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	670µm
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TL4242TDRJRQ1 | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

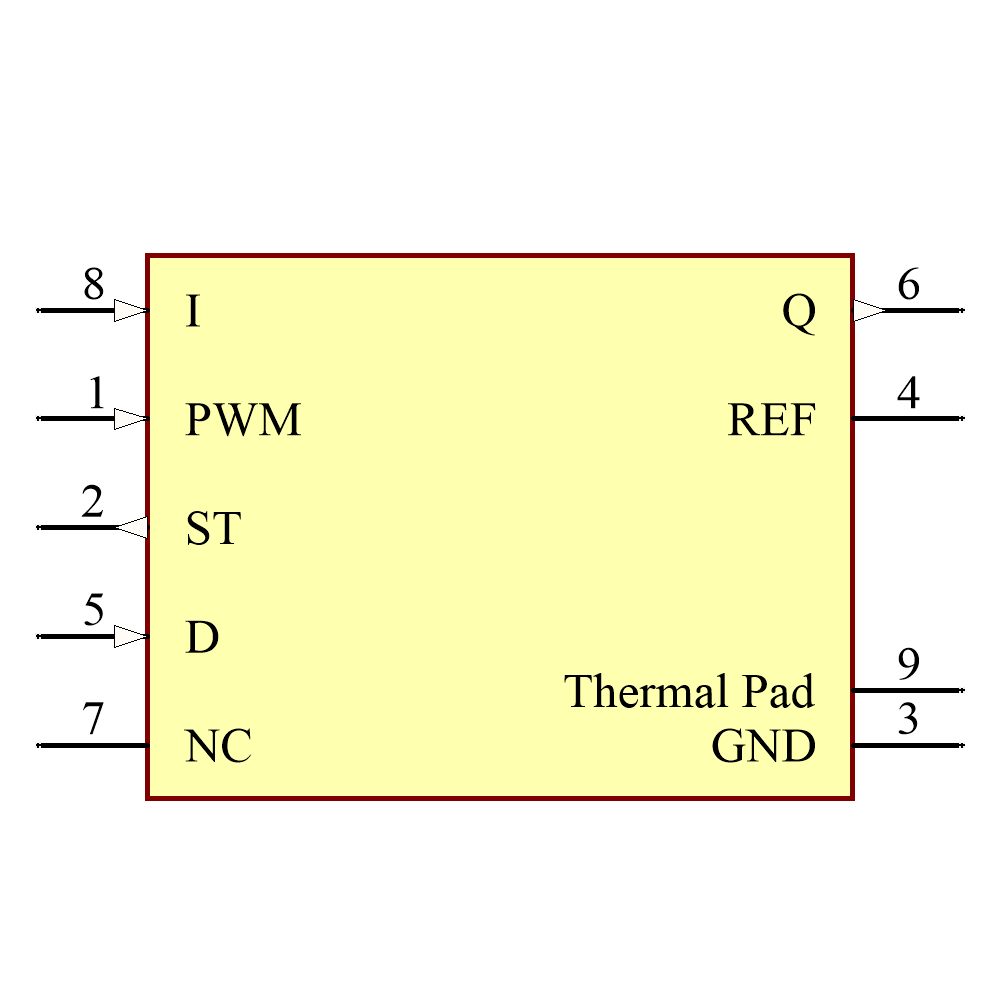

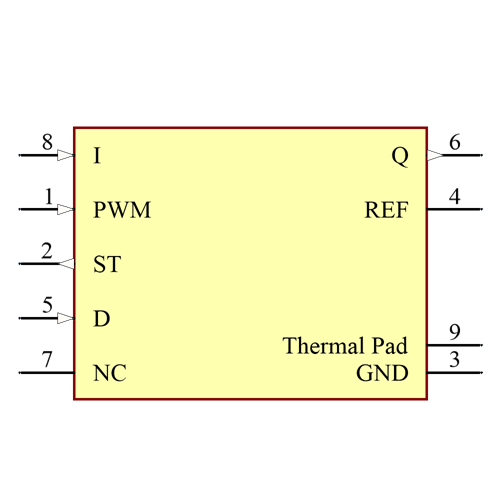

TL4242TDRJRQ1 Symbol - Texas Instruments

TL4242TDRJRQ1 Symbol - Texas Instruments

TL4242TDRJRQ1 Symbol - Texas Instruments

TL4242TDRJRQ1 Symbol - Texas Instruments

‹ ›

Footprint

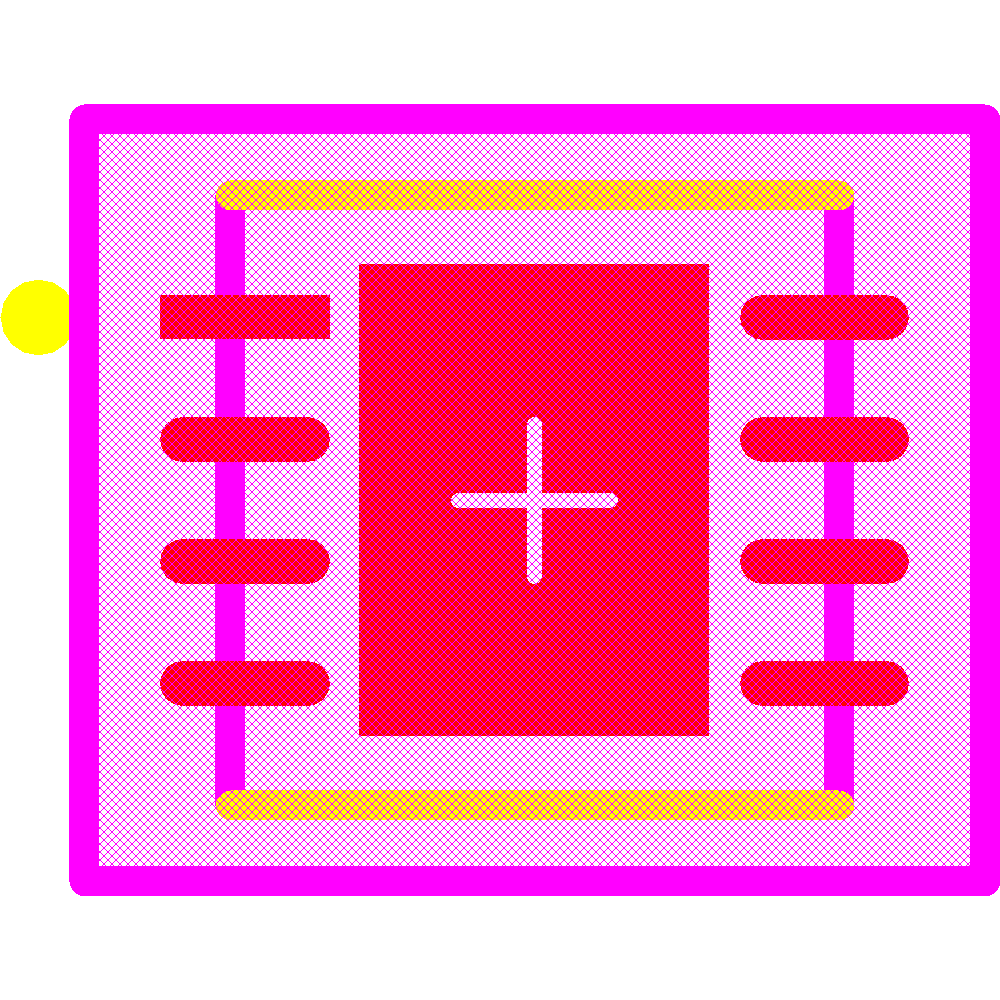

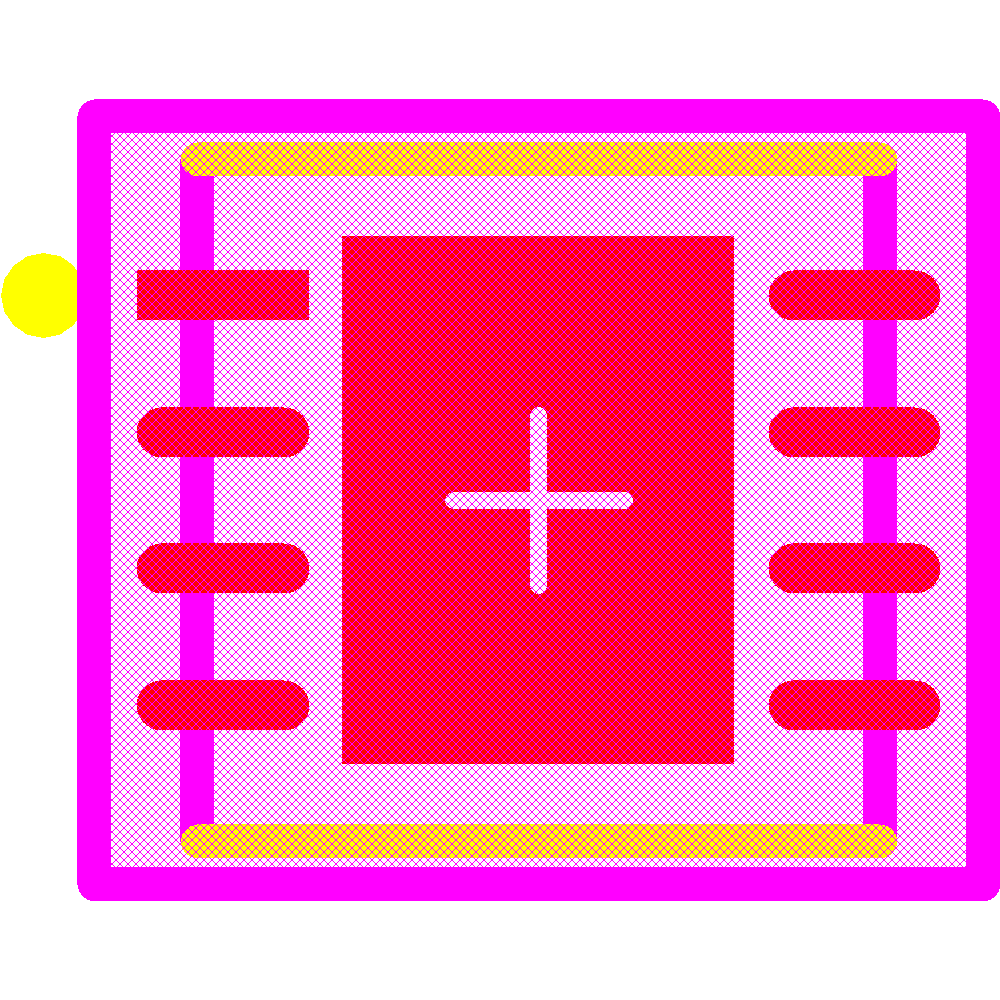

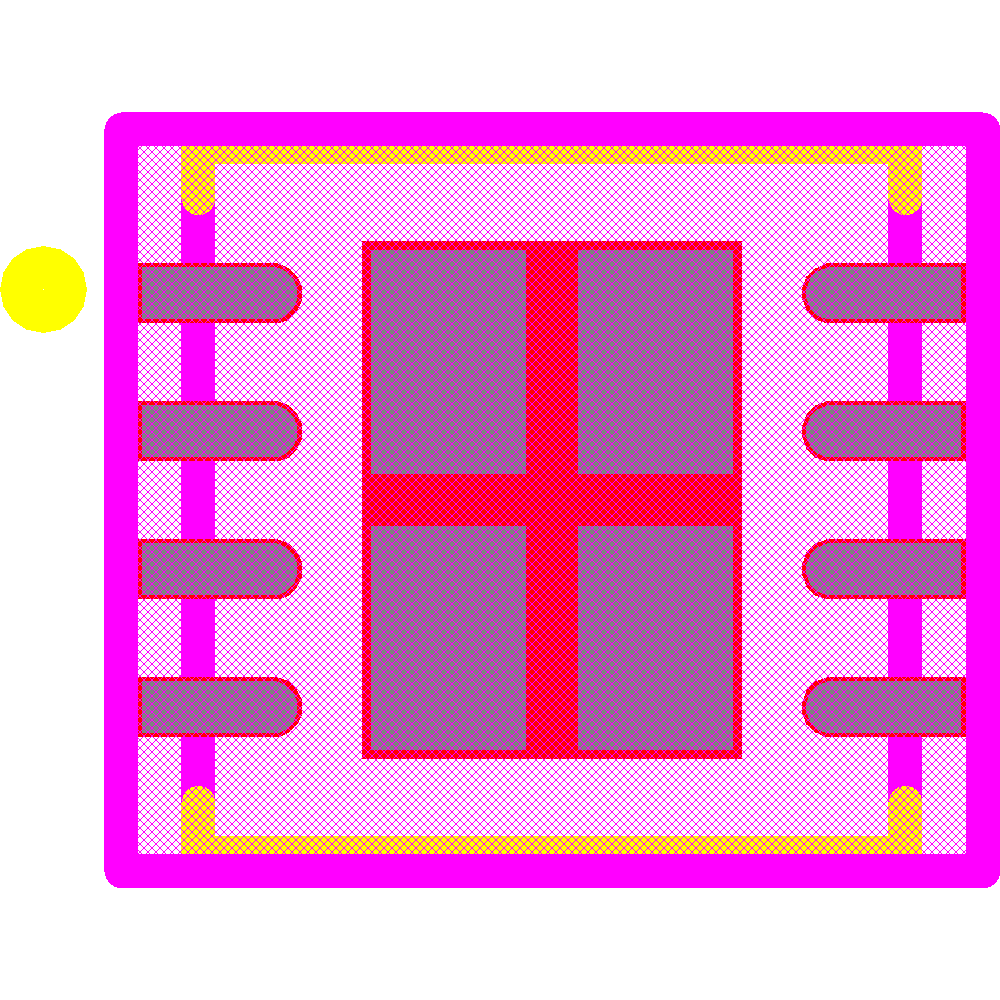

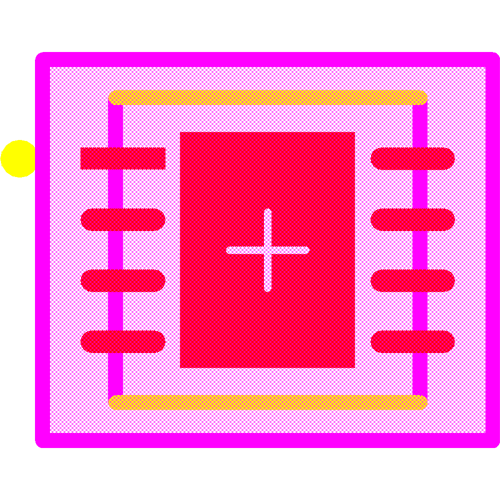

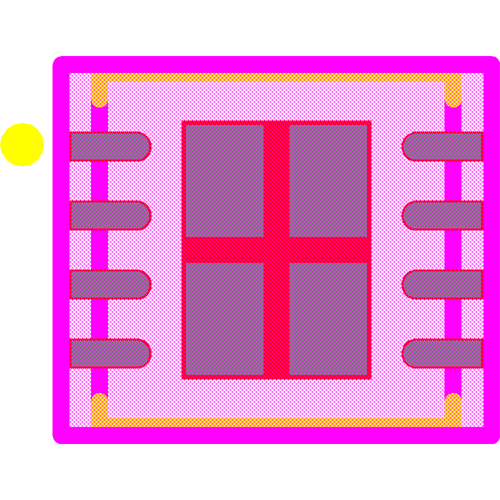

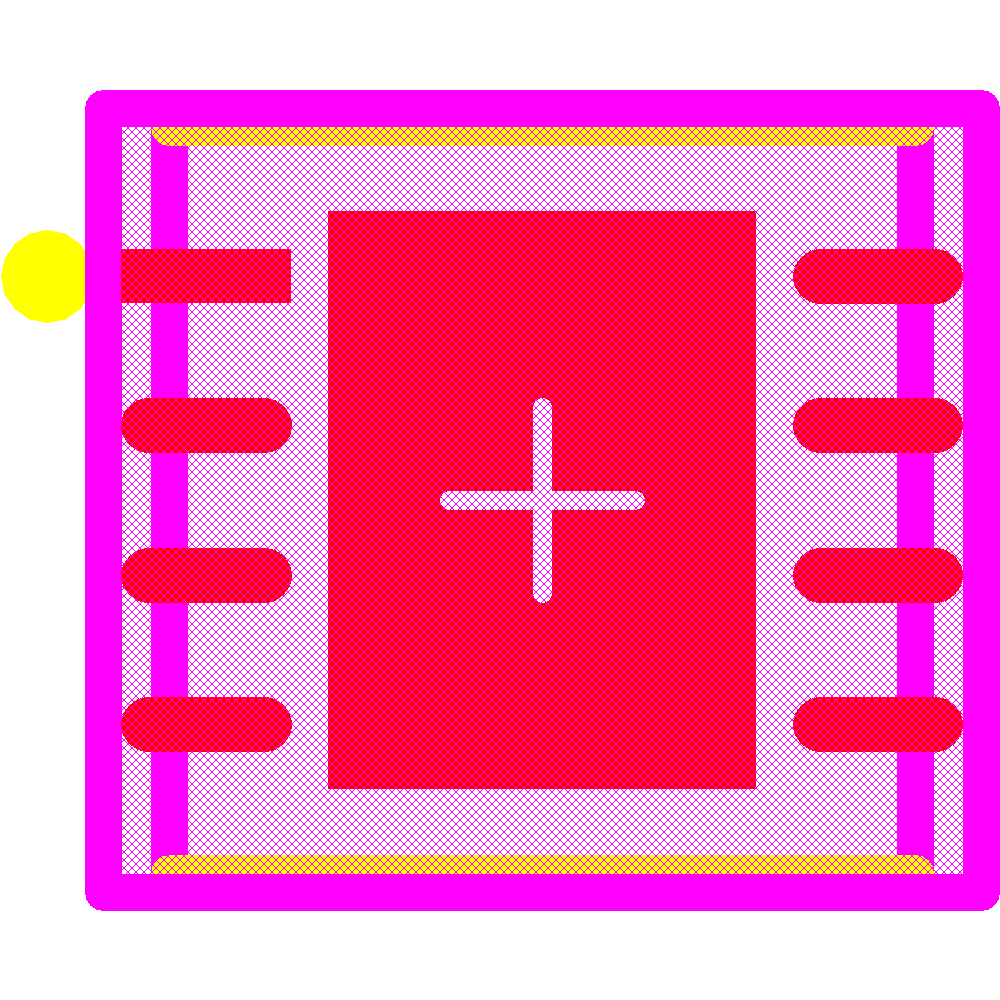

TL4242TDRJRQ1 Footprint - Texas Instruments
