TL431IPE4 - Texas Instruments
V-Ref Adjustable 2.495V to 36V 100mA Automotive 8-Pin PDIP Tube
Technical Details
| Case/Package | PDIP |
| Cathode Current | 1mA |
| Height | 5.08mm |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | LIFEBUY |
| Max Input Voltage | 37V |
| Max Operating Temperature | 125°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.495V |
| Number of Pins | 8 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 36V |
| Reference Type | Adjustable, Shunt |
| RoHS | Compliant |
| Temperature Coefficient | 34ppm/°C |
| Thickness | 3.9mm |
| Tolerance | 2.2% |
| Weight | 440.409842mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed

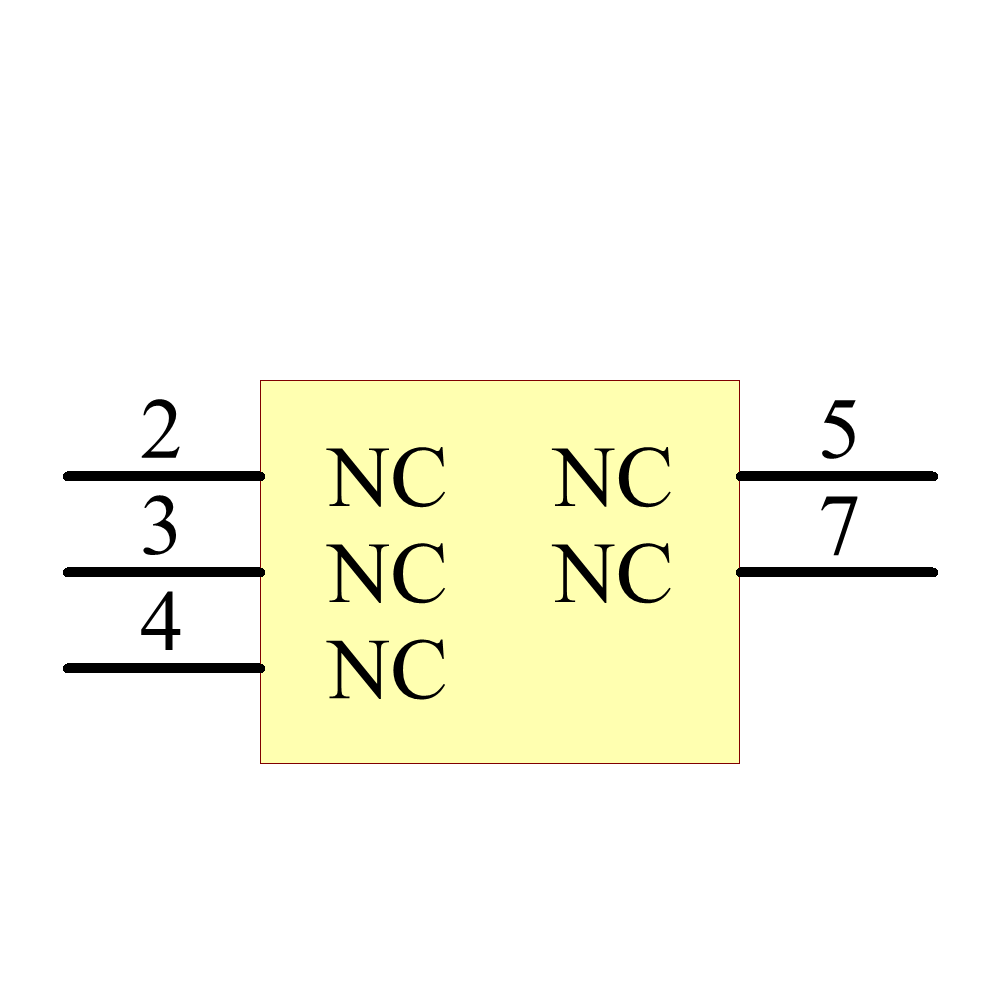

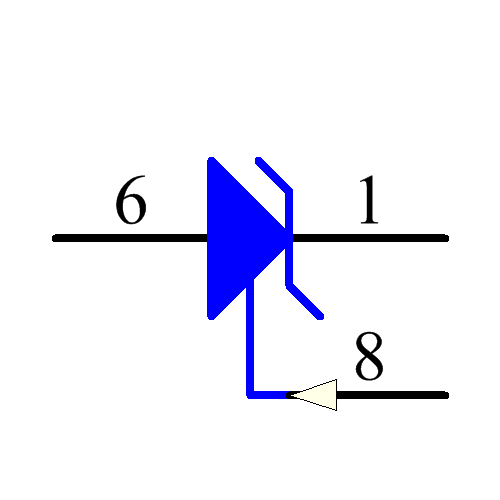

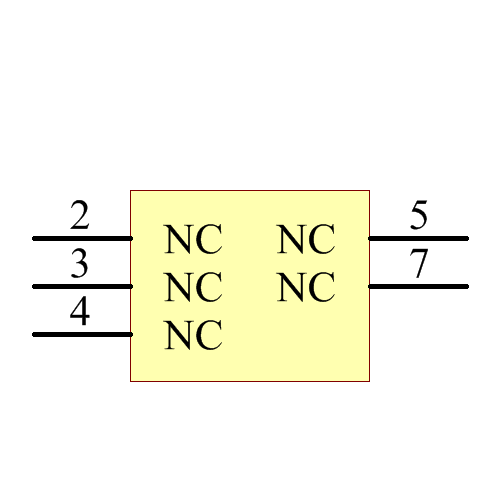

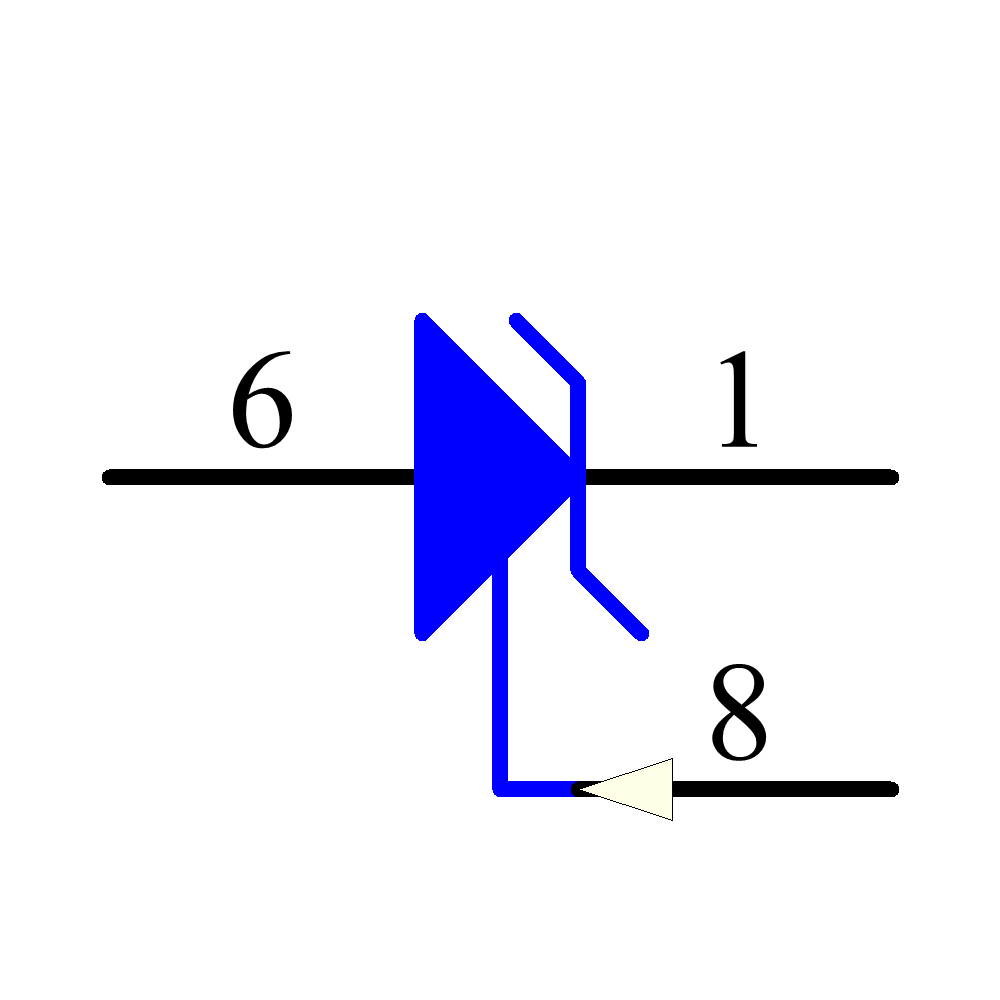

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| onsemi | Obsolete |
