TL5001CPSR - Texas Instruments

TL5001 Buck Boost Flyback Cut Tape (CT) e4 DC to DC switching controller 3A 20mA 122.611688mg 50V

Technical Details

Case/Package	SOP
Duty Cycle	100%
Frequency	500kHz
Height	2mm
Length	6.2mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Frequency	500kHz
Max Input Voltage	40V
Max Operating Temperature	85°C
Max Output Current	3A
Max Output Voltage	50V
Min Input Voltage	3.6V
Min Operating Temperature	-25°C
Min Output Voltage	1V
Number of Outputs	1
Number of Pins	8
Operating Supply Voltage	40V
Output Voltage	50V
Packaging	Digi-Reel®
Quiescent Current	1.1mA
RoHS	Compliant
Thickness	1.95mm
Topology	Boost, Buck, Flyback, SEPIC
Weight	122.611688mg
Width	5.3mm

Compliance

RoHS : Unconfirmed

Images

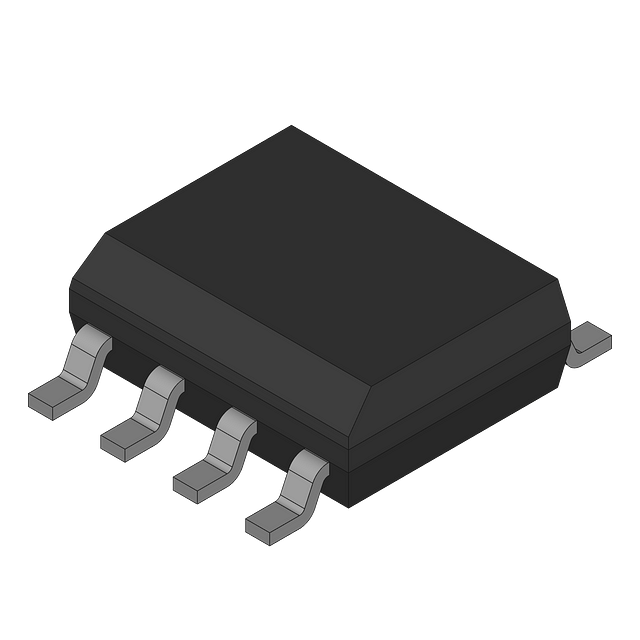

Texas Instruments TL5001CPSR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

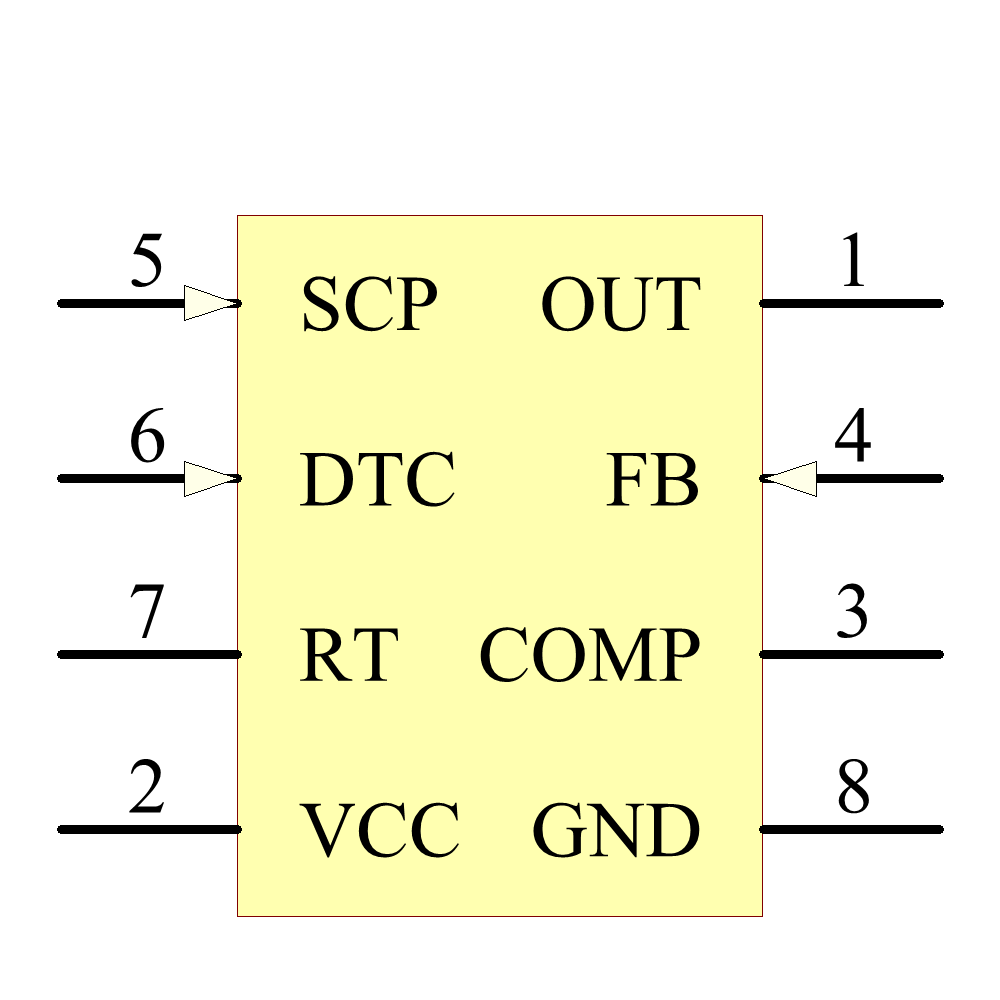

TL5001CPSR Symbol - Texas Instruments
