TL5001IPSRG4 - Texas Instruments
DC DC Cntrlr Single-OUT PWM DC to DC Controller 3.6V to 40V Input 8-Pin SOP T/R
Technical Details
| Case/Package | SOP |
| Duty Cycle | 100% |
| Lead Free | Contains Lead |
| Max Frequency | 500kHz |
| Max Input Voltage | 40V |
| Max Operating Temperature | 85°C |
| Max Output Current | 3A |
| Max Output Voltage | 50V |
| Min Input Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 40V |
| Output Current | 20mA |
| Output Voltage | 50V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 1.1mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Topology | Boost, Buck, Flyback |
| Weight | 850.995985mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

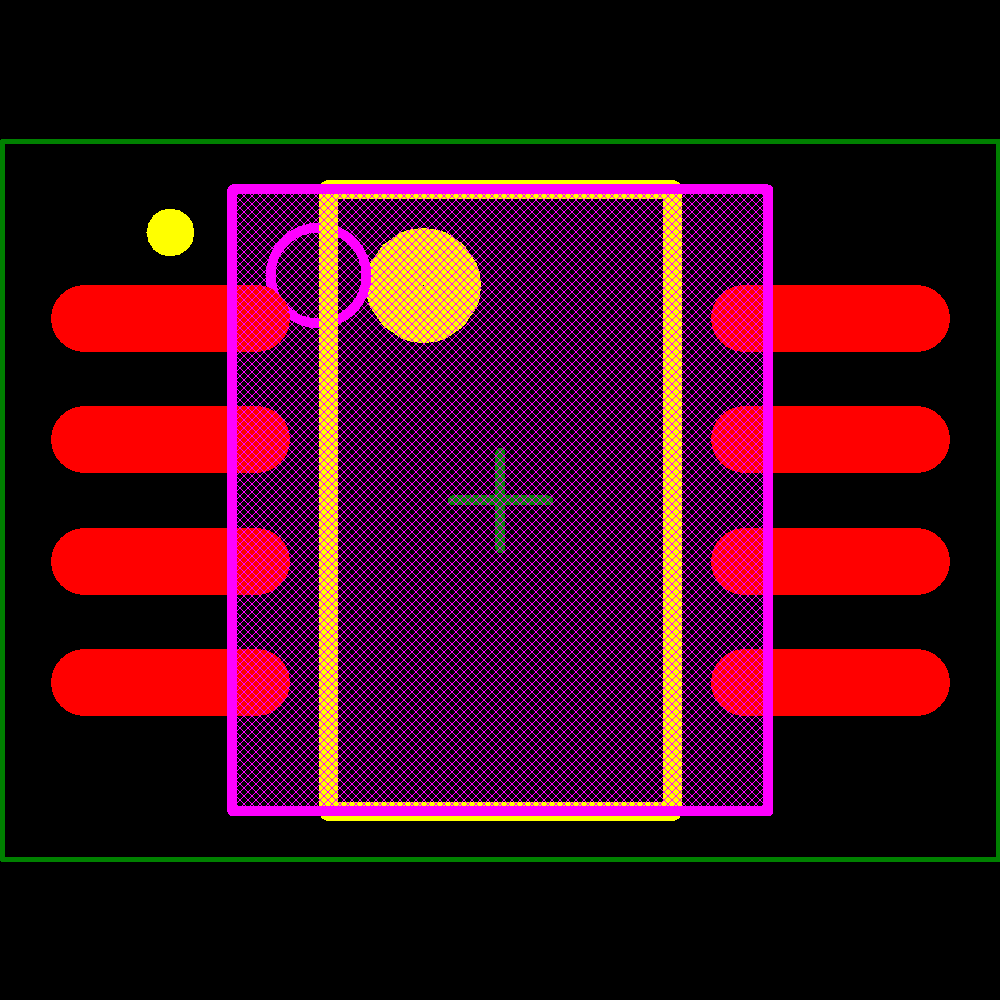

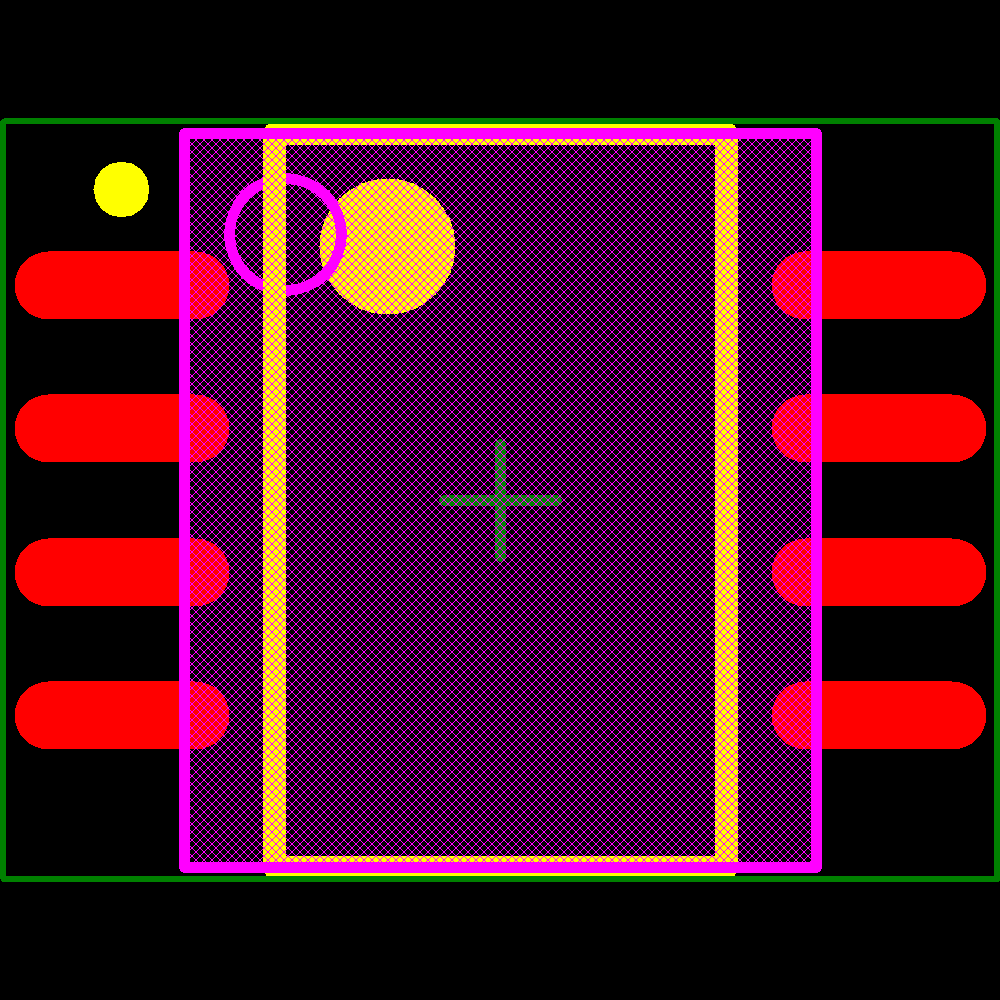

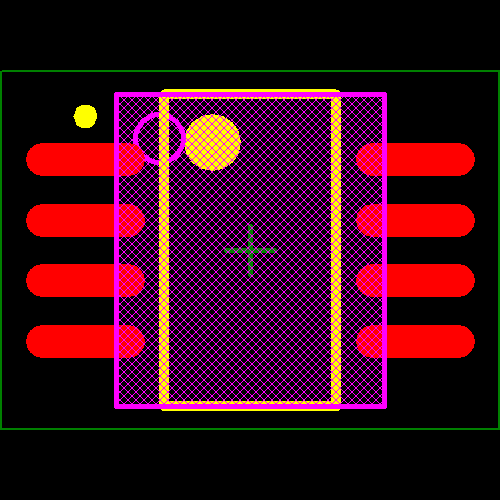

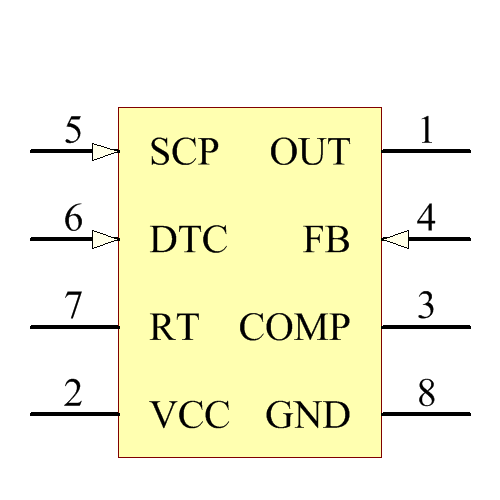

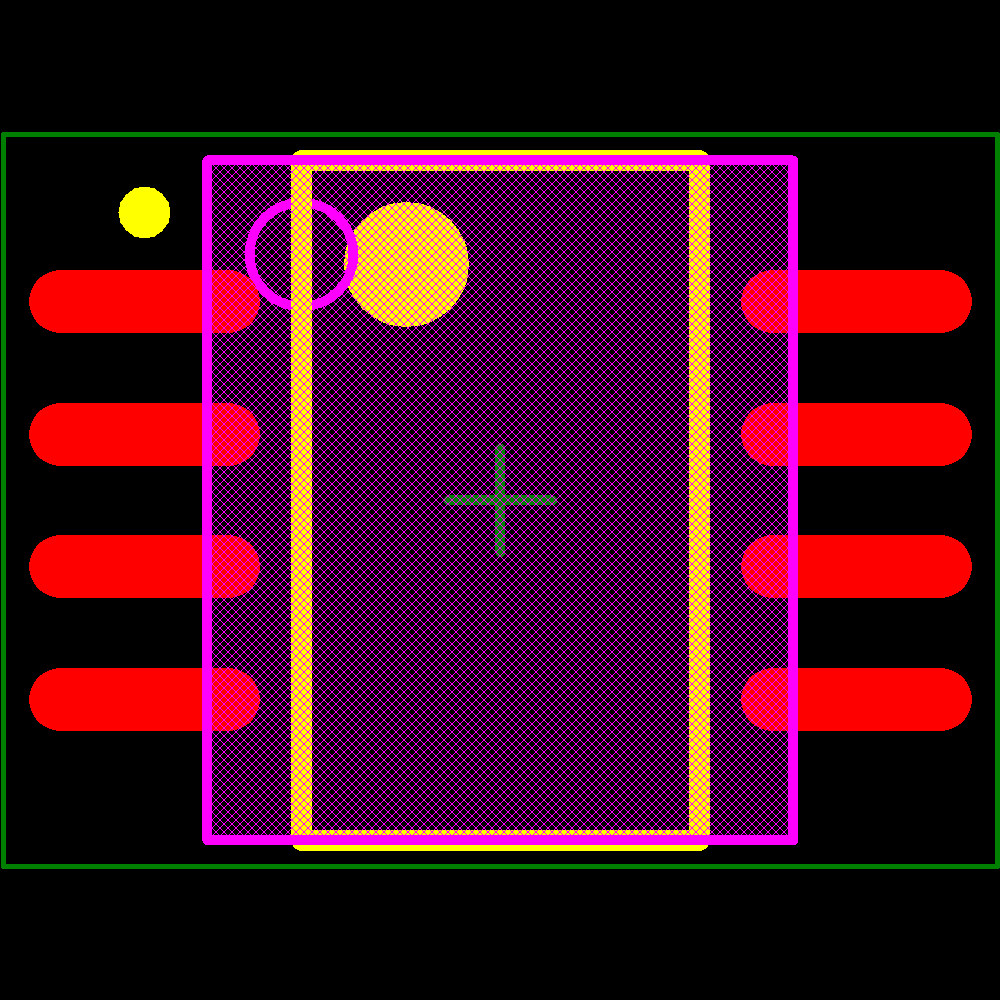

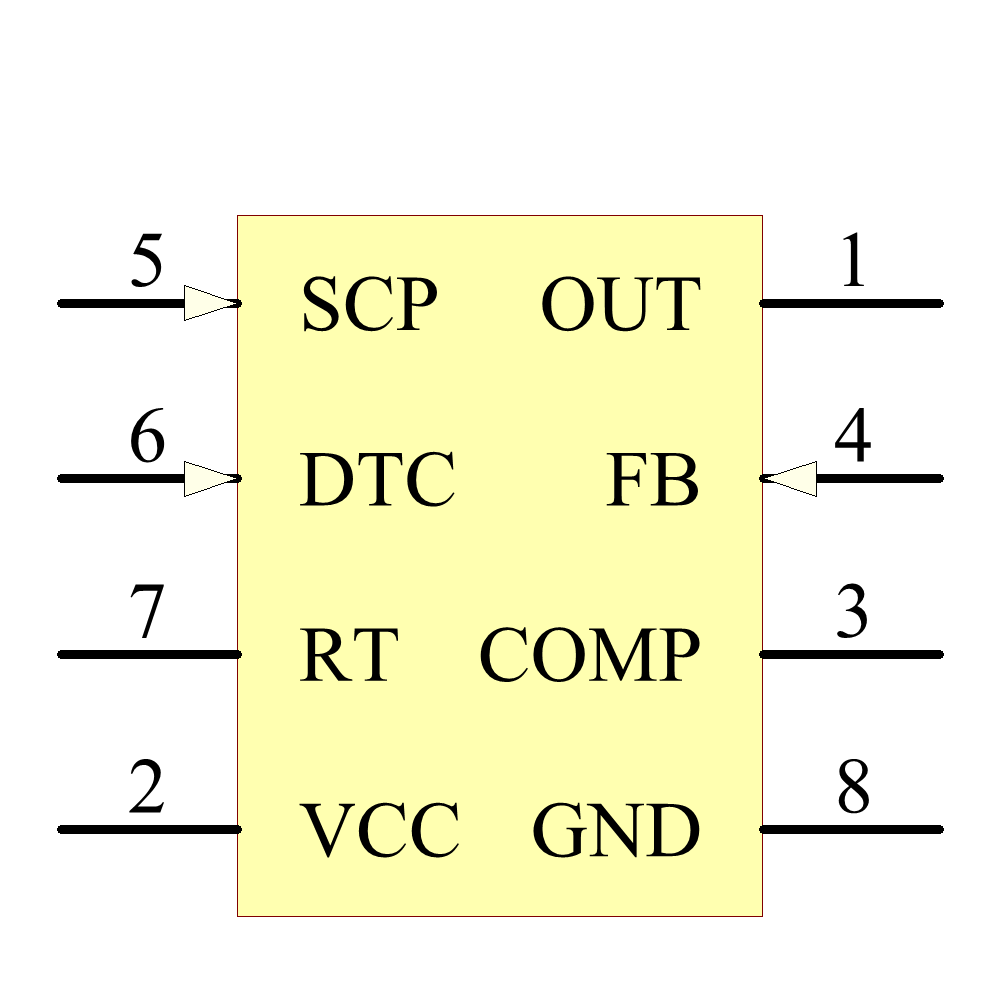

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown |
