TL750L10CLPR - Texas Instruments
150-mA, 26-V, low-dropout voltage regulator 3-TO-92 0 to 125
Technical Details
| Accuracy | 4% |
| Case/Package | TO-92 |
| Dropout Voltage | 600mV |
| Height | 5.34mm |
| Input Bias Current | 1mA |
| Length | 4.3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 26V |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Min Input Voltage | 11V |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Nominal Output Voltage | 10V |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 10V |
| Output Voltage Accuracy | 4% |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 3.6mm |
| Width | 4.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

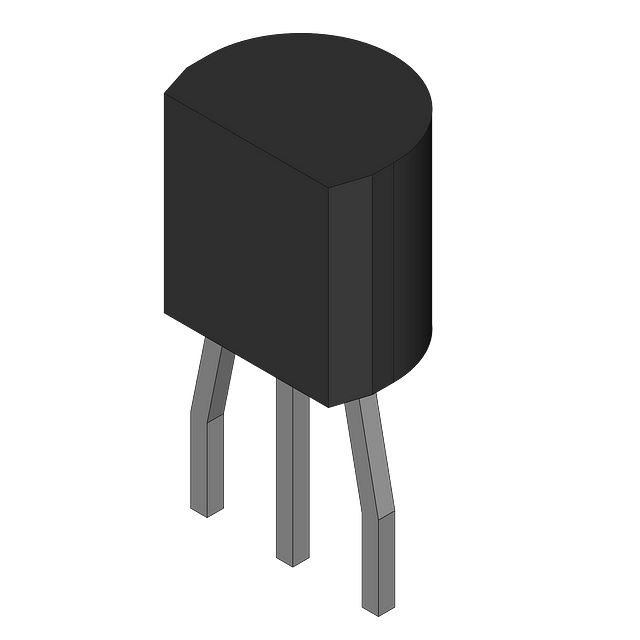

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | NRND | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Unknown | ||
| onsemi | Production | ||
| Texas Instruments | Production | ||
| MaxLinear | Obsolete |
