TLC59116IPWR - Texas Instruments

16-bit Fast-Mode Plus (FM+) I2C-Bus constant-current LED sink driver 28-TSSOP -40 to 85

Technical Details

Case/Package	TSSOP
Frequency	25MHz
Height	1.2mm
Lead Free	Lead Free
Length	9.7mm
Lifecycle Status	Production
Low Level Output Current	30mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Power Dissipation	1.207W
Max Supply Current	37mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	3.7mA
Number of Outputs	16
Number of Pins	28
Number of Segments	16
Output Current	120mA
Output Voltage	17V
Packaging	Cut Tape
Power Dissipation	1.207W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	1MHz
Thickness	1mm
Topology	Boost
Weight	117.508773mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TLC59116IPWR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

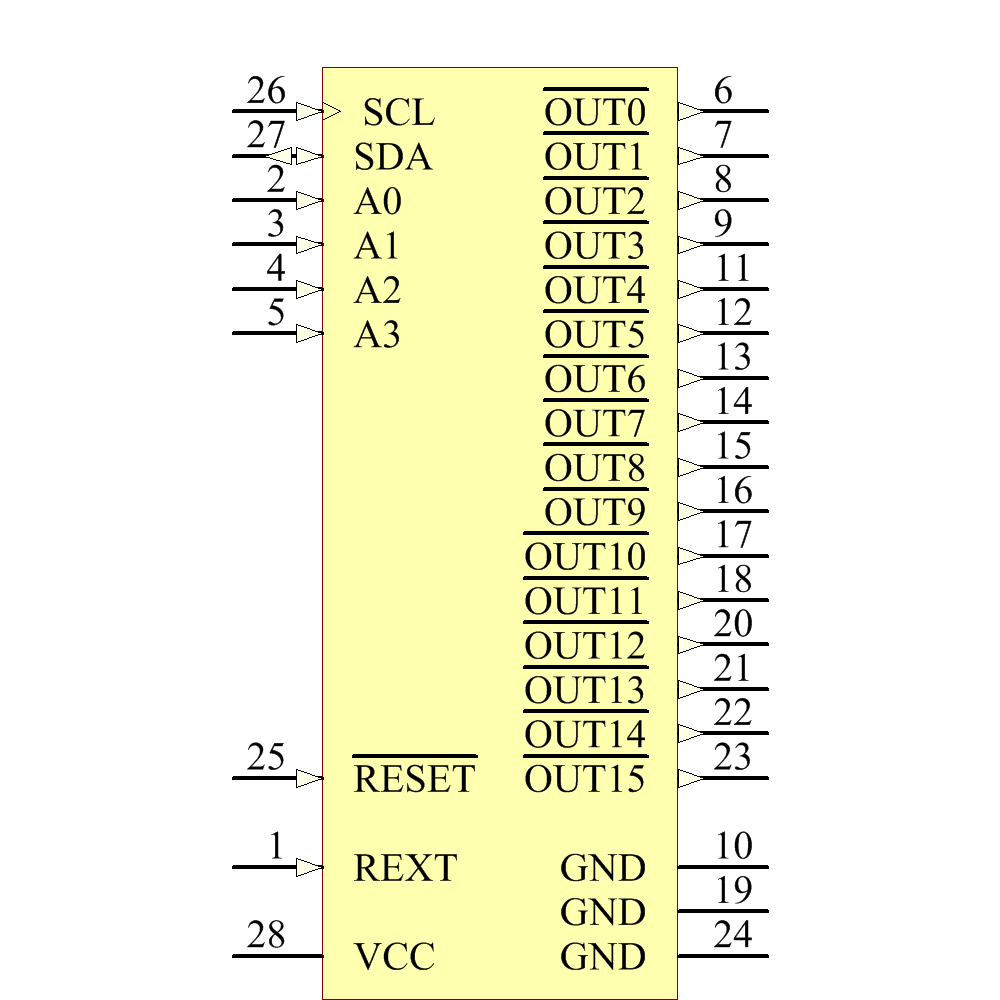

Symbol

TLC59116IPWR Symbol - Texas Instruments

TLC59116IPWR Symbol - Texas Instruments

TLC59116IPWR Symbol - Texas Instruments

TLC59116IPWR Symbol - Texas Instruments

‹ ›

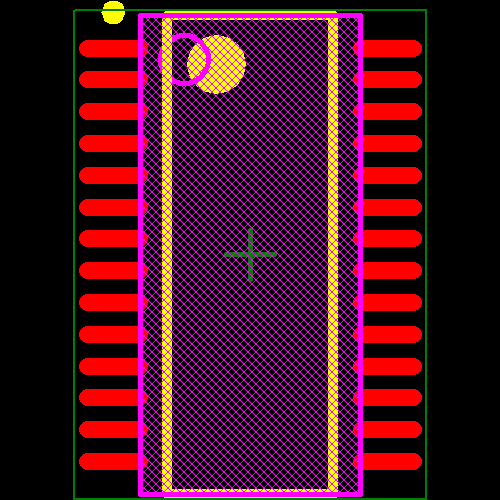

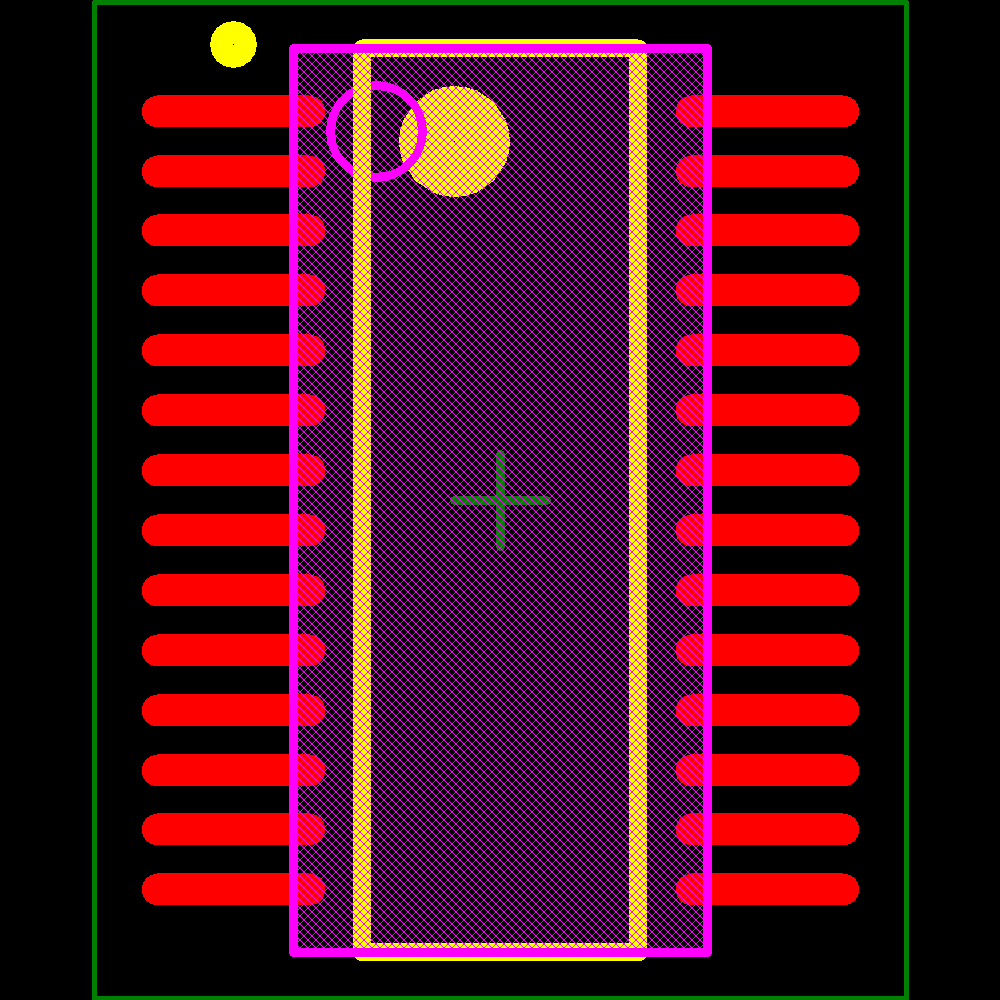

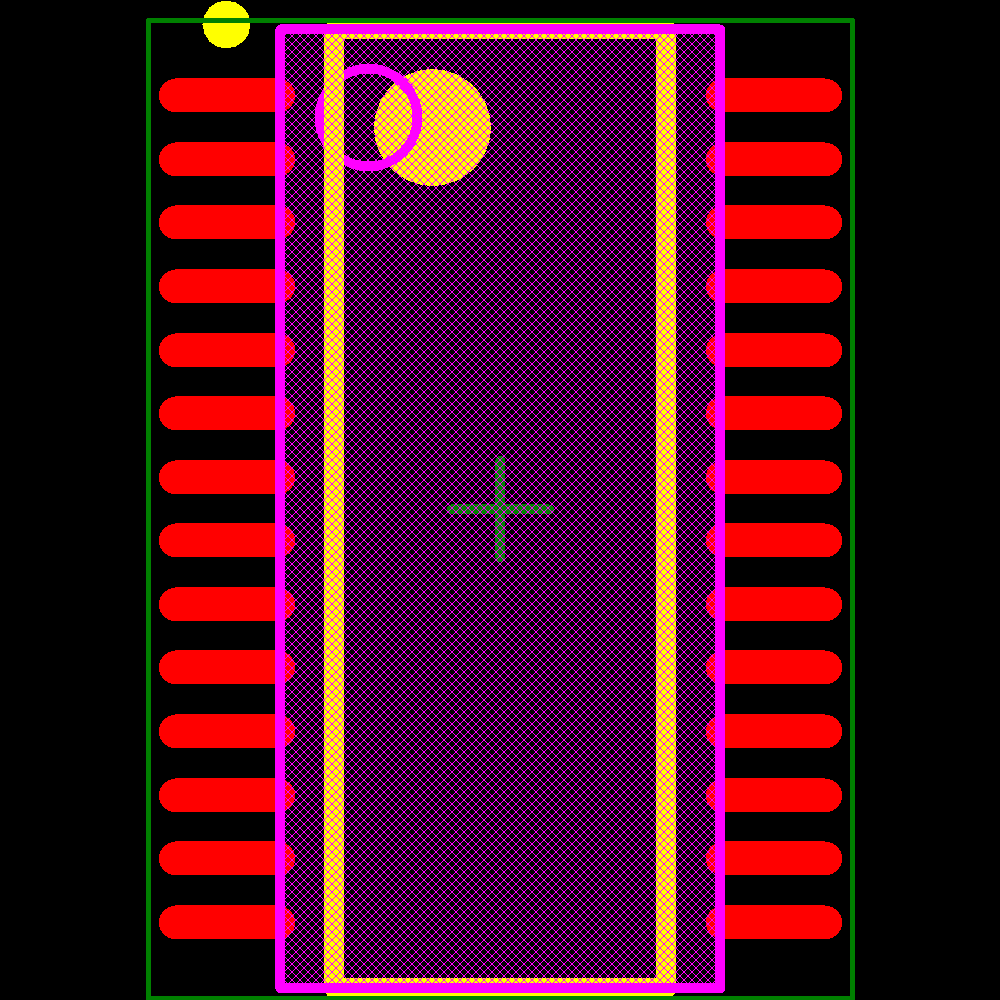

Footprint
