TLC5916IDR - Texas Instruments

LED Driver 8 Segment 22000uA Supply Current 16-Pin SOIC T/R / IC LED DRIVER LIN 120MA 16SOIC

Technical Details

Case/Package	SOIC
Frequency	30MHz
Height	1.75mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	9.9mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	125°C
Max Output Current	120mA
Max Power Dissipation	1.5W
Max Supply Current	22mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	22mA
Number of Channels	8
Number of Outputs	8
Number of Pins	16
Number of Segments	8
Output Current	120mA
Output Voltage	17V
Power Dissipation	1.5W
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	1.58mm
Topology	Boost
Weight	141.690917mg
Width	3.91mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TLC5916IDR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

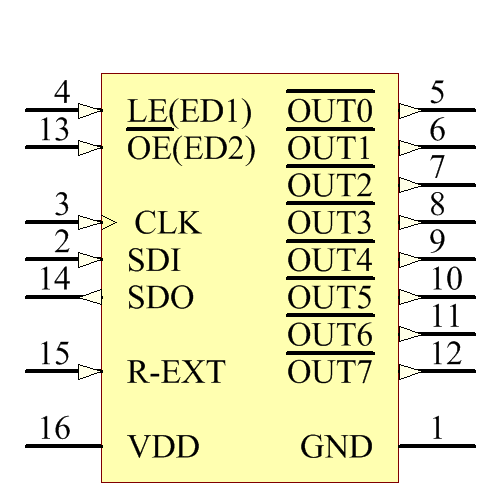

Symbol

TLC5916IDR Symbol - Texas Instruments

TLC5916IDR Symbol - Texas Instruments

TLC5916IDR Symbol - Texas Instruments

TLC5916IDR Symbol - Texas Instruments

‹ ›

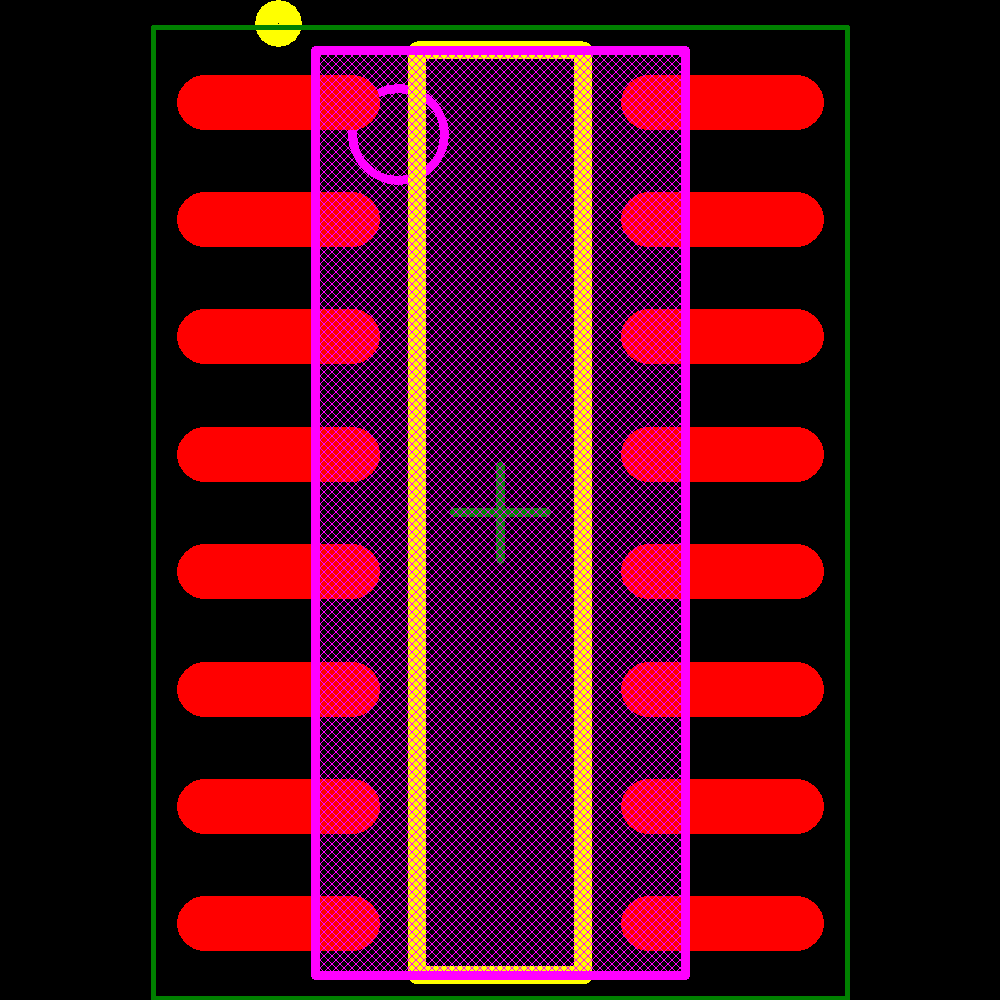

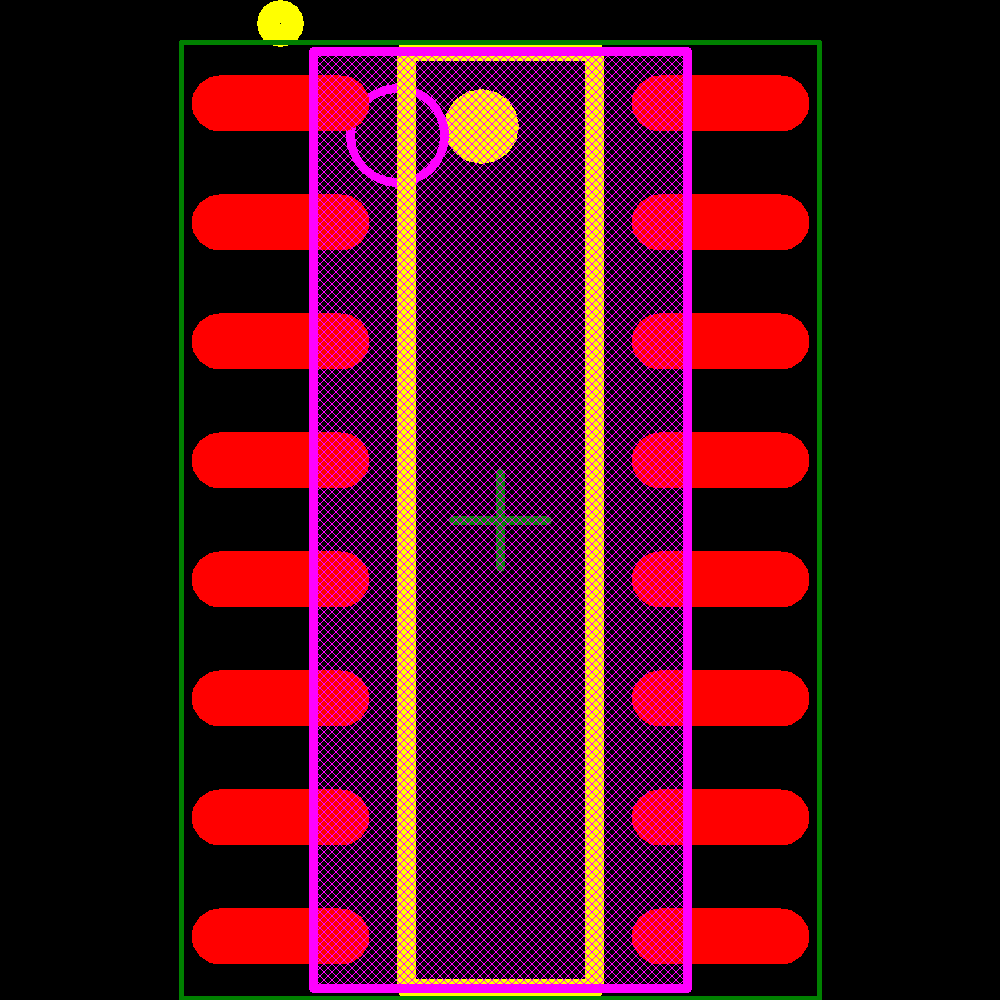

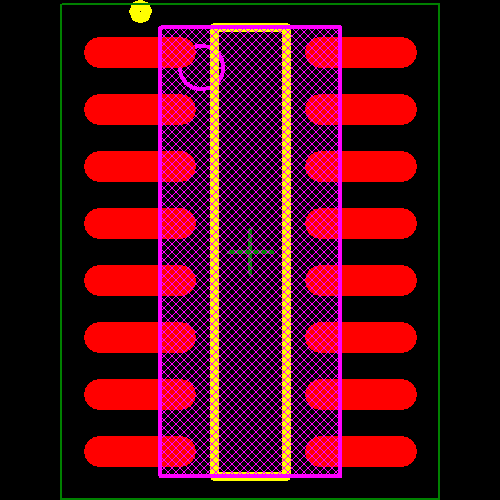

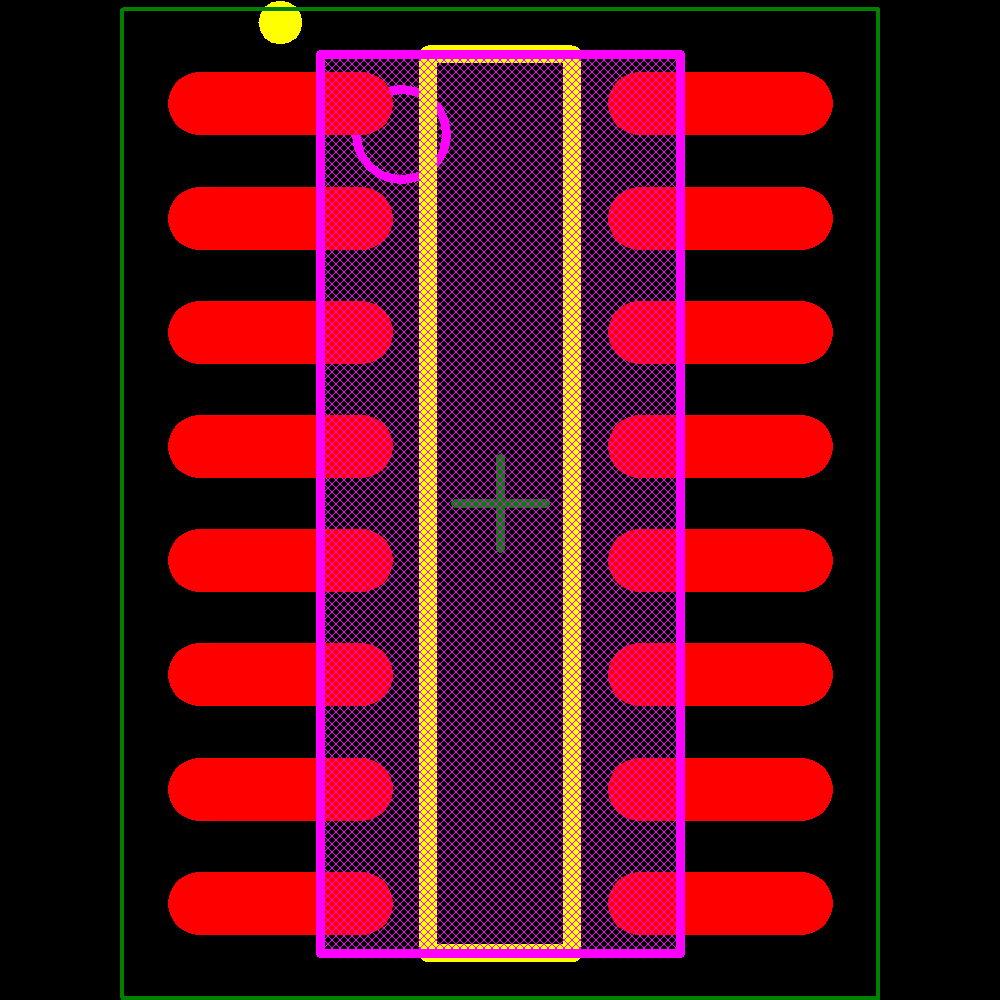

Footprint
