TLC5916IPWR - Texas Instruments

8-bit constant-current LED sink driver 16-TSSOP -40 to 125

Technical Details

Case/Package	TSSOP
Contact Plating	Gold
Frequency	30MHz
Height	1.2mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	125°C
Max Output Current	120mA
Max Power Dissipation	900mW
Max Supply Current	22mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	22mA
Number of Outputs	8
Number of Pins	16
Number of Segments	8
Output Current	120mA
Output Voltage	17V
Packaging	Tape & Reel (TR)
Power Dissipation	900mW
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000
Switching Frequency	30MHz
Thickness	1mm
Topology	Boost
Weight	61.887009mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TLC5916IPWR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

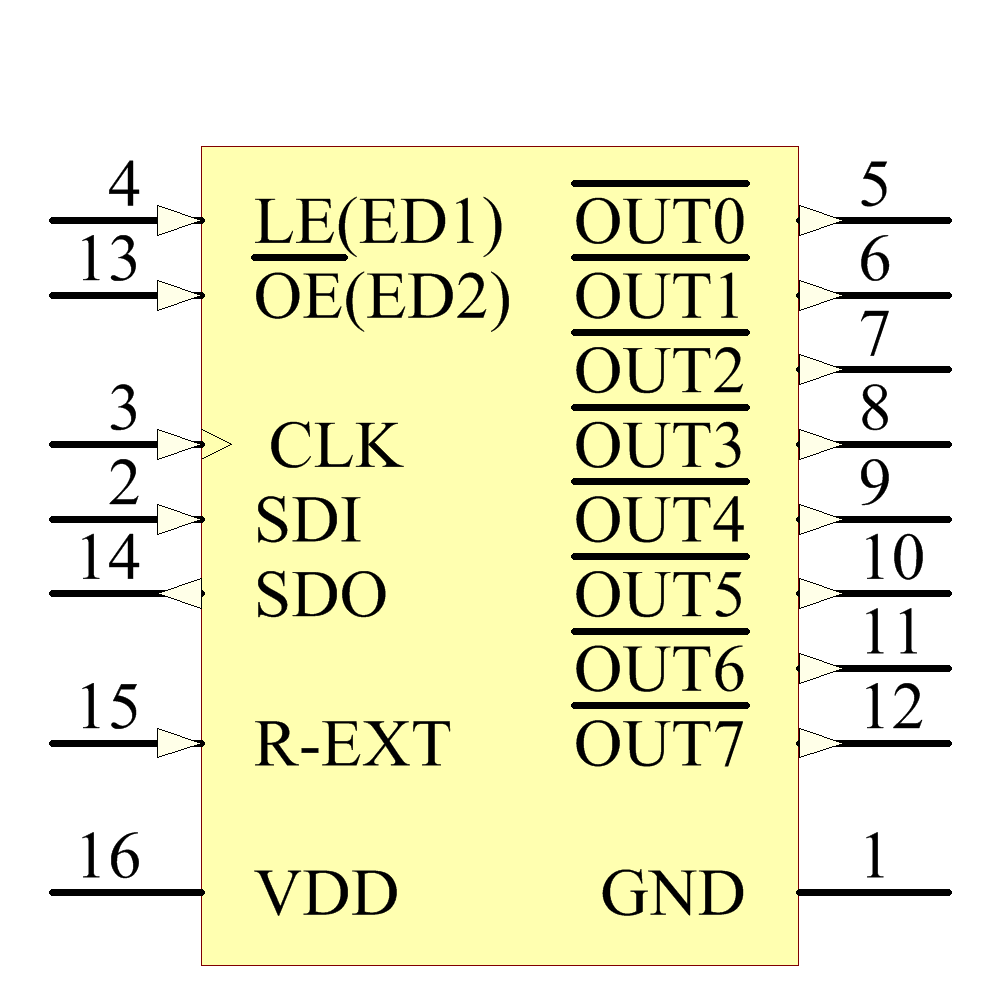

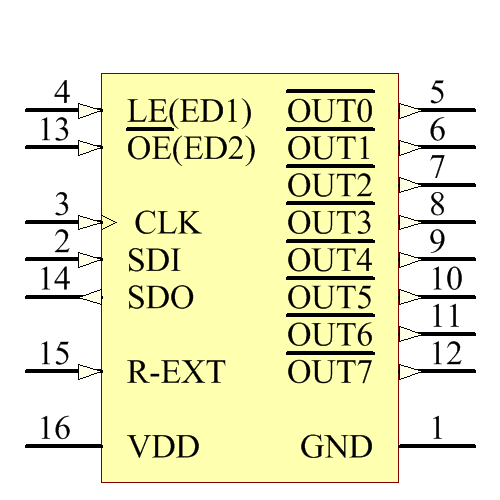

Symbol

TLC5916IPWR Symbol - Texas Instruments

TLC5916IPWR Symbol - Texas Instruments

TLC5916IPWR Symbol - Texas Instruments

TLC5916IPWR Symbol - Texas Instruments

‹ ›

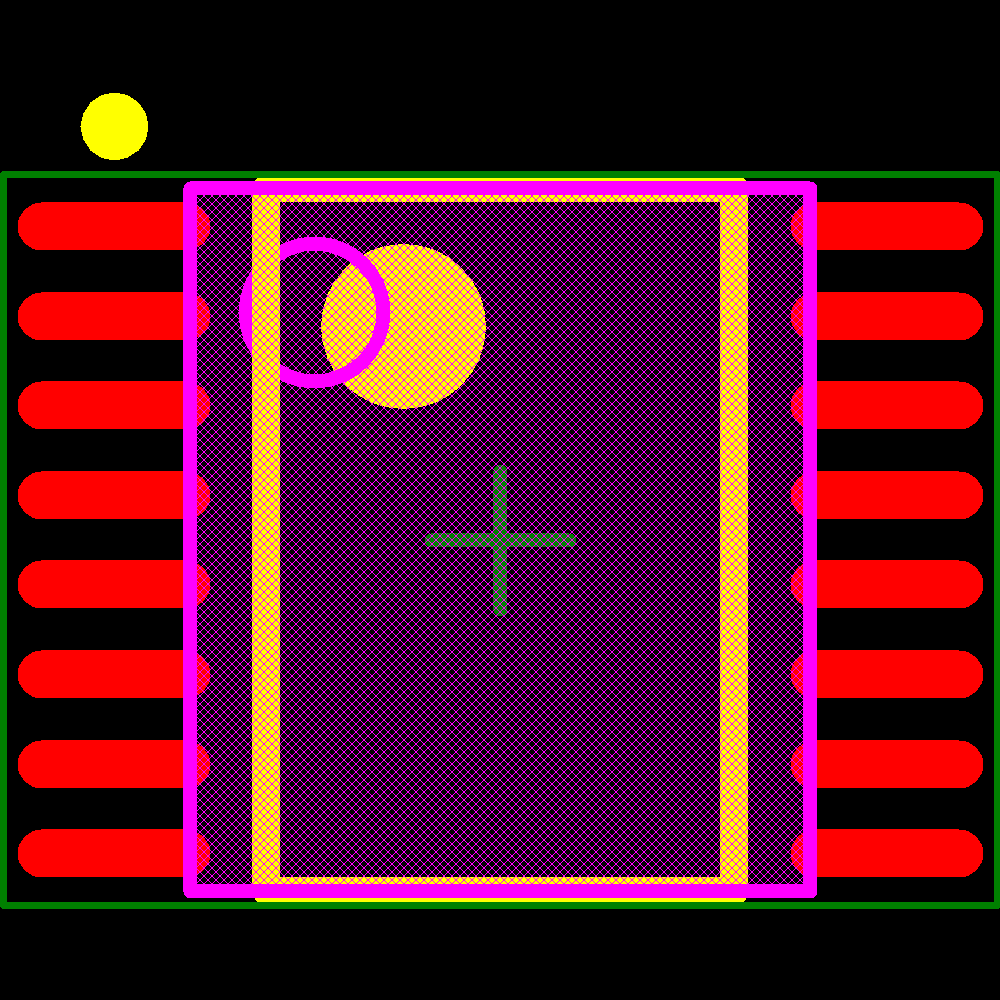

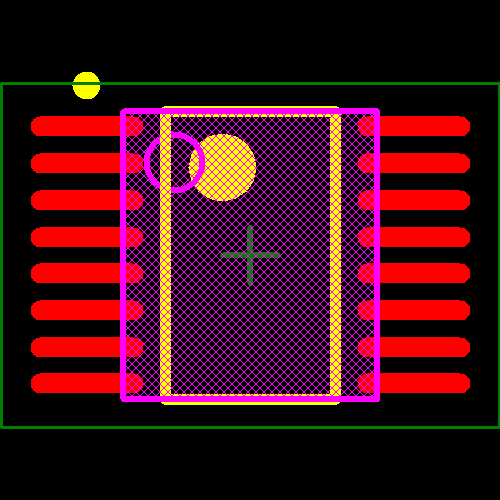

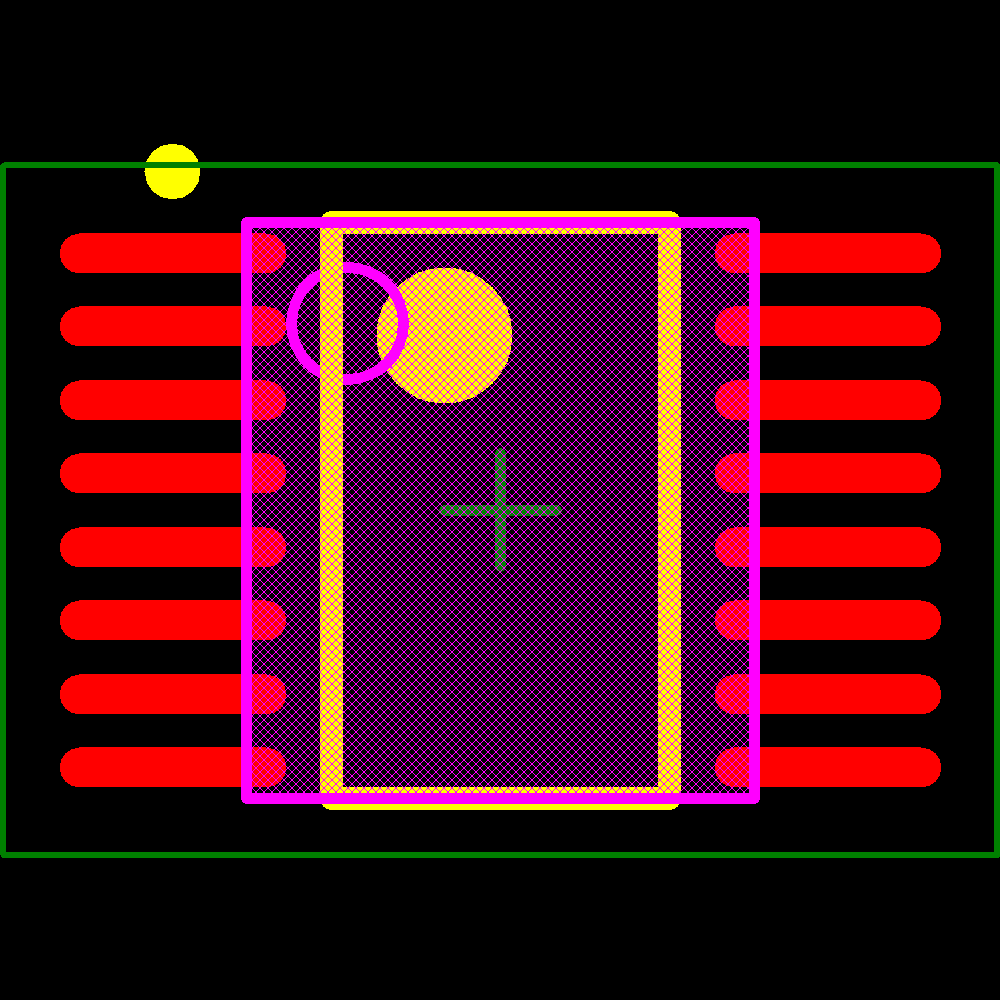

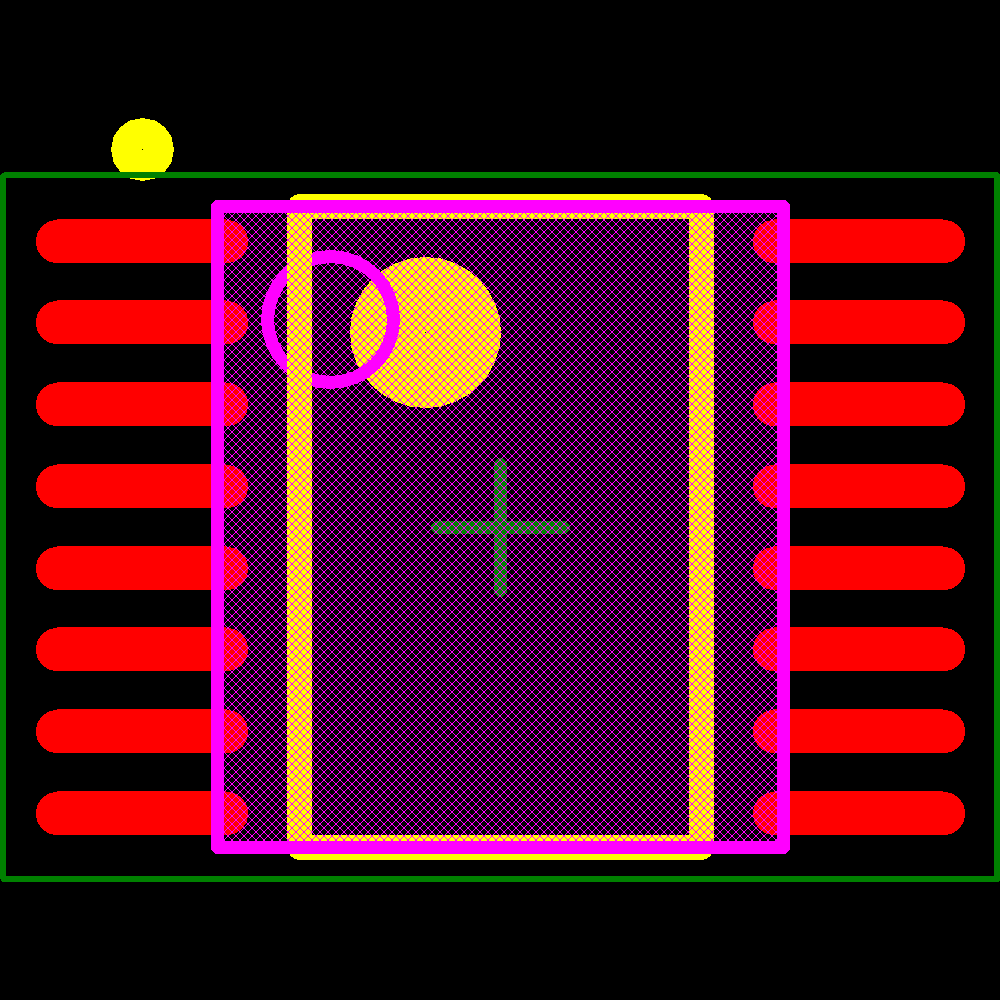

Footprint
