TLC5917INE4 - Texas Instruments
8-bit constant-current LED sink driver with VLED short detection 16-PDIP -40 to 125
Technical Details
| Case/Package | PDIP |
| Frequency | 30MHz |
| Height | 5.08mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 120mA |
| Max Power Dissipation | 1W |
| Max Supply Current | 22mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 22mA |
| Number of Outputs | 8 |
| Number of Pins | 16 |
| Number of Segments | 8 |
| Output Current | 120mA |
| Output Voltage | 17V |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 3.9mm |
| Topology | Boost |
| Weight | 951.693491mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

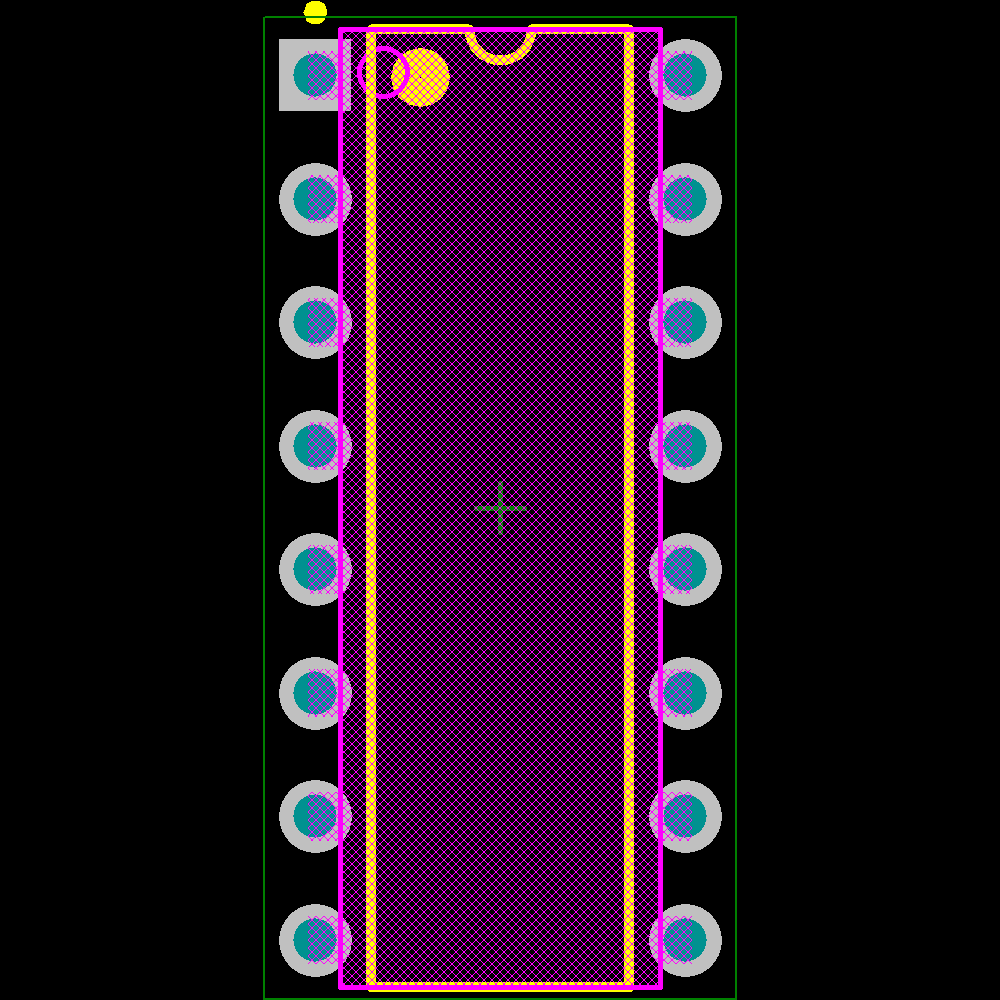

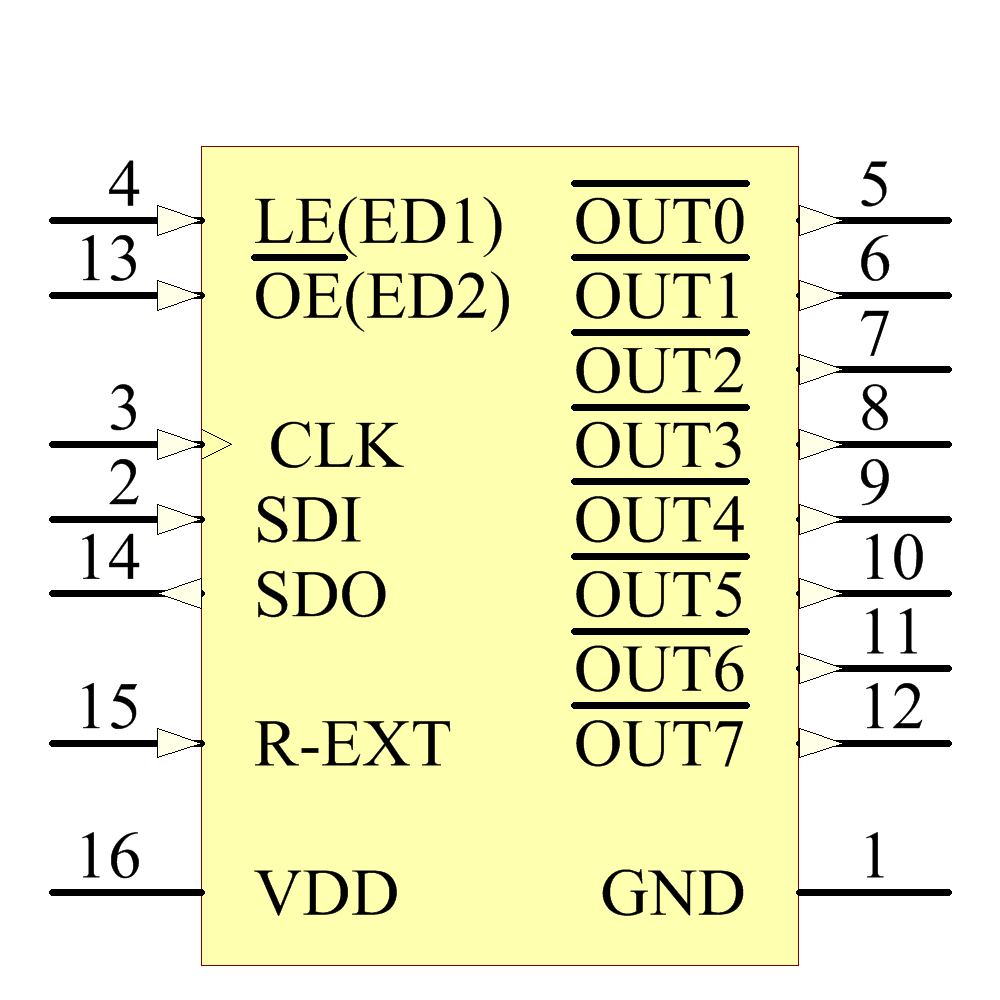

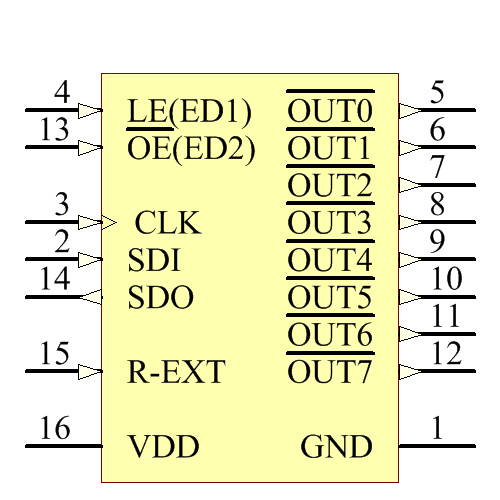

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 450
|
$ | 2.82 | 1.88 | 1.59 | 1.39 | 0.849 | 0.849 | ||
| DigiKey |
DE: 0
|
$ | 0.9921 | 0.9921 | ||||||
