Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TLC59208FIRGYR - Texas Instruments

IC LED DRVR LIN PWM 50MA 16VQFN LED Driver IC 8 Output Linear PWM Dimming 50mA 16-VQFN (4x3.5)

Technical Details

Case/Package	VQFN
Contact Plating	Gold
Dimming	PWM
Frequency	25MHz
Height	1mm
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Low Level Output Current	30mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Output Current	50mA
Max Power Dissipation	2.08W
Max Supply Current	8mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	8mA
Number of Outputs	8
Number of Pins	16
Number of Segments	8
Output Current	50mA
Output Current per Channel	50mA
Output Voltage	17V
Packaging	Digi-Reel®
Power Dissipation	2.08W
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000
Thickness	900µm
Weight	37.194574mg
Width	3.5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

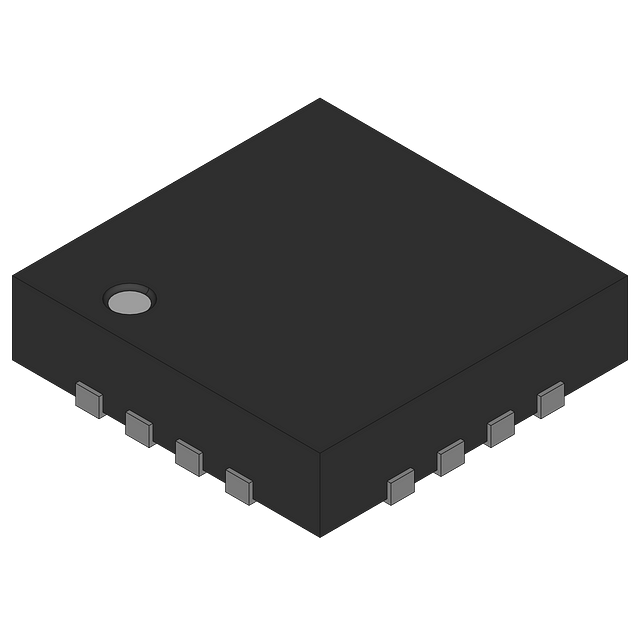

Texas Instruments TLC59208FIRGYR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

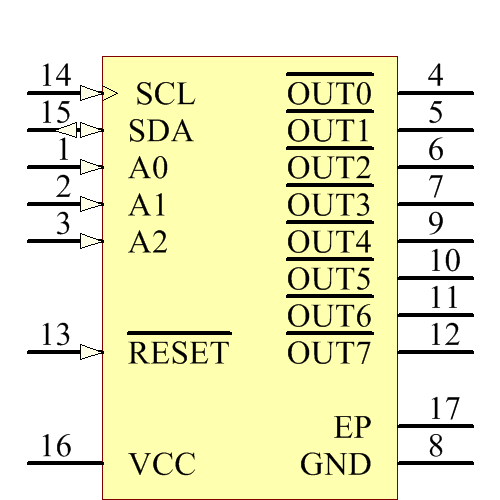

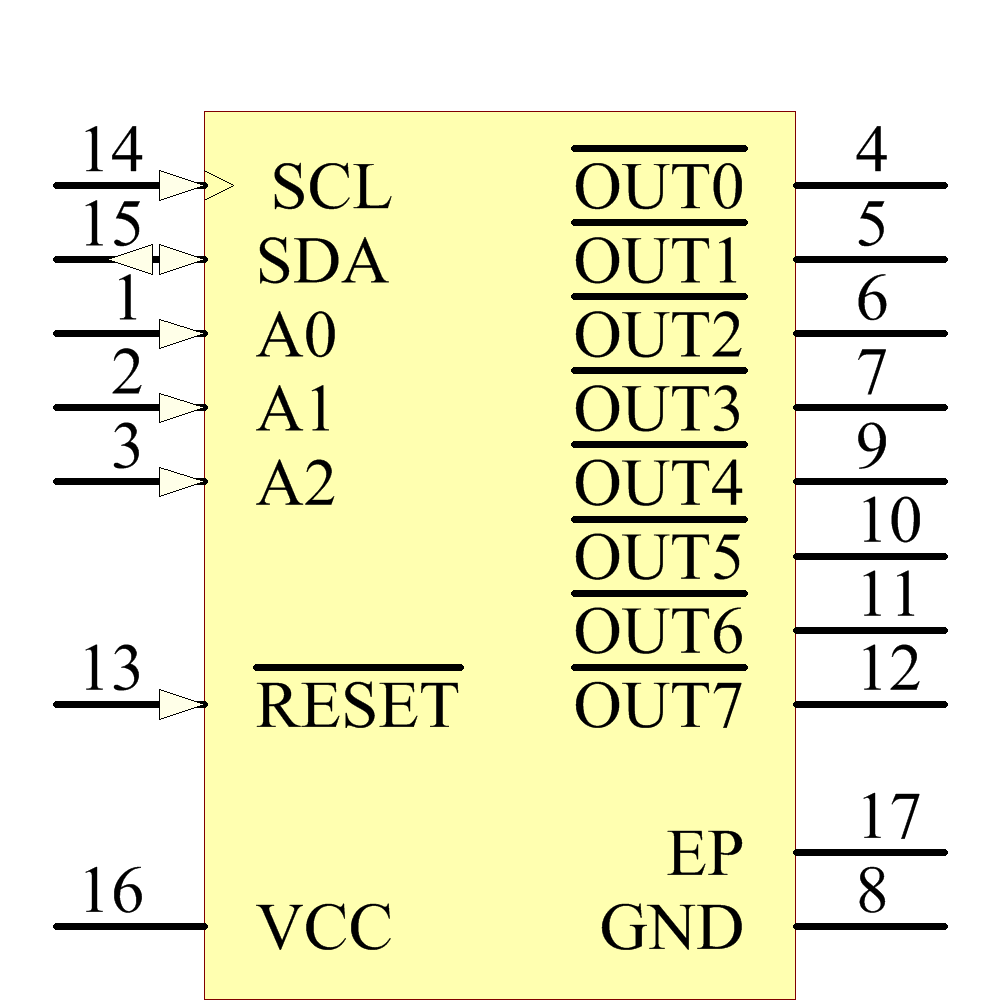

TLC59208FIRGYR Symbol - Texas Instruments

TLC59208FIRGYR Symbol - Texas Instruments

TLC59208FIRGYR Symbol - Texas Instruments

TLC59208FIRGYR Symbol - Texas Instruments

‹ ›

Footprint

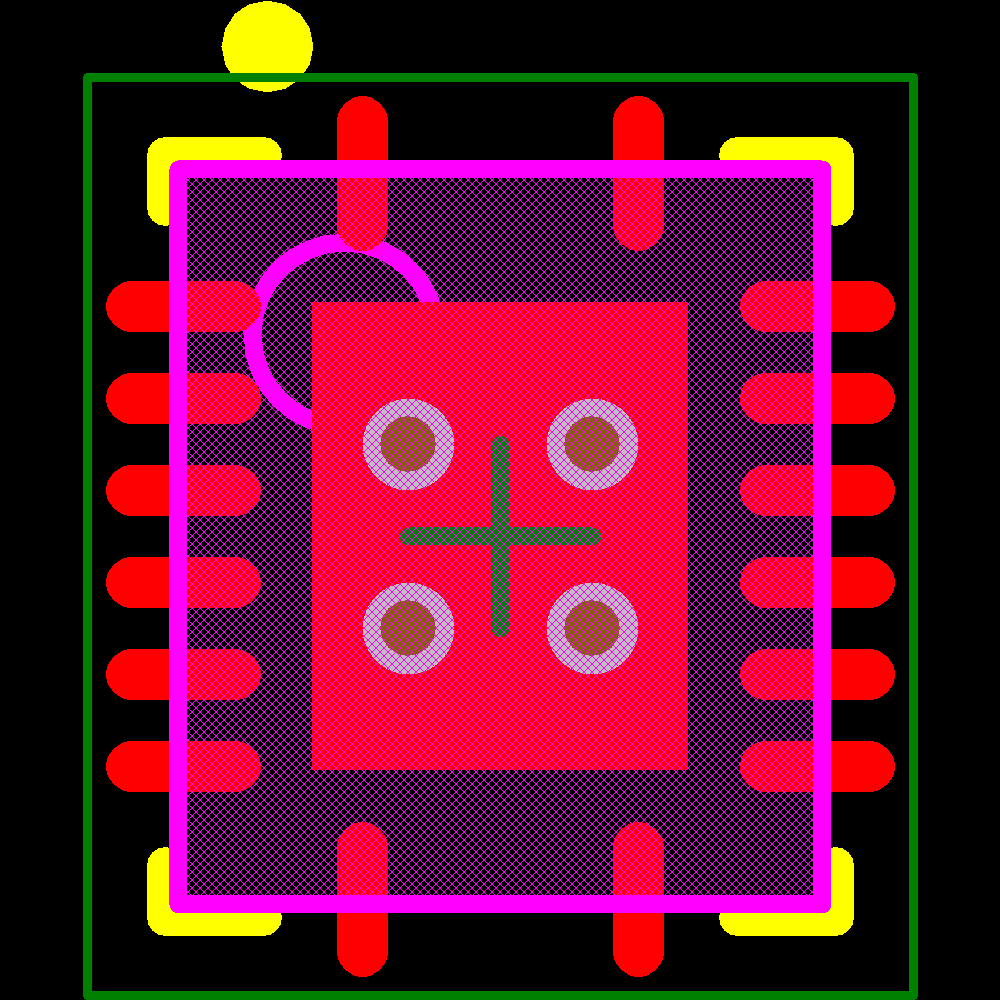

TLC59208FIRGYR Footprint - Texas Instruments

TLC59208FIRGYR Footprint - Texas Instruments

TLC59208FIRGYR Footprint - Texas Instruments

TLC59208FIRGYR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TLC59208FIPWR	Production
Texas Instruments	TLC59108FIRGYR	Unknown
Texas Instruments	TLC59108IPWR	Production
Texas Instruments	TLC59108IRGYR	Production
Texas Instruments	TLC59108FIPWR	Production
