Technical Details
| Case/Package | PDIP |
| Frequency | 1MHz |
| Height | 5.08mm |
| High Level Output Current | 200mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Length | 24.33mm |
| Lifecycle Status | Production |
| Logic Function | D-Type, Latch |
| Low Level Output Current | 200mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 13.2V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 13mA |
| Max Supply Voltage | 13.2V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Nominal Supply Current | 4.8mA |
| Number of Circuits | 1 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Number of Pins | 20 |
| Output Current | 400mA |
| Polarity | Non-Inverting |
| Propagation Delay | 250ns |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 4.57mm |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

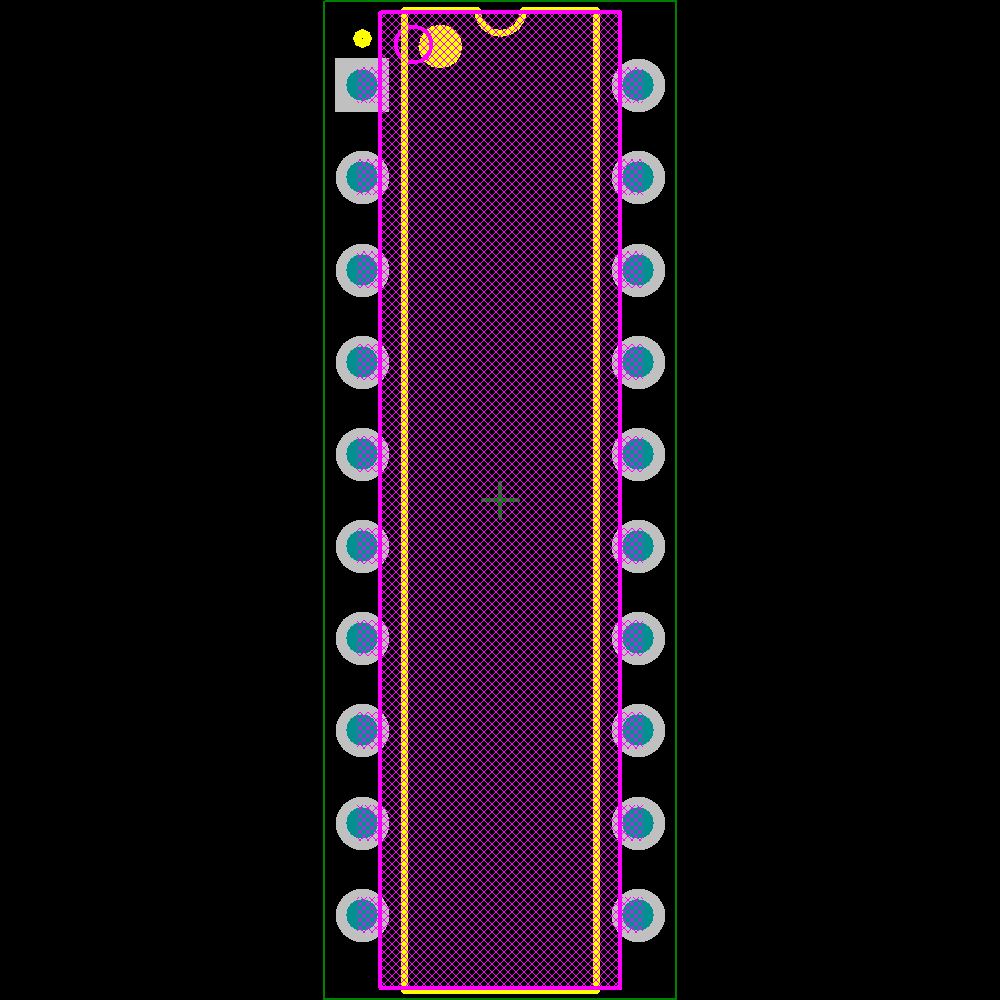

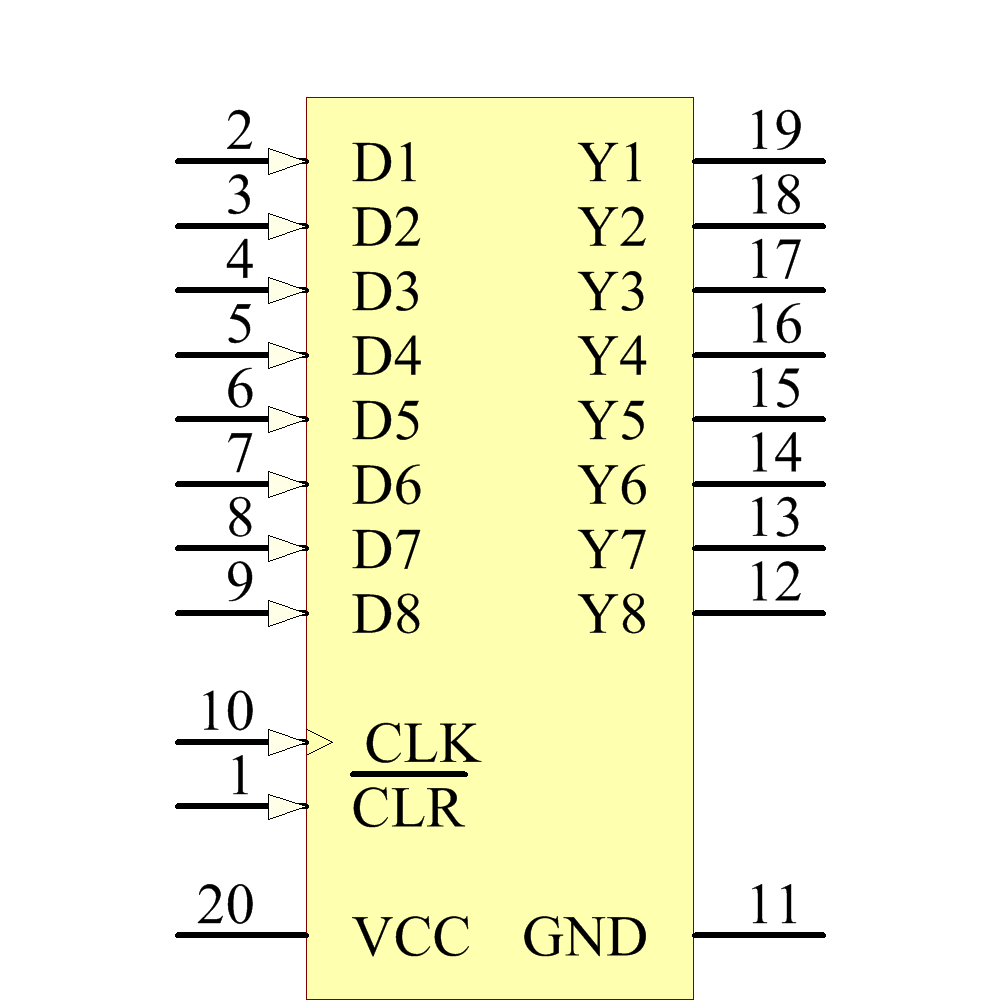

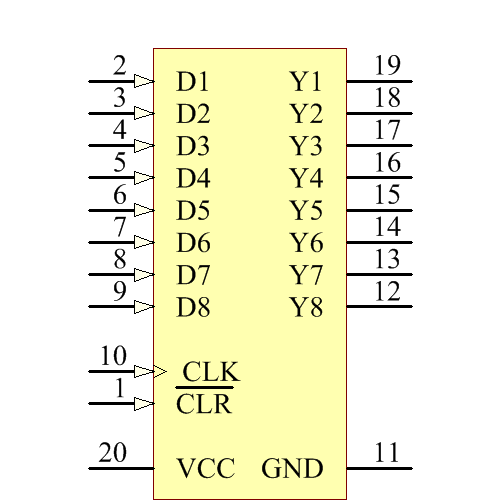

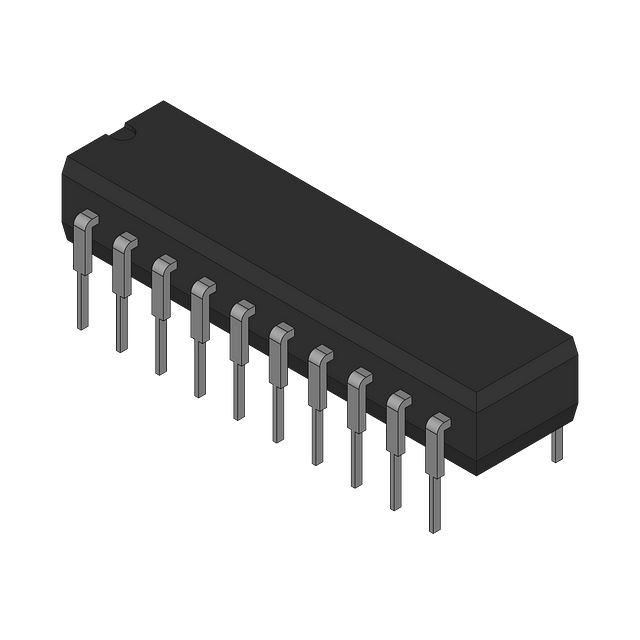

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| Allegro MicroSystems | Obsolete | ||
| Allegro MicroSystems | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Allegro MicroSystems | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
