TLC5921DAPG4 - Texas Instruments
16-channel LED driver with 20Mhz data transfer rate 32-HTSSOP -20 to 85
Technical Details
| Case/Package | HTSSOP EP |
| Frequency | 20MHz |
| Height | 1.2mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 11mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 7V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 3.9W |
| Max Supply Current | 50mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | -300mV |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 50mA |
| Number of Outputs | 16 |
| Number of Pins | 32 |
| Operating Supply Voltage | 5V |
| Output Current | 80mA |
| Output Voltage | 17V |
| Power Dissipation | 3.9W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Frequency | 20MHz |
| Thickness | 1.15mm |
| Topology | Boost |
| Weight | 181.096754mg |
| Width | 6.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

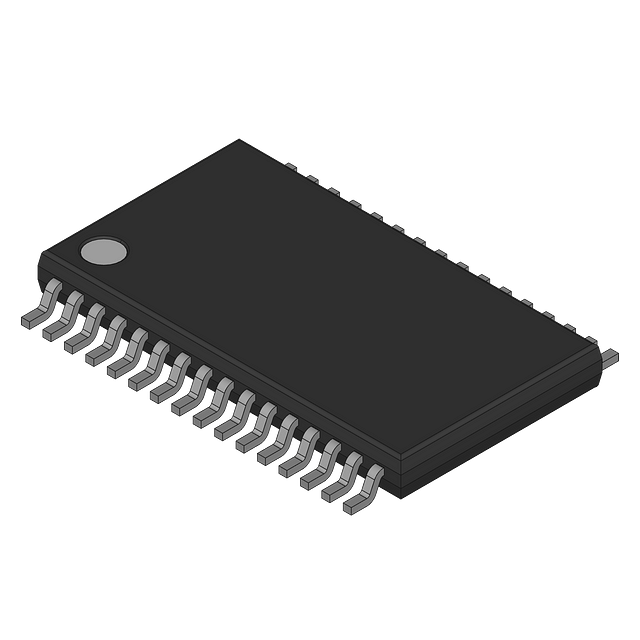

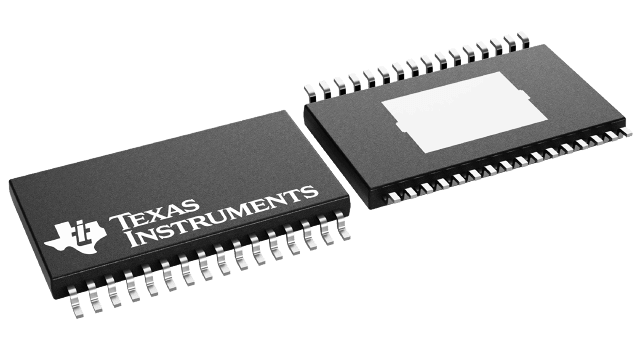

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 46
|
$ | 1.75 | 1.66 | 1.49 | 1.40 | ||||
