TLC5922DAP - Texas Instruments
16-channel LED driver with 20Mhz data transfer rate with dot correctionn 32-HTSSOP -20 to 85
Technical Details
| Case/Package | HTSSOP EP |
| Contact Plating | Gold |
| Frequency | 30MHz |
| Height | 1.2mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 11mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 3.9W |
| Max Supply Current | 65mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 65mA |
| Number of Channels | 16 |
| Number of Outputs | 16 |
| Number of Pins | 32 |
| Number of Segments | 16 |
| Output Current | 90mA |
| Output Voltage | 17V |
| Power Dissipation | 3.9W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.15mm |
| Weight | 181.096754mg |
| Width | 6.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

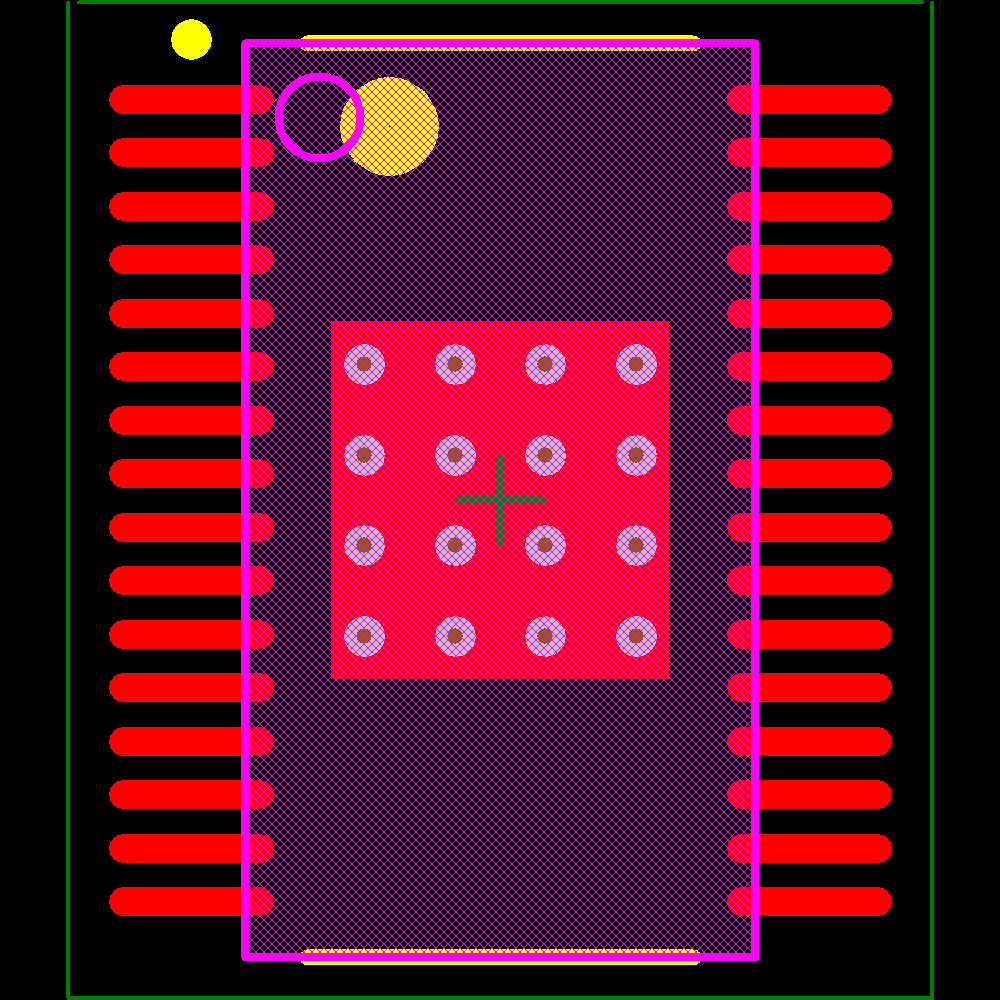

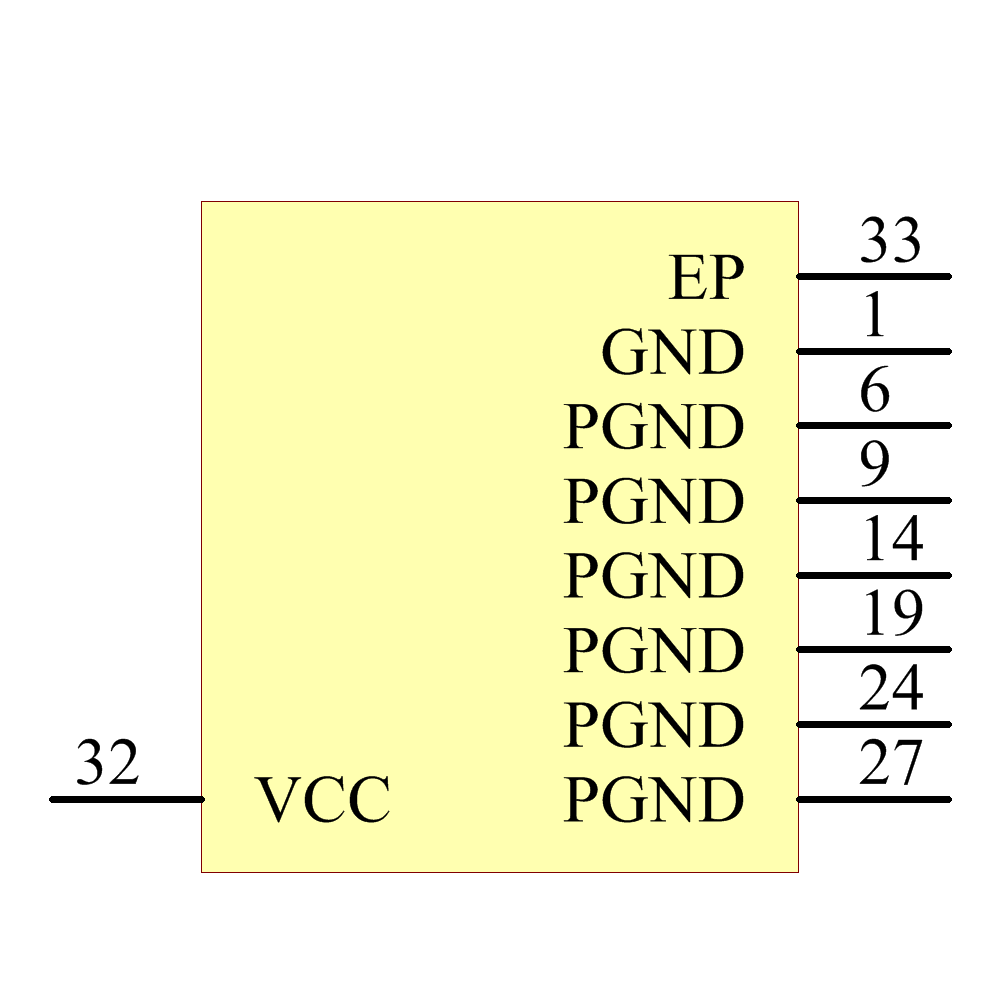

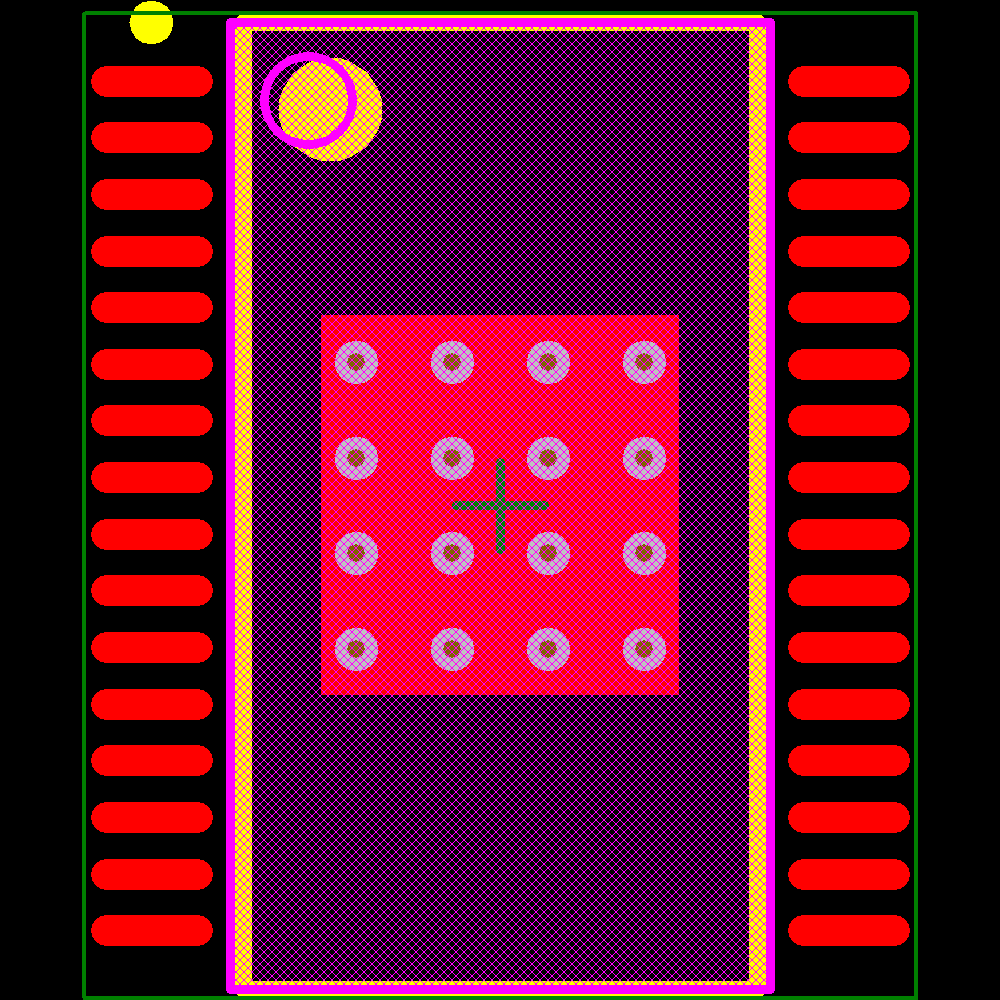

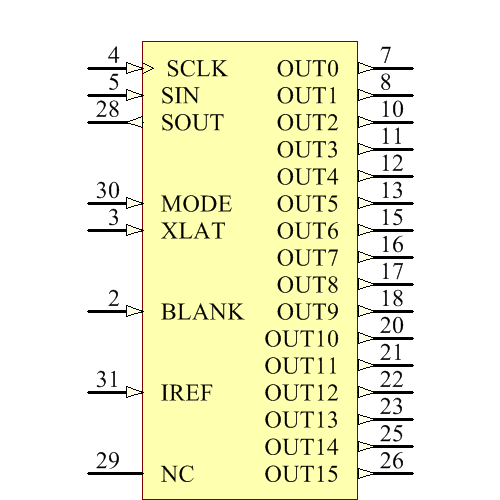

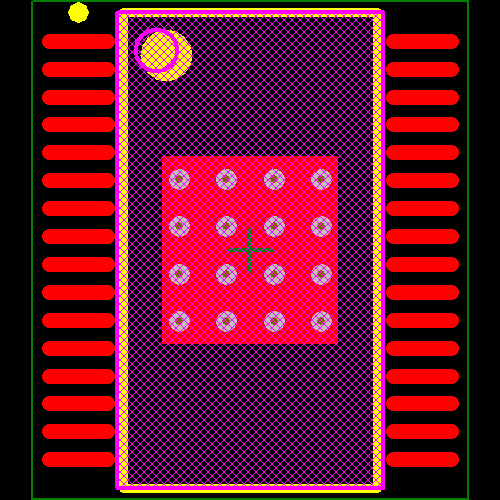

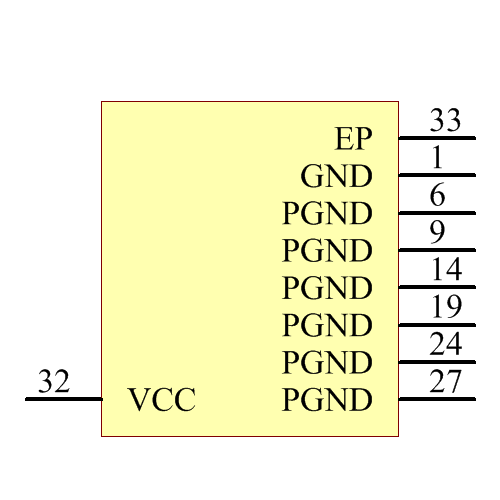

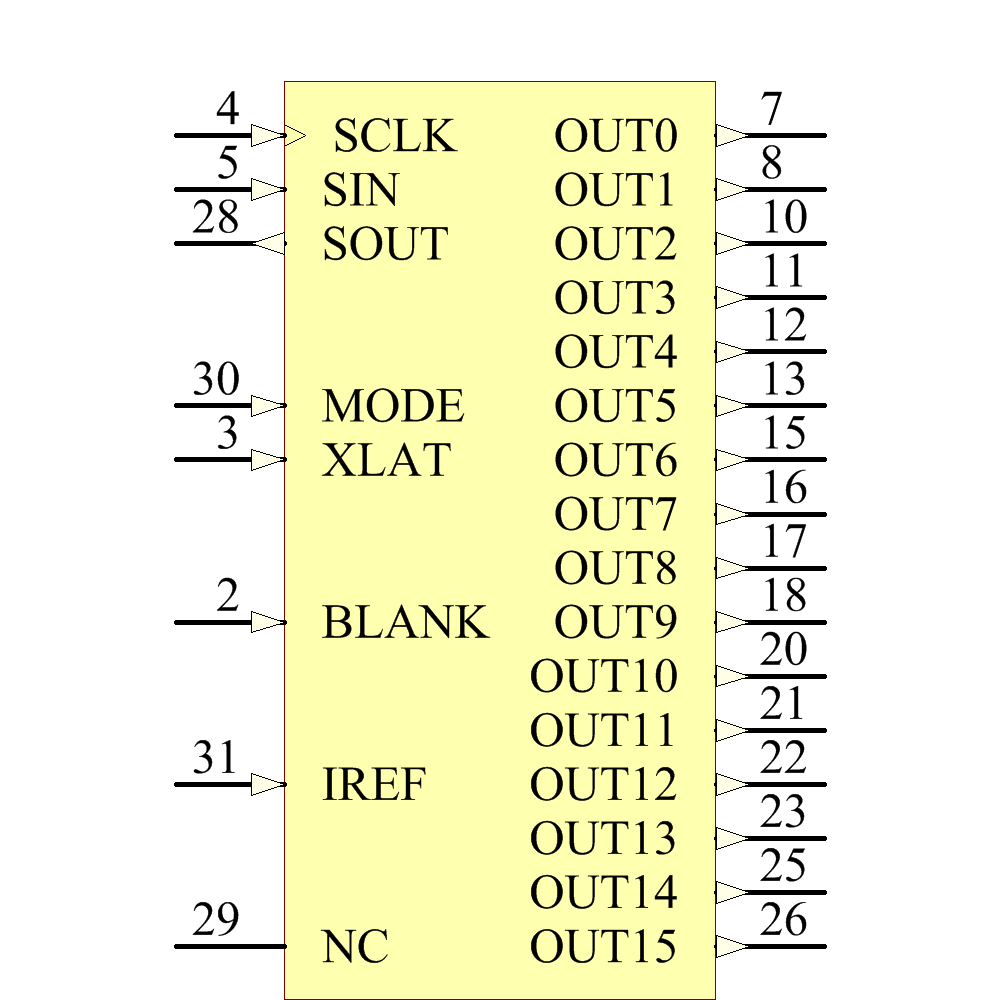

Images
