TLC5923DAPR - Texas Instruments

LED Driver 16 Segment 65000uA Supply Current 32-Pin HTSSOP EP T/R

Technical Details

Case/Package	HTSSOP EP
Contact Plating	Gold
Frequency	30MHz
Height	1.2mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	11mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Power Dissipation	3.9W
Max Supply Current	65mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	65mA
Number of Channels	16
Number of Outputs	16
Number of Pins	32
Number of Segments	16
Output Current	80mA
Output Voltage	17V
Power Dissipation	3.9W
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	1.15mm
Weight	181.096754mg
Width	6.2mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TLC5923DAPR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

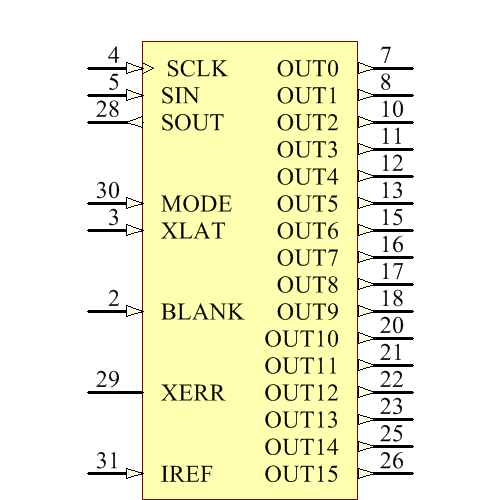

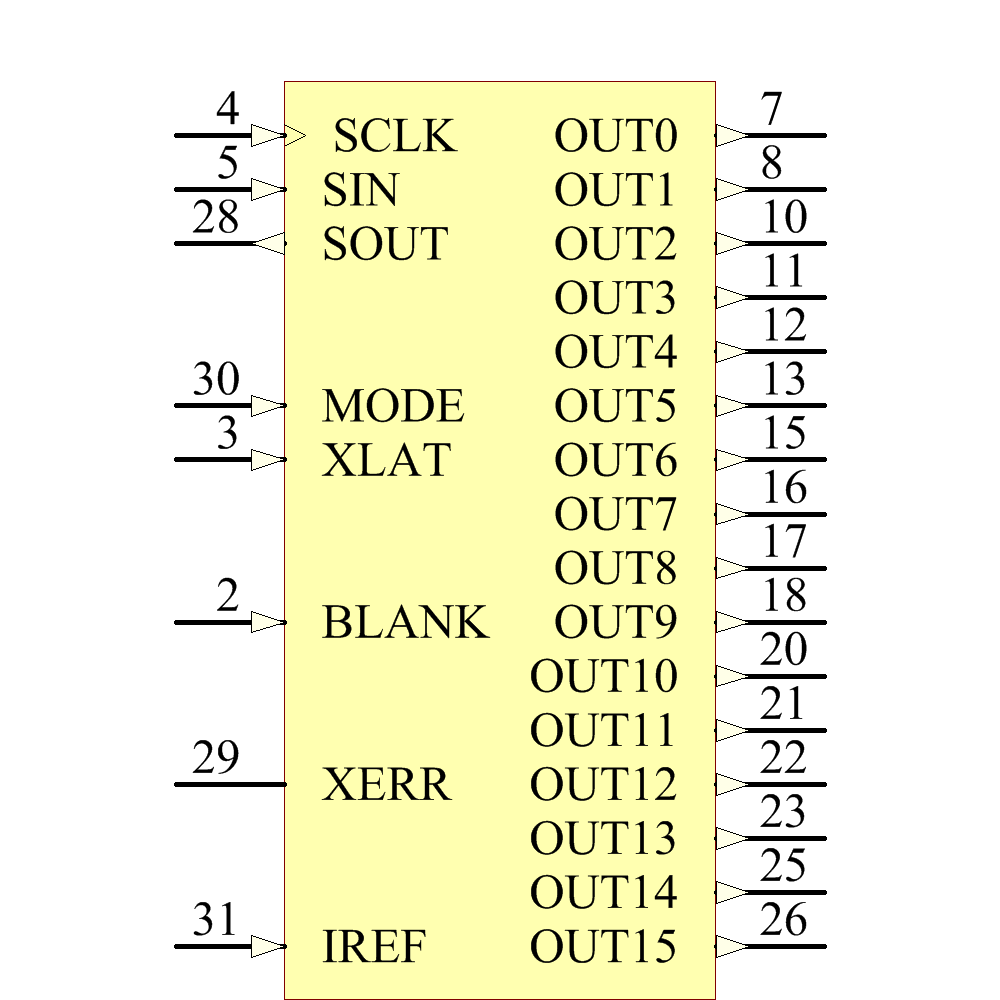

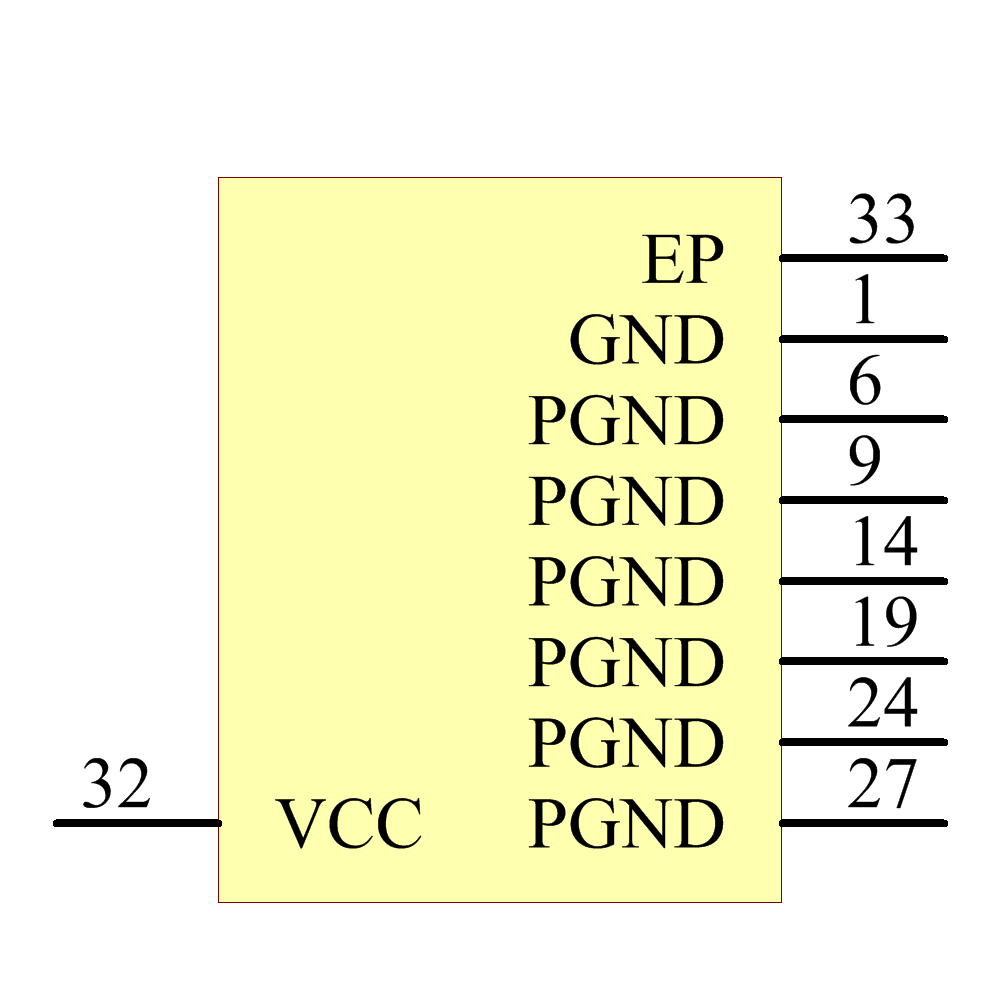

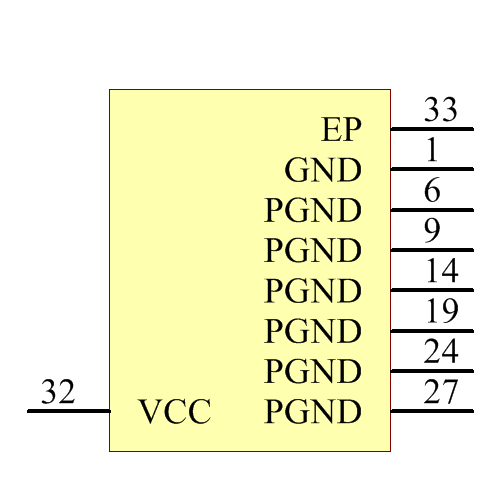

Symbol

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

TLC5923DAPR Symbol - Texas Instruments

‹ ›

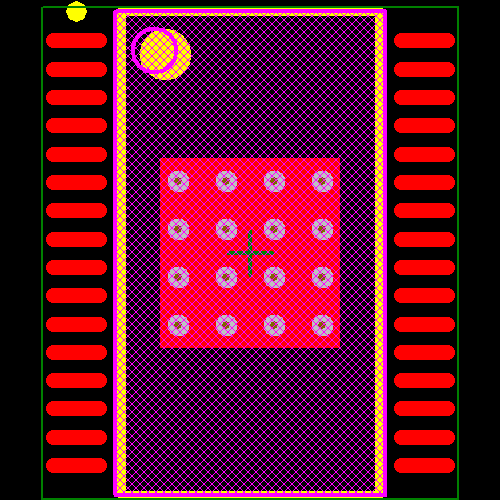

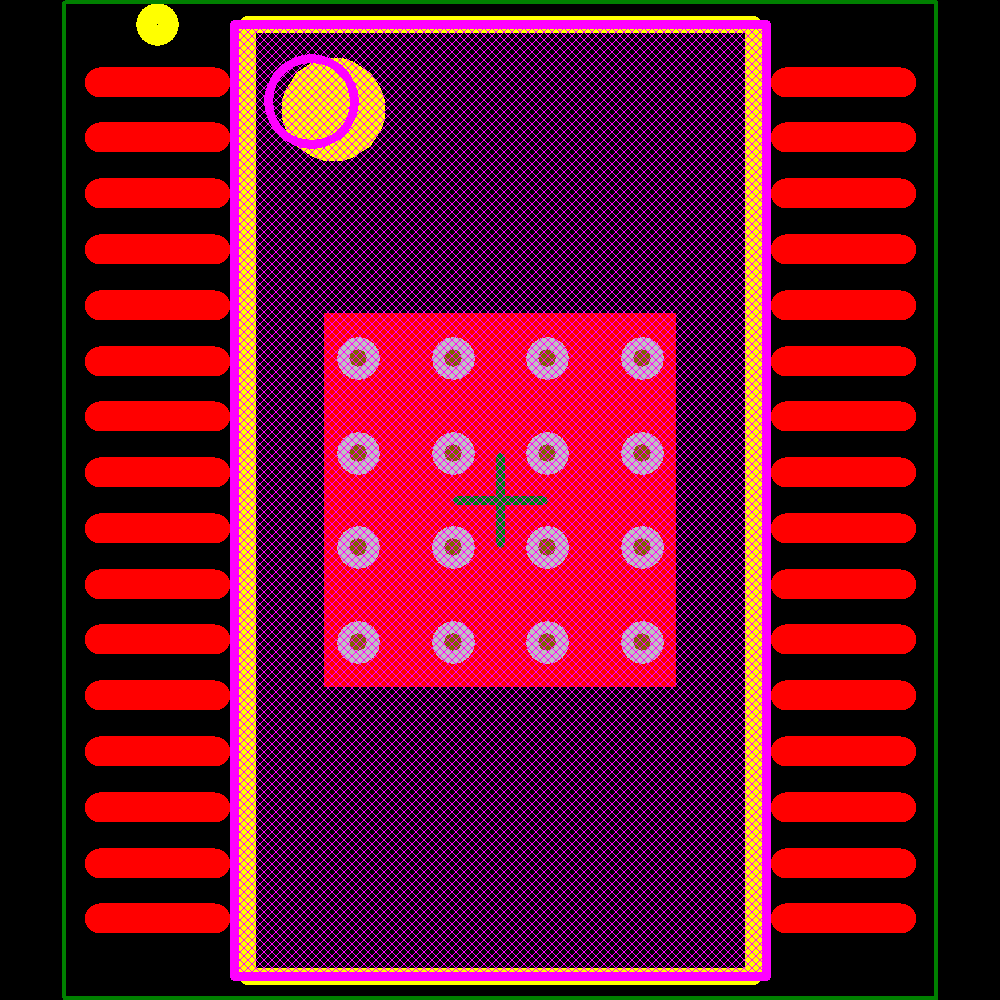

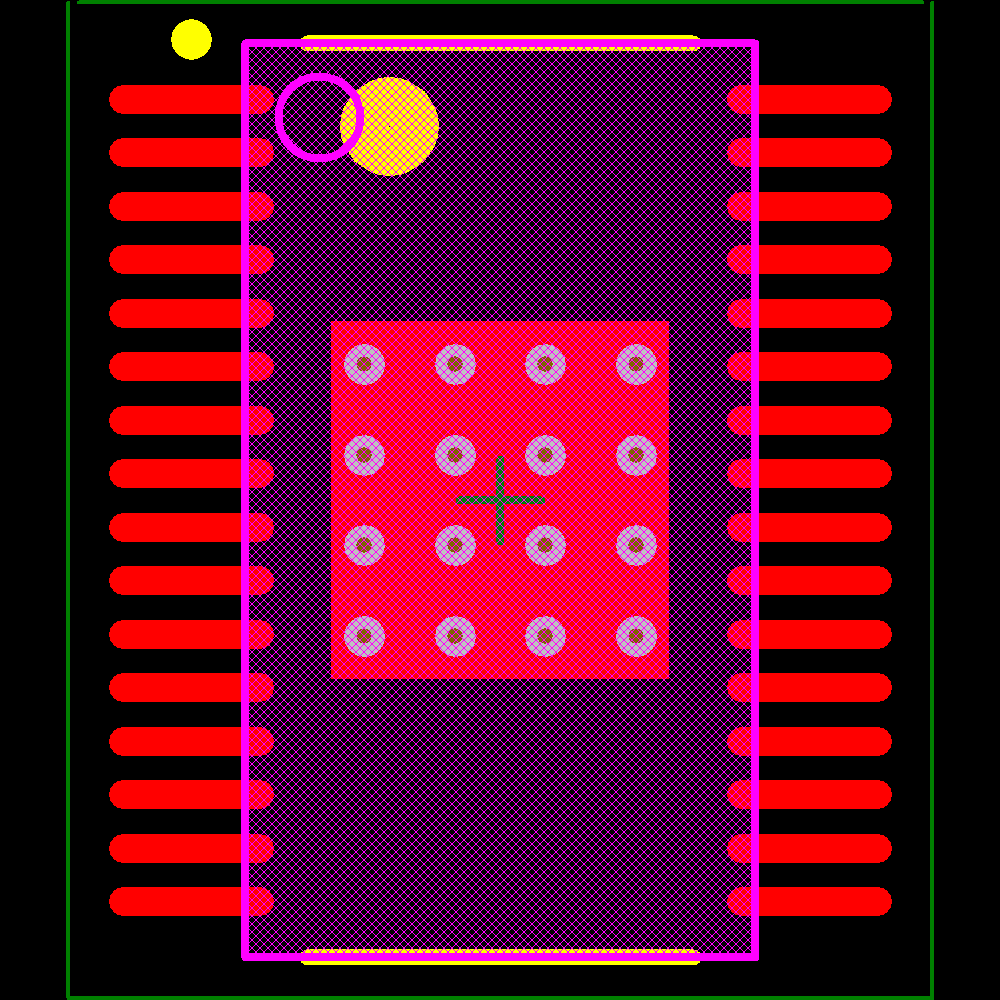

Footprint
