TLC5923RHBR - Texas Instruments
LED Driver 16 Segment 65000uA Supply Current 32-Pin VQFN EP T/R
Technical Details
| Case/Package | VQFN |
| Contact Plating | Gold |
| Frequency | 30MHz |
| Height | 1mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 3.9W |
| Max Supply Current | 65mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 65mA |
| Number of Outputs | 16 |
| Number of Pins | 32 |
| Number of Segments | 16 |
| Output Current | 80mA |
| Output Voltage | 17V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 3.9W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 900µm |
| Weight | 71.809342mg |
| Width | 5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

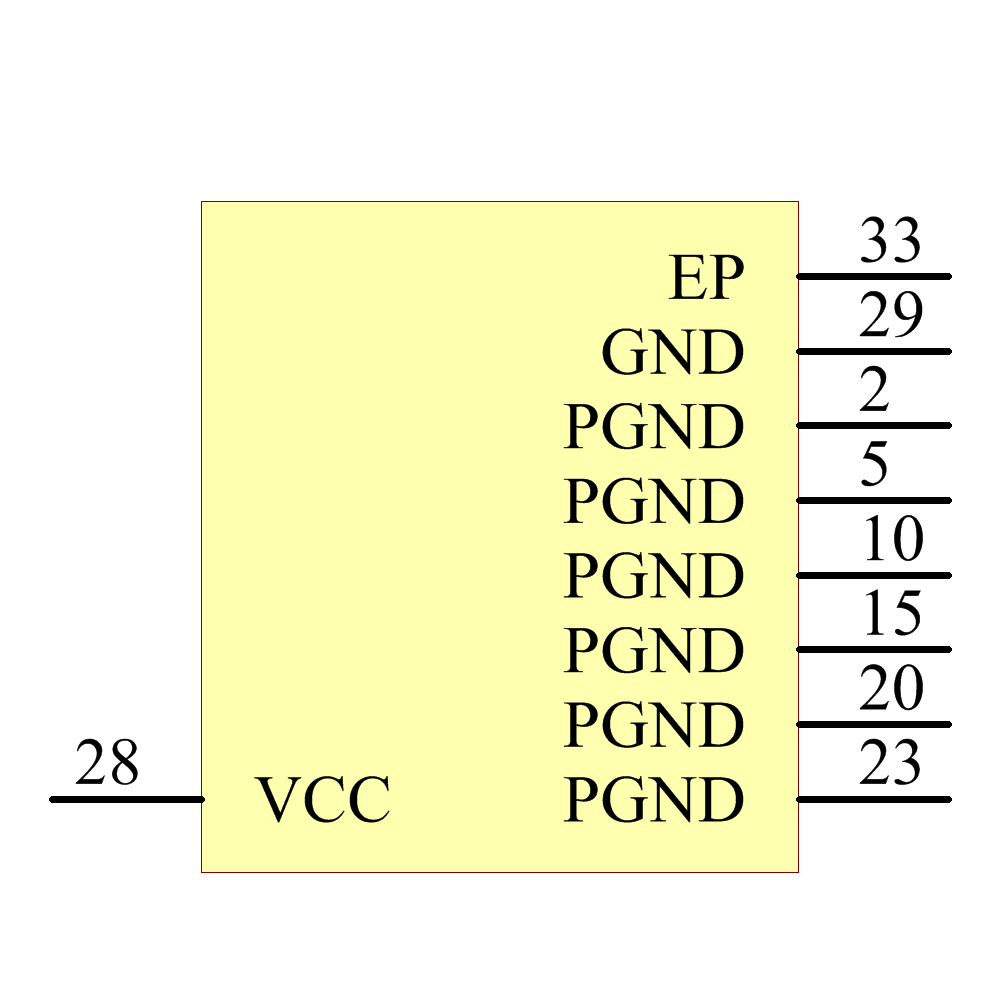

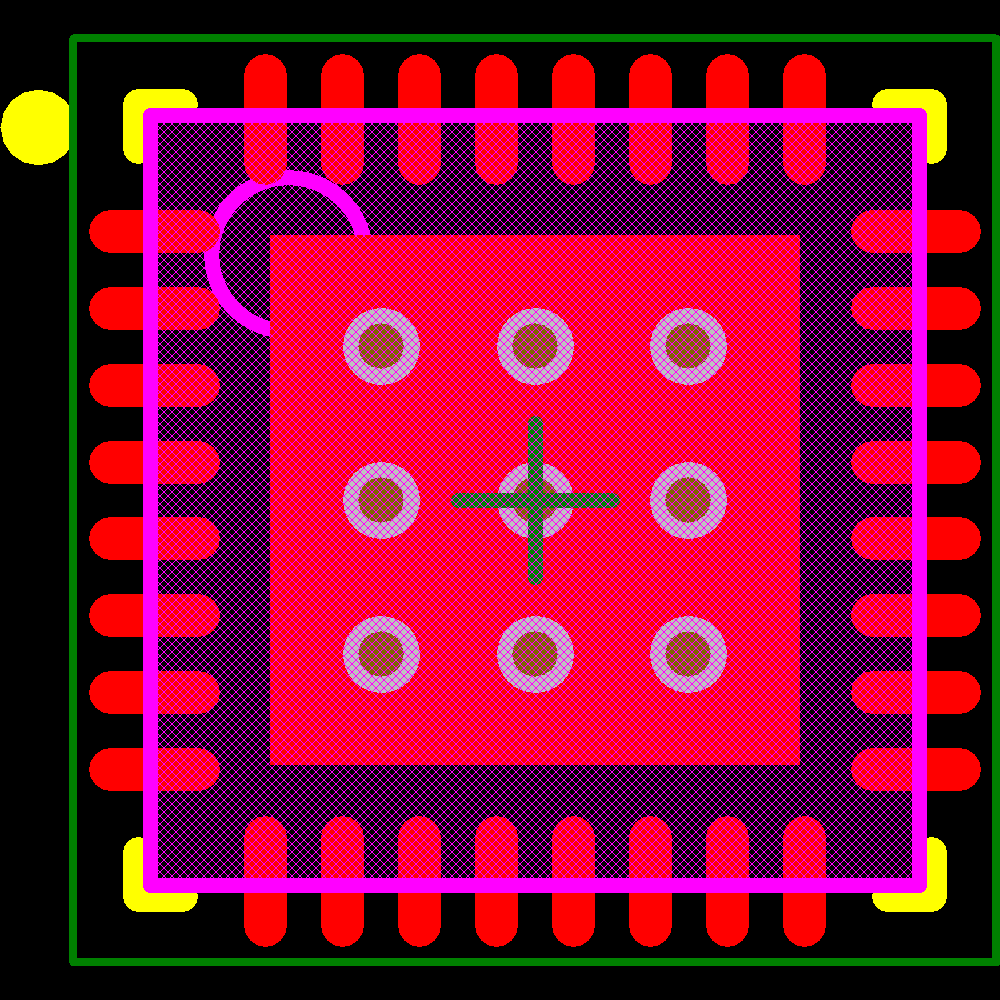

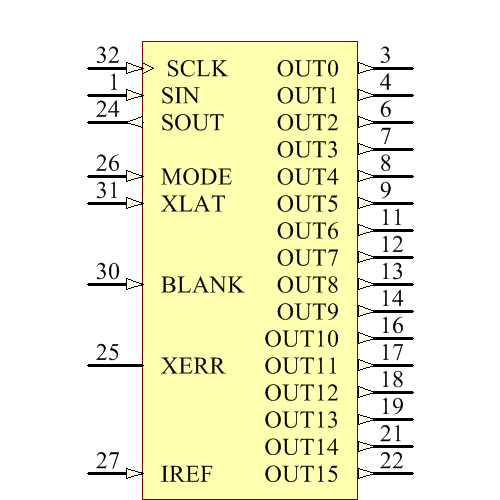

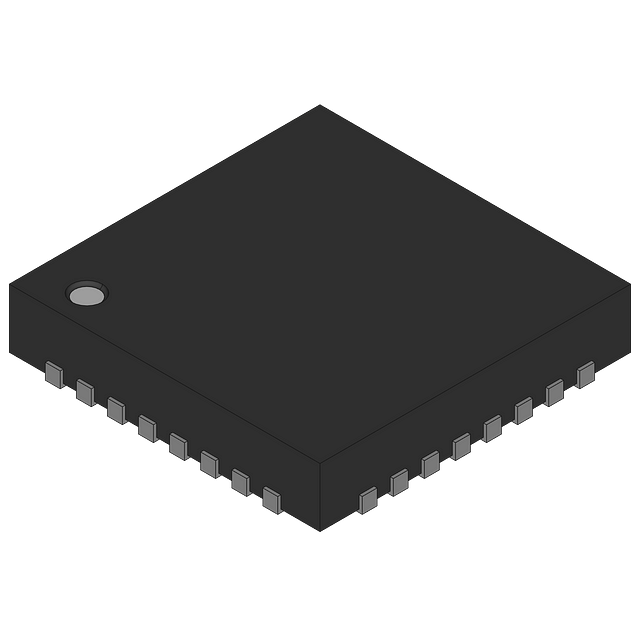

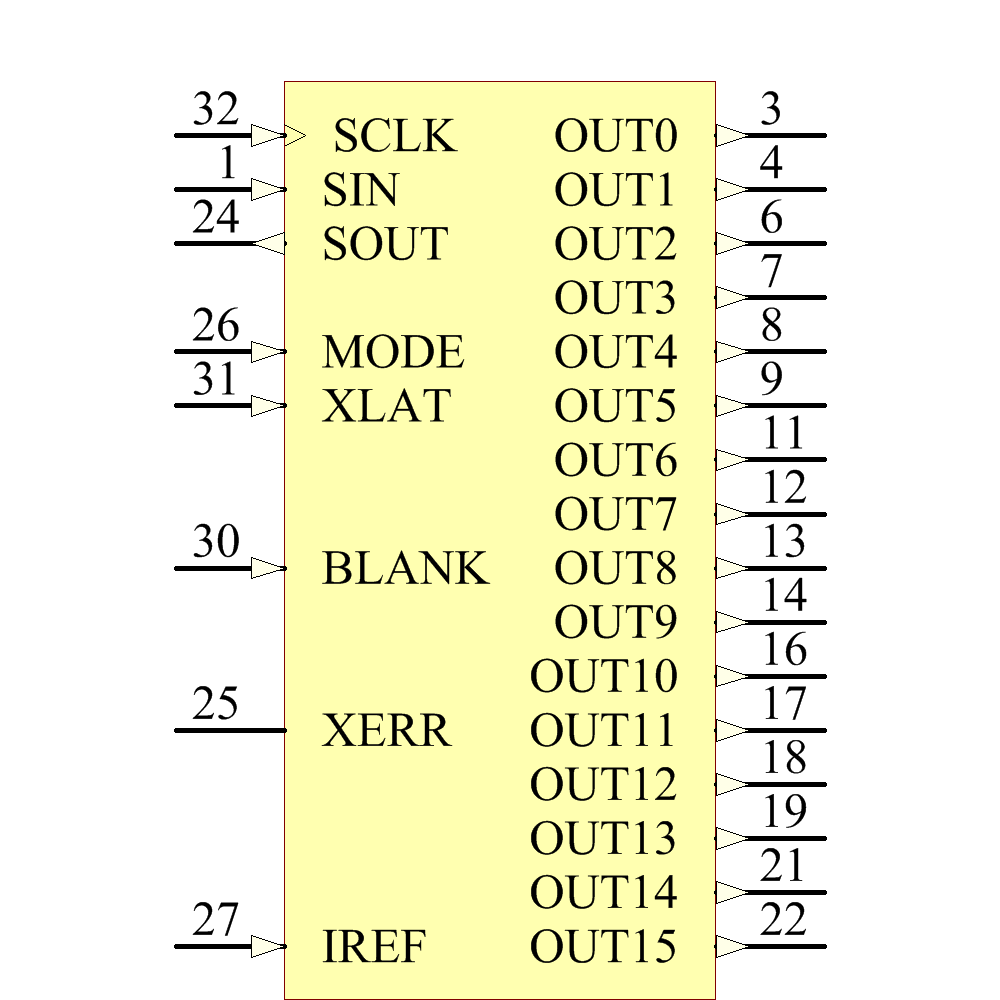

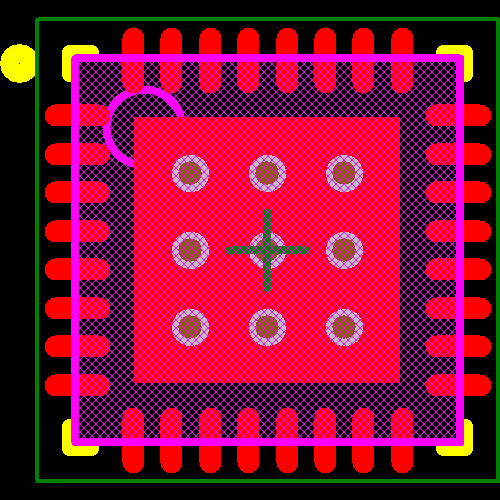

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Obsolete | ||
| onsemi | Obsolete |
