TLC5925IDWRG4 - Texas Instruments
Low-power 16-channel constant-current LED sink driver with 3.3-5.5V supply voltage 24-SOIC -40 to 125
Technical Details
| Case/Package | SOIC |
| Frequency | 30MHz |
| Height | 2.65mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 15.4mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 45mA |
| Max Power Dissipation | 2.2W |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 13mA |
| Number of Outputs | 16 |
| Number of Pins | 24 |
| Output Current | 45mA |
| Output Voltage | 17V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 2.2W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 2.35mm |
| Weight | 624.398247mg |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

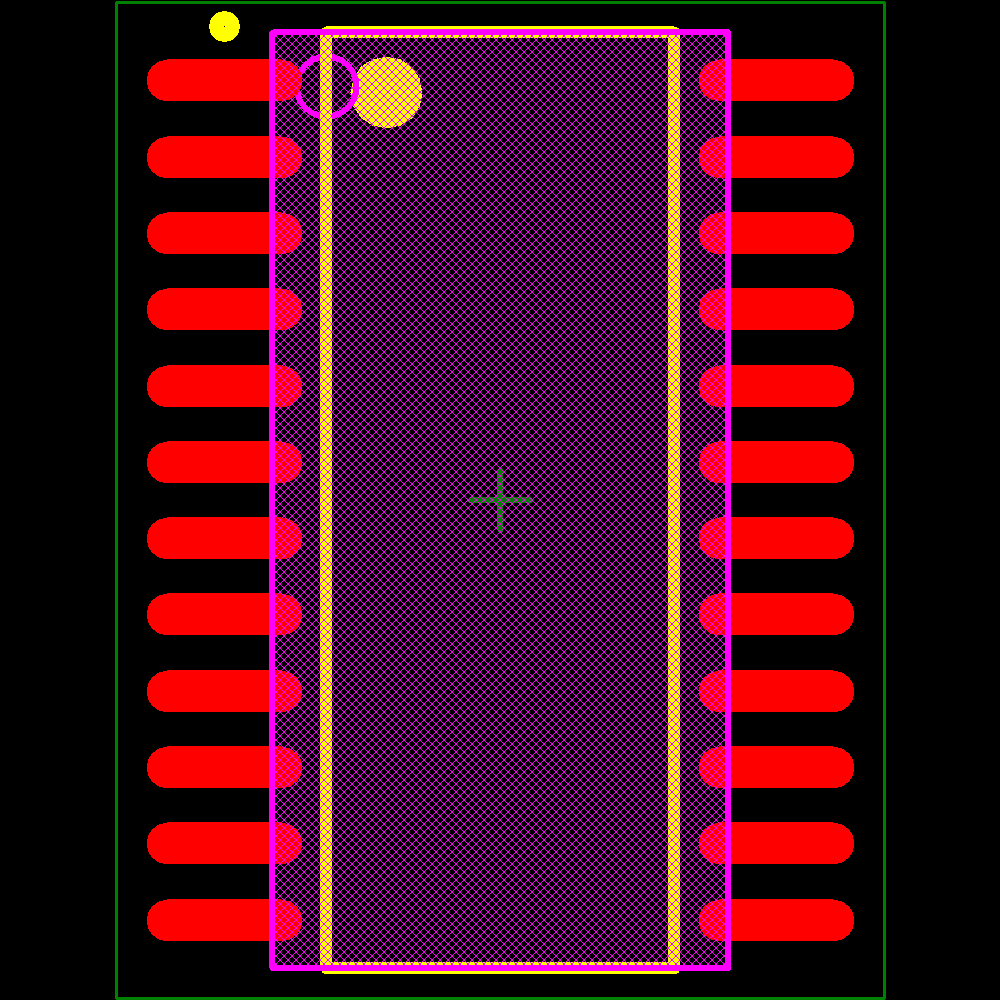

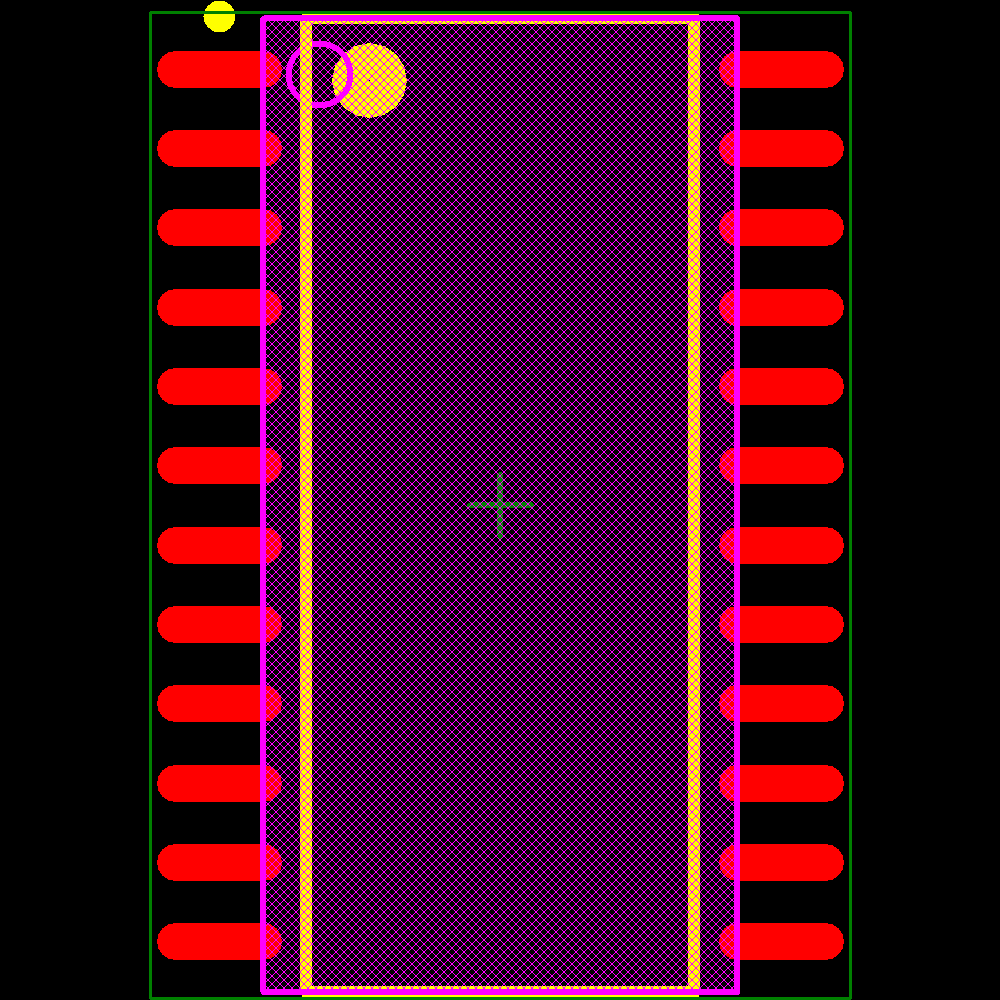

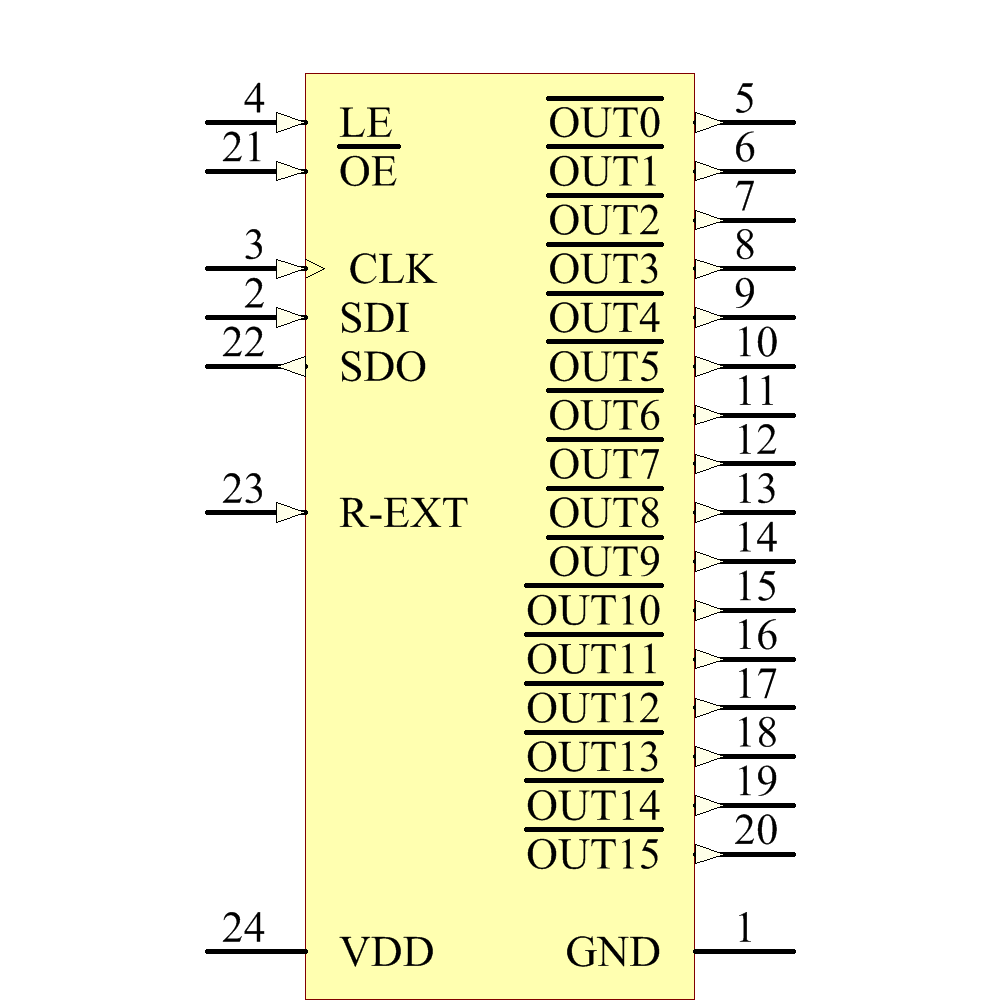

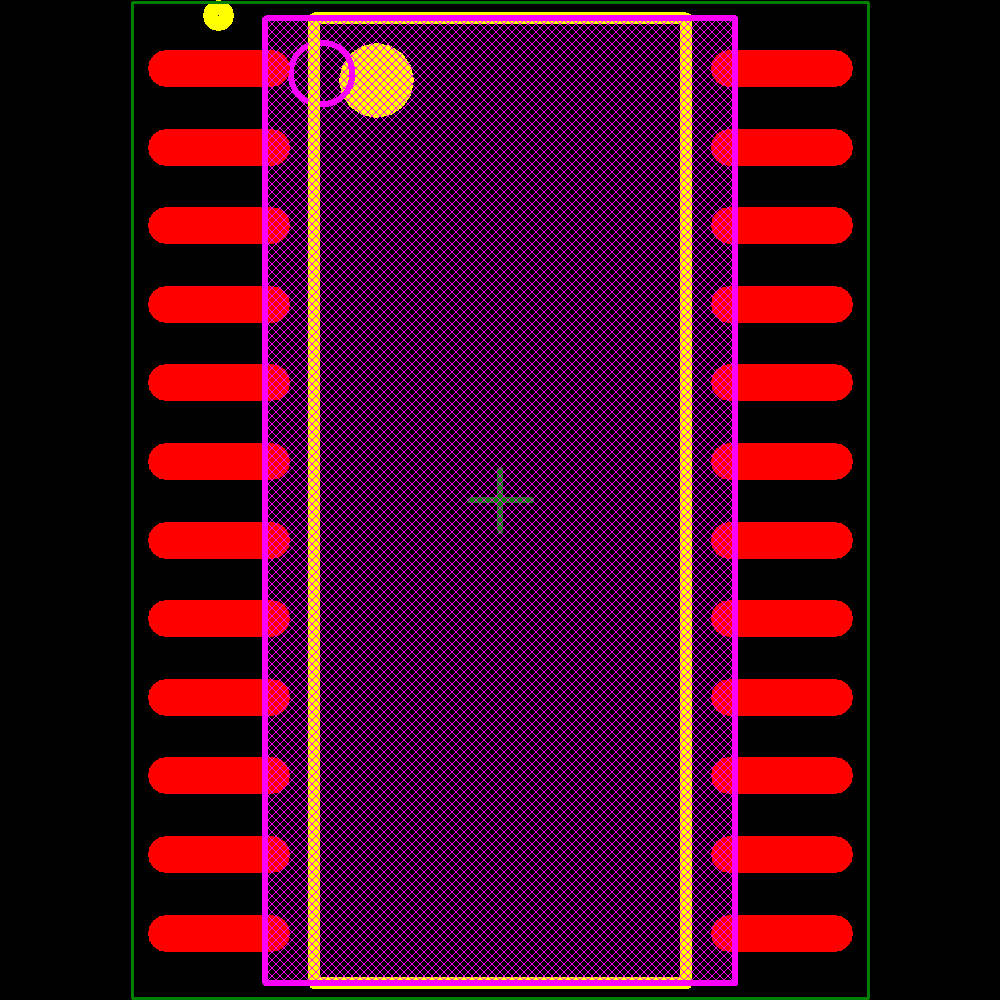

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Production | ||
| Allegro MicroSystems | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Allegro MicroSystems | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Allegro MicroSystems | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 1829
|
$ | 2.48 | 1.60 | 1.43 | 1.18 | 0.841 | 0.656 | ||
