TLC5926IDBQR - Texas Instruments

LED Driver 16 Segment 20000uA Supply Current Automotive 24-Pin SSOP T/R

Technical Details

Case/Package	SSOP
Contact Plating	Gold
Frequency	30MHz
Height	1.75mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	8.65mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	125°C
Max Power Dissipation	1.6W
Max Supply Current	20mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	20mA
Number of Outputs	16
Number of Pins	24
Number of Segments	16
Output Current	120mA
Output Voltage	17V
Power Dissipation	1.6W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Switching Frequency	30MHz
Termination	SMD/SMT
Thickness	1.5mm
Topology	Boost
Weight	129.500622mg
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TLC5926IDBQR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

Symbol

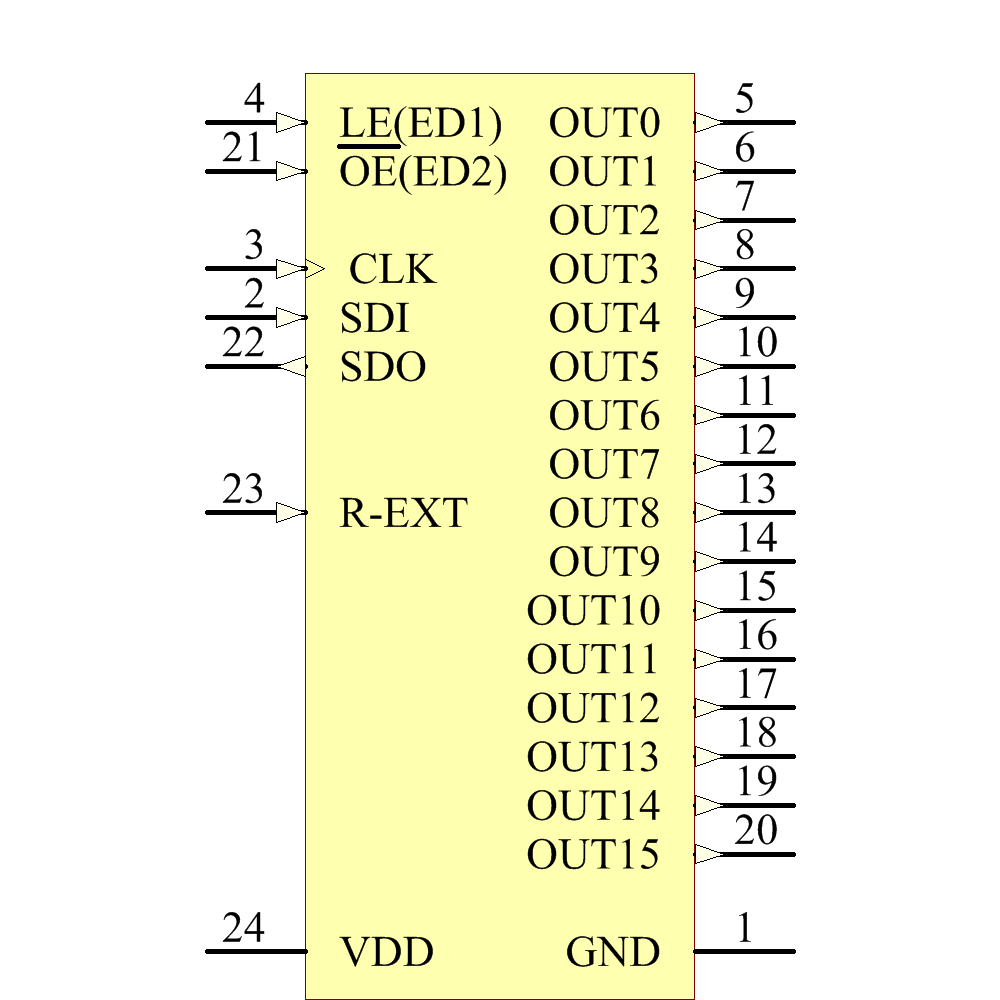

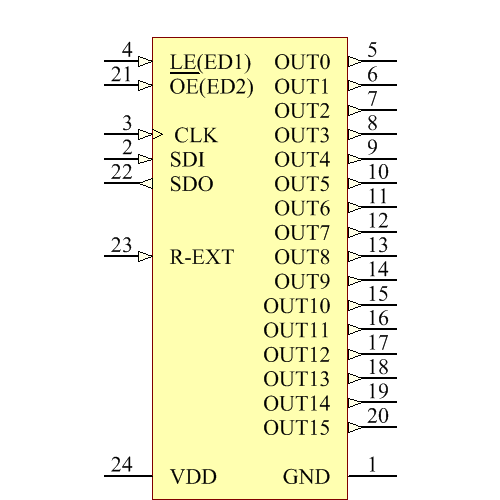

TLC5926IDBQR Symbol - Texas Instruments

TLC5926IDBQR Symbol - Texas Instruments

TLC5926IDBQR Symbol - Texas Instruments

TLC5926IDBQR Symbol - Texas Instruments

‹ ›

Footprint

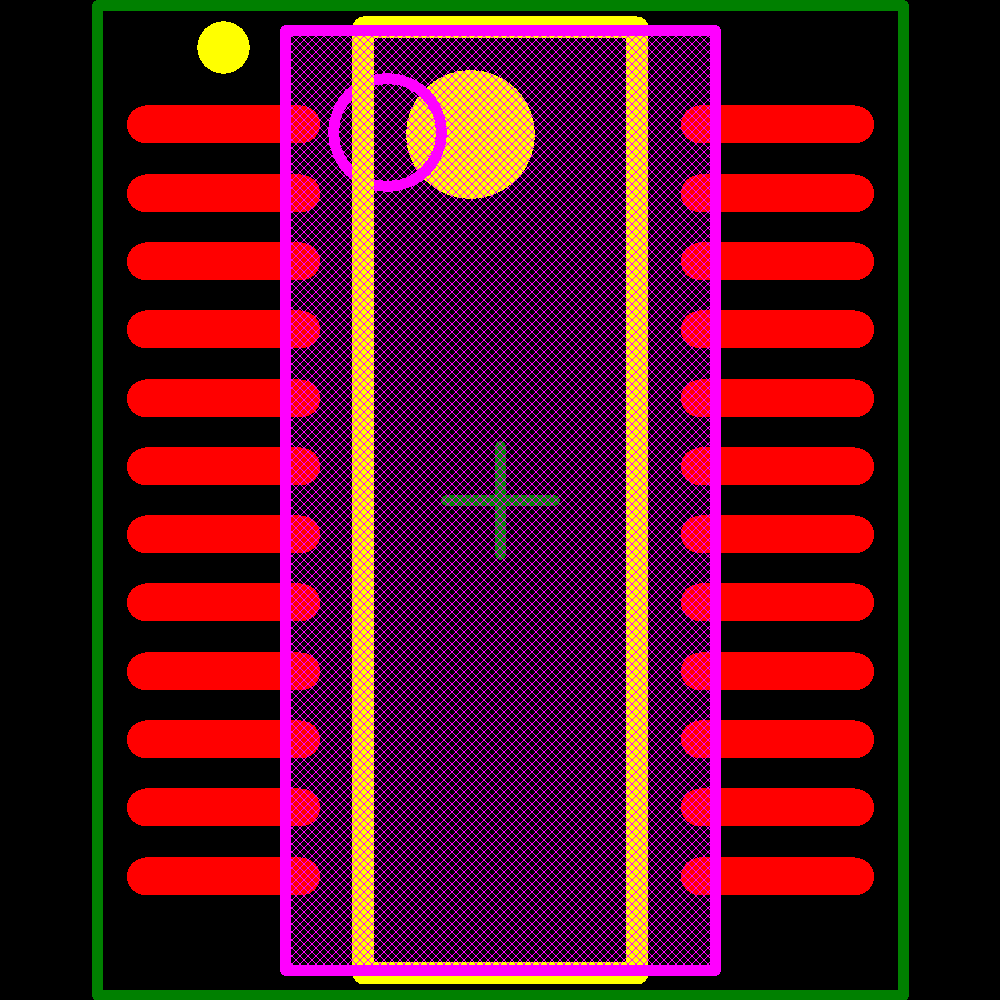

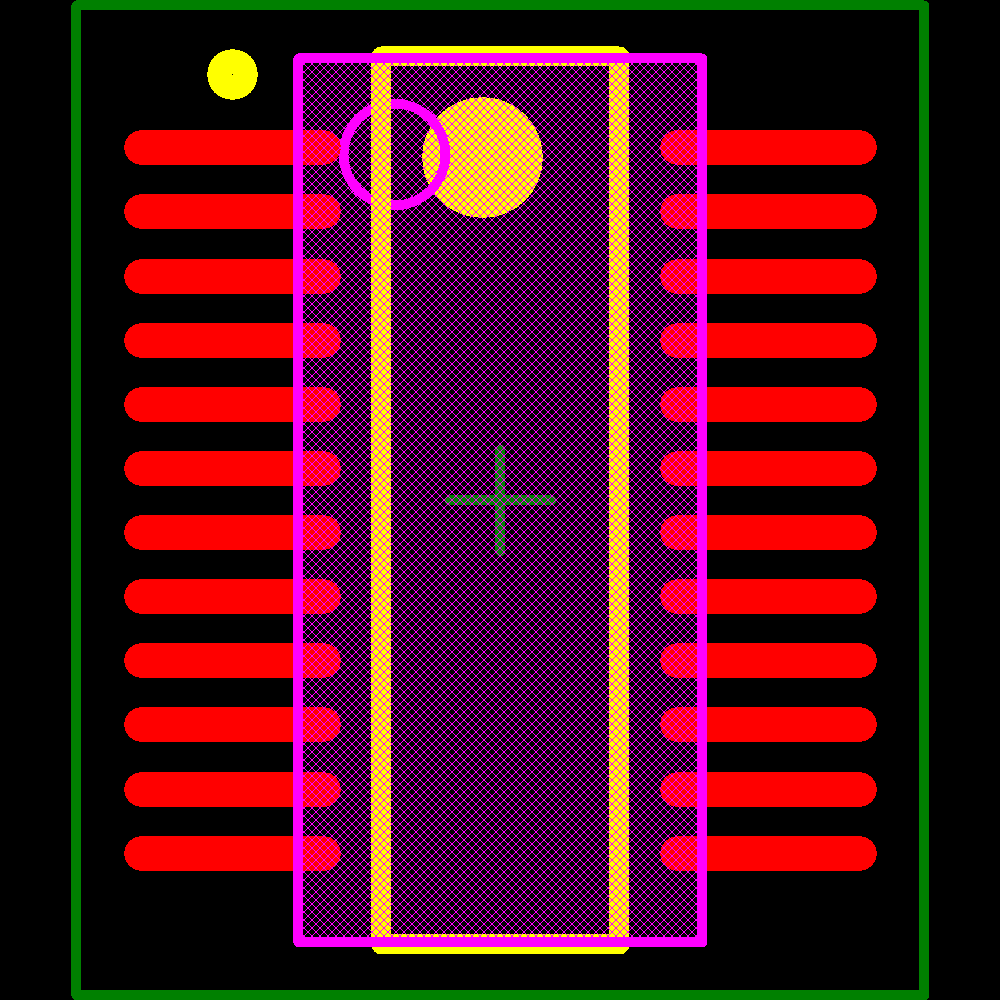

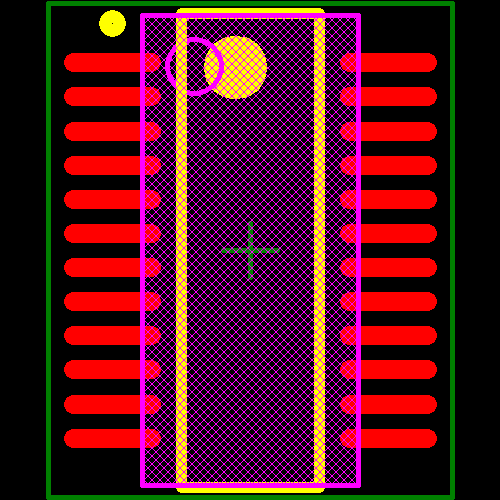

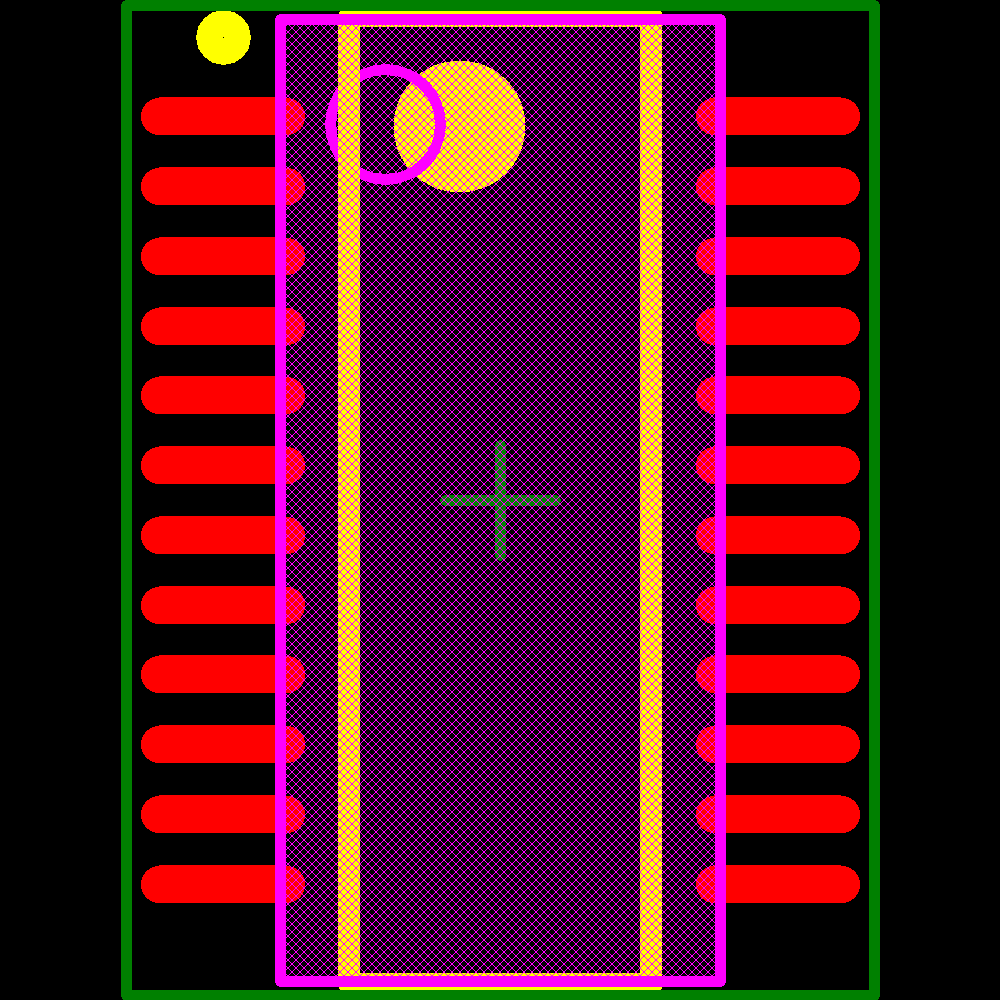

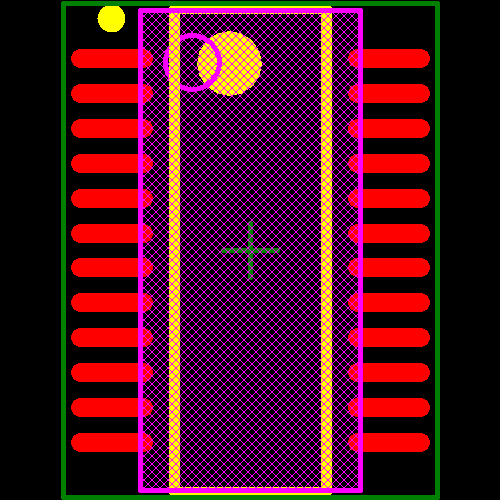

TLC5926IDBQR Footprint - Texas Instruments
