TLC5926IPWPR - Texas Instruments

LED Driver 16 Segment 20000uA Supply Current Automotive 24-Pin HTSSOP EP T/R

Technical Details

Case/Package	HTSSOP EP
Contact Plating	Gold
Frequency	30MHz
Height	1.2mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	7.8mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	125°C
Max Power Dissipation	2.9W
Max Supply Current	20mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	20mA
Number of Outputs	16
Number of Pins	24
Number of Segments	16
Output Current	120mA
Output Voltage	17V
Packaging	Cut Tape
Power Dissipation	2.9W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	30MHz
Termination	SMD/SMT
Thickness	1mm
Topology	Boost
Weight	98.08935mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TLC5926IPWPR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

Symbol

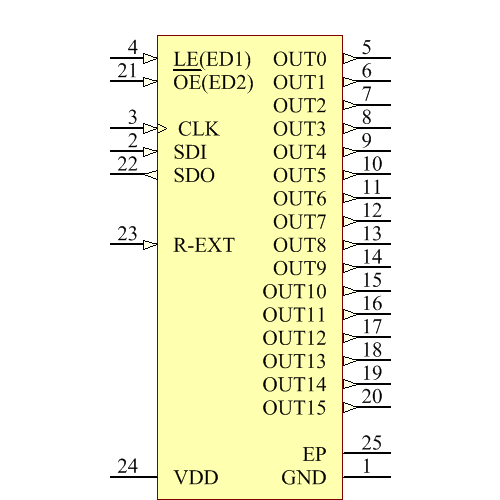

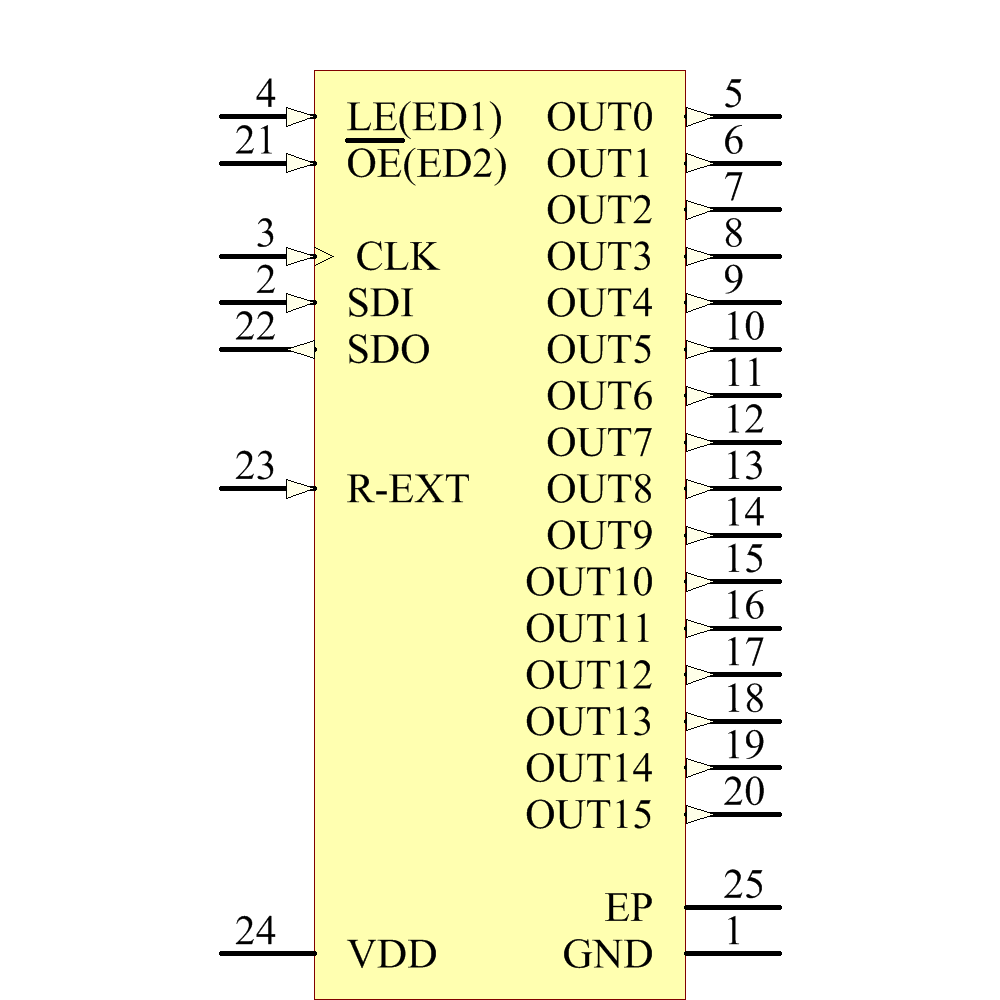

TLC5926IPWPR Symbol - Texas Instruments

TLC5926IPWPR Symbol - Texas Instruments

TLC5926IPWPR Symbol - Texas Instruments

TLC5926IPWPR Symbol - Texas Instruments

‹ ›

Footprint

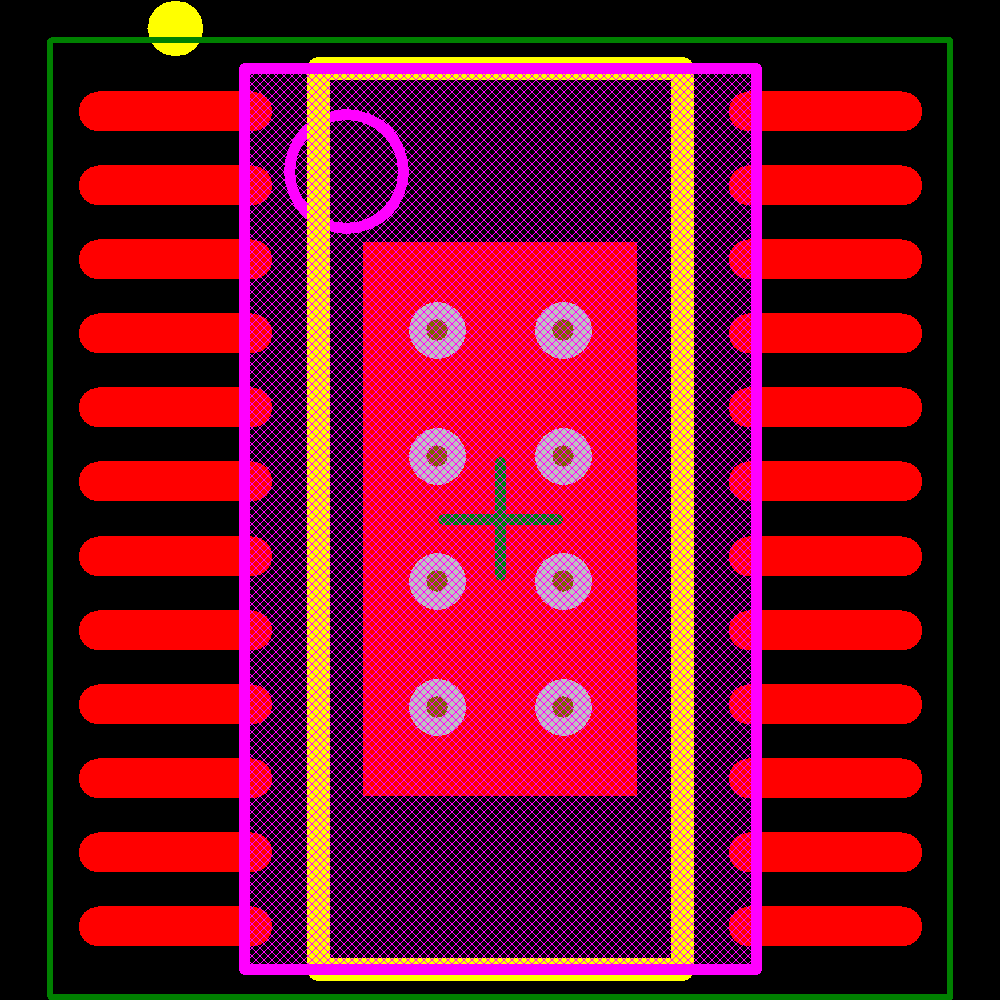

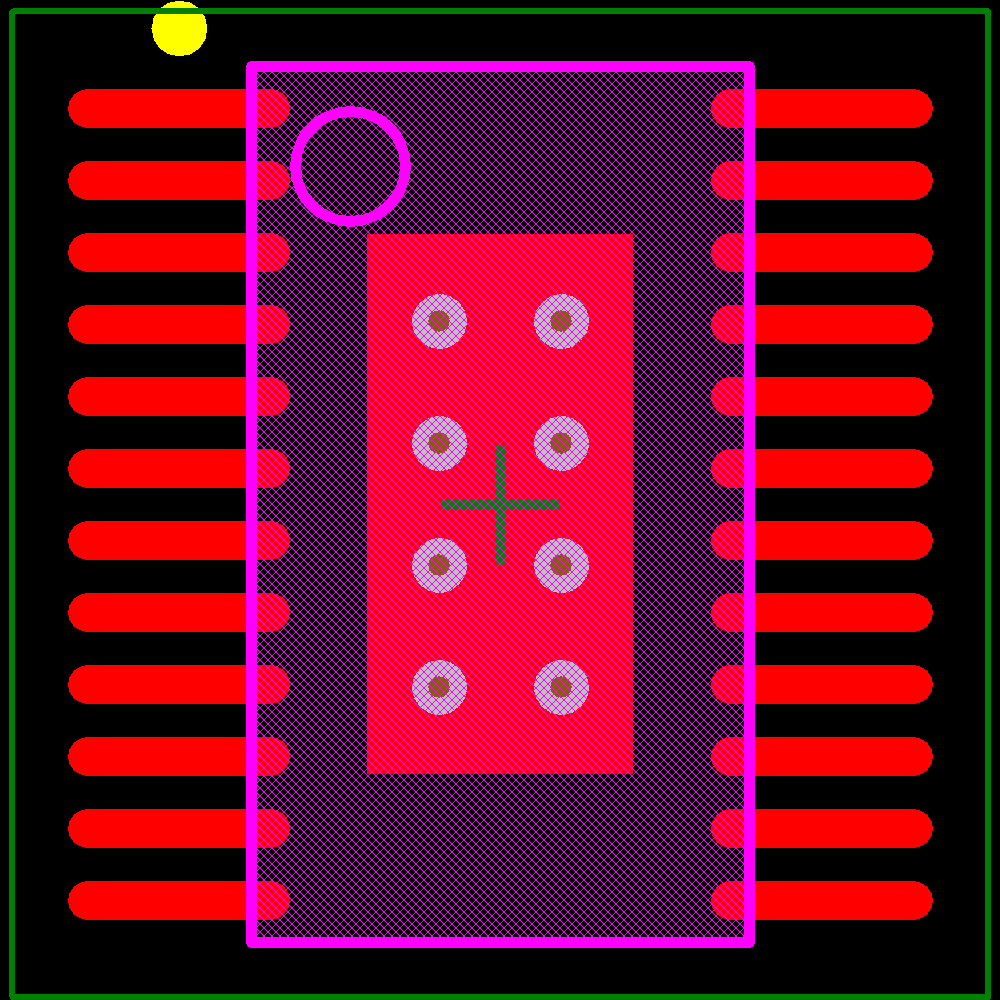

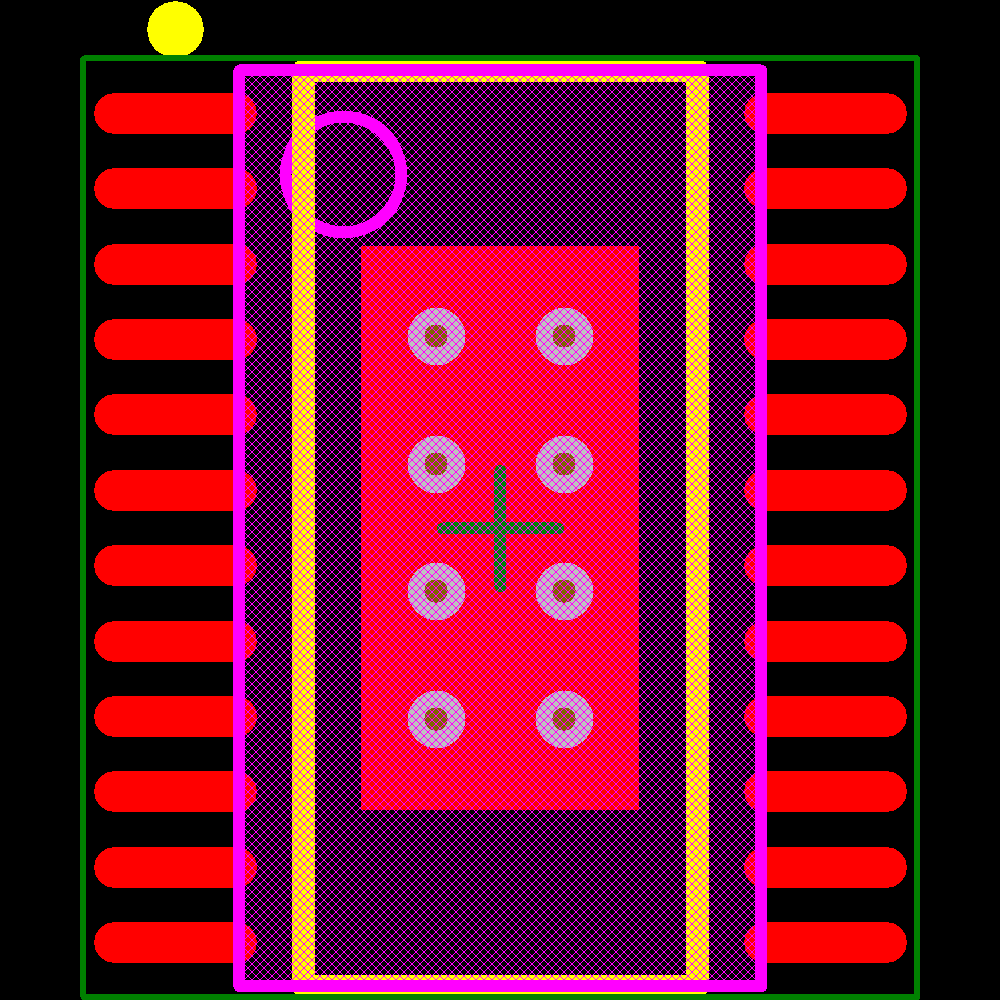

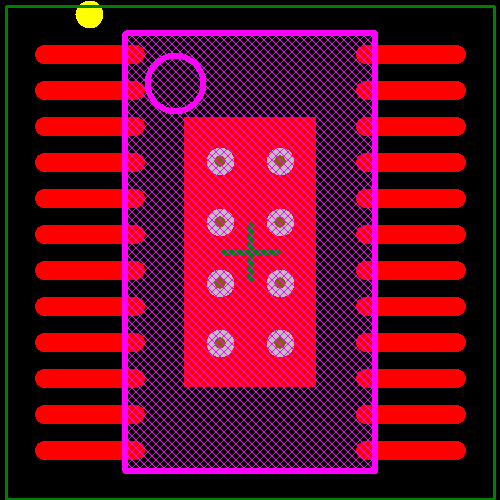

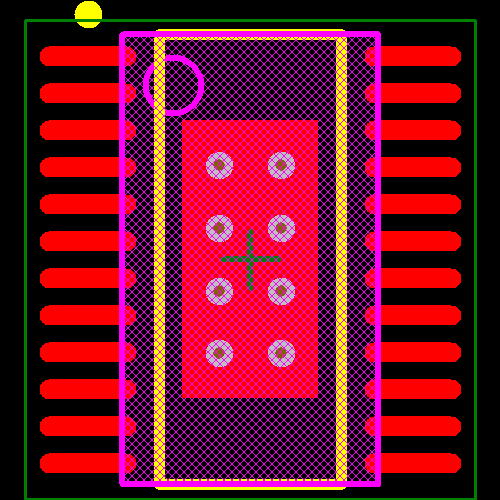

TLC5926IPWPR Footprint - Texas Instruments
