TLC5926QPWPRQ1 - Texas Instruments
Automotive 16-bit constant-current LED sink driver 24-HTSSOP -40 to 125
Technical Details
| Case/Package | HTSSOP EP |
| Frequency | 30MHz |
| Height | 1.2mm |
| High Level Output Current | 1mA |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Lifecycle Status | Production |
| Low Level Output Current | -1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 120mA |
| Max Power Dissipation | 2.9W |
| Max Supply Current | 20mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 20mA |
| Number of Channels | 16 |
| Number of Outputs | 16 |
| Number of Pins | 24 |
| Output Current | 120mA |
| Output Voltage | 17V |
| Packaging | Cut Tape (CT) |
| Power Dissipation | 2.9W |
| Quiescent Current | 11mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1mm |
| Topology | Boost |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

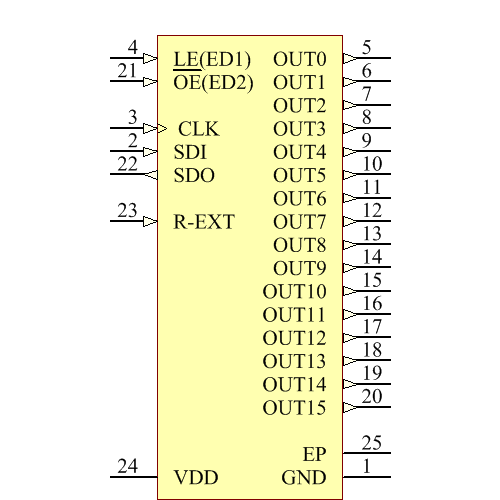

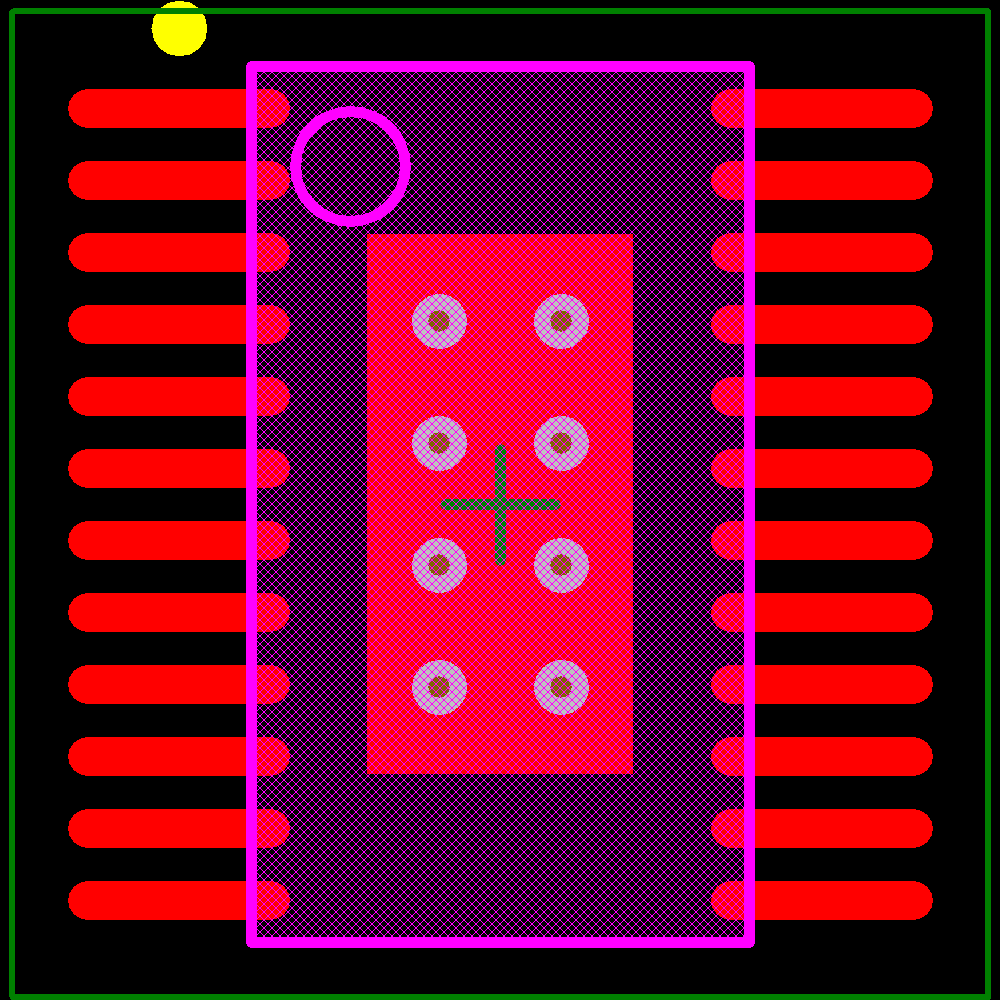

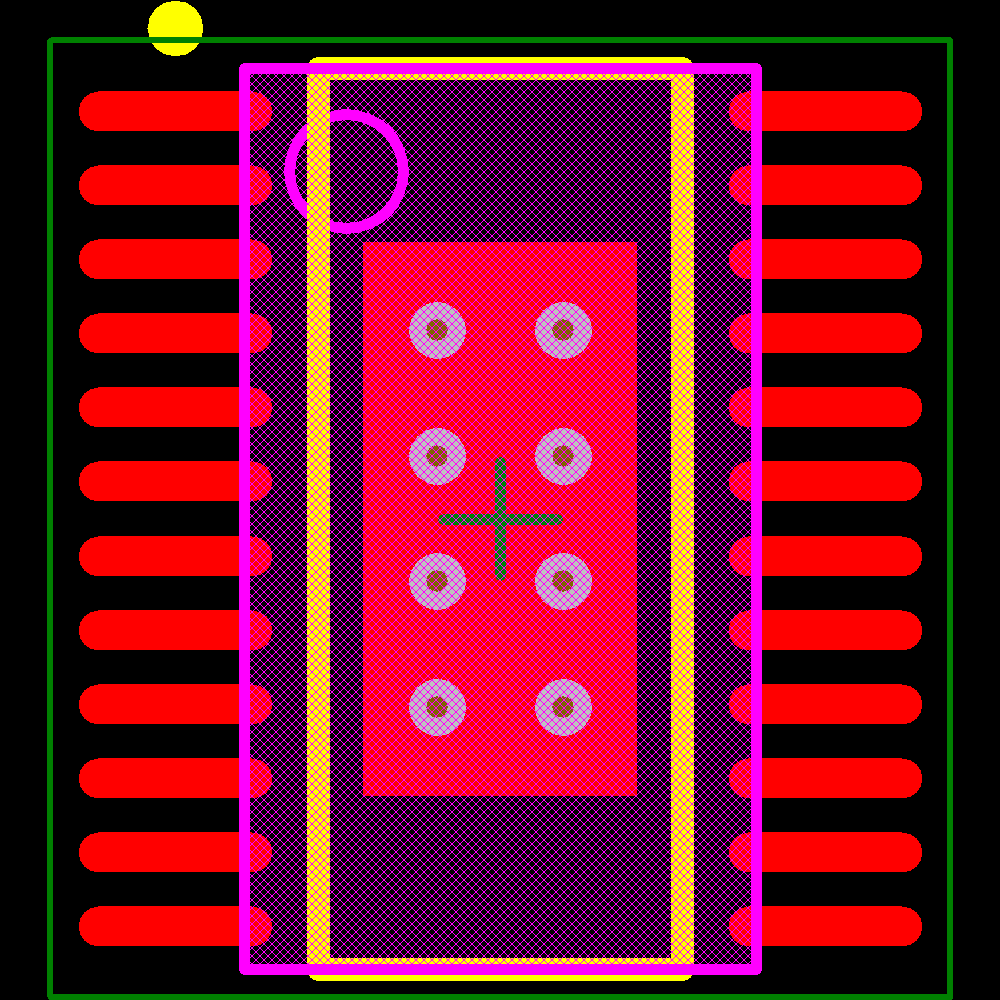

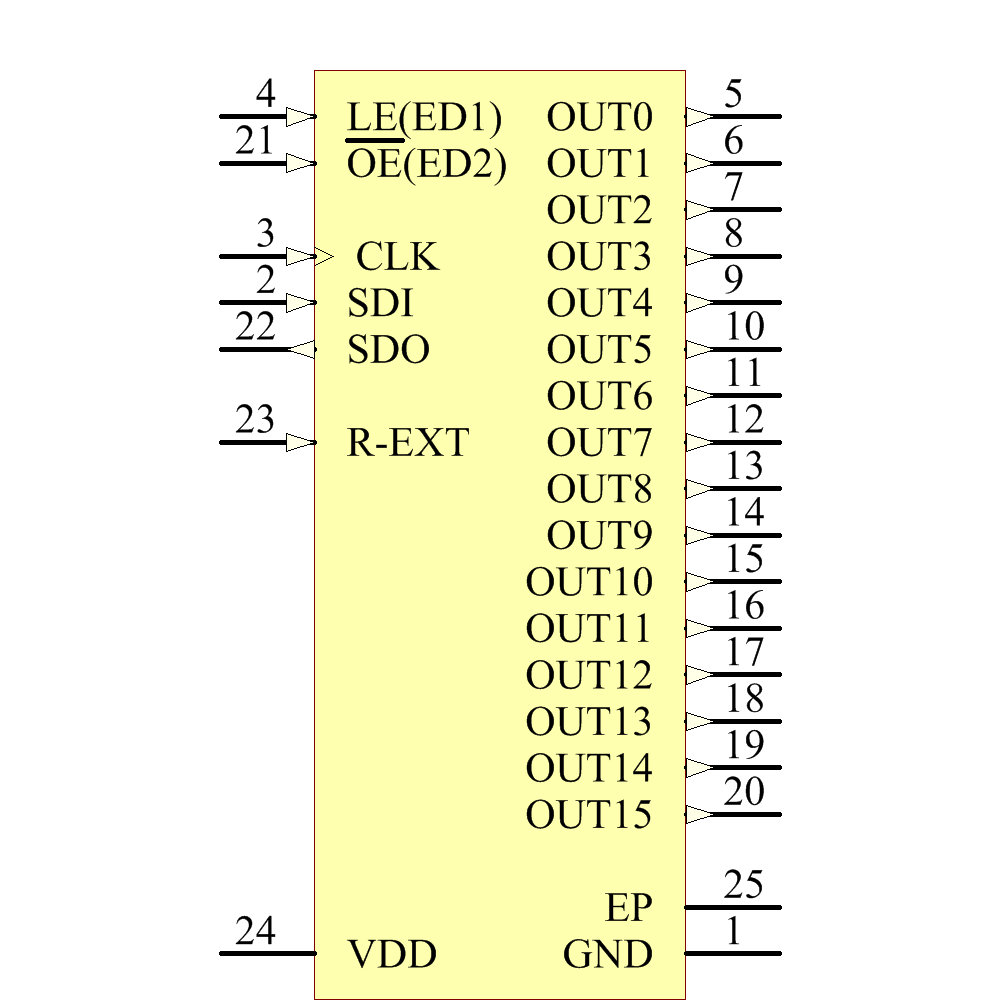

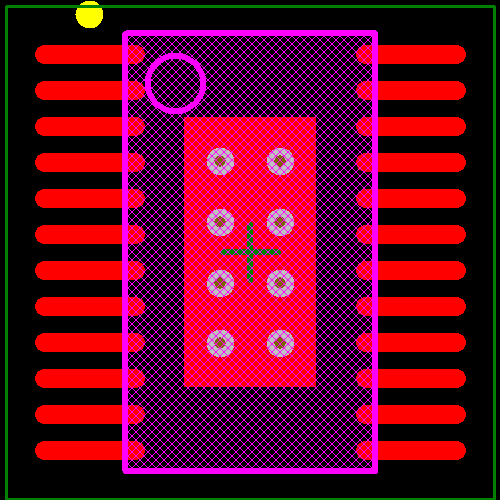

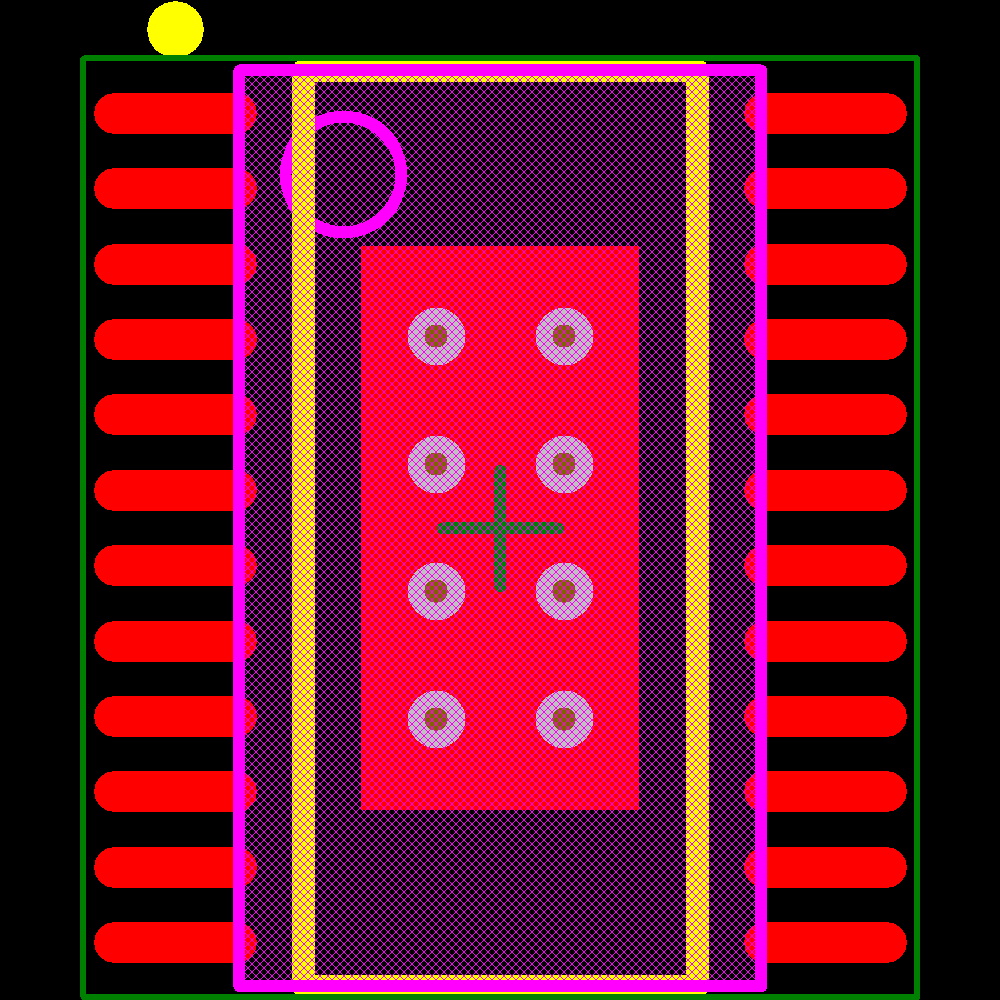

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production |
