TLC5927IDBQRG4 - Texas Instruments
16-bit constant-current LED sink driver with short detection 24-SSOP -40 to 125
Technical Details
| Case/Package | SSOP |
| Frequency | 30MHz |
| Height | 1.75mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1.6W |
| Max Supply Current | 20mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 20mA |
| Number of Outputs | 16 |
| Number of Pins | 24 |
| Number of Segments | 16 |
| Output Current | 120mA |
| Output Voltage | 17V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 1.6W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1.5mm |
| Weight | 129.500622mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

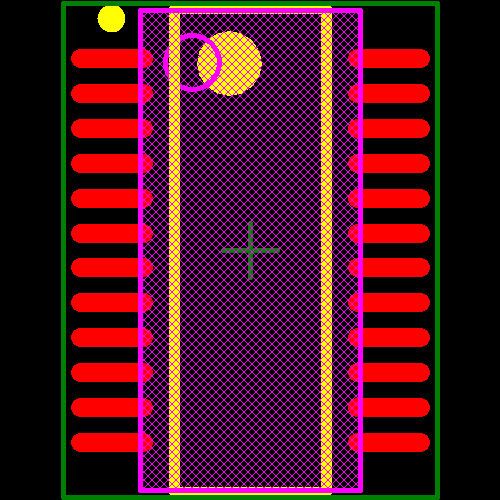

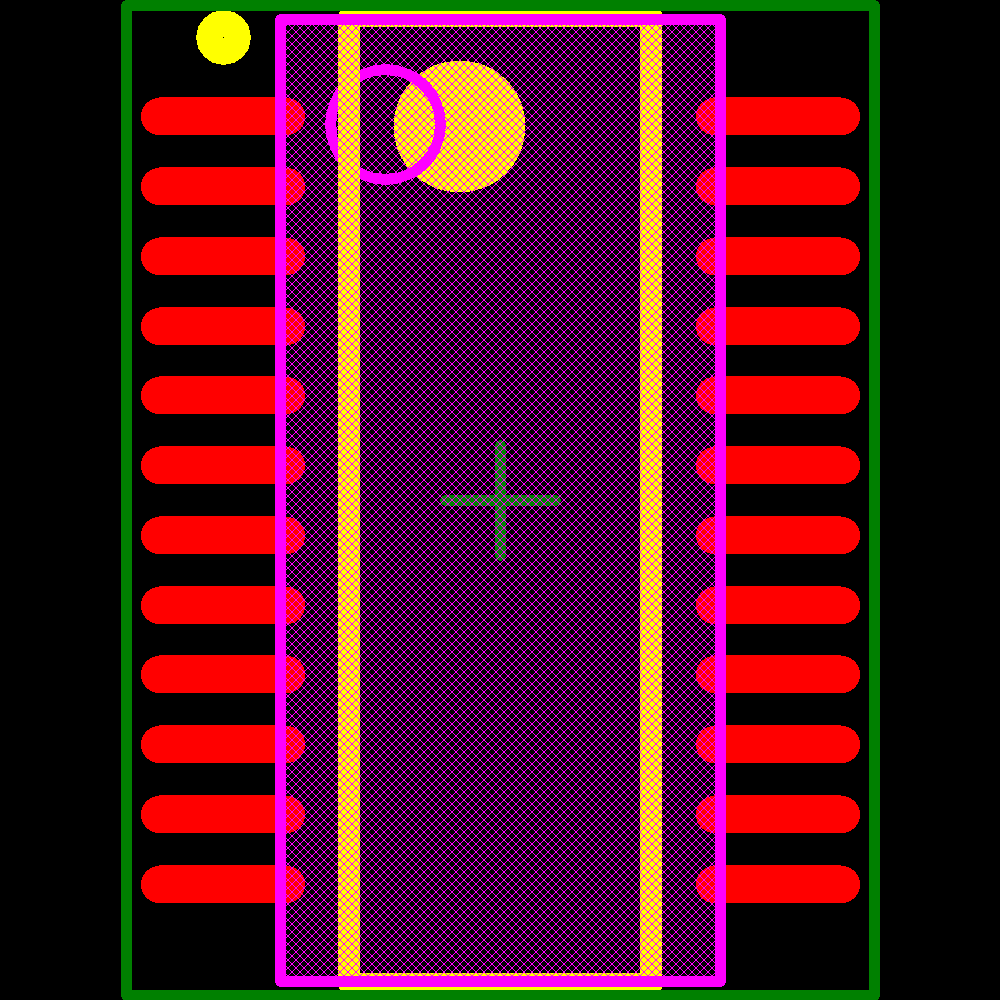

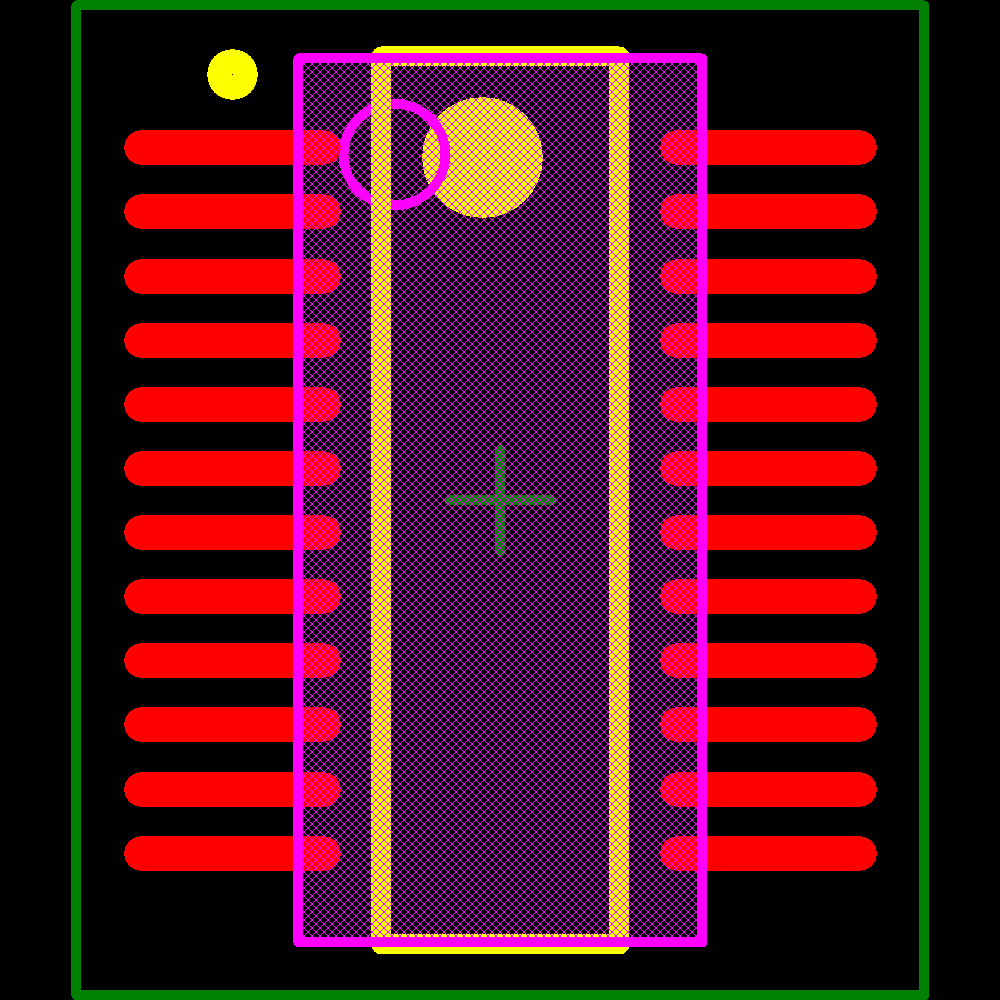

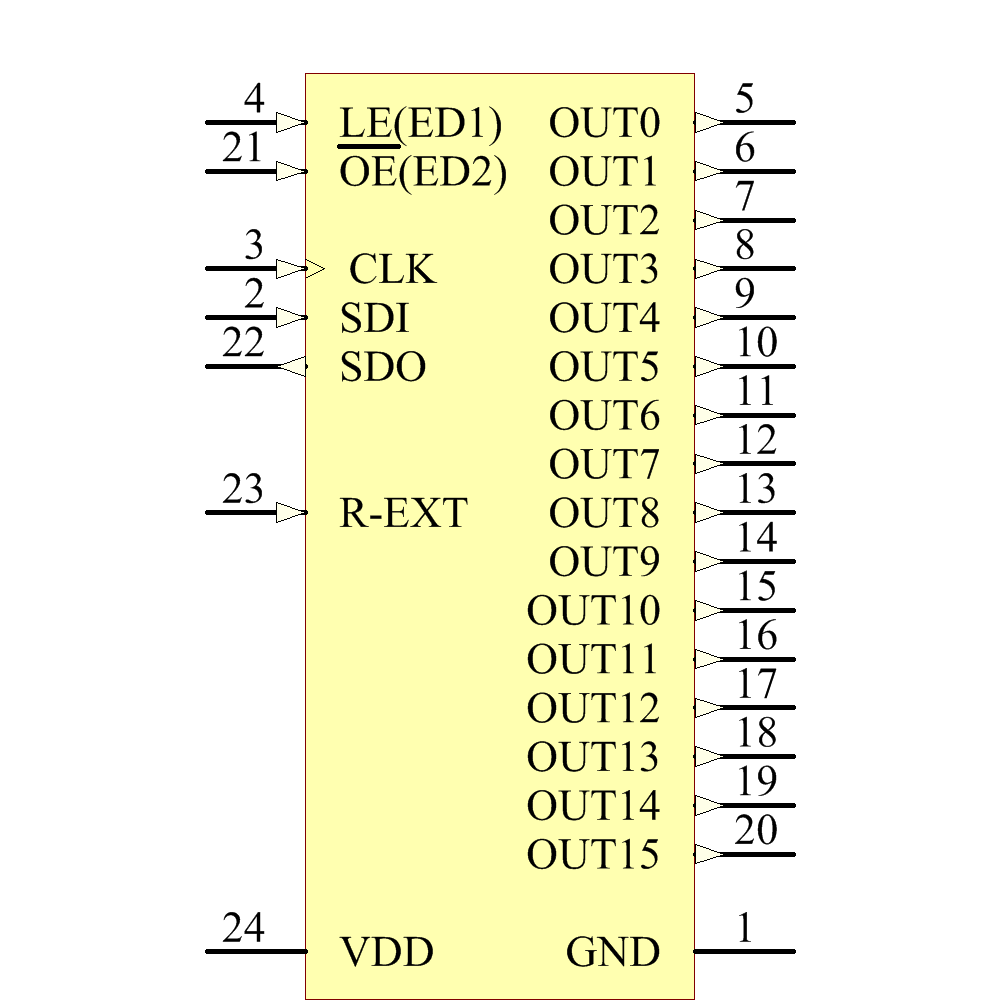

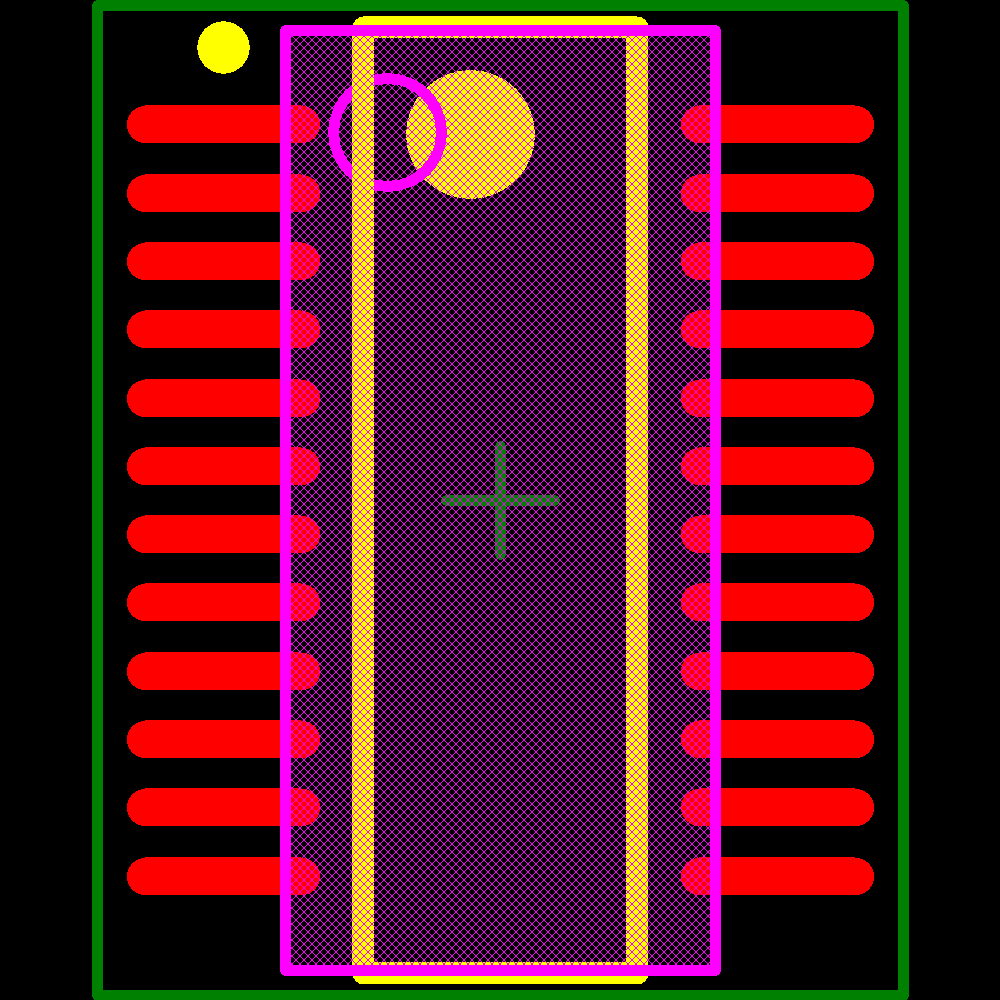

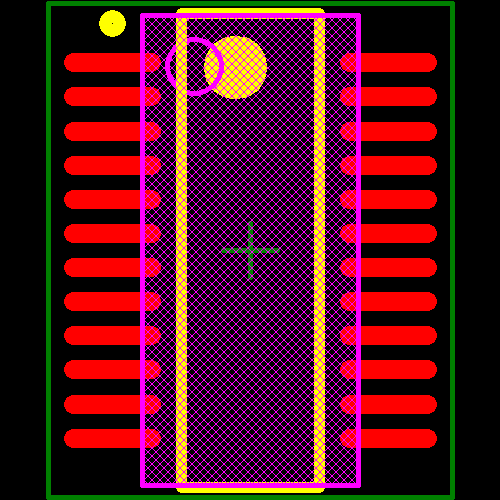

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Intersil | Obsolete | ||
| Texas Instruments | Production | ||
| Toshiba | Production | ||
| onsemi | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
