TLC59282DBQR - Texas Instruments

16-channel constant current LED driver with 4-channel Grouped delay 24-SSOP -40 to 85

Technical Details

Case/Package	SSOP
Contact Plating	Gold
Frequency	35MHz
Height	1.75mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	8.65mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Supply Current	34mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	34mA
Number of Outputs	16
Number of Pins	24
Output Current	45mA
Output Voltage	17V
Packaging	Cut Tape (CT)
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	35MHz
Thickness	1.5mm
Topology	Boost
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TLC59282DBQR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

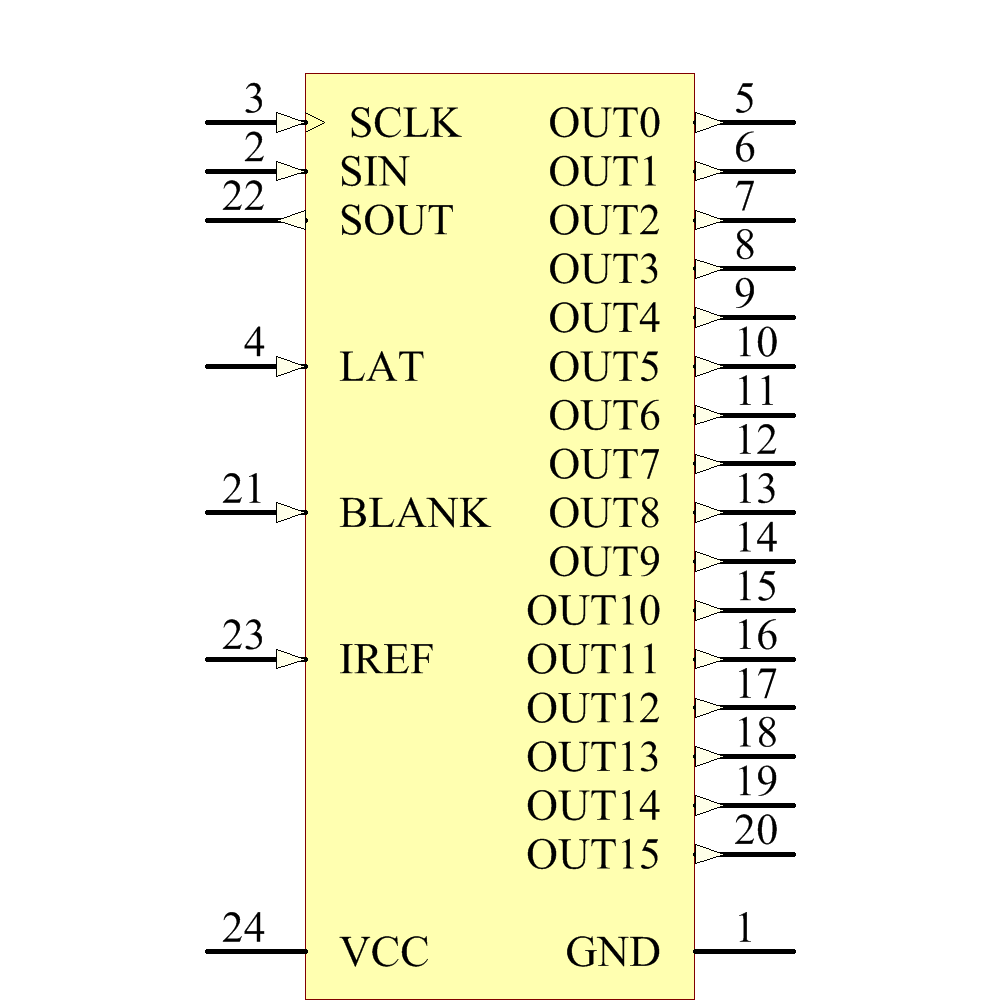

TLC59282DBQR Symbol - Texas Instruments

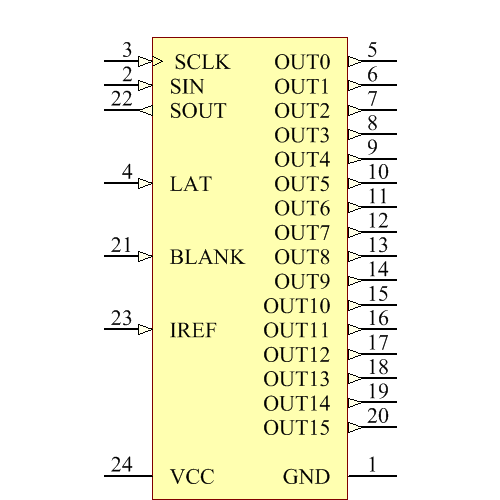

TLC59282DBQR Symbol - Texas Instruments

TLC59282DBQR Symbol - Texas Instruments

TLC59282DBQR Symbol - Texas Instruments

‹ ›

Footprint

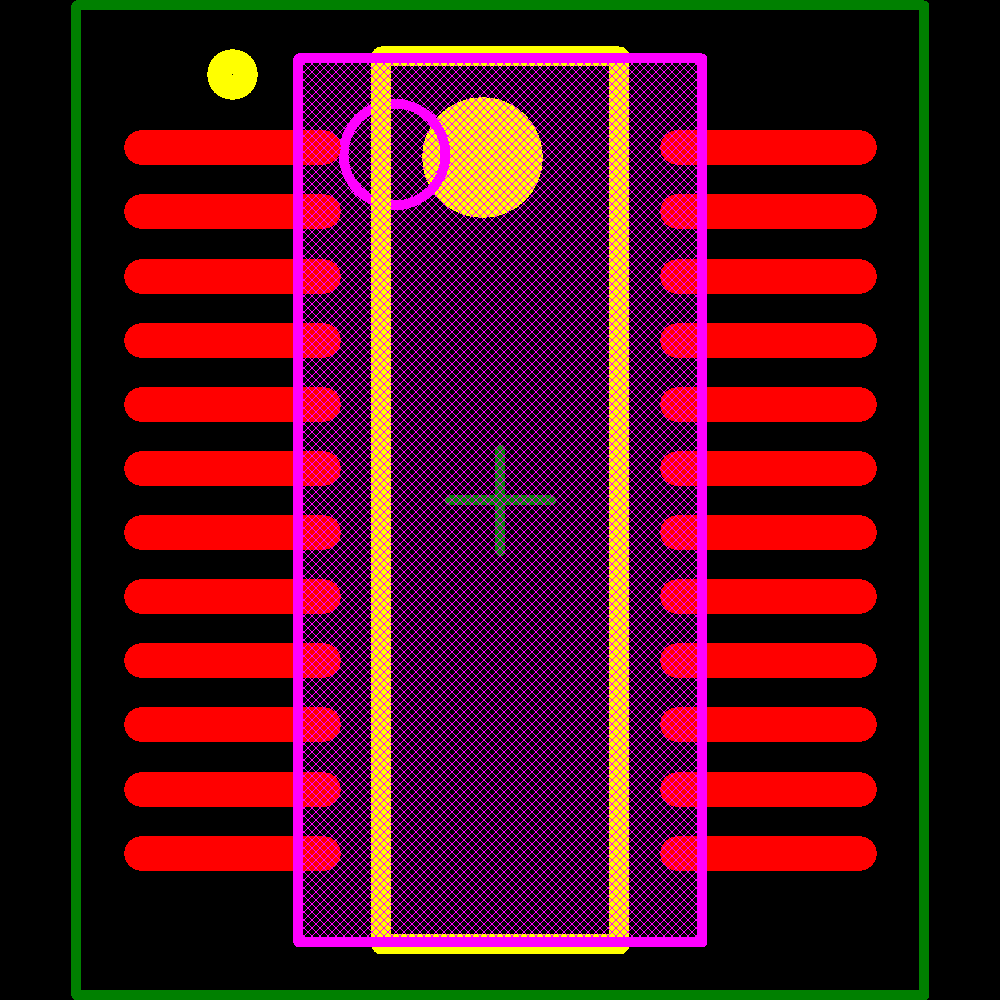

TLC59282DBQR Footprint - Texas Instruments

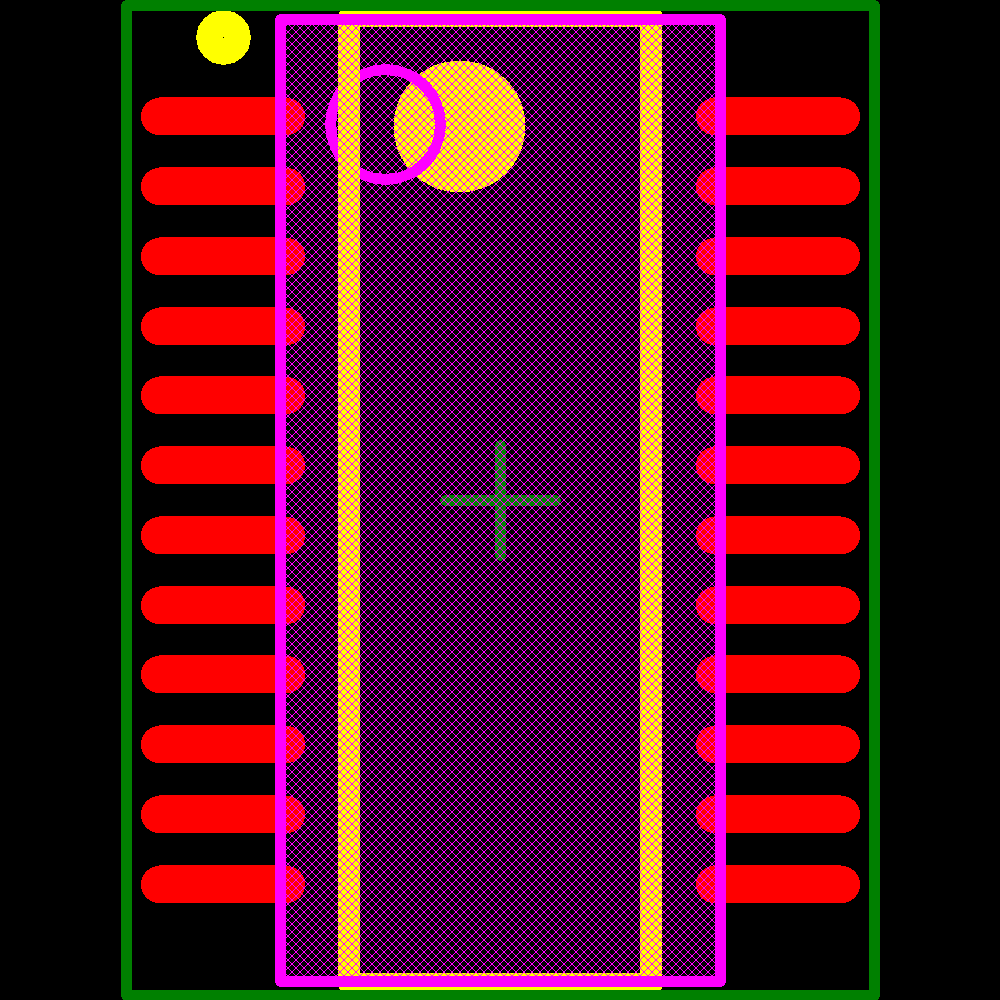

TLC59282DBQR Footprint - Texas Instruments

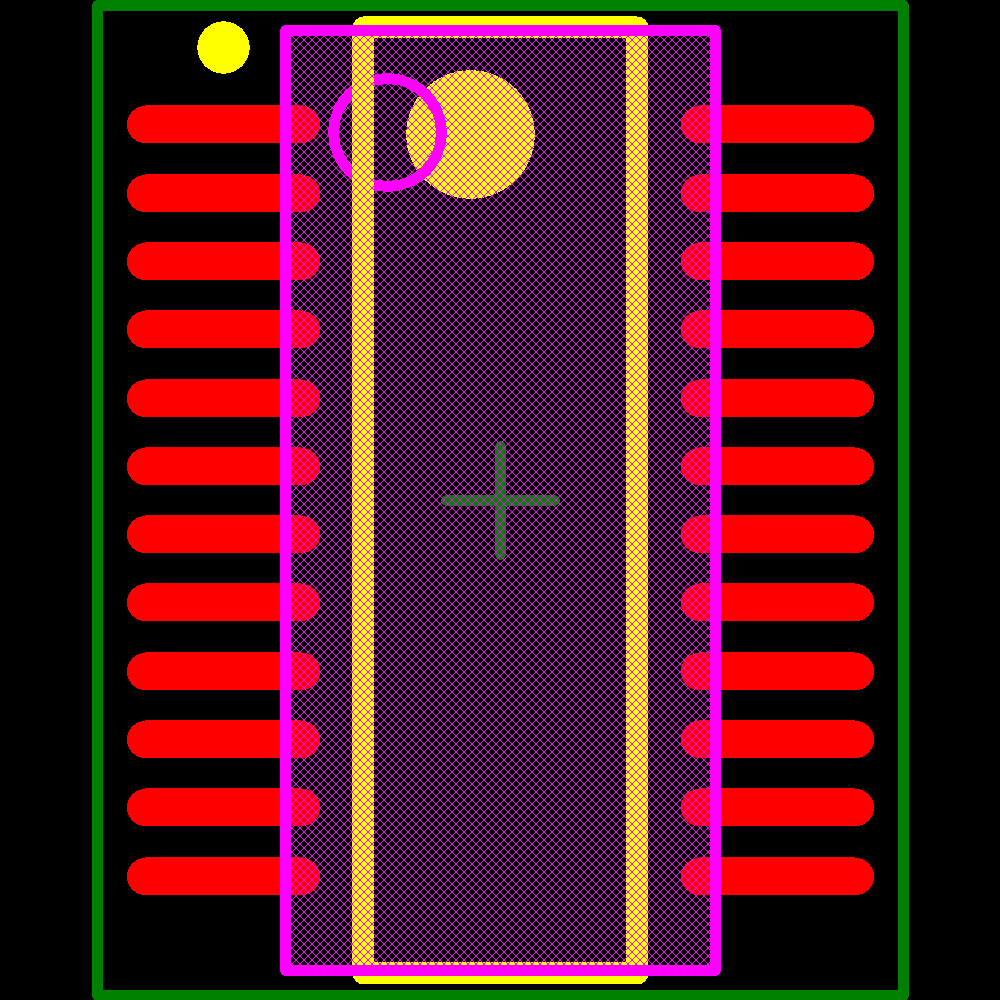

TLC59282DBQR Footprint - Texas Instruments

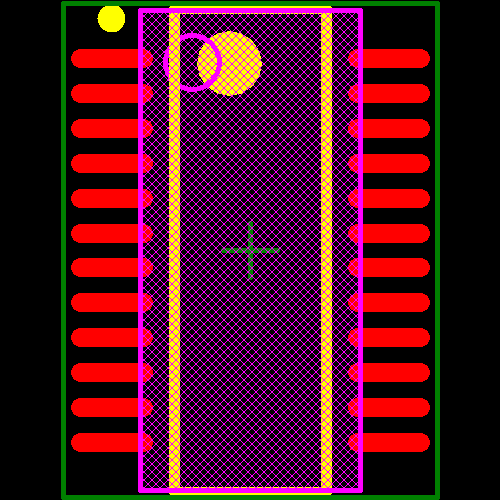

TLC59282DBQR Footprint - Texas Instruments

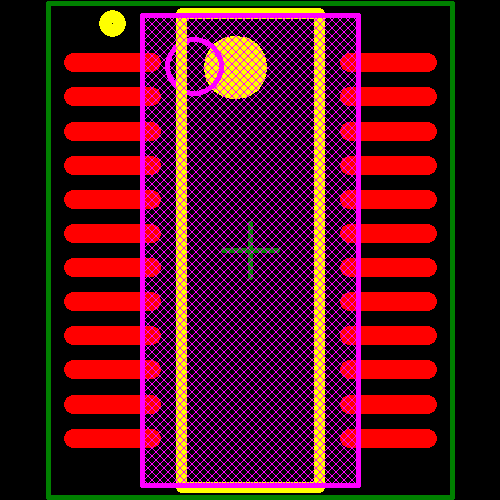

TLC59282DBQR Footprint - Texas Instruments
