TLC59282RGER - Texas Instruments

16-channel constant current LED driver with 4-channel Grouped delay 24-VQFN -40 to 85

Technical Details

Case/Package	VQFN
Frequency	35MHz
Height	1mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Supply Current	50mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	34mA
Number of Outputs	16
Number of Pins	24
Output Current	45mA
Output Voltage	17V
Packaging	Digi-Reel®
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	880µm
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TLC59282RGER | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

Symbol

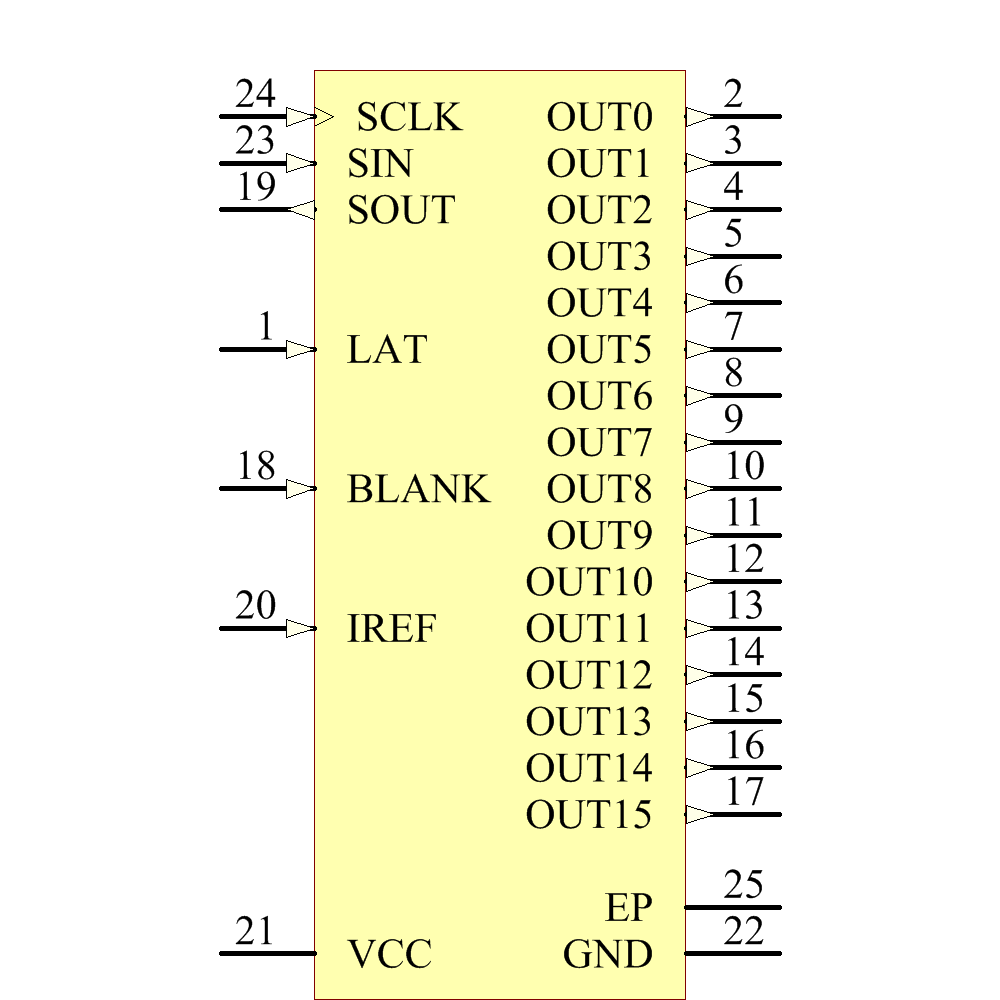

TLC59282RGER Symbol - Texas Instruments

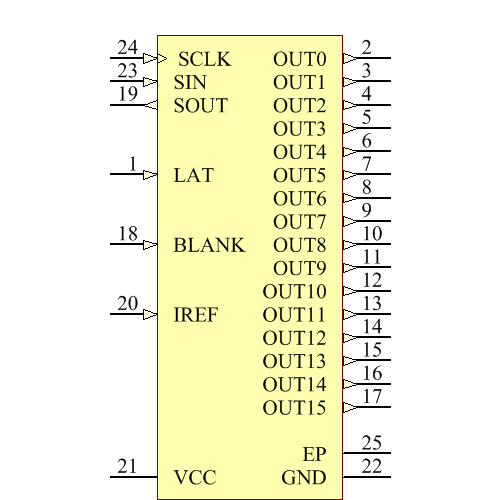

TLC59282RGER Symbol - Texas Instruments
