TLC59283RGER - Texas Instruments
16 channel constant current LED driver with pre-charge FET 24-VQFN -40 to 85
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | VQFN |
| Contact Plating | Gold |
| Frequency | 35MHz |
| Height | 1mm |
| High Level Output Current | -2mA |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Low Level Output Current | 2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 85°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 11mA |
| Number of Outputs | 16 |
| Number of Pins | 24 |
| Output Current | 45mA |
| Output Voltage | 10V |
| Packaging | Cut Tape (CT) |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 35MHz |
| Thickness | 880µm |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

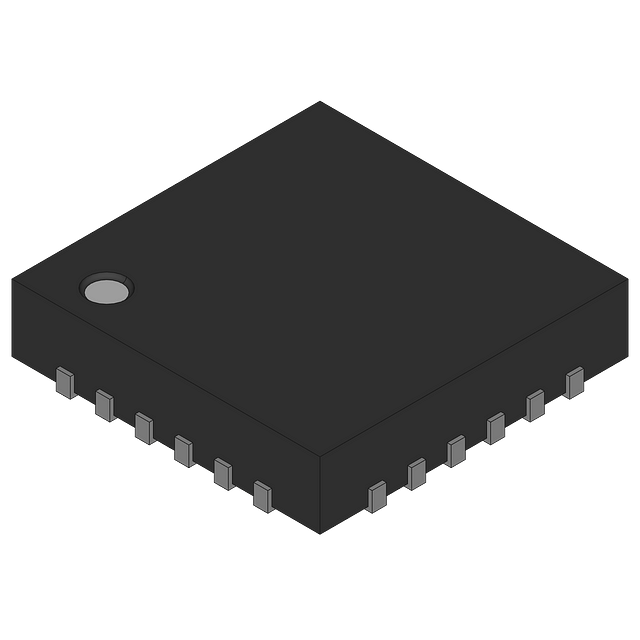

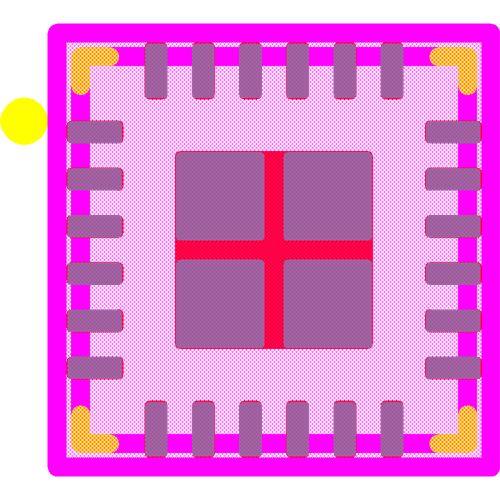

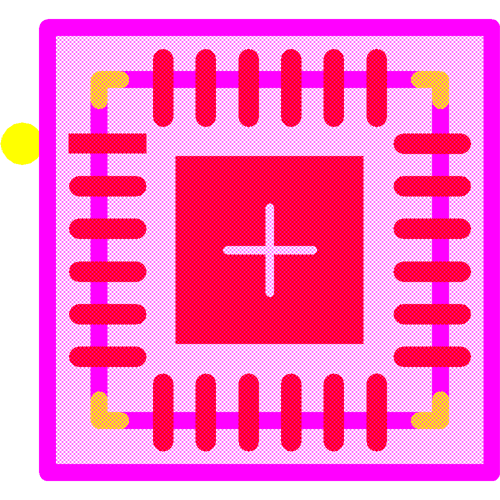

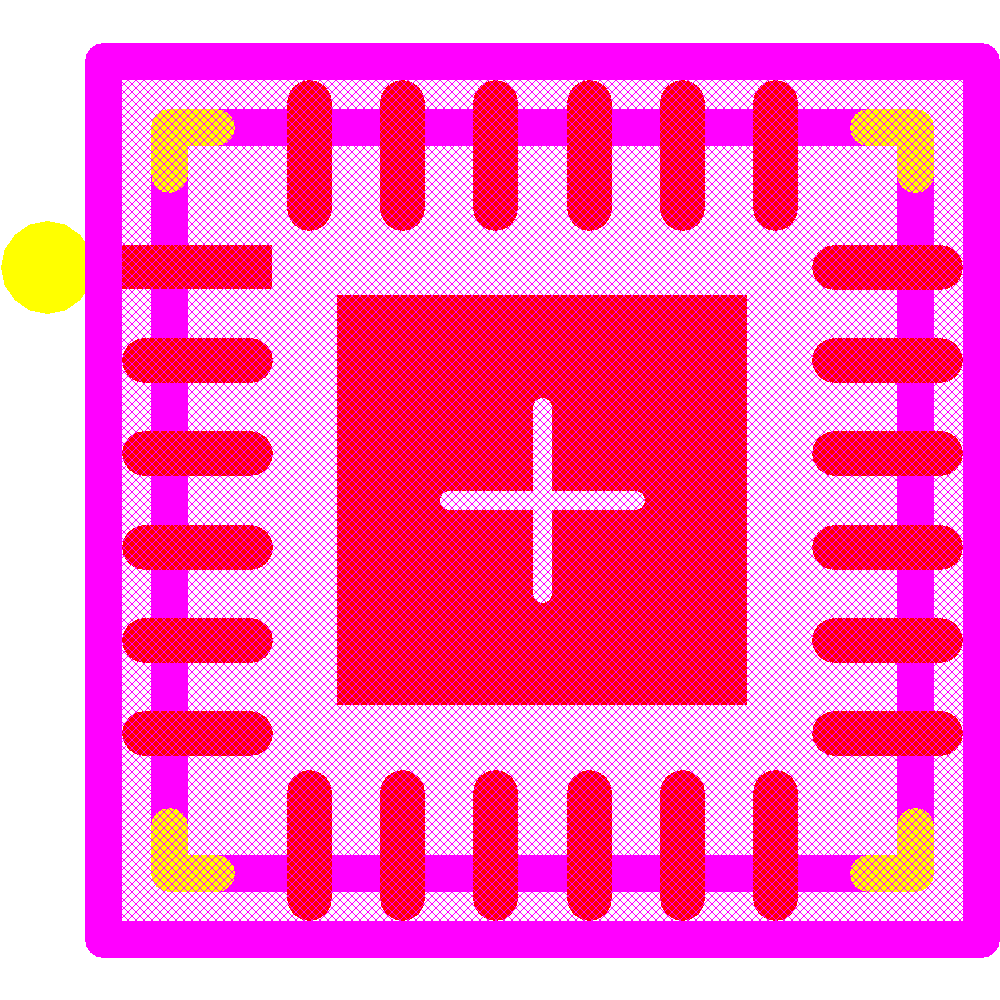

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Production | ||
| NXP Semiconductors | EOL | ||
| NXP Semiconductors | Production | ||
| NXP Semiconductors | Production | ||
| NXP Semiconductors | EOL |
