Texas Instruments - TLC5928PW

TLC5928PW - Texas Instruments

16 channel constant current LED driver with LED open Detection 24-TSSOP -40 to 85

 Datasheets

Technical Details

Case/Package TSSOP
Frequency 35MHz
Height 1.2mm
High Level Output Current -1mA
Lead Free Lead Free
Length 7.8mm
Lifecycle Status Production
Low Level Output Current 1mA
Manufacturer Lifecycle Status ACTIVE
Max Input Voltage 5.5V
Max Operating Temperature 85°C
Max Power Dissipation 1.194W
Max Supply Current 2mA
Max Supply Voltage 5.5V
Min Input Voltage 3V
Min Operating Temperature -40°C
Min Supply Voltage 3V
Nominal Supply Current 40µA
Number of Channels 16
Number of Outputs 16
Number of Pins 24
Number of Segments 16
Output Voltage 17V
Power Dissipation 621mW
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Switching Frequency 35MHz
Thickness 1mm
Topology Boost
Weight 89.499445mg
Width 4.4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Texas Instruments TLC5928PW | Texas Instruments

Texas Instruments

Datasheets

 DigiKey
 Mouser
 Texas Instruments

Lifecycle Status Indicator

   Production

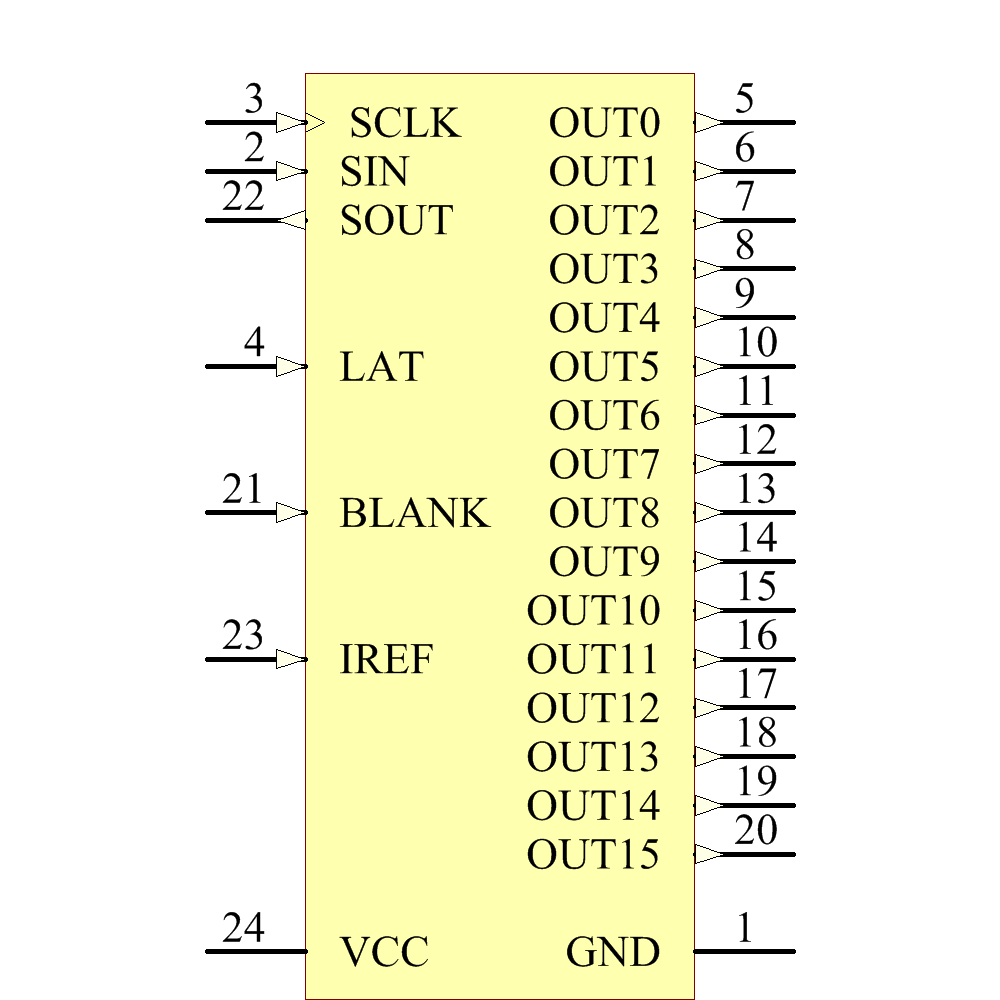

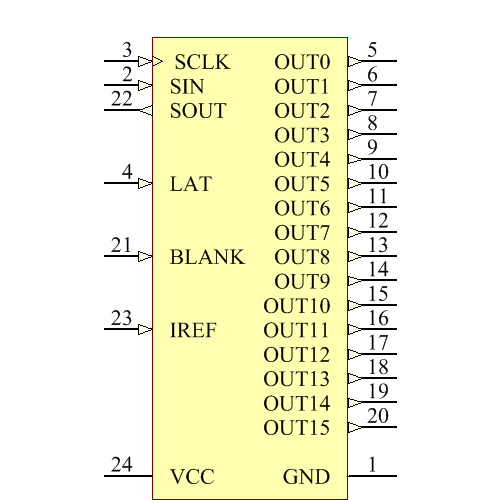

Symbol

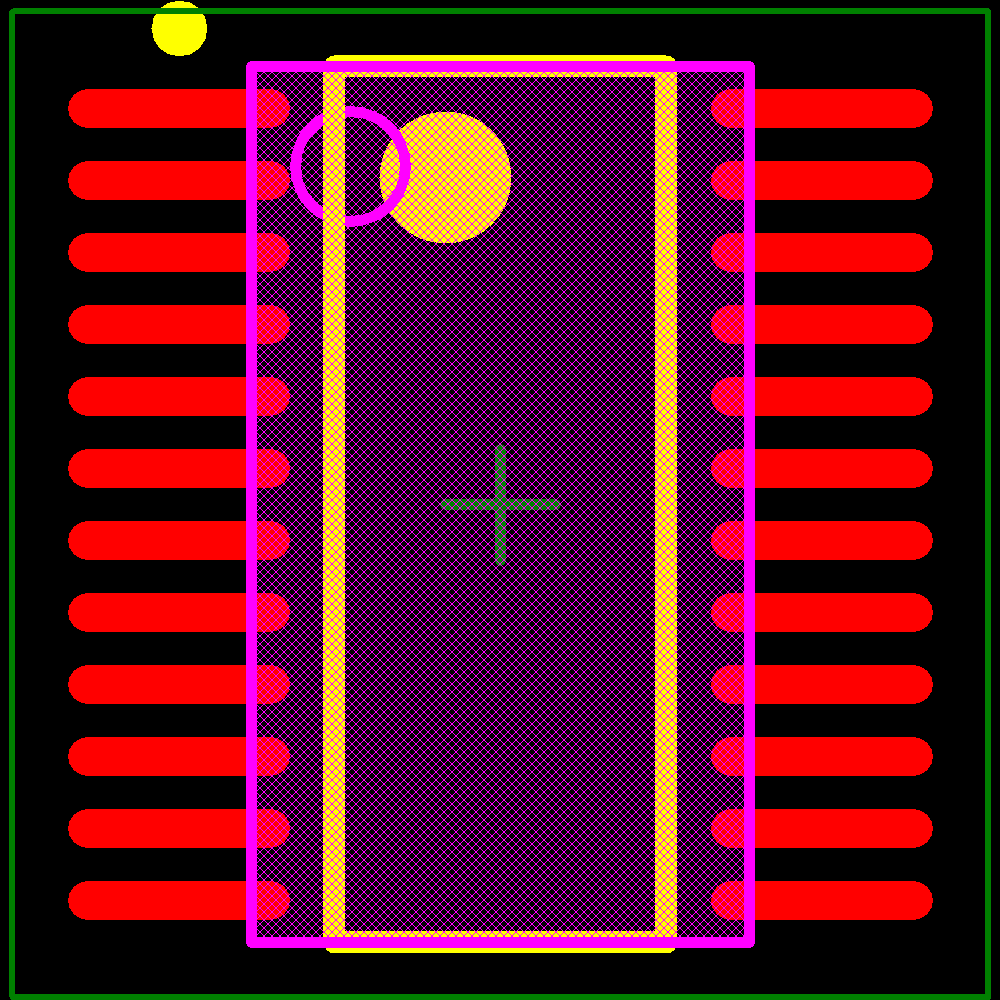

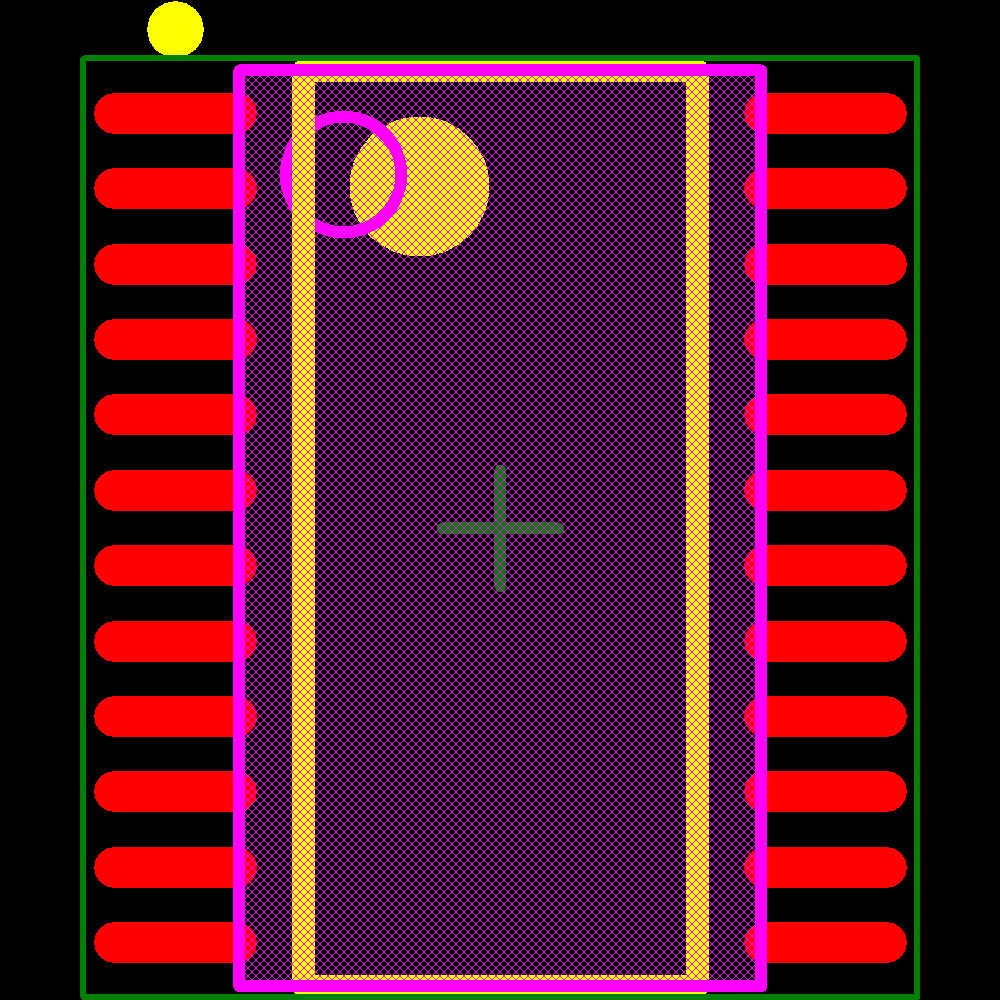

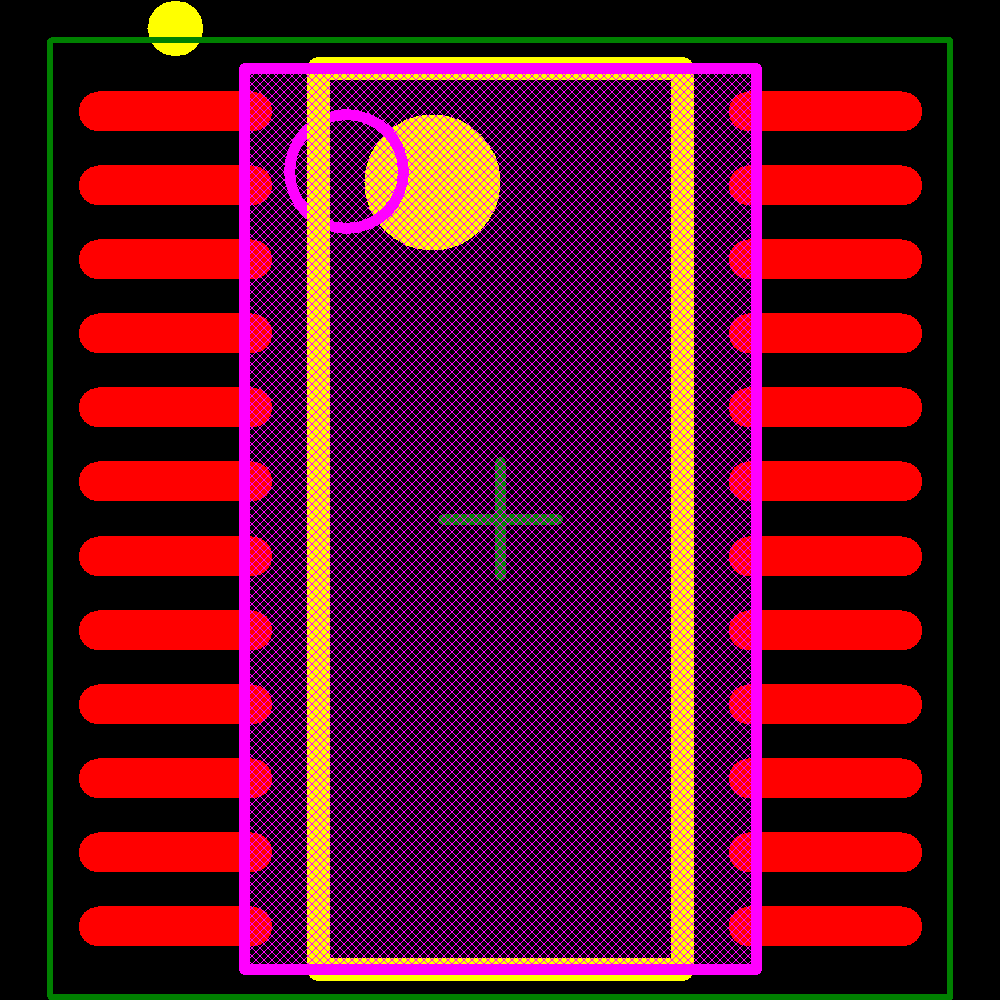

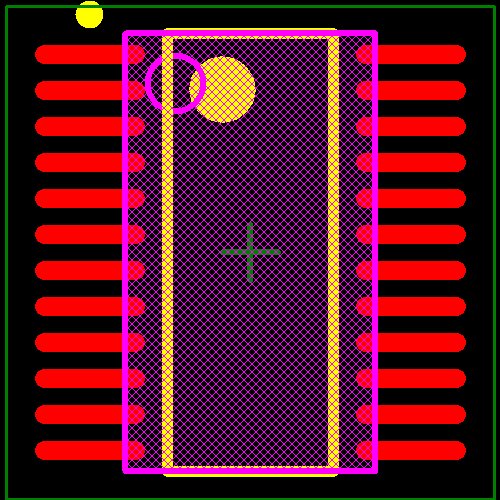

Footprint
