TLC5940PWPG4 - Texas Instruments
16-channel LED driver w/EEprom dot correction & grayscale PWM control 28-HTSSOP -40 to 85
Technical Details
| Case/Package | HTSSOP EP |
| Frequency | 30MHz |
| Height | 1.2mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 6mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 60mA |
| Number of Channels | 16 |
| Number of Outputs | 16 |
| Number of Pins | 28 |
| Number of Segments | 16 |
| Output Current | 120mA |
| Output Voltage | 17V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1mm |
| Topology | Boost |
| Weight | 118.501007mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

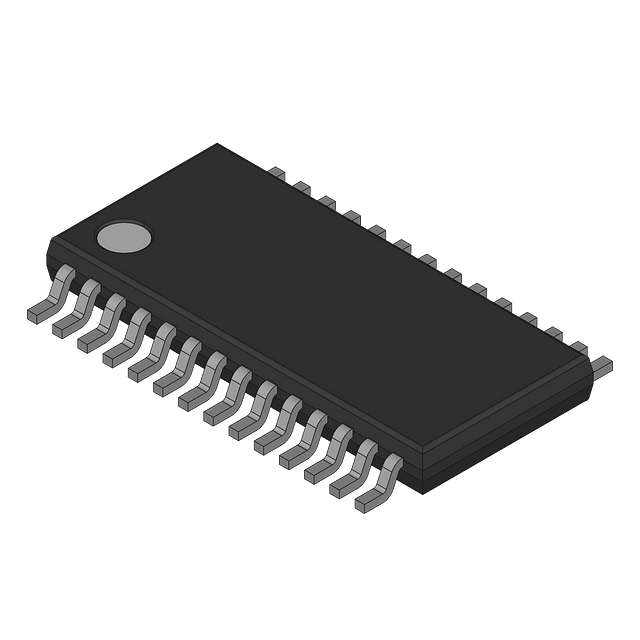

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 113
|
$ | 2.10 | 2.00 | 1.79 | 1.68 | ||||
| Mouser |
US: 150
|
$ | 5.31 | 3.77 | 3.20 | 2.72 | 2.02 | 1.98 | ||
