TLC5940QPWPREP - Texas Instruments
Tape & Reel (TR) TLC5940 Shift Register Surface Mount led driver 9.7mm 120mA 5.5V 30MHz
Technical Details
| Case/Package | HTSSOP EP |
| Frequency | 30MHz |
| Height | 1.2mm |
| High Level Output Current | 1mA |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Lifecycle Status | Production |
| Low Level Output Current | -1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 130mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of Outputs | 16 |
| Number of Pins | 28 |
| Output Current | 72mA |
| Output Voltage | 17V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

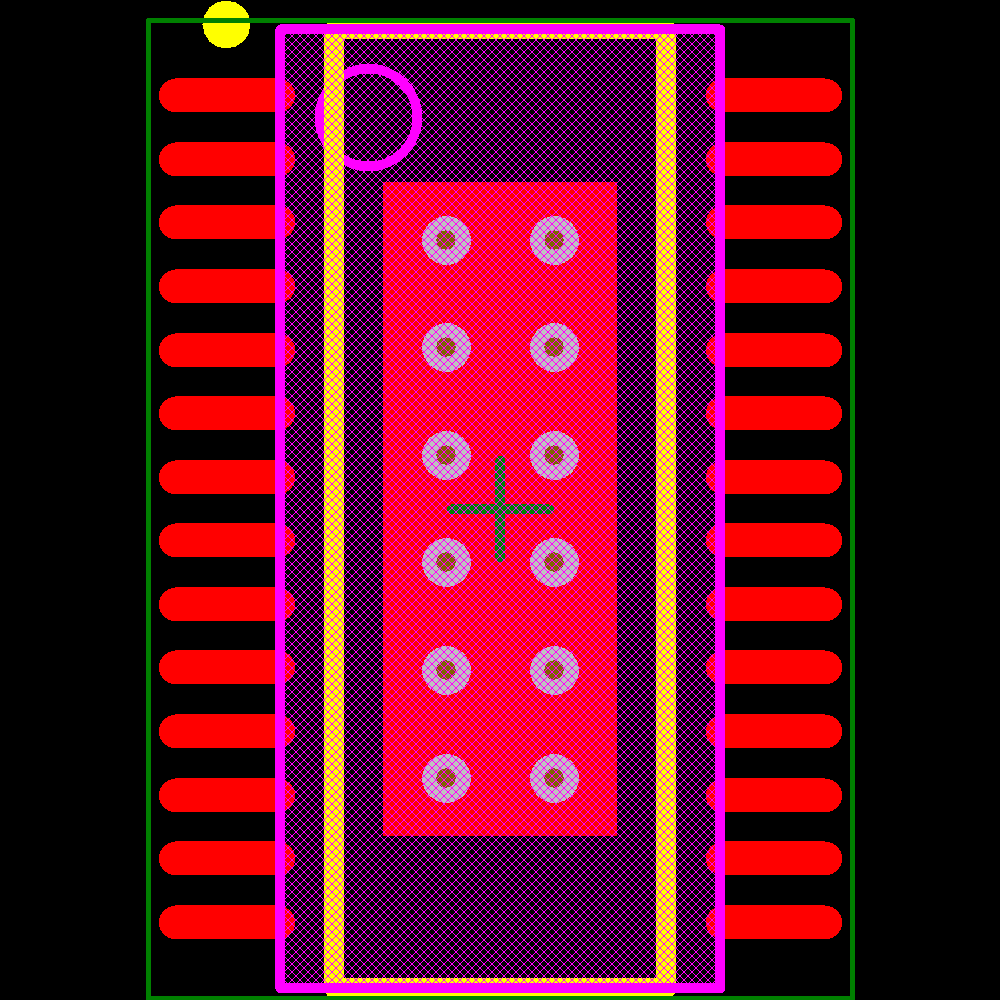

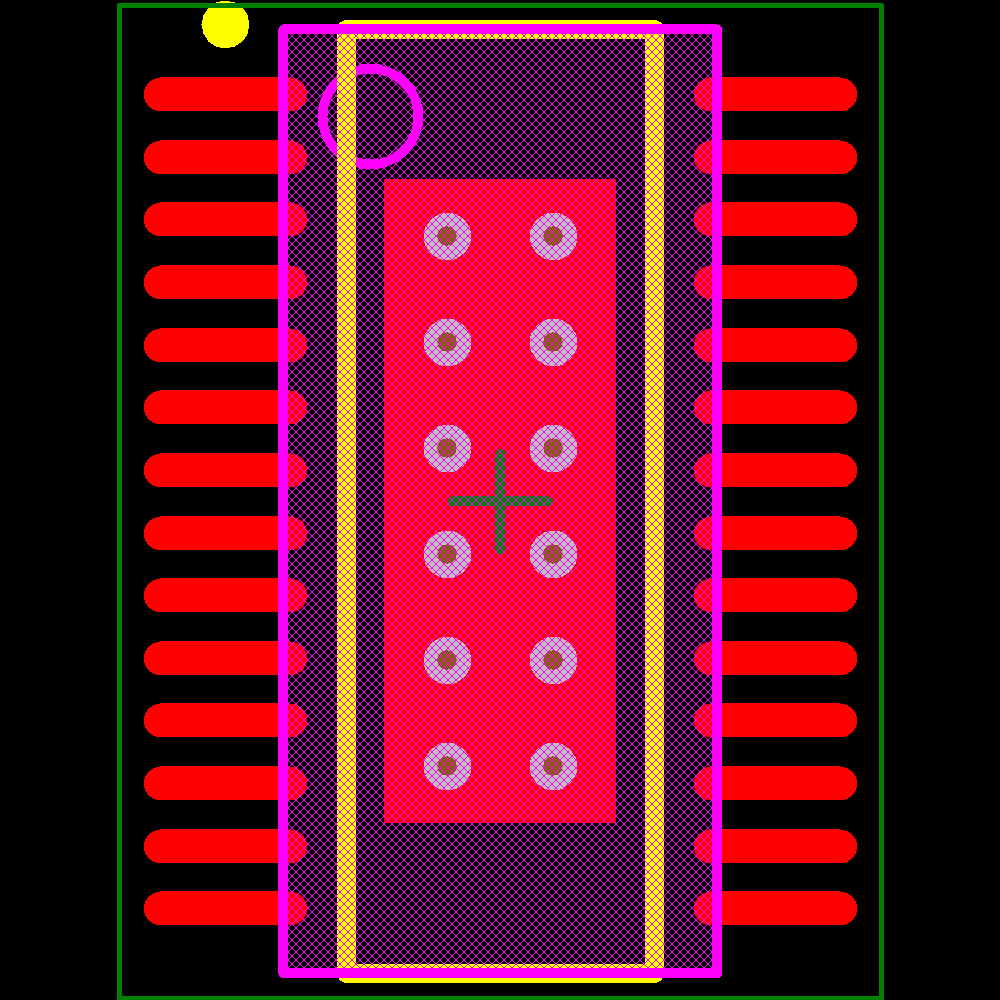

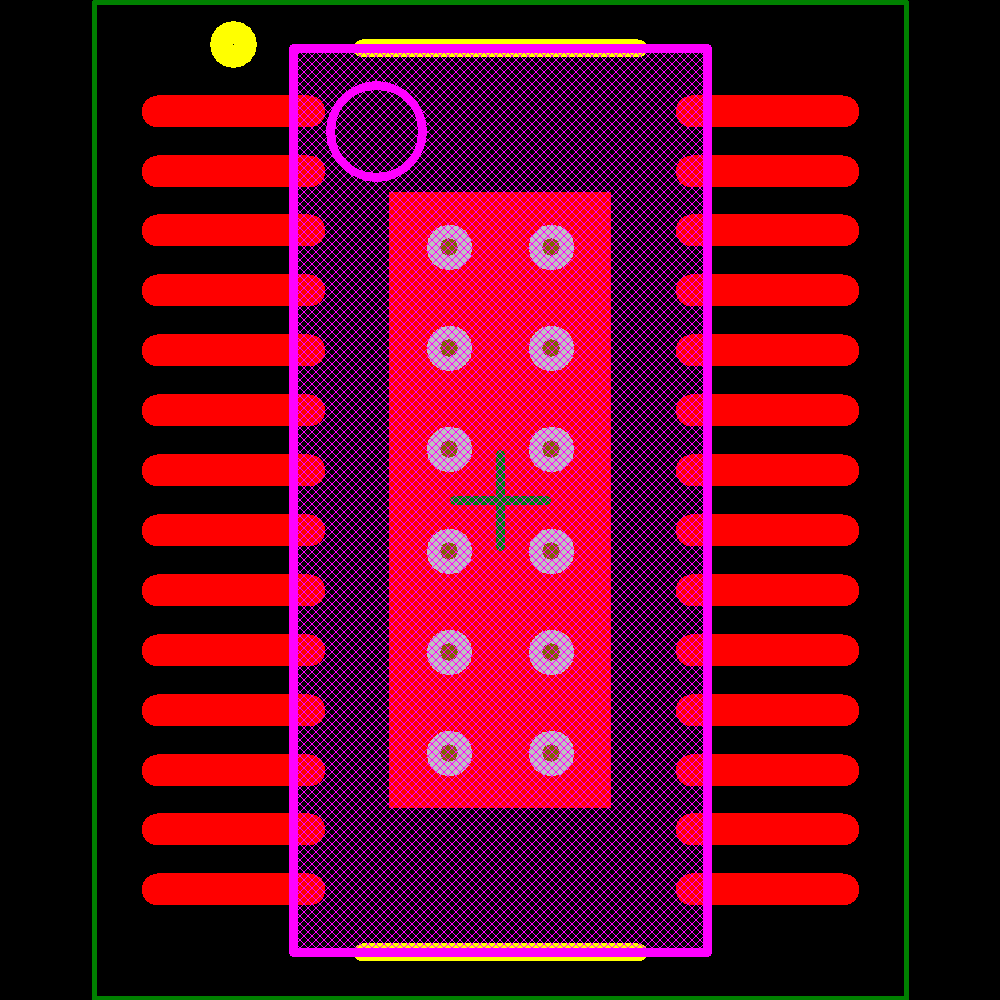

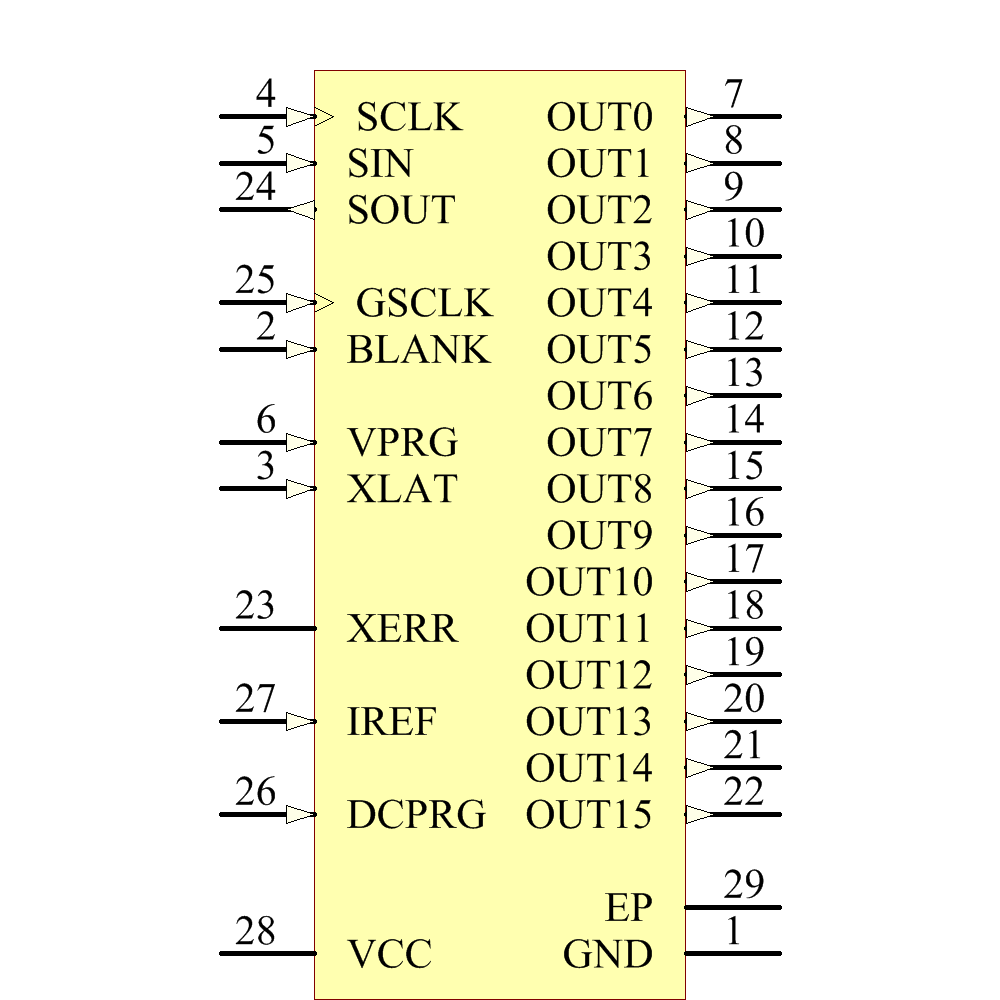

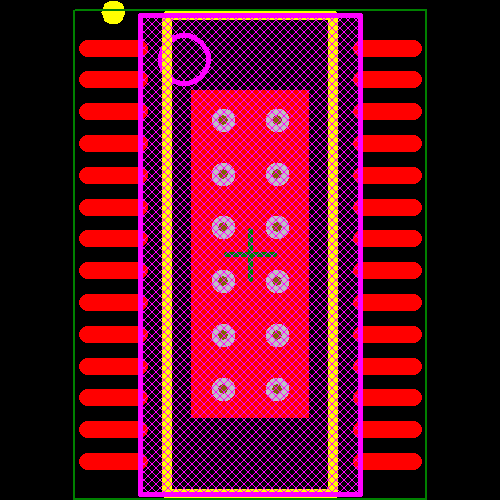

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
