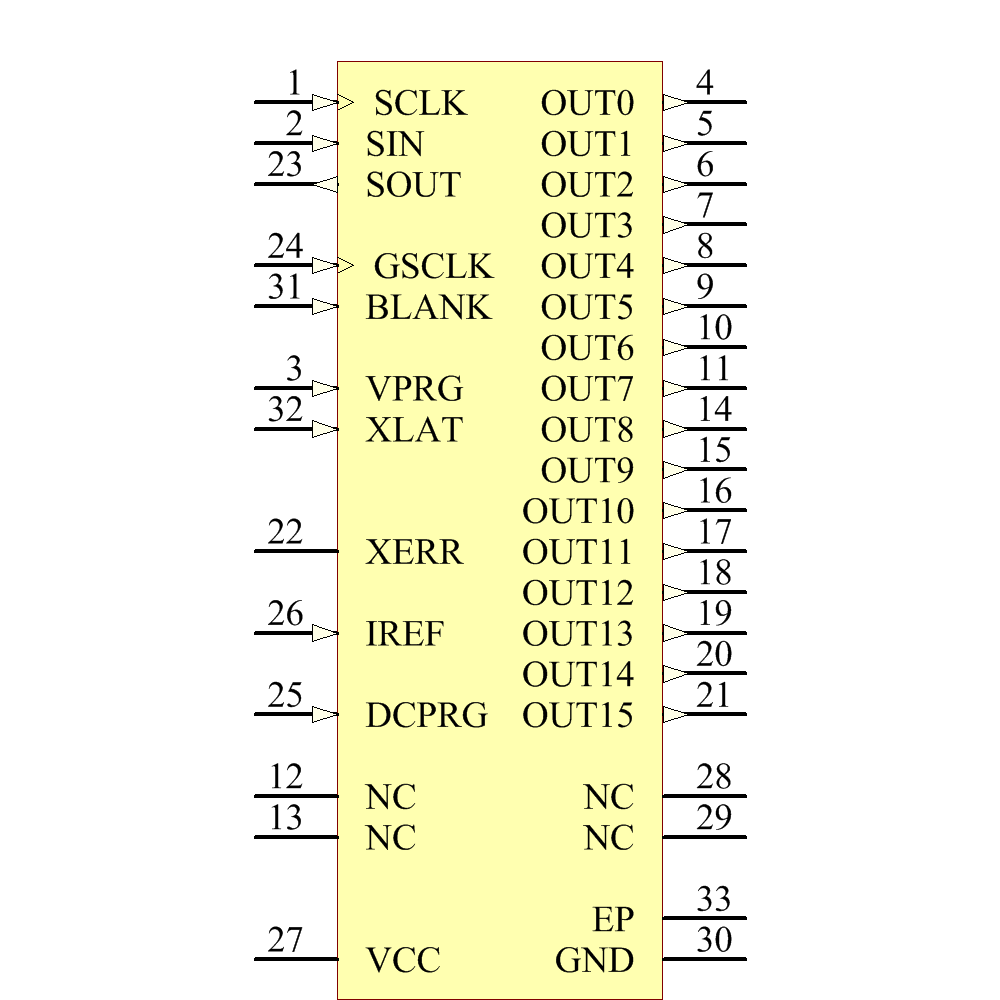

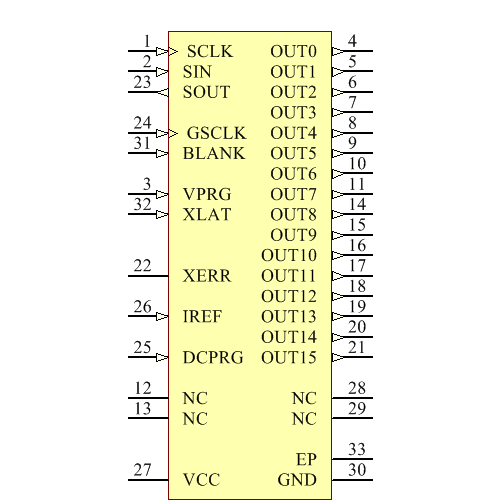

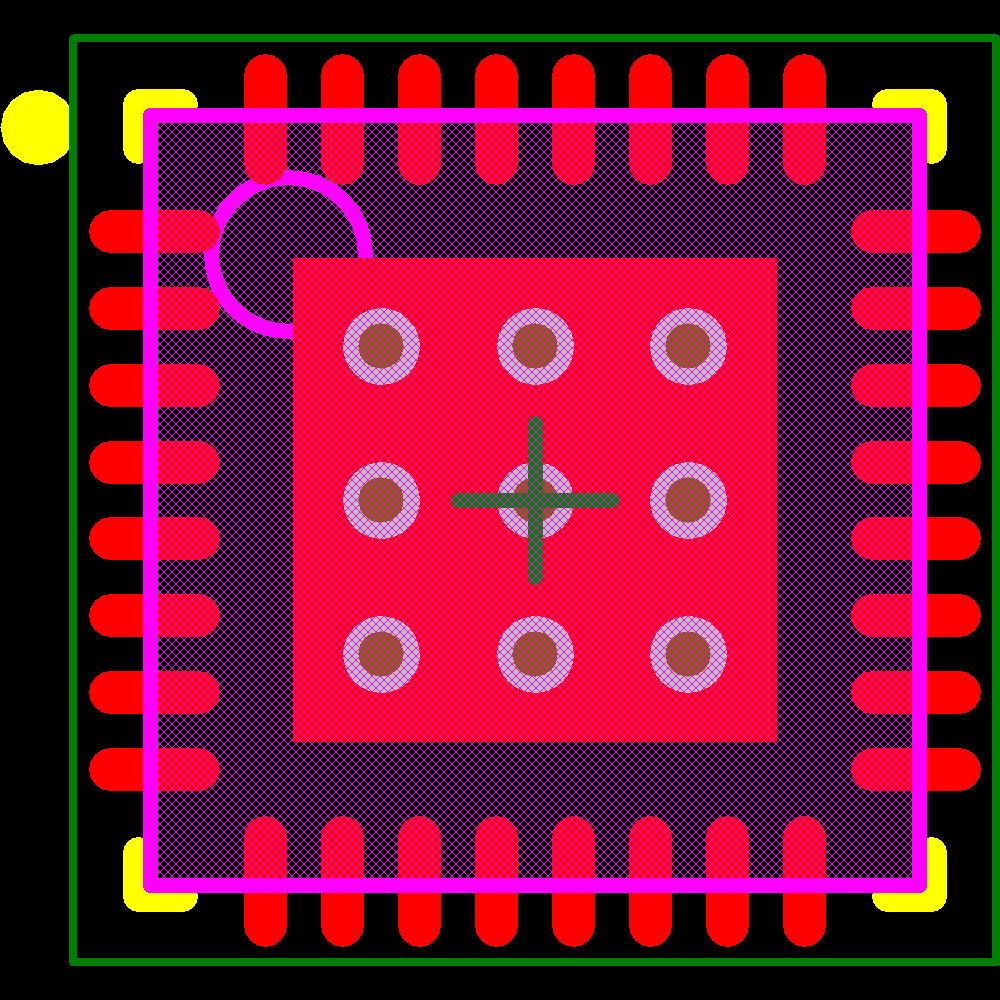

TLC5940RHBRG4 - Texas Instruments
16-channel LED driver w/EEprom dot correction & grayscale PWM control 32-VQFN -40 to 85
Technical Details
| Case/Package | VQFN |
| Frequency | 30MHz |
| Height | 1mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 1mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 60mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 60mA |
| Number of Outputs | 16 |
| Number of Pins | 32 |
| Number of Segments | 16 |
| Output Current | 120mA |
| Output Voltage | 17V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 900µm |
| Weight | 72.206235mg |
| Width | 5mm |
