Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TLC5941PWPR - Texas Instruments

16 channel LED driver with dot correction and grayscale PWM control 28-HTSSOP

Technical Details

Case/Package	HTSSOP EP
Contact Plating	Gold
Frequency	30MHz
Height	1.2mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	9.7mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Supply Current	60mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	60mA
Number of Outputs	16
Number of Pins	28
Number of Segments	16
Output Current	80mA
Output Current per Channel	80mA
Output Voltage	17V
Packaging	Tape & Reel (TR)
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000
Thickness	1mm
Weight	118.501007mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TLC5941PWPR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

Symbol

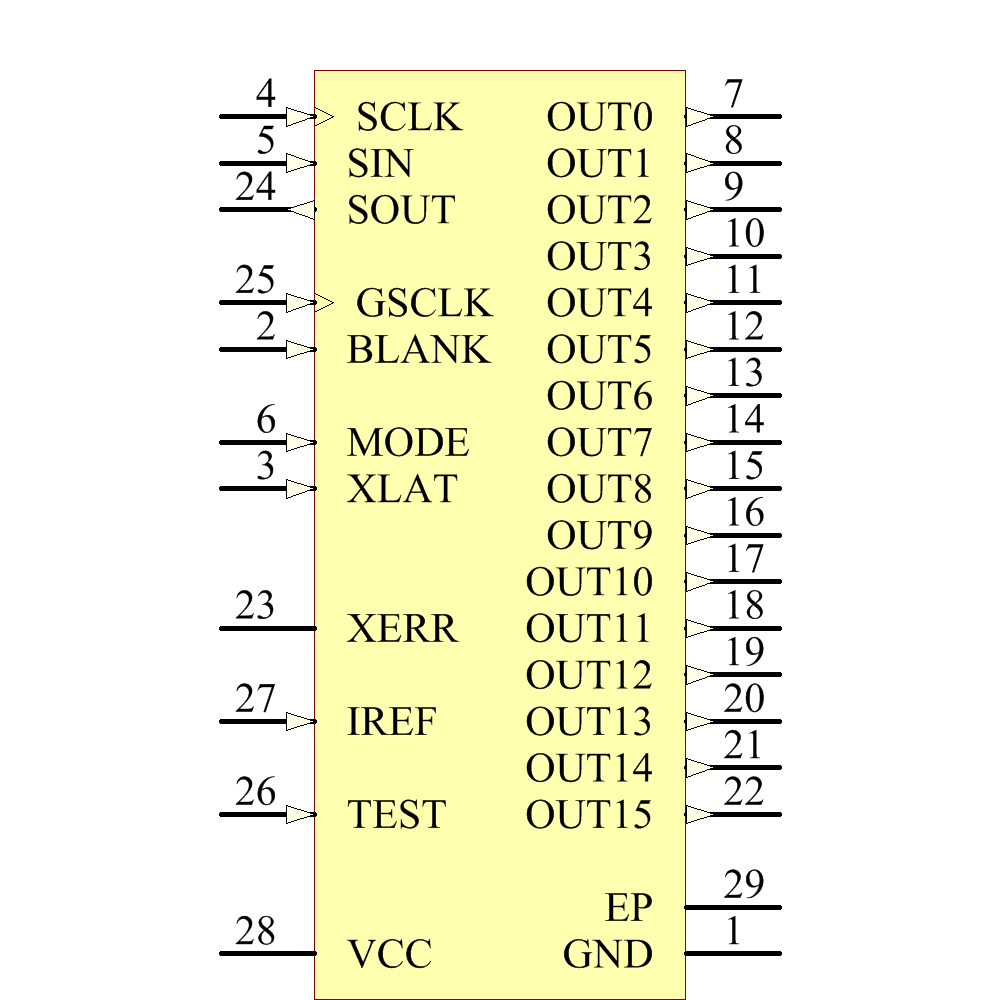

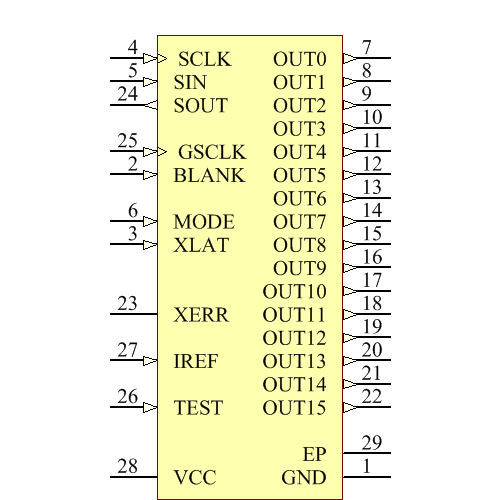

TLC5941PWPR Symbol - Texas Instruments

TLC5941PWPR Symbol - Texas Instruments

TLC5941PWPR Symbol - Texas Instruments

TLC5941PWPR Symbol - Texas Instruments

‹ ›

Footprint

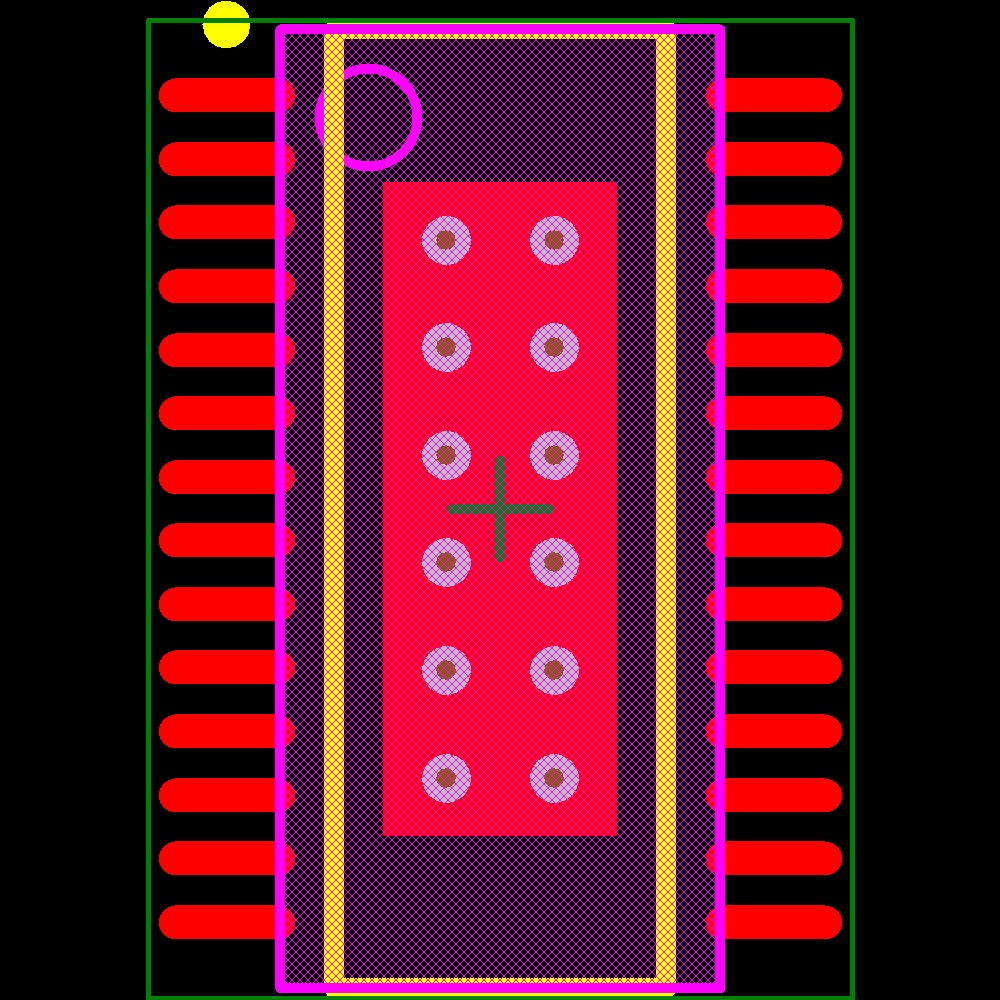

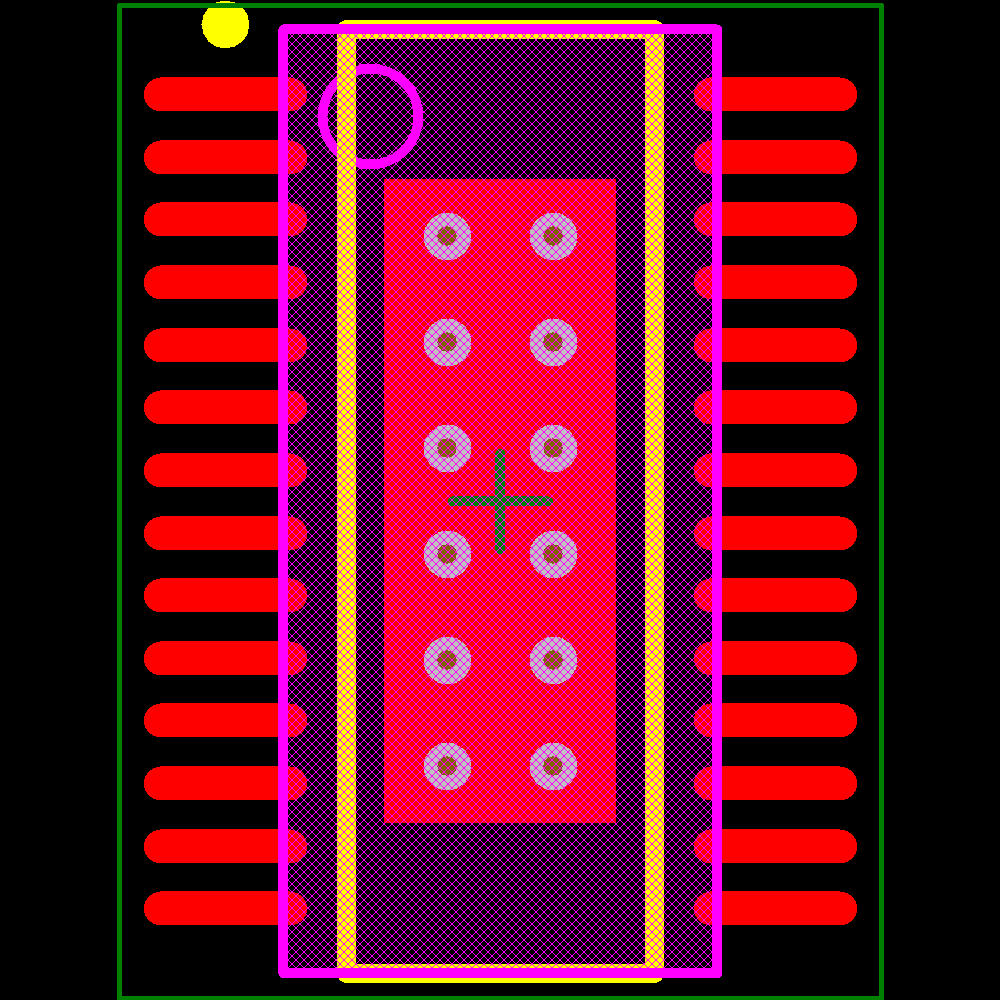

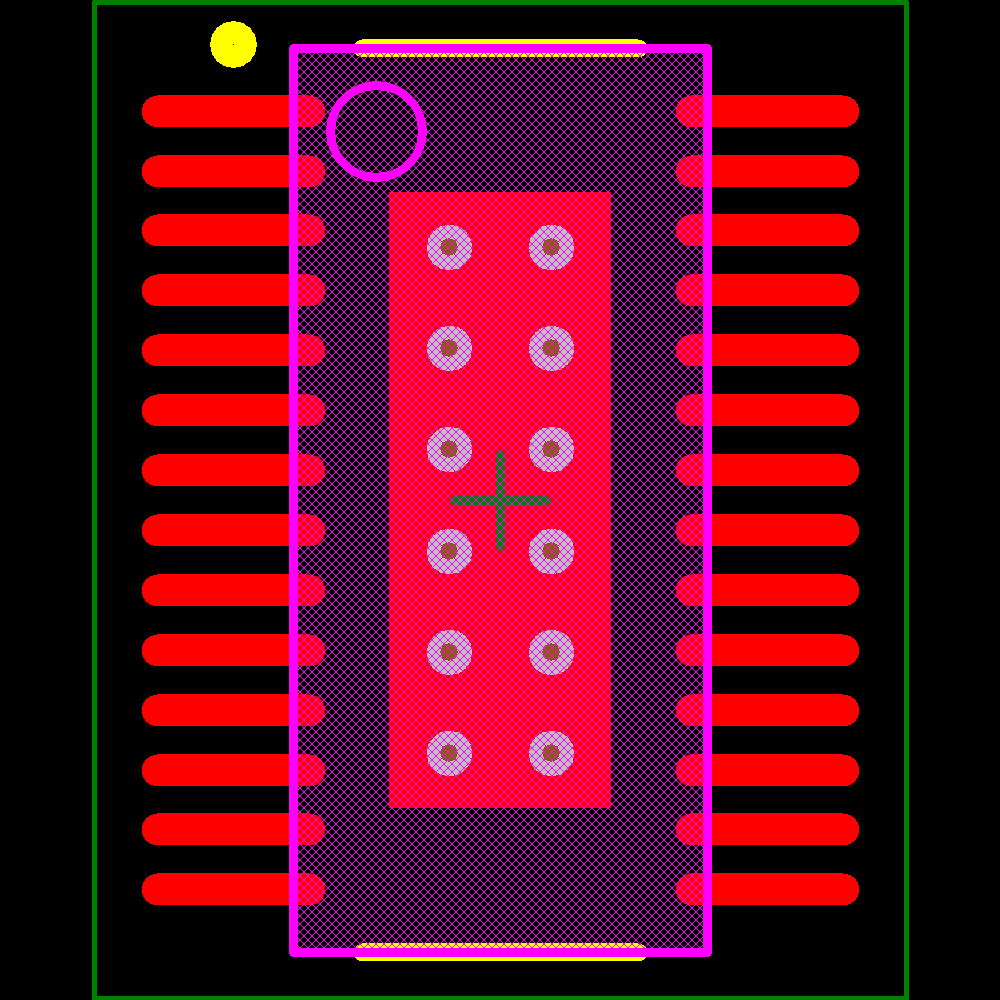

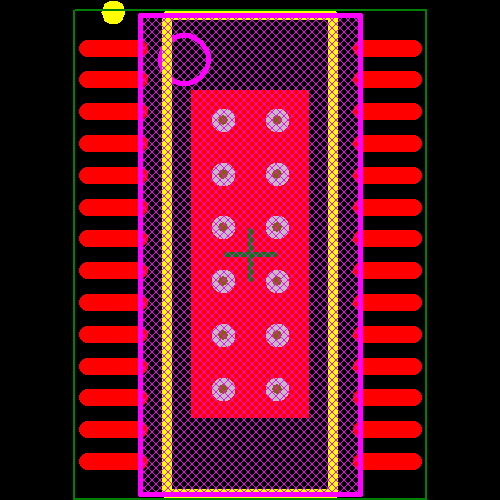

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

TLC5941PWPR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TLC5941PWPRG4	Production
Texas Instruments	TLC5941PWP	Production
Texas Instruments	LM3431AQMHX/NOPB	Production
Texas Instruments	LM3431QMH/NOPB	Production
Texas Instruments	LM3431AQMH/NOPB	Production
Texas Instruments	LM3431QMHX/NOPB	Production
Texas Instruments	LM3431MHX/NOPB	Production
Texas Instruments	LM3431AMH/NOPB	Production
Texas Instruments	LM3431AMHX/NOPB	Production
Analog Devices	LT3796EFE#TRPBF	Production

See more alternatives See less alternatives
