TLC5941RHBR - Texas Instruments

16 channel LED driver with dot correction and grayscale PWM control 32-VQFN

Technical Details

Case/Package	VQFN
Contact Plating	Gold
Frequency	30MHz
Height	1mm
High Level Output Current	-1mA
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Low Level Output Current	1mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Supply Current	60mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	60mA
Number of Outputs	16
Number of Pins	32
Number of Segments	16
Output Current	80mA
Output Current per Channel	80mA
Output Voltage	17V
Packaging	Tape & Reel (TR)
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	900µm
Weight	72.206235mg
Width	5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

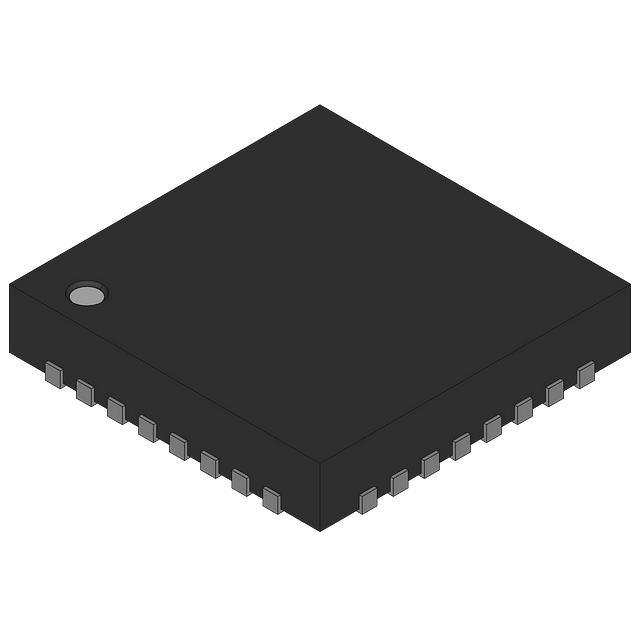

Texas Instruments TLC5941RHBR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

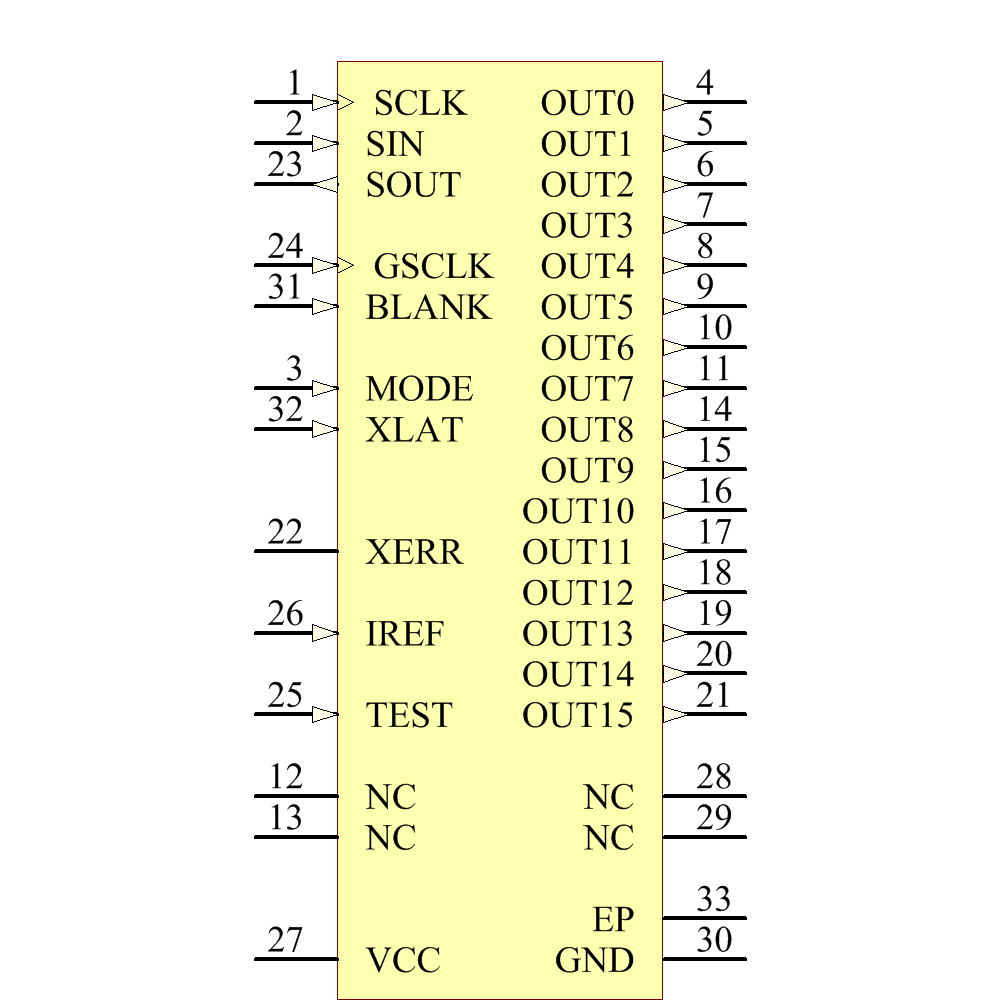

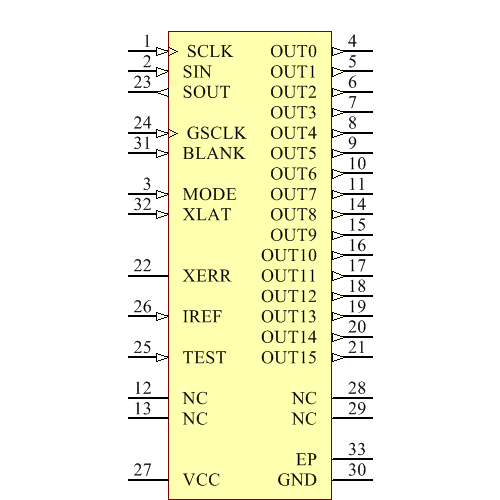

Symbol

TLC5941RHBR Symbol - Texas Instruments

TLC5941RHBR Symbol - Texas Instruments

TLC5941RHBR Symbol - Texas Instruments

TLC5941RHBR Symbol - Texas Instruments

‹ ›

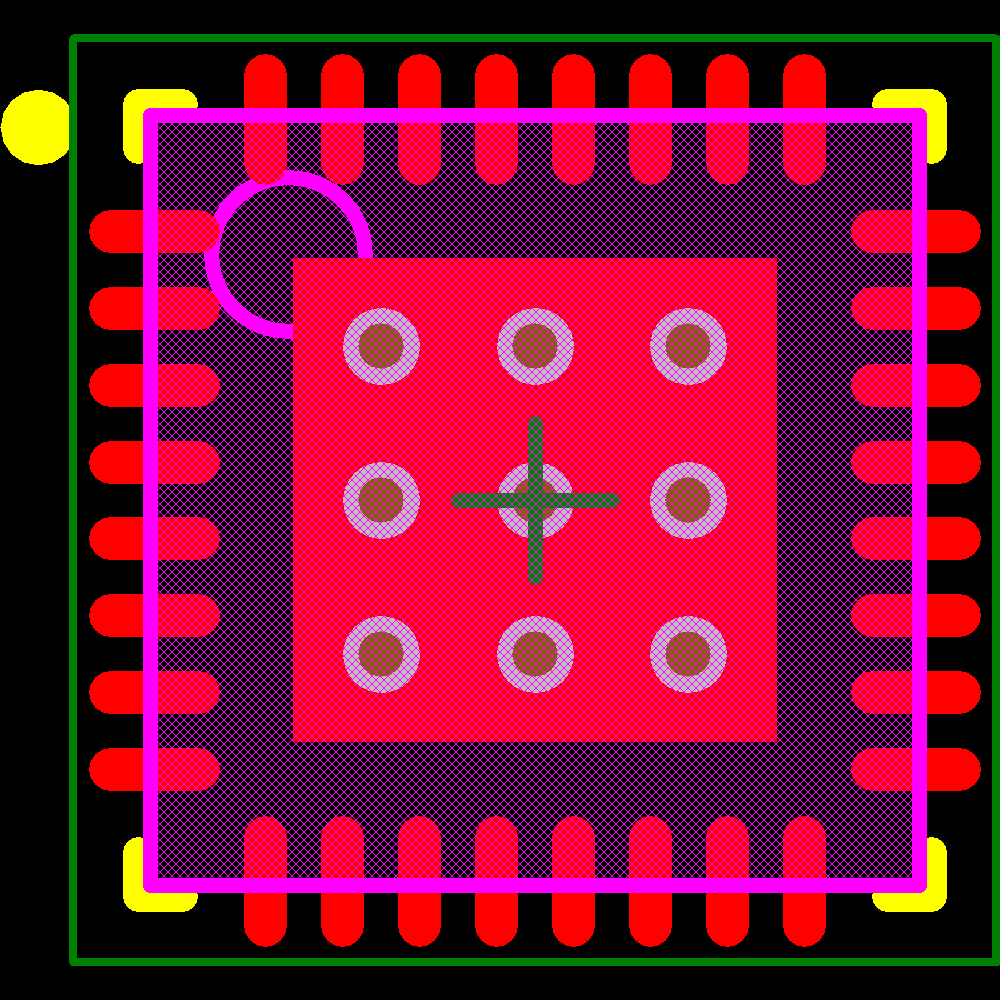

Footprint
