Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TLC5947DAPR - Texas Instruments

24-channel, 12-bit PWM LED driver with internal Oscillator 32-HTSSOP -40 to 85

Technical Details

Case/Package	HTSSOP EP
Contact Plating	Gold
Frequency	4MHz
Height	1.2mm
High Level Output Current	-3mA
Lead Free	Lead Free
Length	11mm
Lifecycle Status	Production
Low Level Output Current	3mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Power Dissipation	5.318W
Max Supply Current	90mA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	90mA
Number of Channels	24
Number of Outputs	24
Number of Pins	32
Number of Segments	24
Output Current	30mA
Output Current per Channel	30mA
Output Voltage	30V
Packaging	Tape & Reel (TR)
Power Dissipation	5.318W
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	1.15mm
Weight	181.096754mg
Width	6.2mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

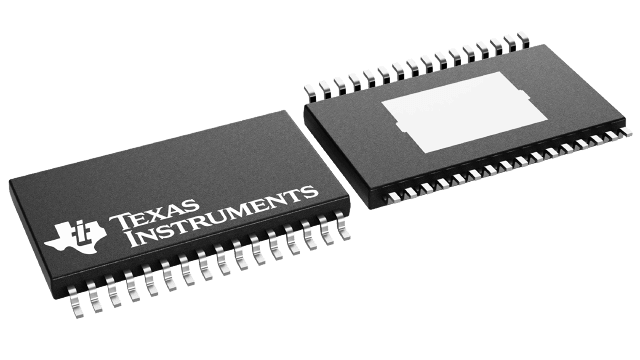

Images

Texas Instruments TLC5947DAPR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

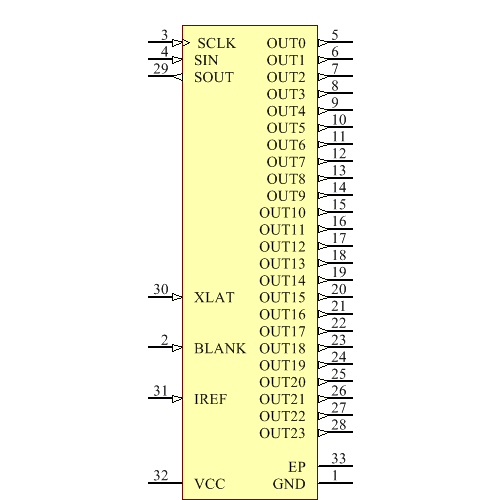

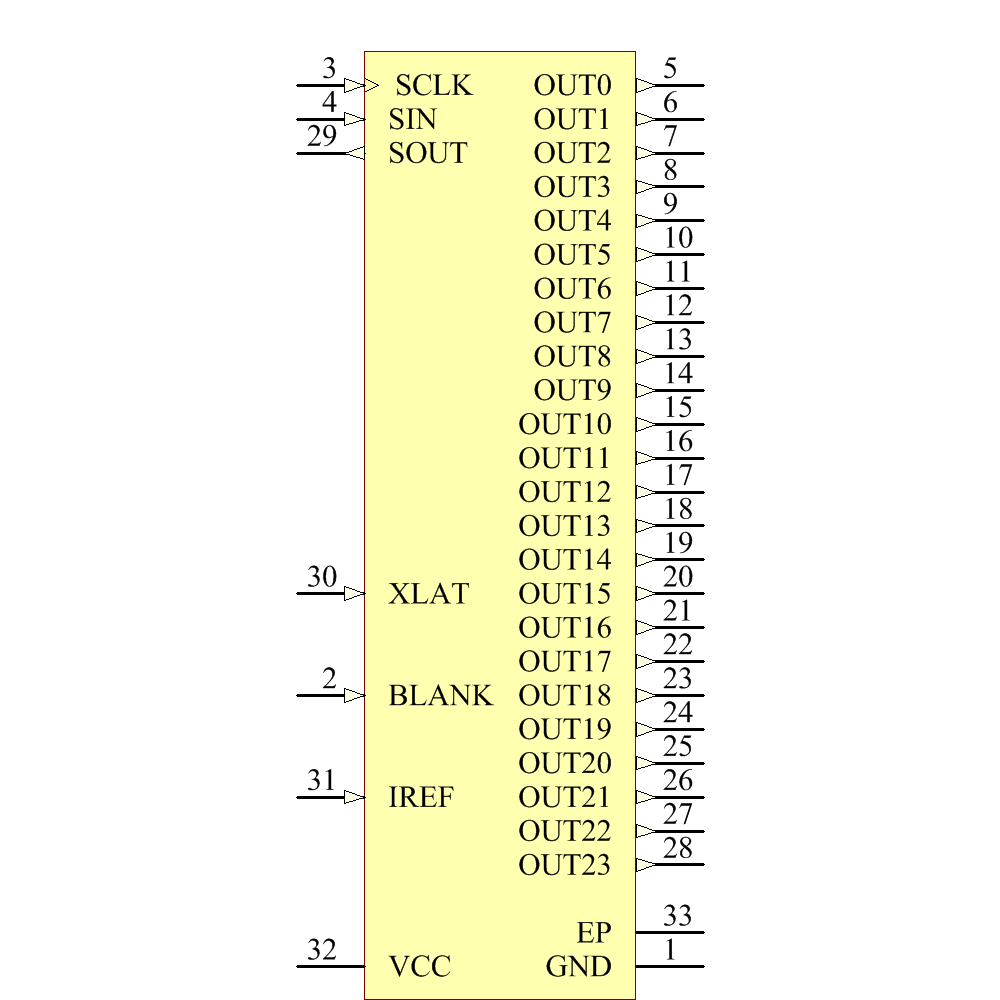

Symbol

TLC5947DAPR Symbol - Texas Instruments

TLC5947DAPR Symbol - Texas Instruments

TLC5947DAPR Symbol - Texas Instruments

TLC5947DAPR Symbol - Texas Instruments

‹ ›

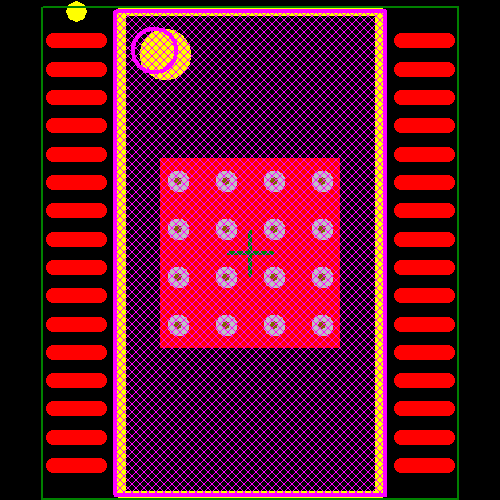

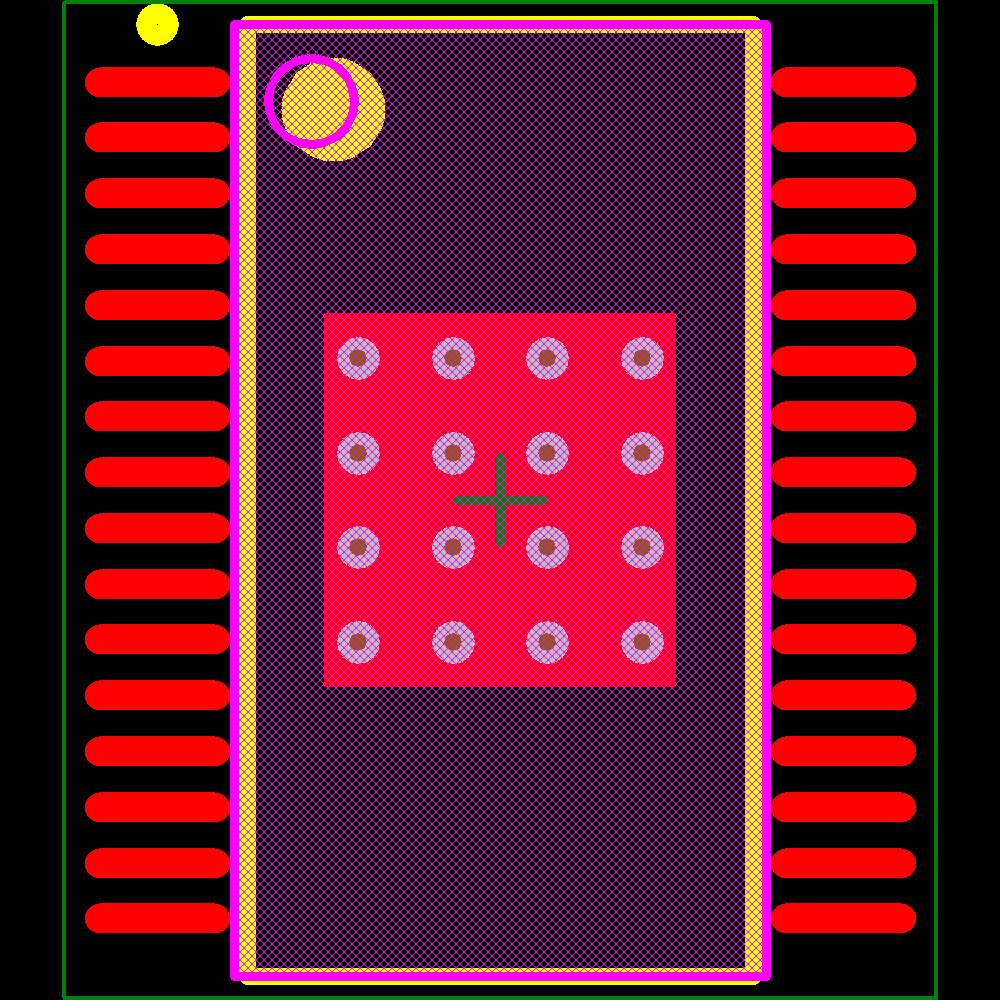

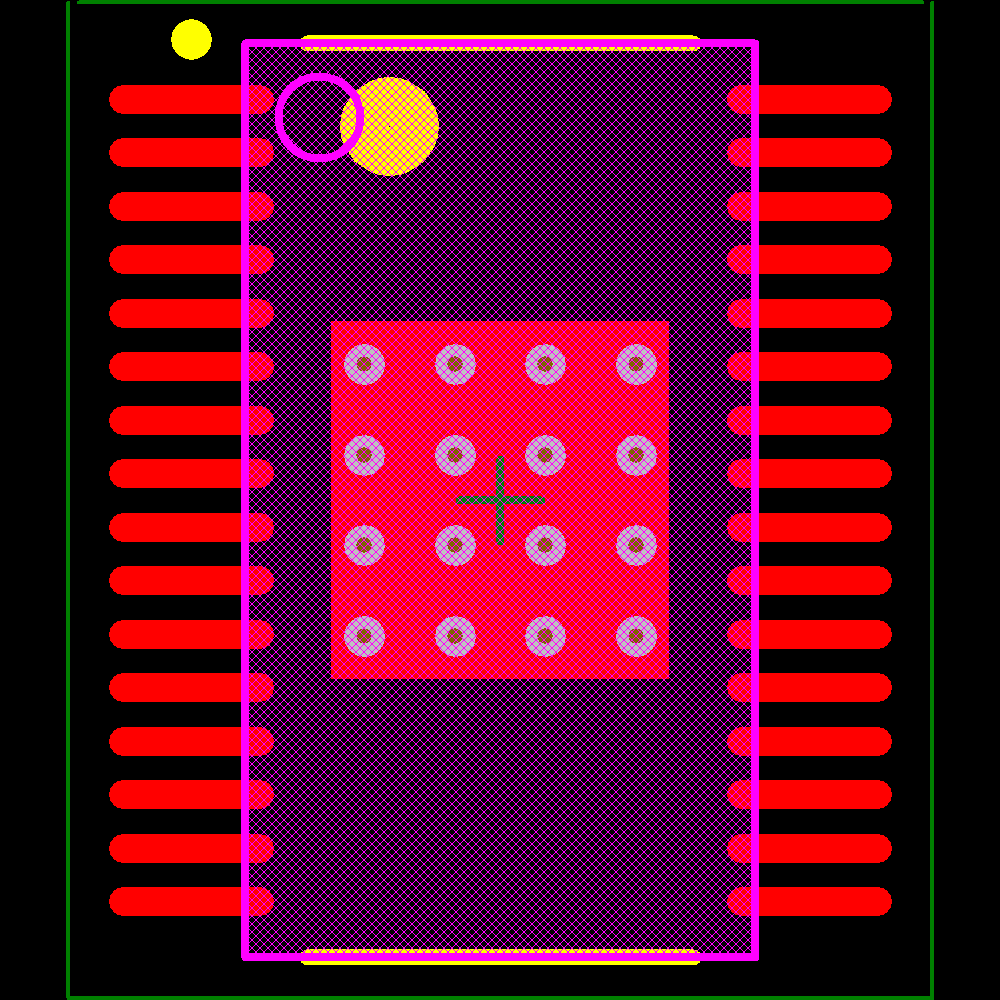

Footprint

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

TLC5947DAPR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TLC5947DAPRG4	Production
Texas Instruments	TLC5947DAP	Production
Texas Instruments	TLC5947DAPG4	Production
Texas Instruments	TLC5947RHBRG4	Unknown
Texas Instruments	TLC5947RHBTG4	Production
STMicroelectronics	LED2472GBTR	EOL
Texas Instruments	TLC5947RHBR	Production
Texas Instruments	TLC5947RHBT	Production
Texas Instruments	TLC5924DAPRG4	Unknown
Texas Instruments	TLC5921DAPRG4	Unknown

See more alternatives See less alternatives
