Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TLC5947RHBR - Texas Instruments

24-channel, 12-bit PWM LED driver with internal Oscillator 32-VQFN -40 to 85

Technical Details

Case/Package	VQFN
Frequency	4MHz
Height	1mm
High Level Output Current	-3mA
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Low Level Output Current	3mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Power Dissipation	3.482W
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	90mA
Number of Outputs	24
Number of Pins	32
Number of Segments	24
Output Current	30mA
Output Voltage	30V
Packaging	Tape & Reel (TR)
Power Dissipation	3.482W
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	900µm
Weight	71.809342mg
Width	5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

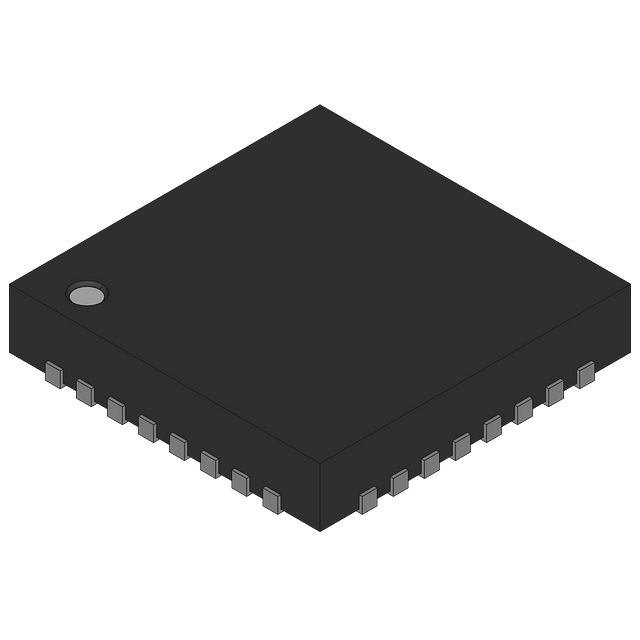

Texas Instruments TLC5947RHBR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

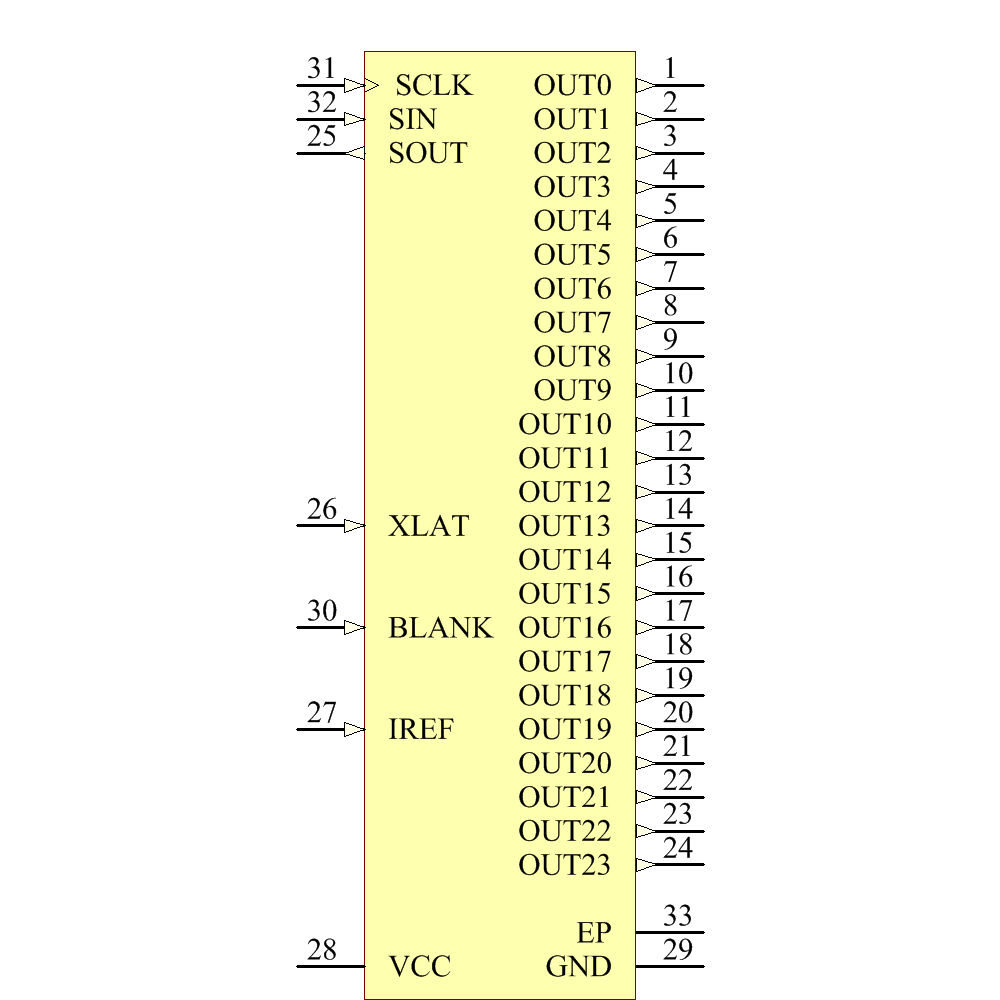

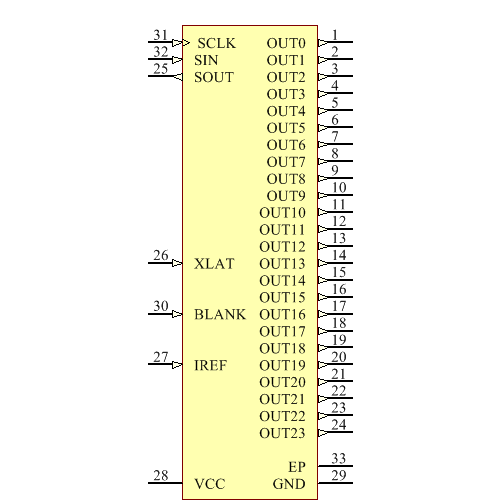

TLC5947RHBR Symbol - Texas Instruments

TLC5947RHBR Symbol - Texas Instruments

TLC5947RHBR Symbol - Texas Instruments

TLC5947RHBR Symbol - Texas Instruments

‹ ›

Footprint

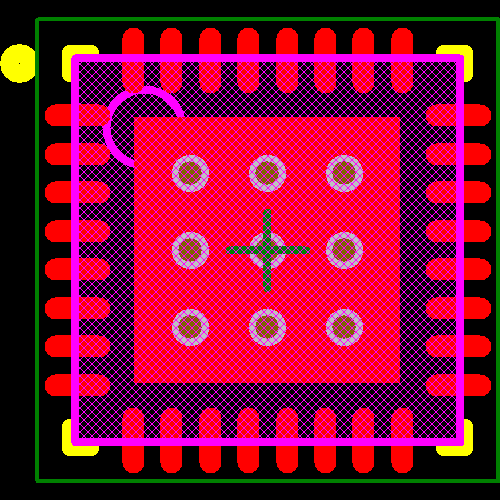

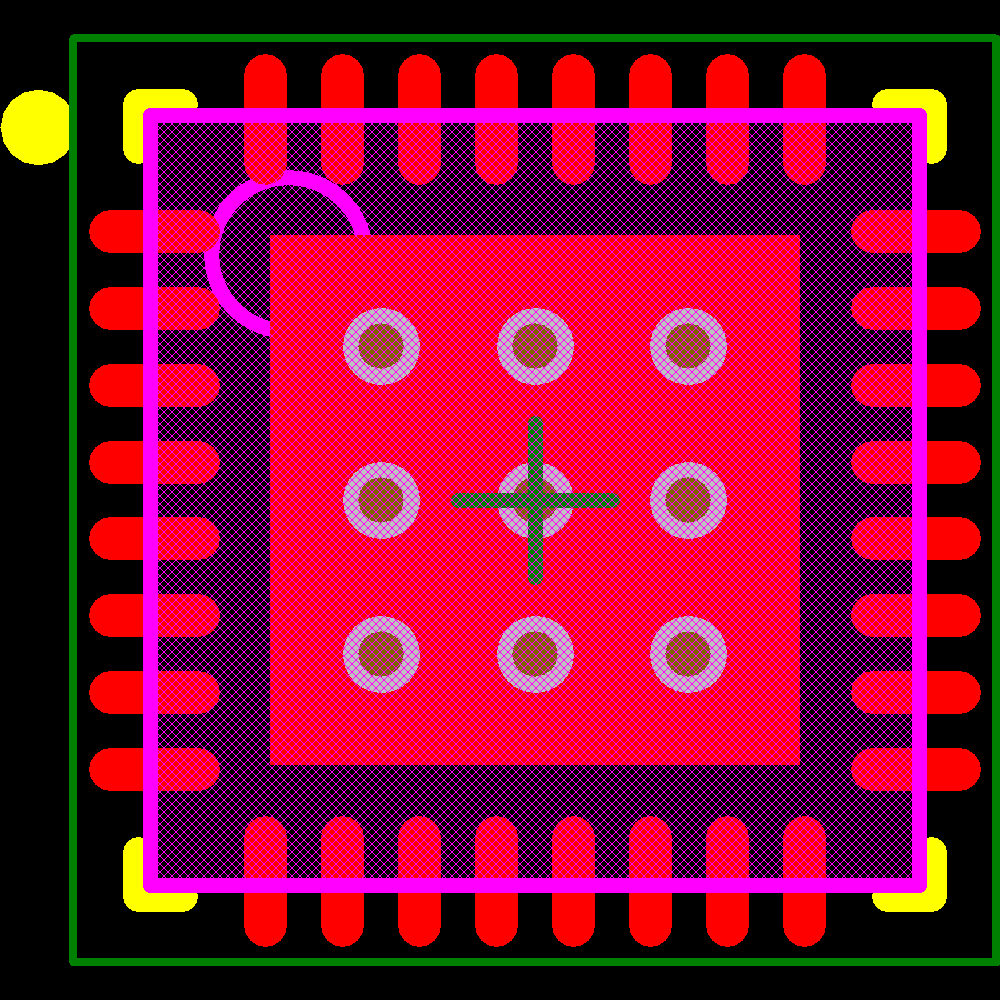

TLC5947RHBR Footprint - Texas Instruments

TLC5947RHBR Footprint - Texas Instruments

TLC5947RHBR Footprint - Texas Instruments

TLC5947RHBR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TLC5947RHBRG4	Unknown
Texas Instruments	TLC5947RHBTG4	Production
Texas Instruments	TLC5947RHBT	Production
STMicroelectronics	LED2472GBTR	EOL
Texas Instruments	TLC5947DAPRG4	Production
Texas Instruments	TLC5947DAP	Production
Texas Instruments	TLC5947DAPR	Production
Texas Instruments	TLC5947DAPG4	Production
Analog Devices	ADN2830ACP32-REEL	Obsolete
Analog Devices	ADN2830ACP32-REEL7	Obsolete

See more alternatives See less alternatives
