TLC5947RHBT - Texas Instruments
24-channel, 12-bit PWM LED driver with internal Oscillator 32-VQFN -40 to 85
Technical Details
| Case/Package | VQFN |
| Frequency | 4MHz |
| Height | 1mm |
| High Level Output Current | -3mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 3mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 3.482W |
| Max Supply Current | 90mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 90mA |
| Number of Channels | 24 |
| Number of Outputs | 24 |
| Number of Pins | 32 |
| Number of Segments | 24 |
| Output Current | 30mA |
| Output Voltage | 30V |
| Power Dissipation | 3.482W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 30MHz |
| Thickness | 900µm |
| Weight | 71.809342mg |
| Width | 5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

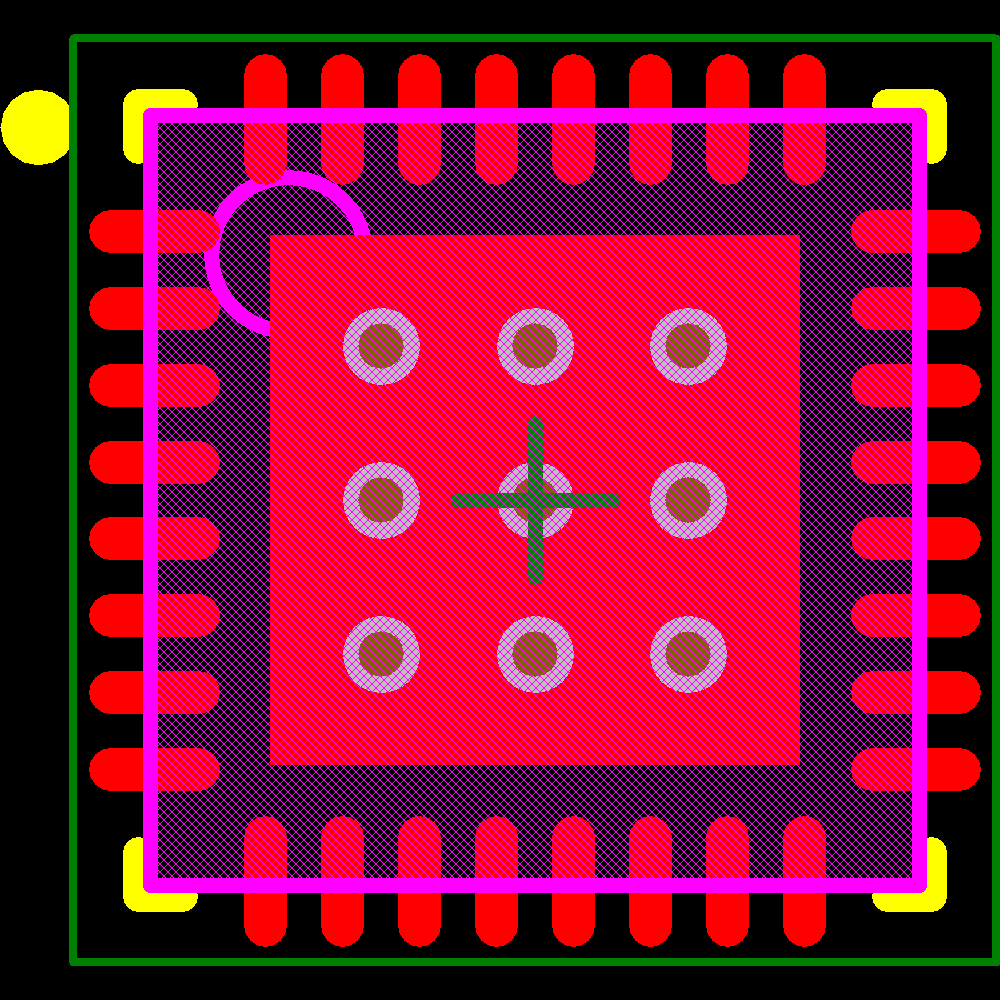

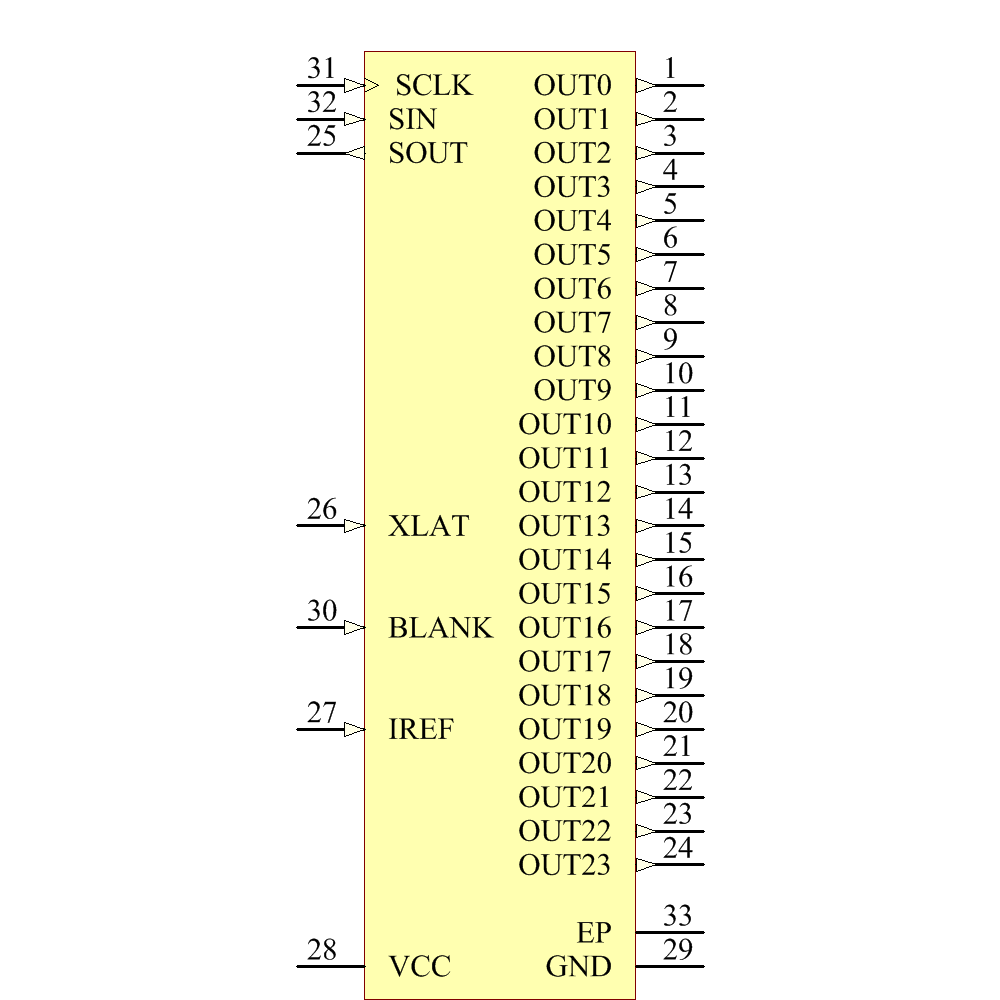

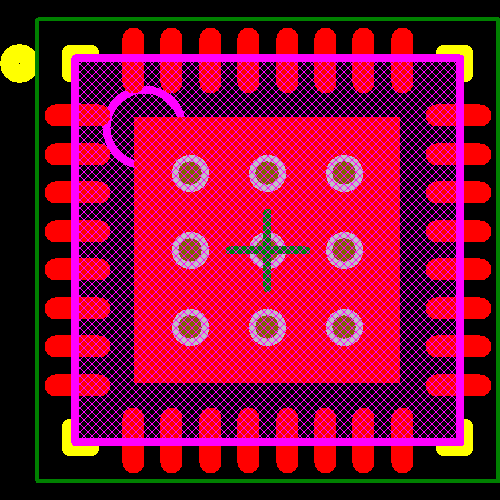

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete |
