Texas Instruments - TLC5952DAPR

TLC5952DAPR - Texas Instruments

LED Driver 8 Segment 50000uA Supply Current 32-Pin HTSSOP EP T/R

 Datasheets

Technical Details

Case/Package HTSSOP EP
Contact Plating Gold
Frequency 35MHz
Height 1.2mm
High Level Output Current -1mA
Lead Free Lead Free
Length 11mm
Lifecycle Status Production
Low Level Output Current 1mA
Manufacturer Lifecycle Status ACTIVE
Max Input Voltage 5.5V
Max Operating Temperature 85°C
Max Power Dissipation 5.318W
Max Supply Voltage 5.5V
Min Input Voltage 3V
Min Operating Temperature -40°C
Min Supply Voltage 3V
Nominal Supply Current 50mA
Number of Channels 24
Number of Outputs 24
Number of Pins 32
Number of Segments 8
Output Voltage 15V
Packaging Tape & Reel (TR)
Power Dissipation 5.318W
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000
Thickness 1.15mm
Weight 181.096754mg
Width 6.2mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments TLC5952DAPR | Texas Instruments

Texas Instruments

Datasheets

 Arrow Electronics
 DigiKey
 Texas Instruments

Lifecycle Status Indicator

   Production

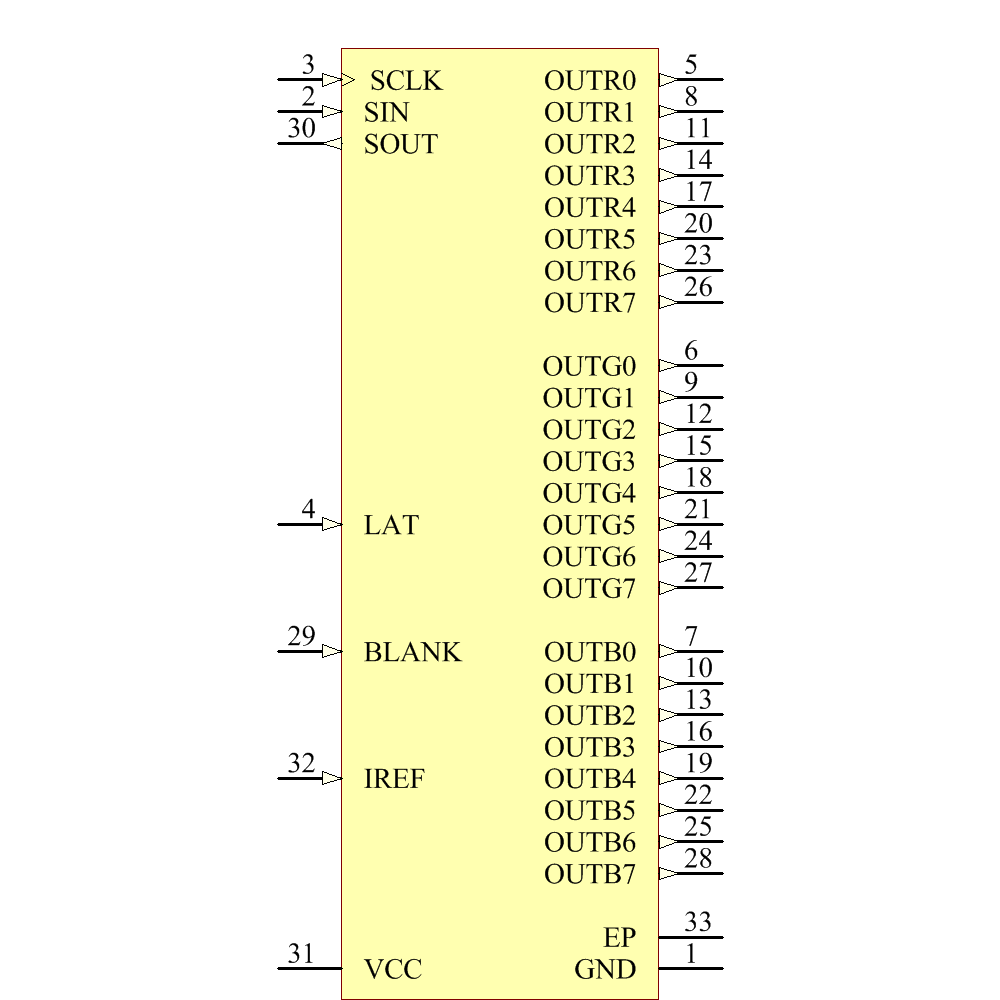

Symbol

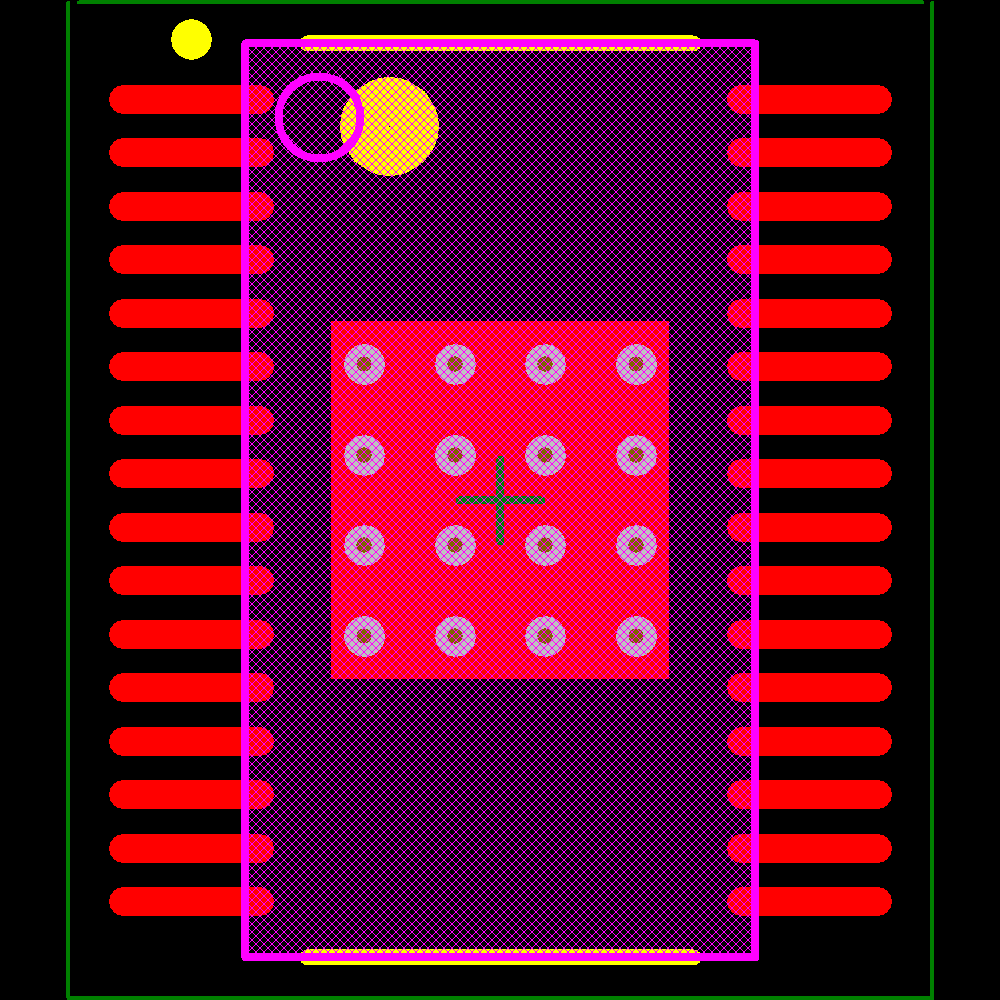

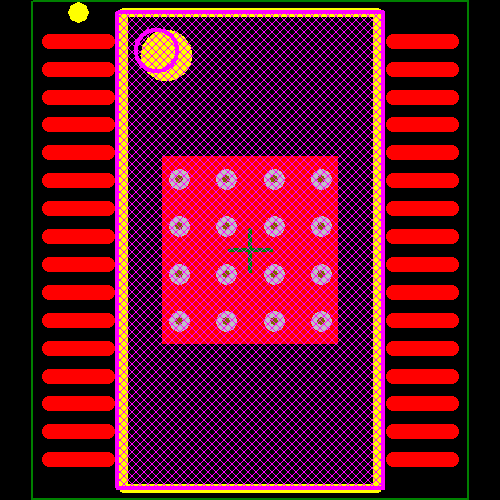

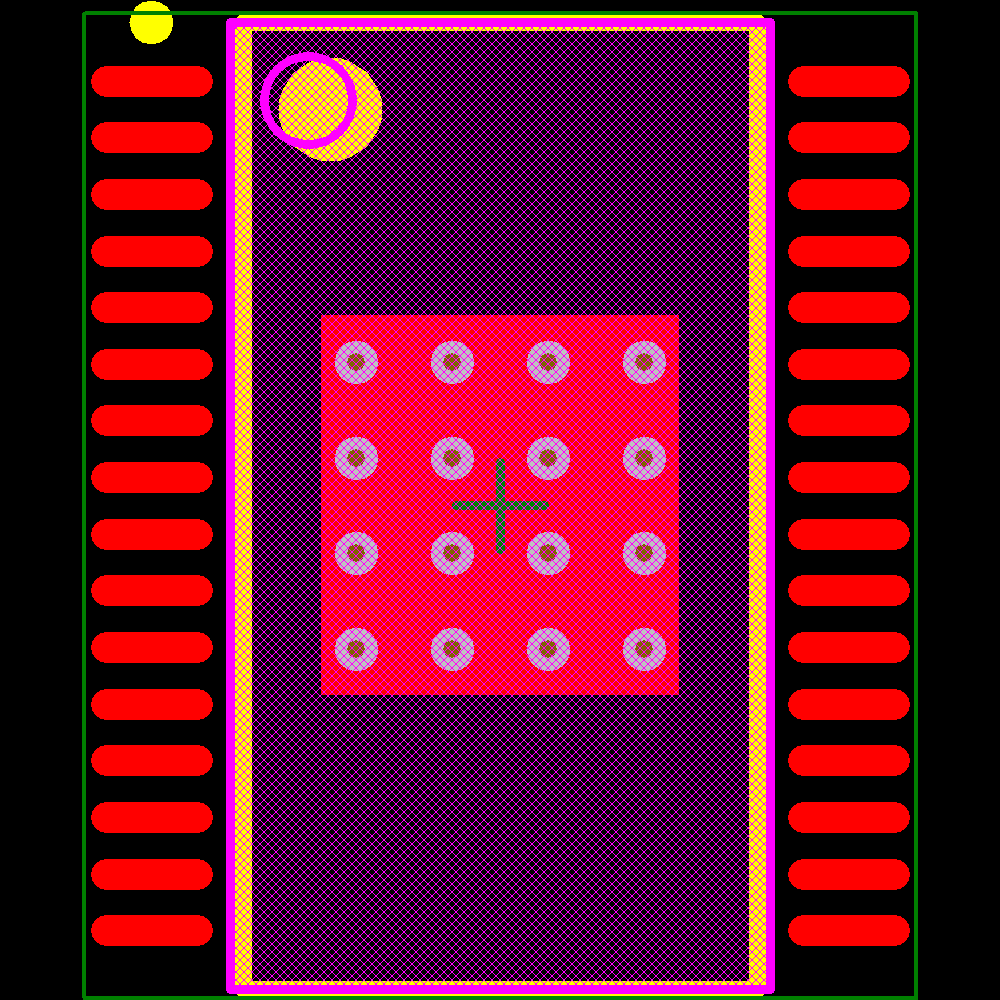

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Texas Instruments
TLC5952DAP
Production
Analog Devices
MAX6974ATL
Obsolete
Texas Instruments
TLC5951RHAR
Production
Texas Instruments
LP5024RSMR
Production
Texas Instruments
LP5018RSMR
Production
Texas Instruments
TLC5951RHAT
Production
Texas Instruments
HPA01116RHBR
Production
Texas Instruments
TLC5951DAP
Production
Texas Instruments
TLC5951RTAR
Production
Texas Instruments
TLC5951DAPR
Production

See more alternatives See less alternatives
