TLC5971RGER - Texas Instruments

12-channel, 16-bit ES-PWM RGB LED driver with 3.3V Linear Regulator 24-VQFN -40 to 85

Technical Details

Case/Package	VQFN
Contact Plating	Gold
Frequency	12MHz
Height	1mm
High Level Output Current	-2mA
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Low Level Output Current	2mA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	17V
Max Operating Temperature	85°C
Max Power Dissipation	3.106W
Max Supply Current	4mA
Max Supply Voltage	17V
Min Input Voltage	6V
Min Operating Temperature	-40°C
Min Supply Voltage	6V
Nominal Supply Current	36mA
Number of Outputs	12
Number of Pins	24
Number of Segments	12
Output Voltage	17V
Packaging	Cut Tape (CT)
Power Dissipation	3.106W
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	880µm
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TLC5971RGER | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

Symbol

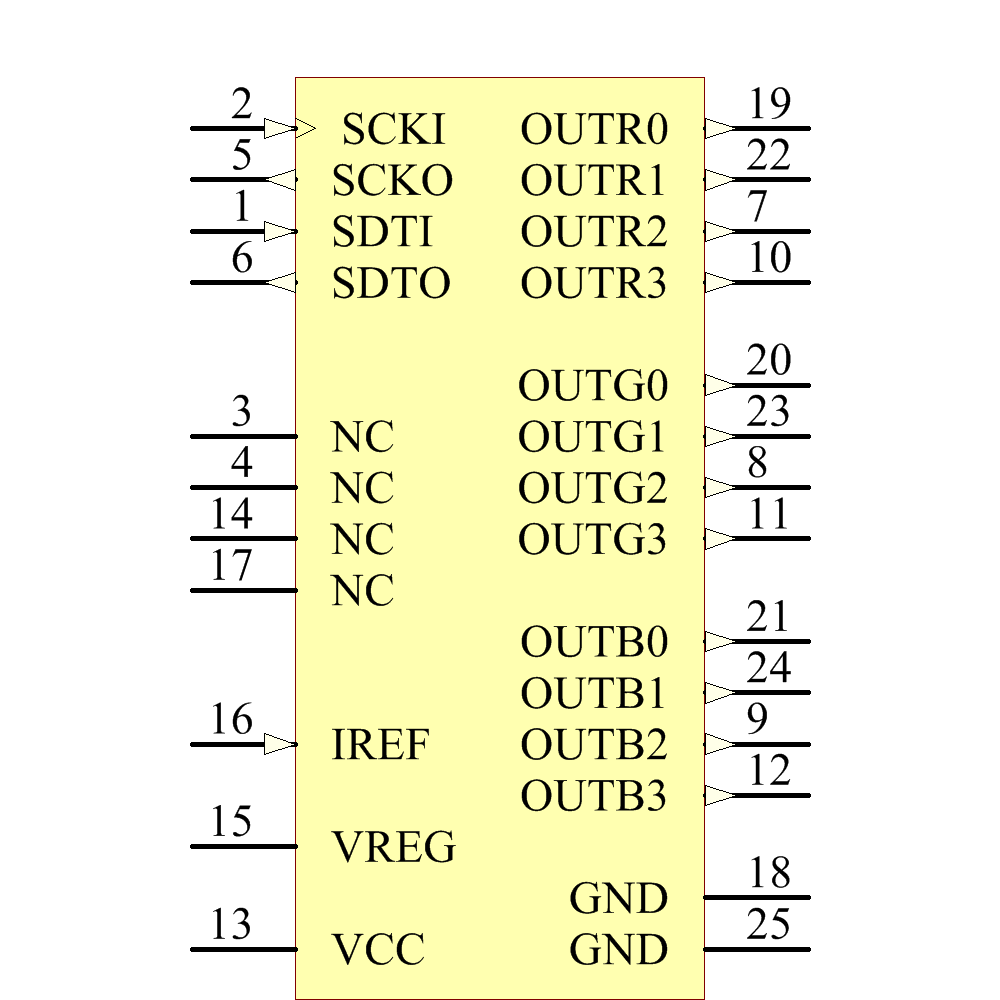

TLC5971RGER Symbol - Texas Instruments

TLC5971RGER Symbol - Texas Instruments

TLC5971RGER Symbol - Texas Instruments

TLC5971RGER Symbol - Texas Instruments

‹ ›

Footprint

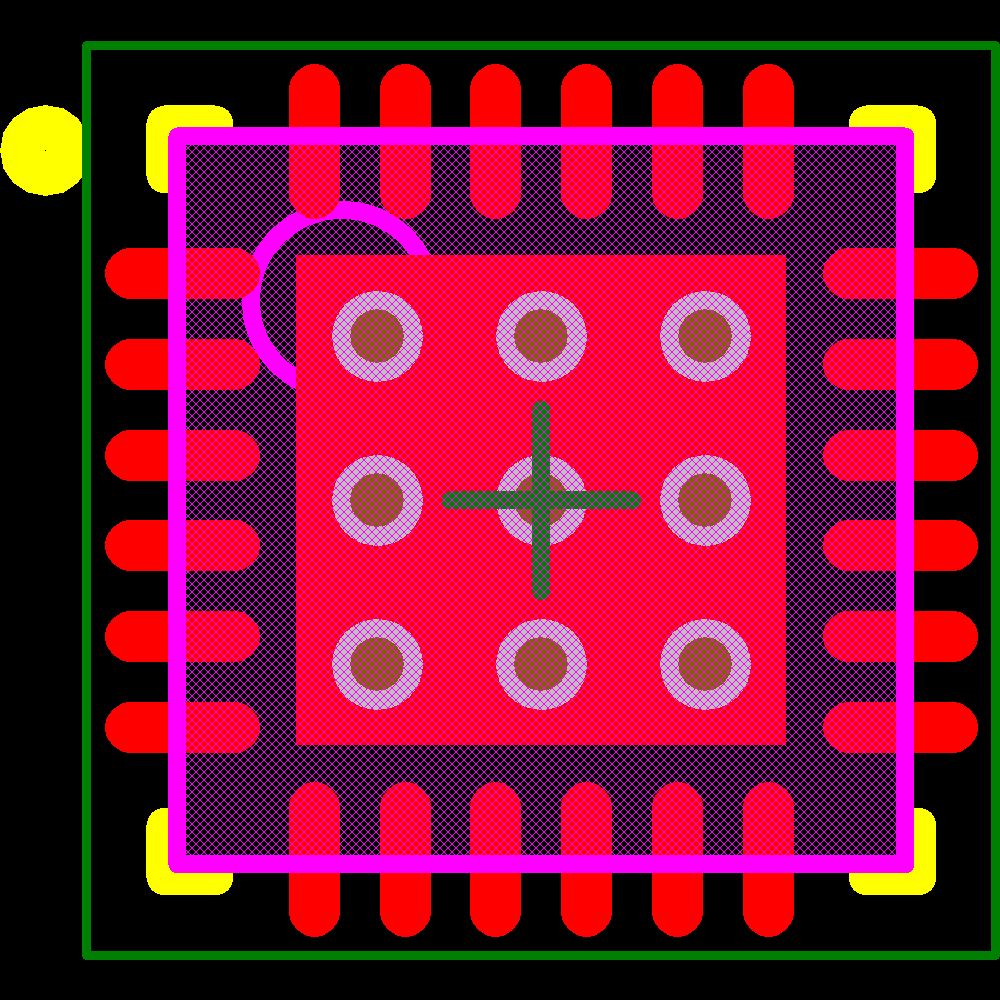

TLC5971RGER Footprint - Texas Instruments
