Texas Instruments - TLC5973DR

TLC5973DR - Texas Instruments

3-channel, 12-bit PWM constant current LED driver 8-SOIC -40 to 125

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Case/Package SOIC
Contact Plating Gold
Frequency 12MHz
Height 1.75mm
High Level Output Current -2mA
Lead Free Lead Free
Length 4.9mm
Lifecycle Status Production
Low Level Output Current 50mA
Manufacturer Lifecycle Status ACTIVE
Max Input Voltage 6V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 125°C
Max Output Current 50mA
Max Output Voltage 21V
Max Supply Current 10mA
Max Supply Voltage 5.5V
Min Input Voltage 3V
Min Operating Temperature -40°C
Min Supply Voltage 3V
Mount Surface Mount
Nominal Input Voltage (DC) 5V
Nominal Supply Current 10mA
Number of Channels 3
Number of Outputs 3
Number of Pins 8
Operating Supply Voltage 5V
Output Current 50mA
Output Current per Channel 50mA
Output Voltage 21V
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Switching Frequency 12MHz
Thickness 1.58mm
Topology Boost
Width 3.91mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments TLC5973DR | Texas Instruments

Texas Instruments

Datasheets

 DigiKey
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

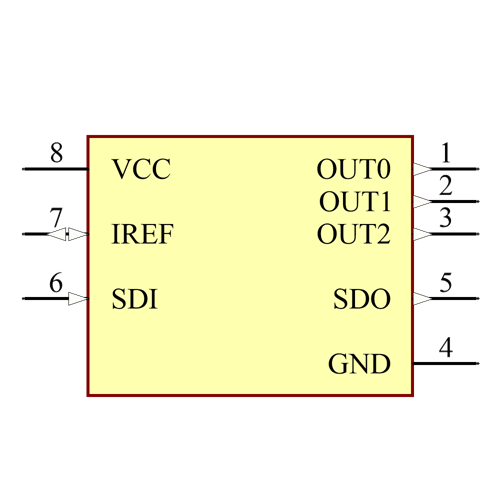

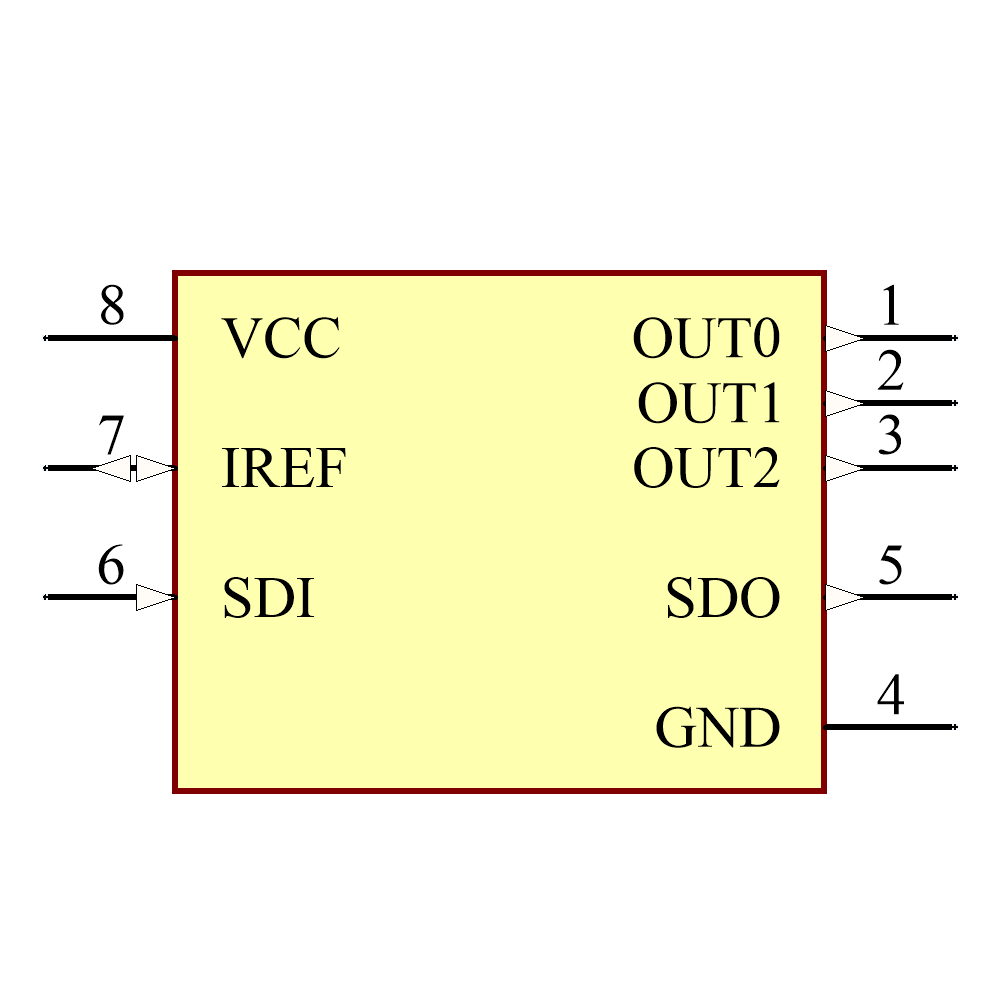

Symbol

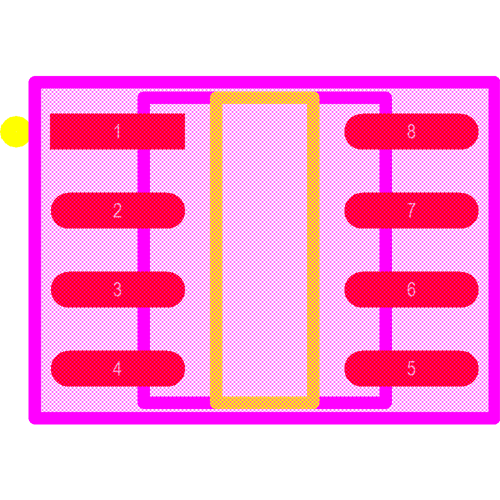

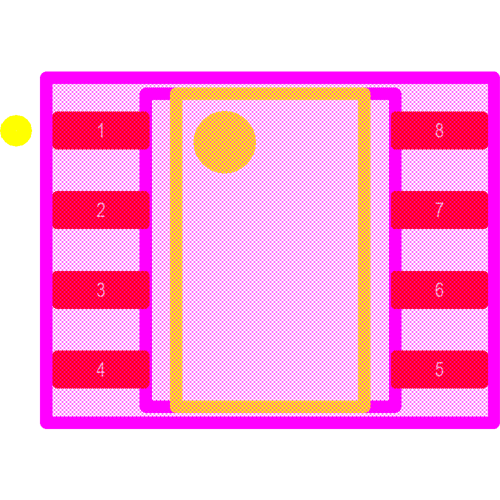

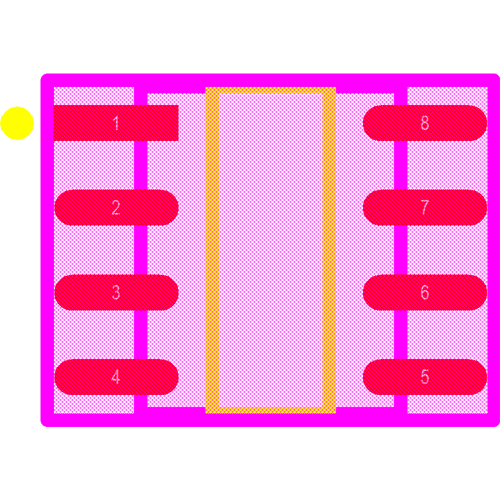

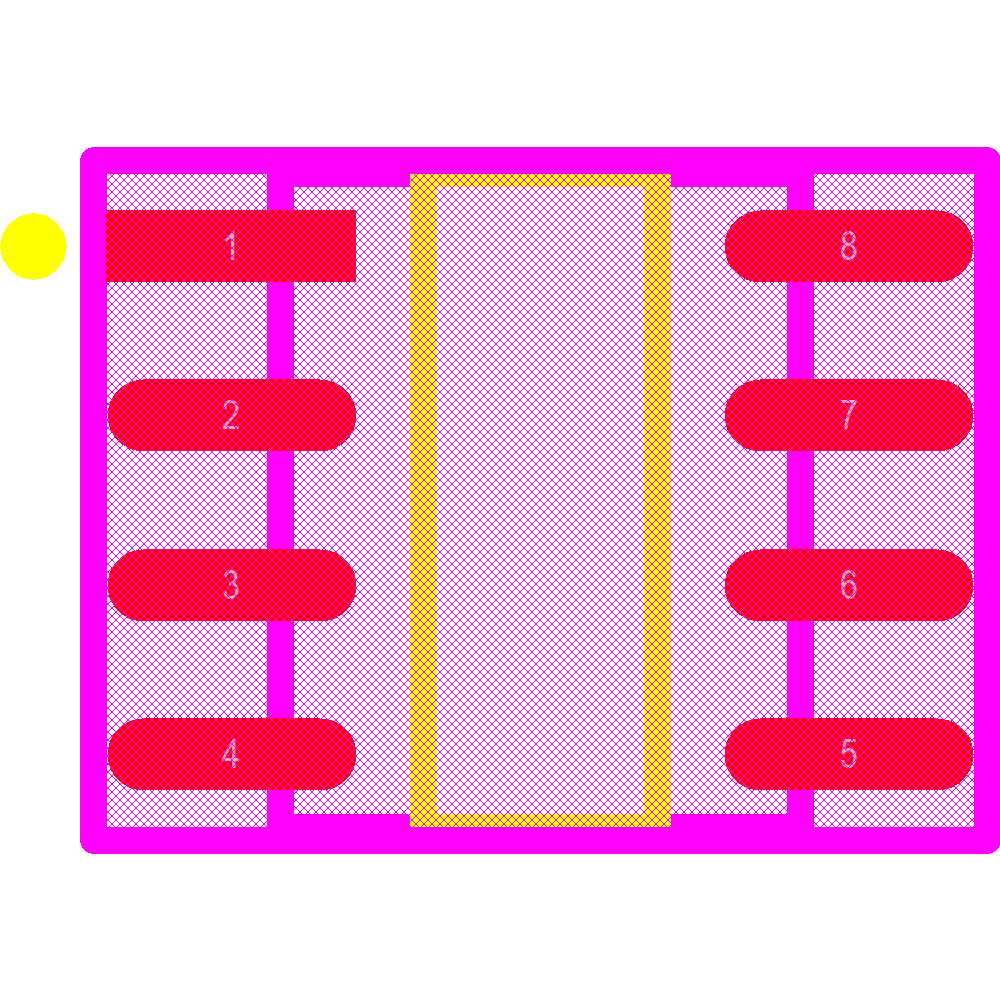

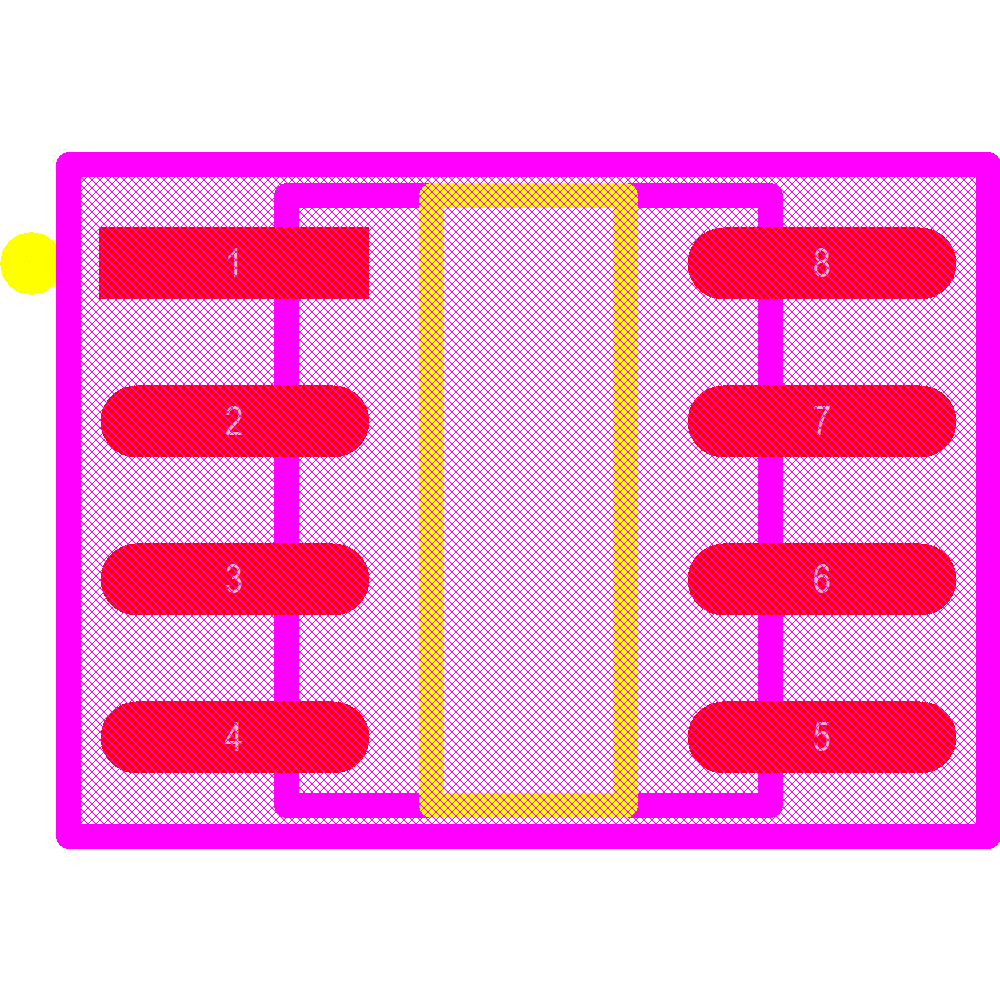

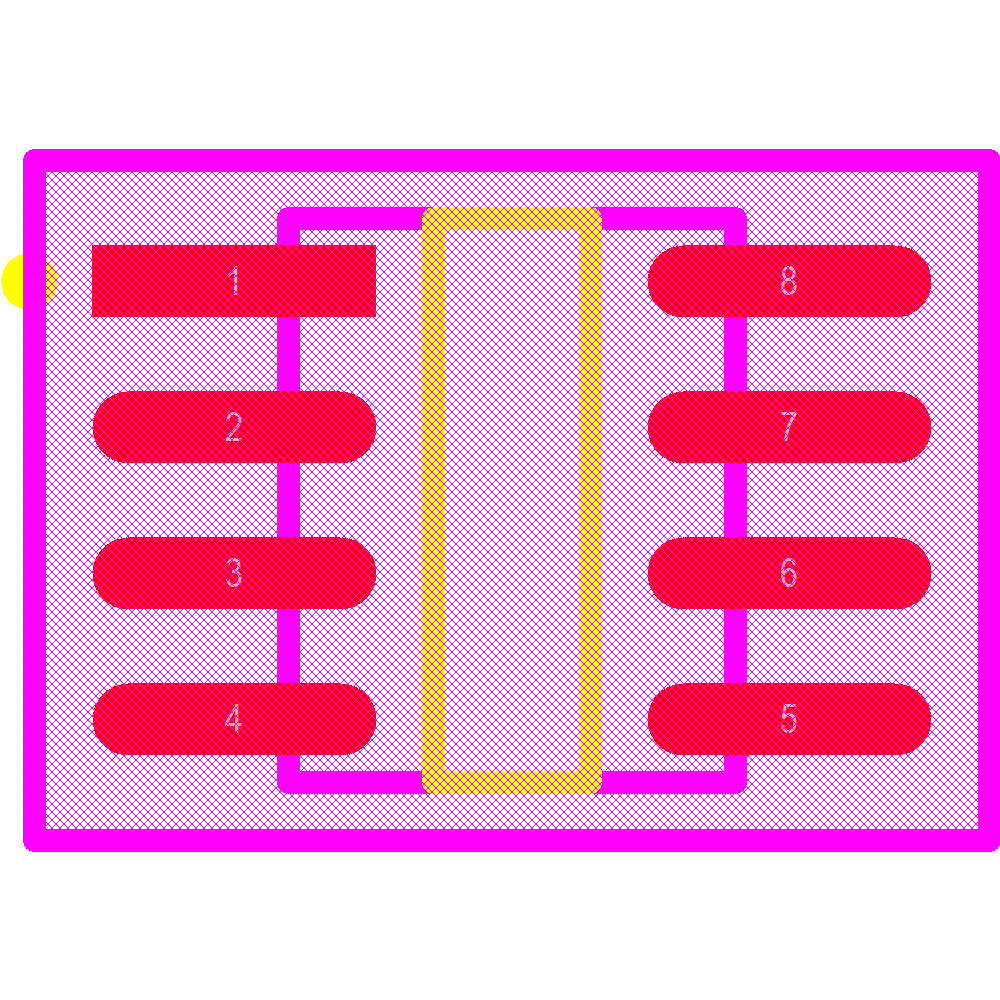

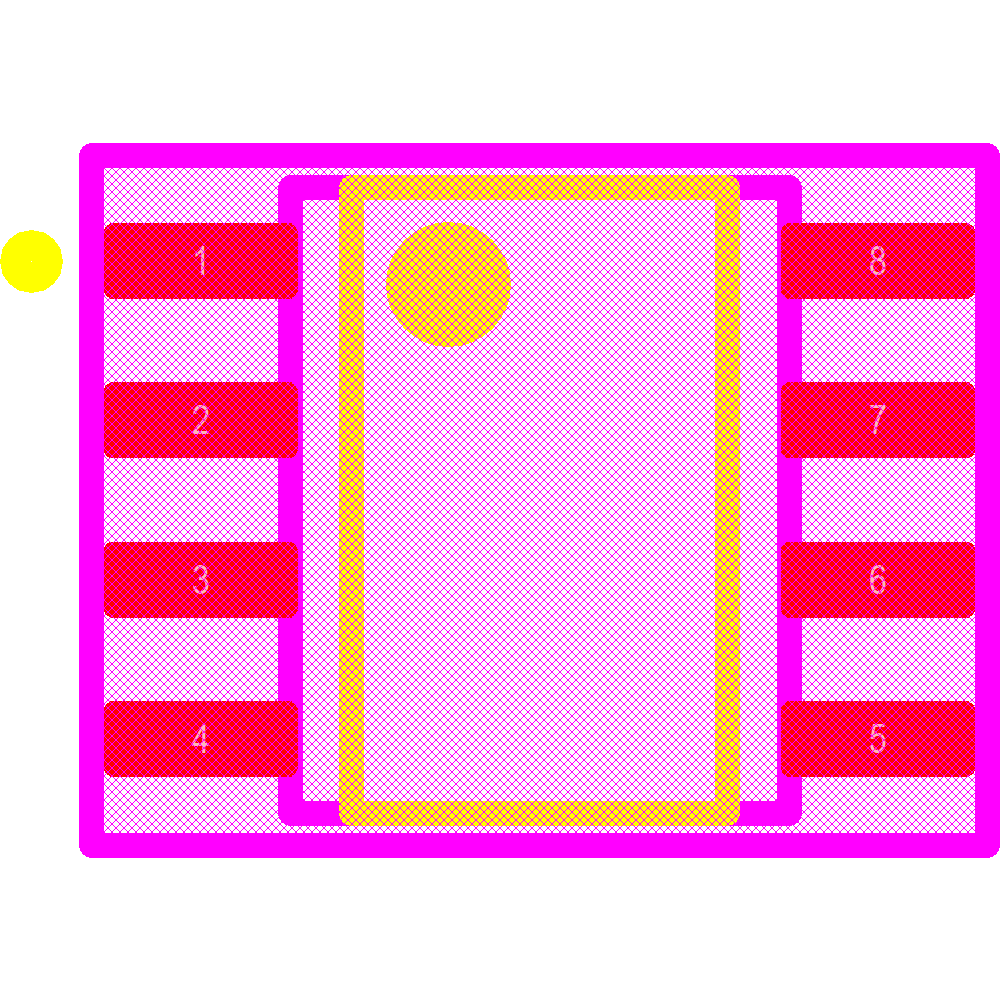

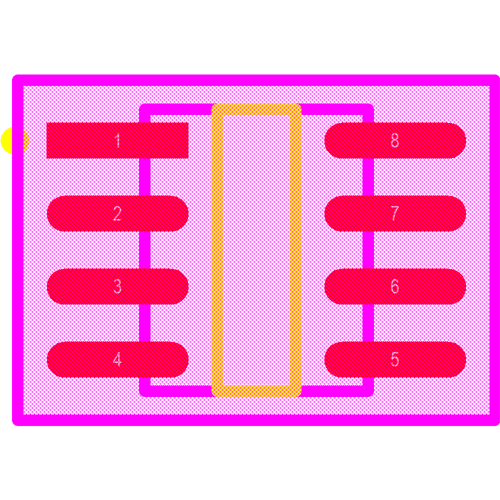

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Texas Instruments
TLC5973D
Production
Monolithic Power Systems
MP4068GN
Production
Monolithic Power Systems
MP4068GN-Z
Production
MaxLinear
XRP7604EDB-F
Obsolete
Diodes Inc.
AP8802HSP-13
Production
onsemi
NCL30160DR2G
EOL
Diodes Inc.
AP8800SG-13
Obsolete
Infineon
ILD4180
Obsolete
Diodes Inc.
AP8801SG-13
NRND
MaxLinear
XRP7603EDBTR-F
Obsolete

See more alternatives See less alternatives
