TLC6C598QPWRQ1 - Texas Instruments
Automotive power logic 8-bit Shift Register LED driver 16-TSSOP -40 to 125
Technical Details
| Ambient Temperature Range High | 125°C |
| Case/Package | TSSOP |
| Contact Plating | Gold |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Logic Function | Shift Register |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Input Voltage (DC) | 5.5V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 50mA |
| Max Output Voltage | 40V |
| Max Supply Current | 88µA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Input Voltage (DC) | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 5V |
| Nominal Supply Current | 230µA |
| Number of Channels | 8 |
| Number of Elements | 1 |
| Number of Outputs | 9 |
| Number of Pins | 16 |
| Output Current per Channel | 50mA |
| Output Voltage | 40V |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

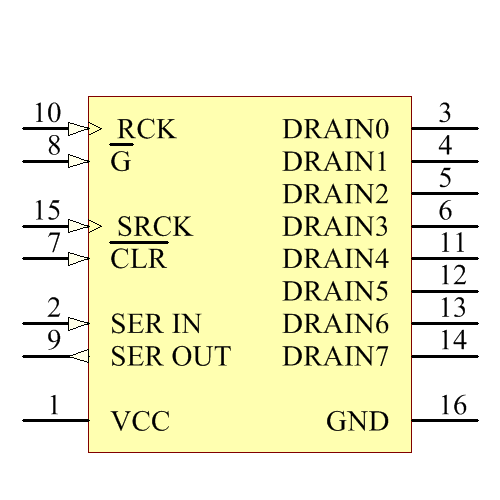

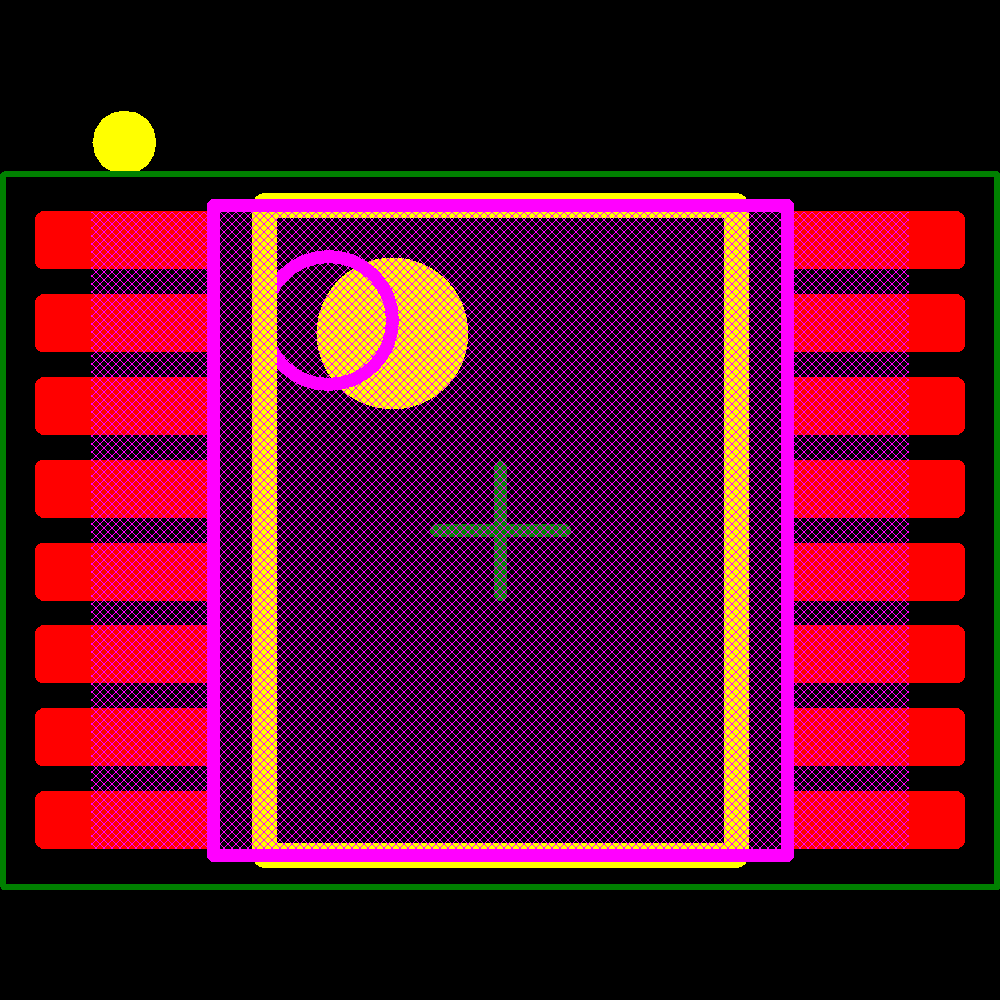

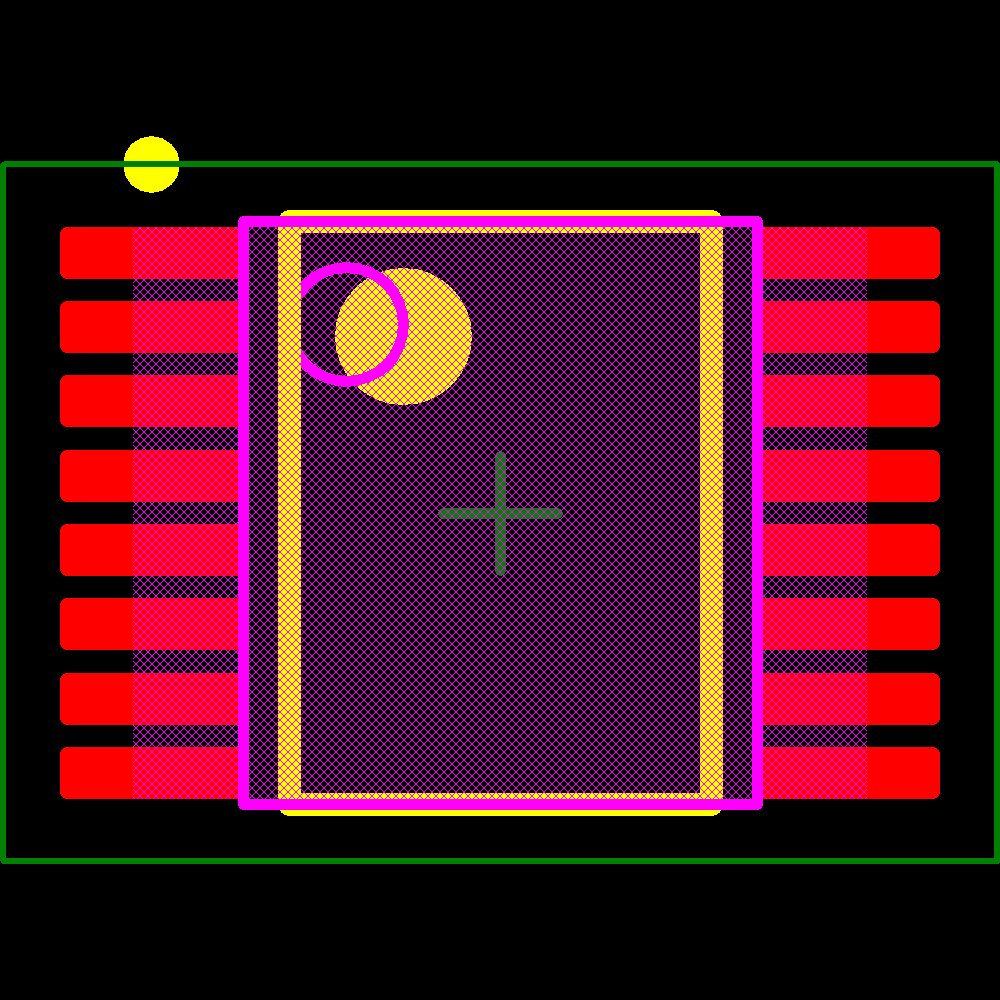

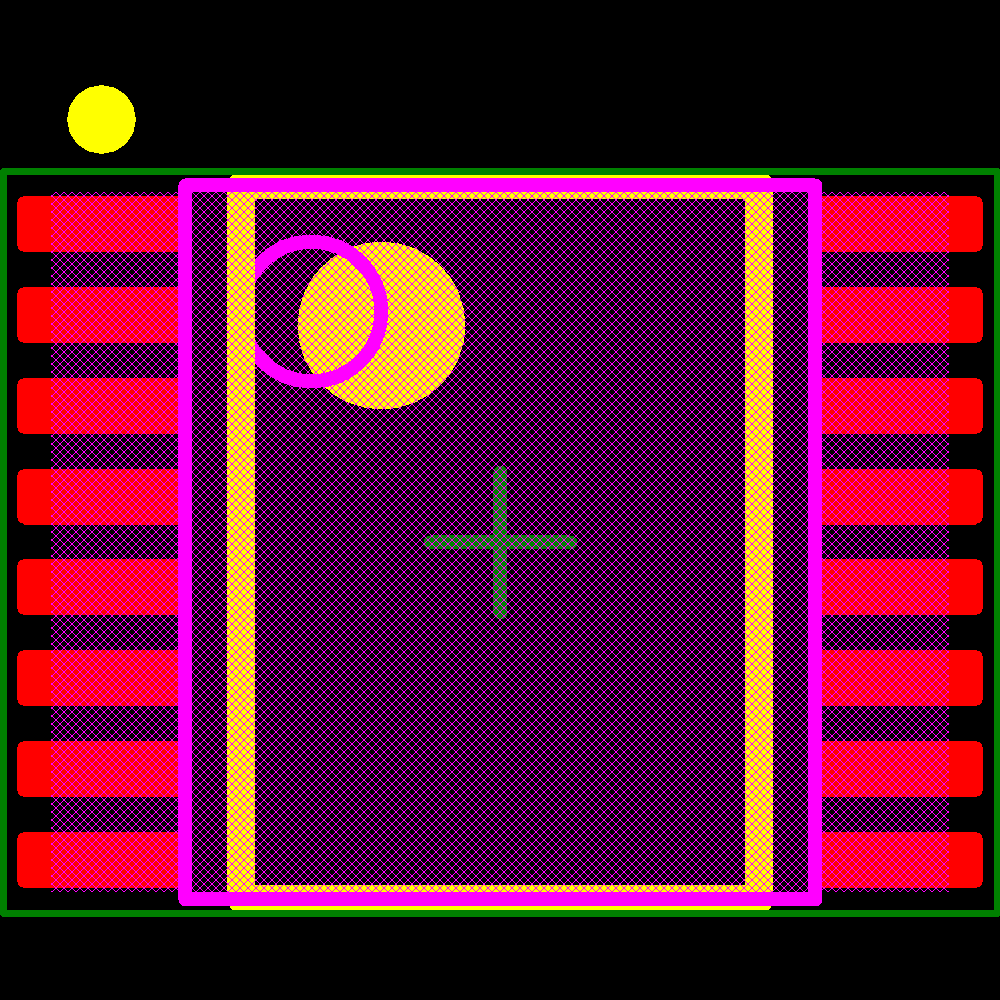

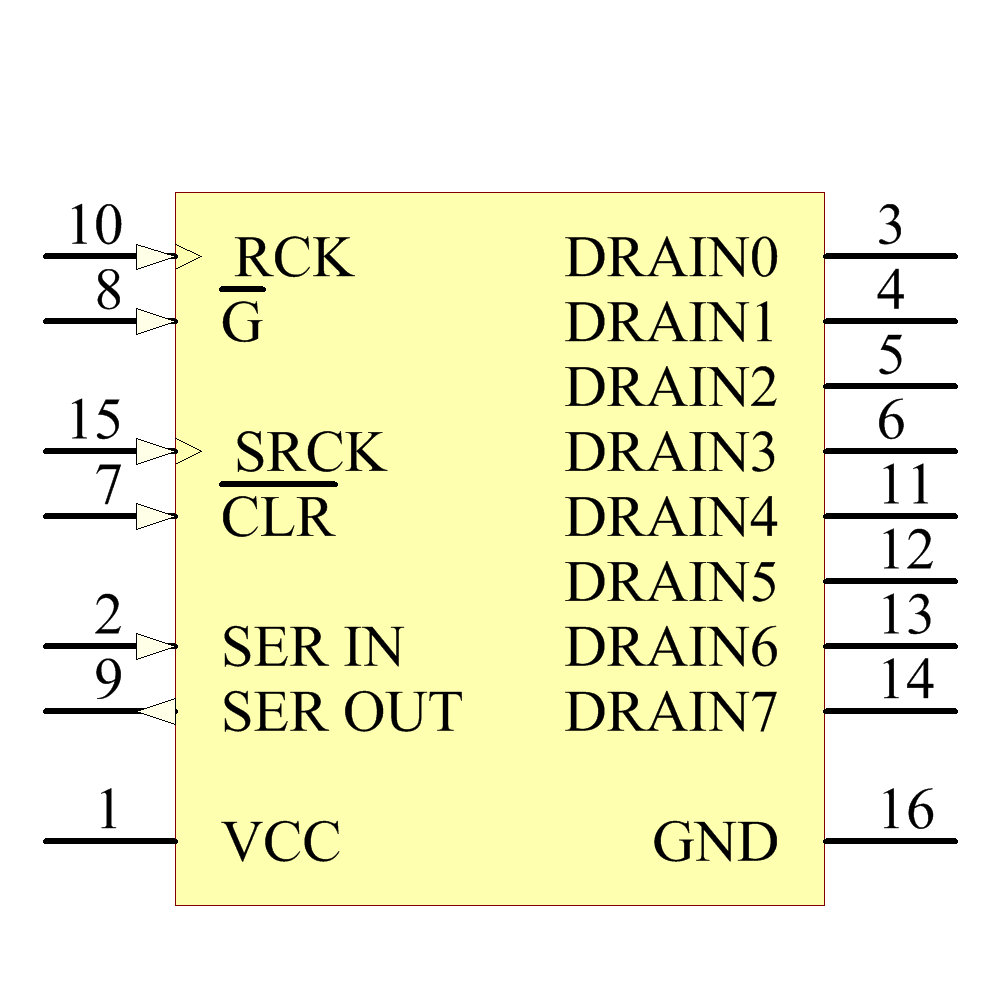

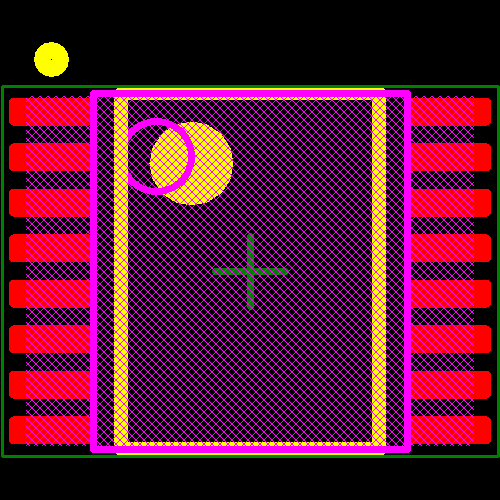

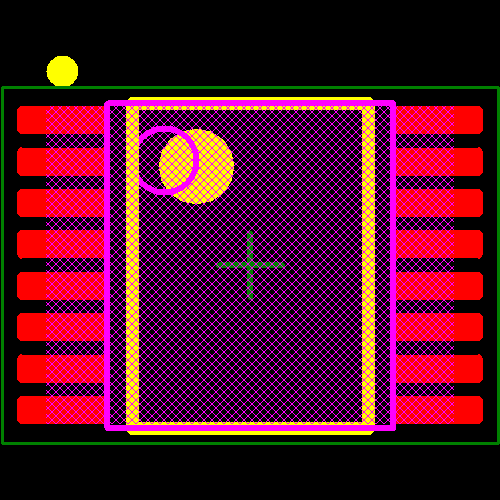

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Diodes Inc. | Production | ||
| STMicroelectronics | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Production |
